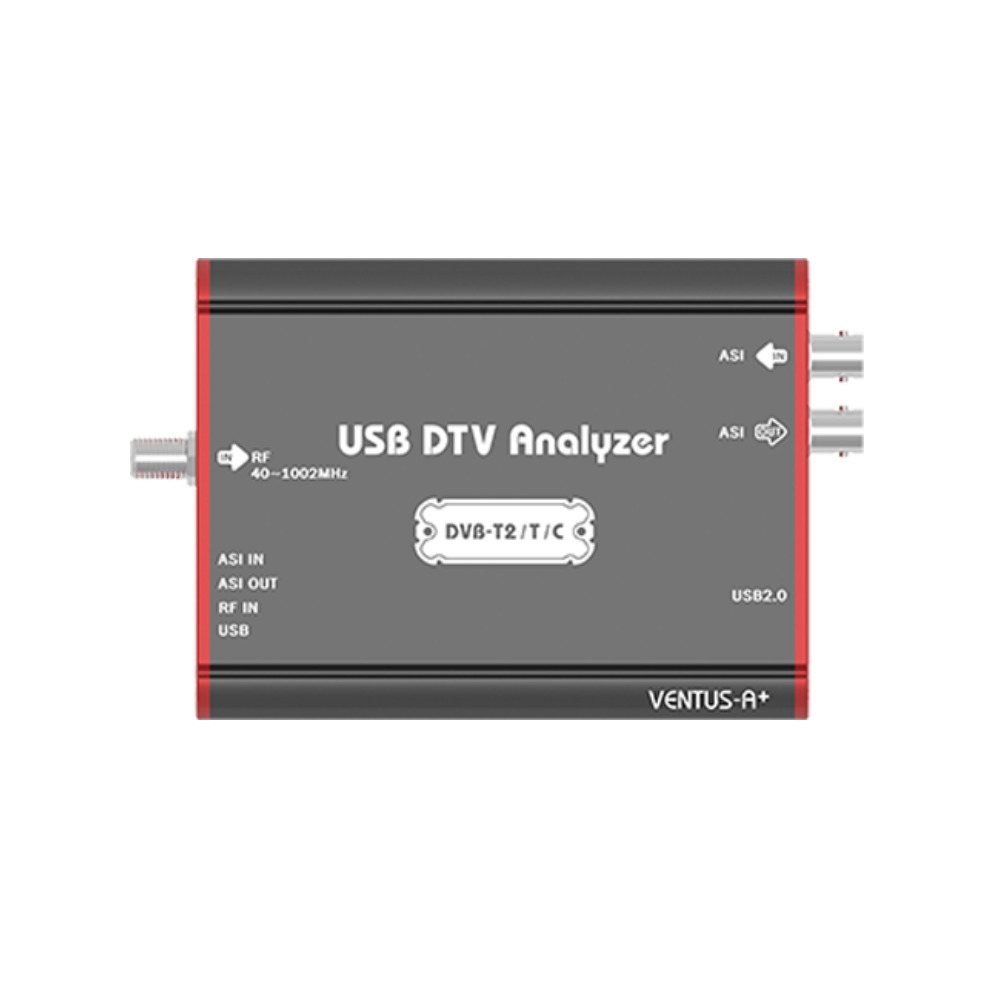

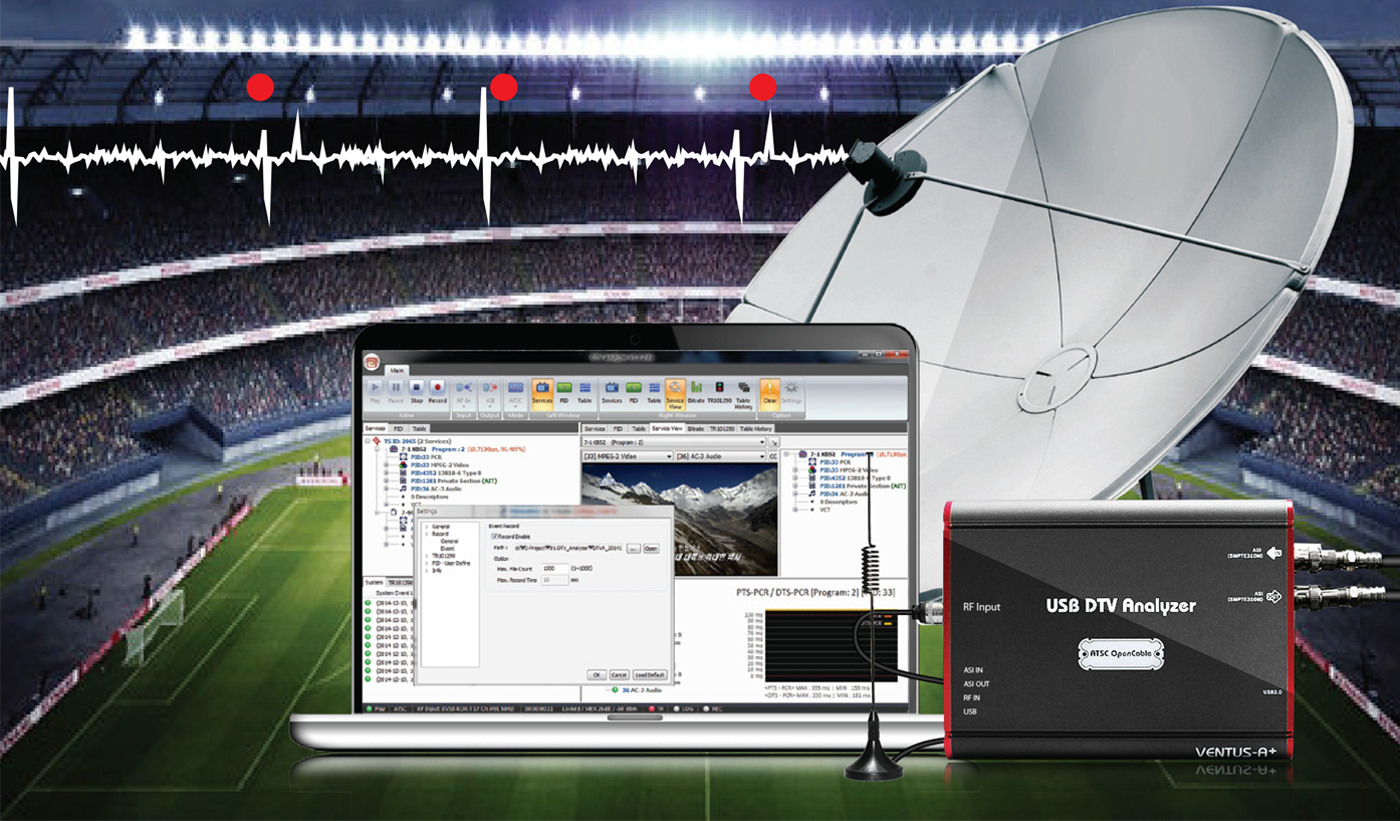

DTV Analyzer
Stream Analyzer-Recorder-Playback

It is essential, when error happens, what caused the error. LUMANTEK’s DTV Analyzer can take in RF signals to analyze MER / POWER and analyze transport stream based on ATSC and DVB standard through ASI, RF, and IP(UDP).

DTV ANALYZER

USB 2.0 MPEG STREAM ANALYZER / RECORDER / PLAYBACK

Real-time & Offline TS Analysis

It is essential, when error happens, what caused the error. LUMANTEK’s DTV Analyzer can take in RF signals to analyze MER / POWER and analyze transport stream based on ATSC and DVB standard through ASI, RF, and IP(UDP).

Stream Analyzing

– Service
– PID
– Real-time Decoding (HEVC)
– Bitrate
– TR101290
– PTS-PCR / DTS-PCR

Event Trigger and Record

This optional function allows activation of analysis when an error occurs.

Control with USB 2.0

Use the DTV Analyzer and the PC to find out what was the problem.

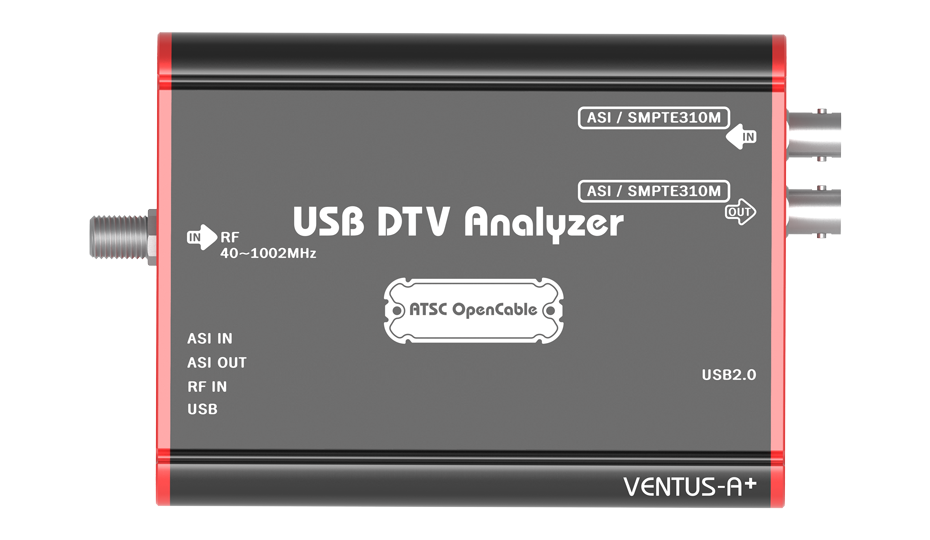

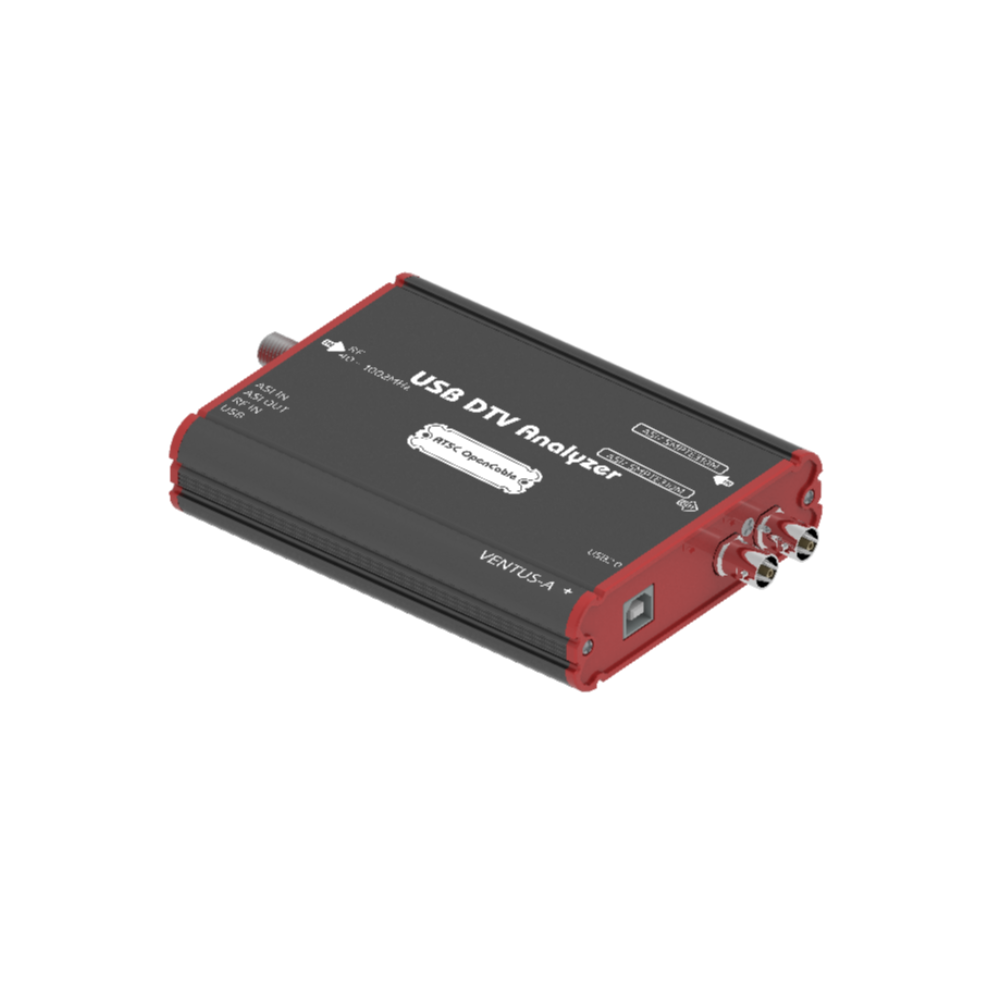

DTV Analyzer

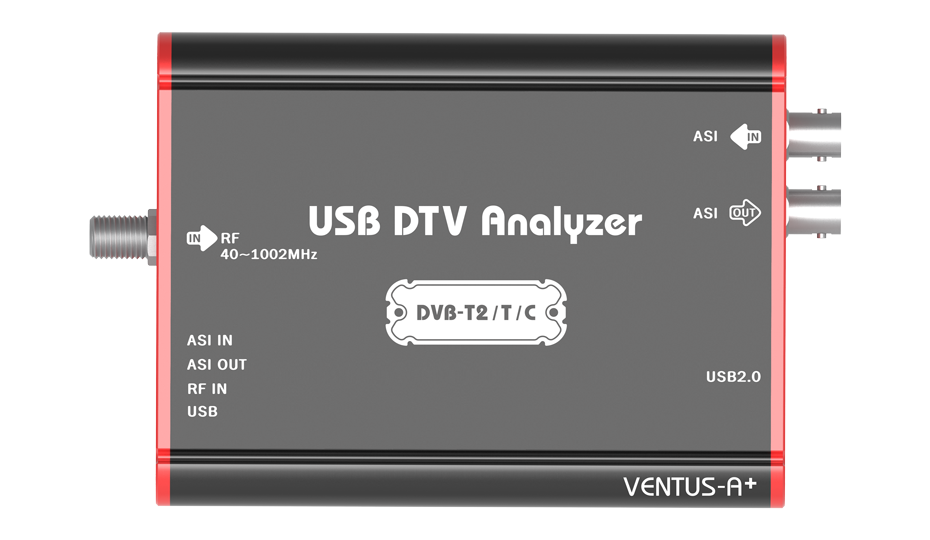

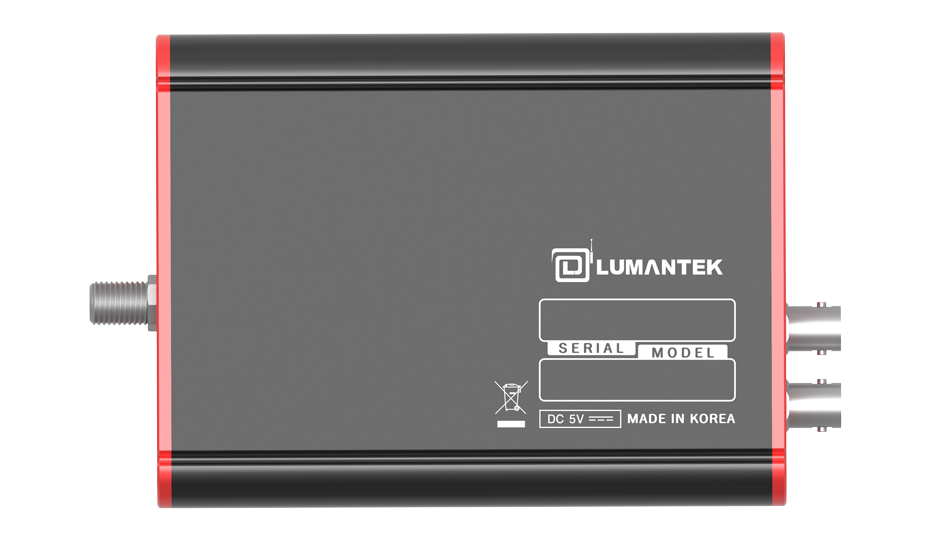

Input Ports

Signal Input:
1 x RF
1 x BNC (ASI)

Control:
1 x USB 2.0

DTV Analyzer

Output Ports

Signal Output:
1 x BNC (ASI)

Close Caption Analysis

It is important to find out what is the error, and where and when it happened. LUMANTEK’s DTV Analyzer can visualize the error and help you fix the problem with ease.

TECH SPECS

DTV Analyzer

HIGH-LEVEL TS ANALYZER

Ordering Information

Designation Quote Code
Base Unit

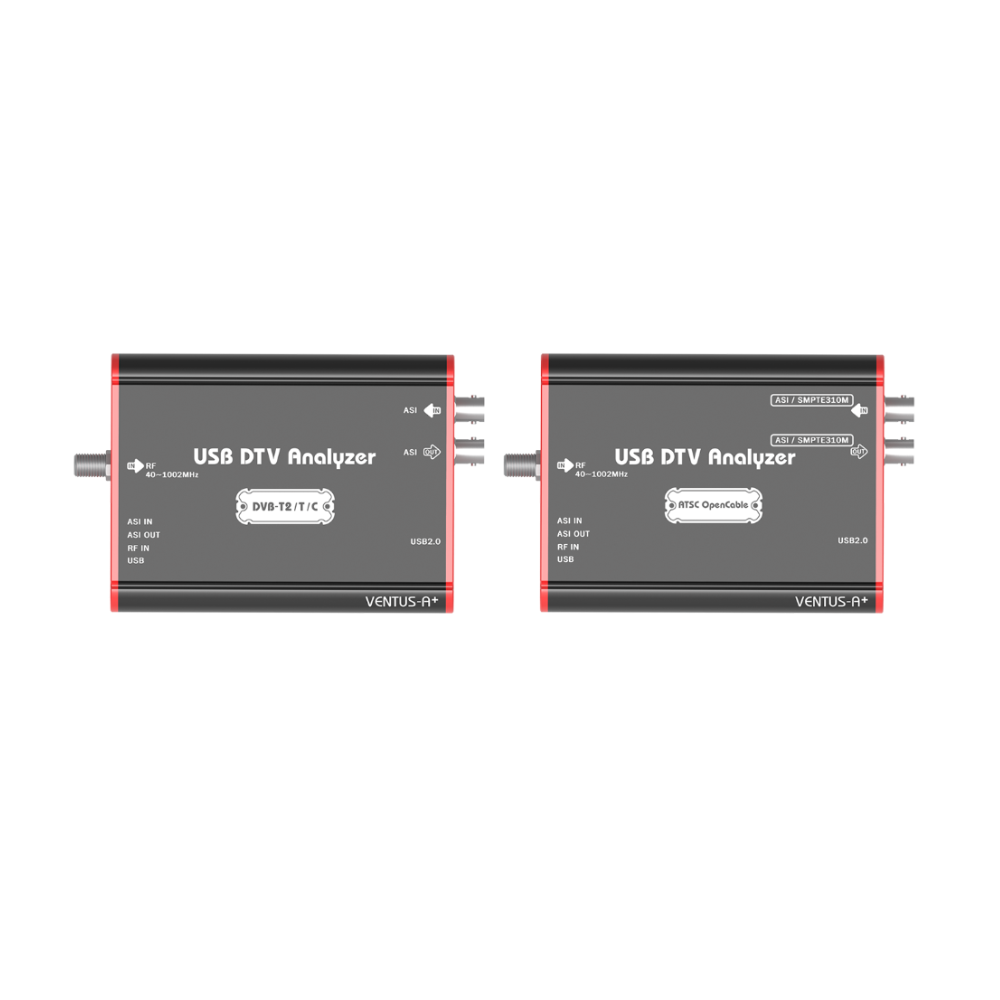

Ventus-A (USB-2 IASI In/Out, Adaptor & TSoIP) + DTV Analyzer LMTV-VA
VENTUS-A+ ( USB-2 In ASI/SMPTE In/Out, RF IN : ATSC, QAM-B Adaptor & TSoIP ) + DTV Analzyer LMTA-US
VENTUS-A+ ( USB-2 In ASI/SMPTE In/Out, RF IN :DVB-T/DVB-C/DVB-T2 Adaptor & TSoIP ) + DTV Analzyer LMTA-EU
Option Upgrade : Event TS Trigger
Event logs, triggers and reports for base lining and comprehensive monitoring Event TS triggered by Max/Min MER, Power level, TR290110.		 LMTA-ET

※ Important Notice: This price table, including all attachments, may contain highly confidential, sensitive, legally privileged, as we have signed on NDA. Any review, retransmission, dissemination or other use of this information by persons or entities other than the intended recipient is prohibited.

* LUMANTEK maintains a price table of product improvement and reserve the right to modify the specifications without notice

H/W Specifications

Demodulation 8VSB, OpenCable(64QAM, 256QAM)
Size 154mm x 76.8mm x 28.4mm
Power USB 2.0 bus powered, no power supply required.
RF input connector 75Ω F-Type 1ea
ASI/SMPTE310M input connector 75Ω BNC 1ea
ASI/SMPTE310M output connector 75Ω BNC 1ea
ASI input bit-rate 0~108Mbps
ASI output bit-rate 0~108Mbps
SMPTE310M input bit-rate 19.392Mbps
SMPTE310M output bit-rate 19.392Mbps
RF Input Frequency Range 40 ~ 1002 MHz
RF Input Level +7 ~ -84 dBm

S/W Specifications

TS Input ASI, SMPTE310M
TS Output ASI or SMPTE310M (Allow when input is ASI, SMPTE310M)
Analysis Mode MPEG-2, ATSC, DVB, ISDB
7 Analysis Window Tab Service, PID, Table, Service View, Bit-rate, TR 101 290, Table History
Recommended system requirements – CPU : better than Intel Core i3 3.1GHz (Sandy Bridge)
-RAM : better than 2GB
-OS : Window 7
– Resolution : bigger than 1680×1050

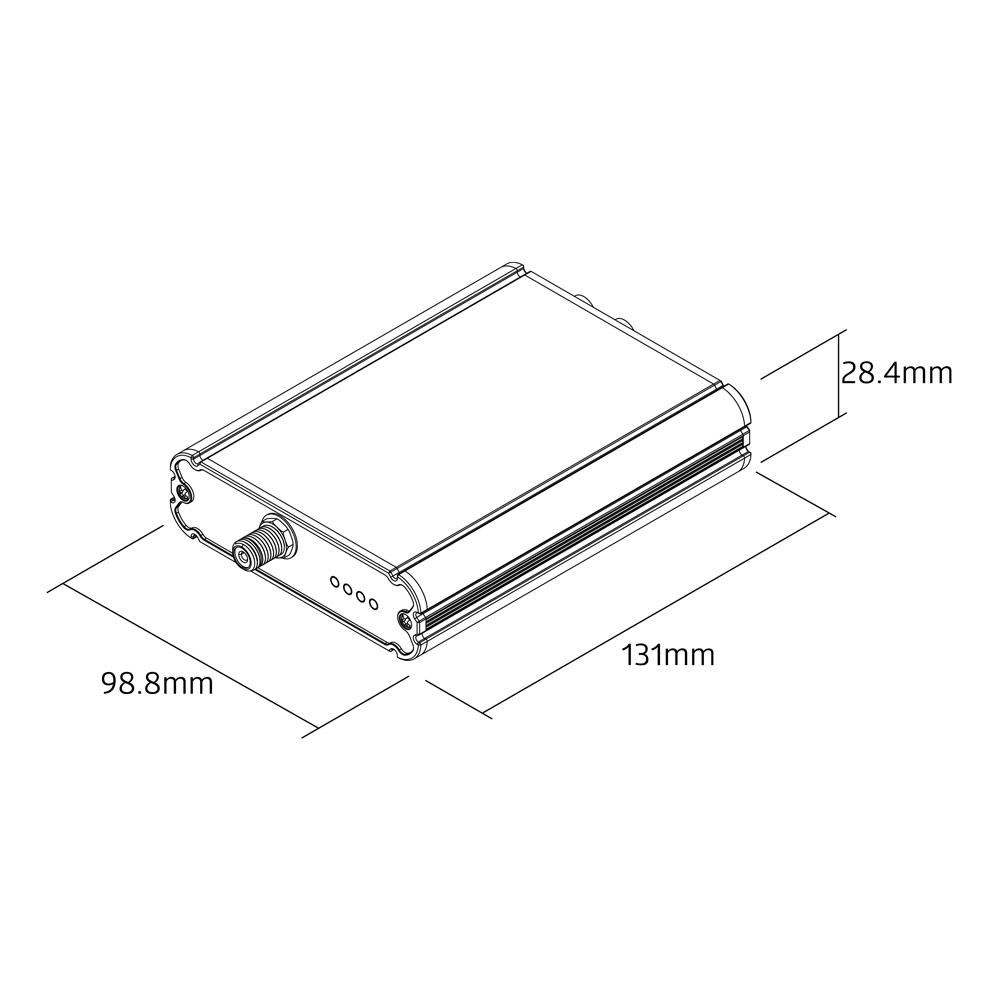

Dimensions

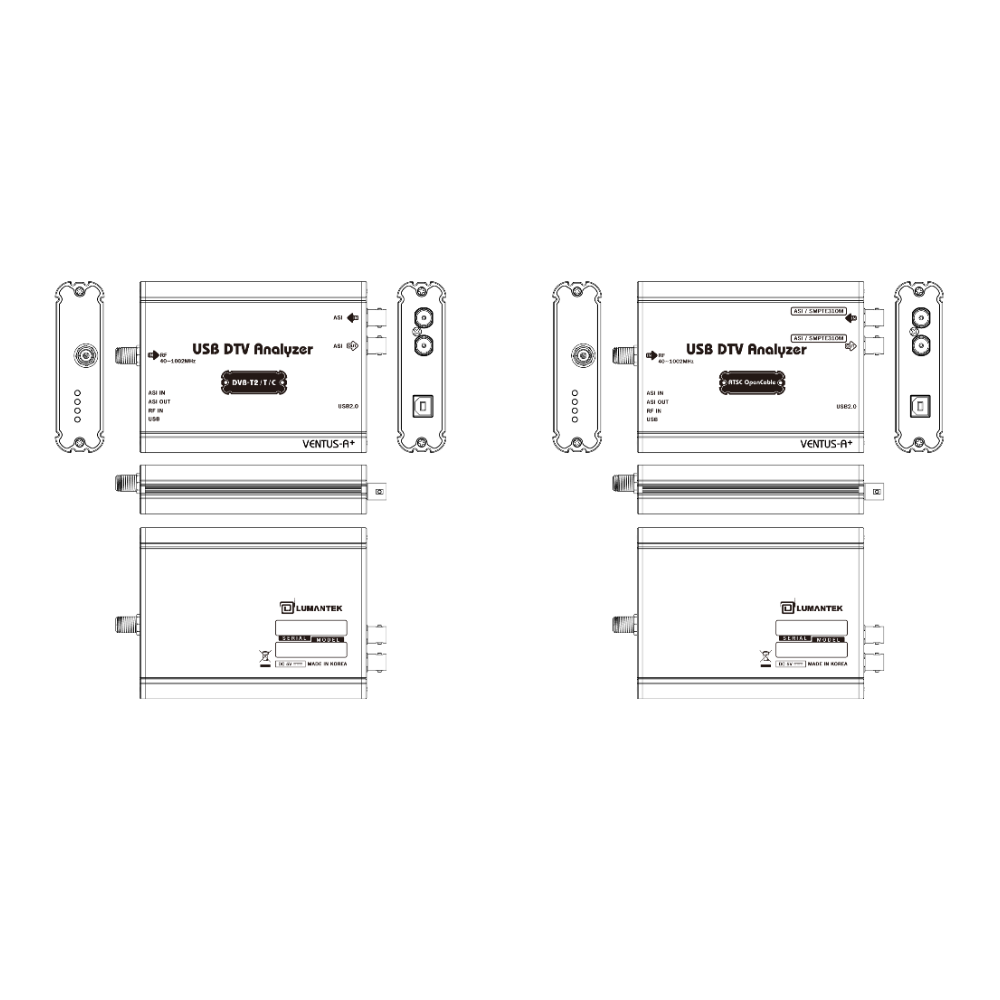

Design
