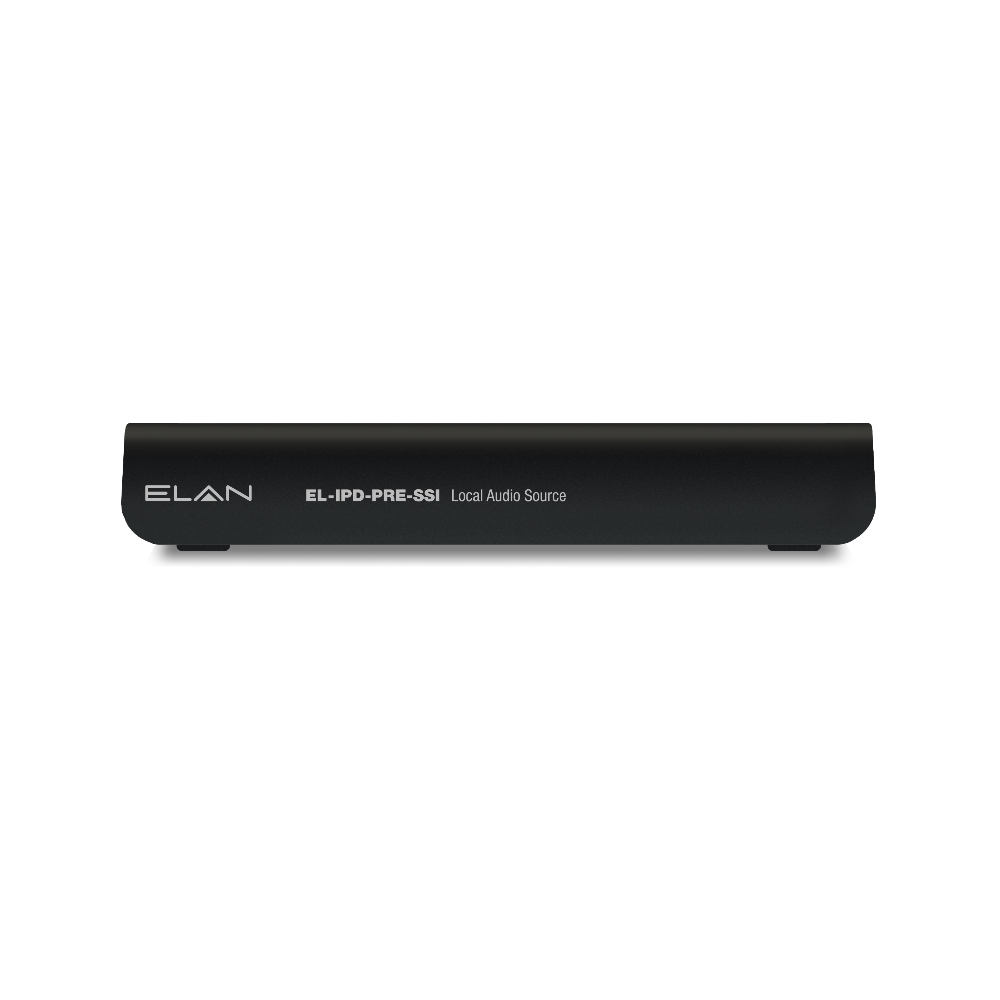

EL-IPD-PRE-SSI
Local Audio Source

The EL-IPD-PRE-SSI Local Audio Source provides a way to deliver 2 channel
PCM audio from a single remote source to an Nice/ELAN Dante™ enabled Audio
Matrix over an existing standard local area network.

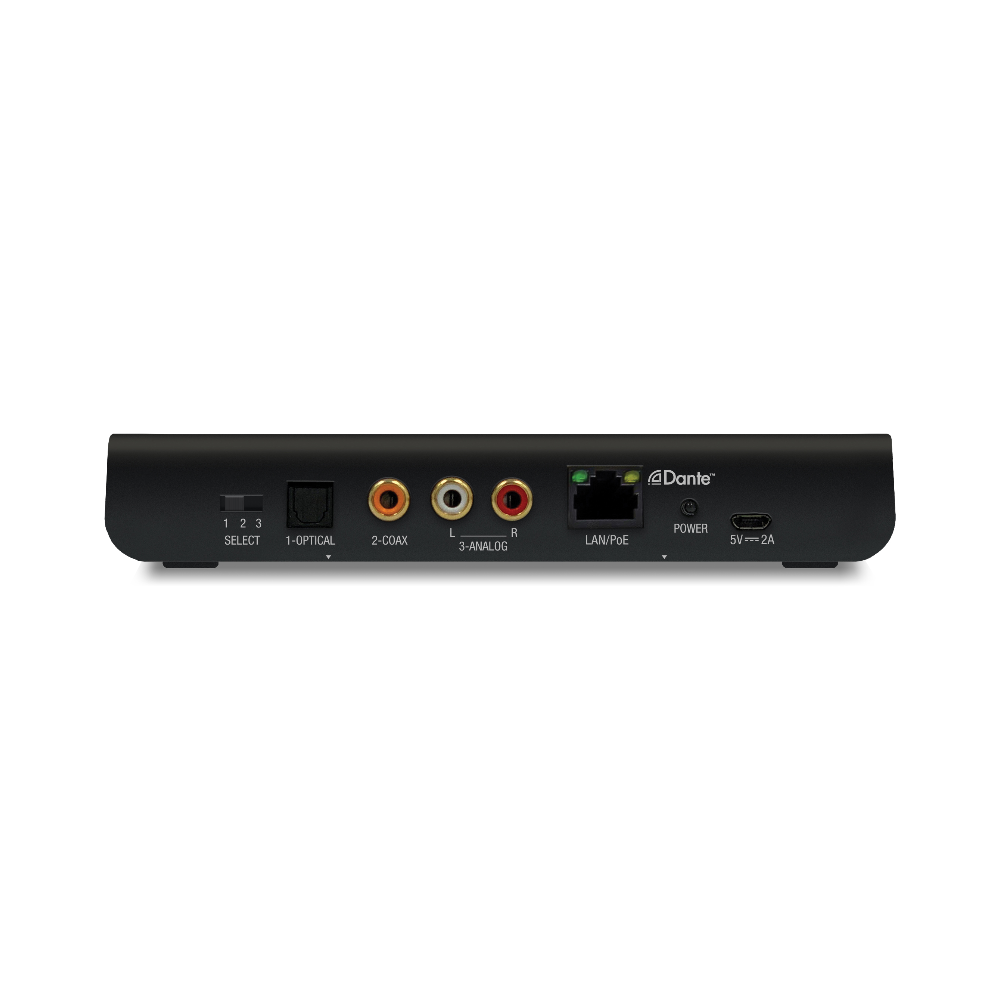

Connect to the optical, coaxial, or analog input on the EL-IPD-PRE-SSI Local Audio Source, and using an exisiting network, deliver audio from a remote source such as a TV or turntable to an Nice/ELAN Dante™ enabled audio distribution system

ELAN IP enabled audio distribution simplifies whole house audio distribution and enhances the intelligent home by delivering high quality audio over the existing network. Easily scaling from a single chassis solution to a decentralized multi-chassis / multi-source implementation, Nice/ELAN IP audio distribution meets the needs for projects of up to 64 individual zones.

FEATURES

  • Connects a remote audio source over the network to an Nice/ELAN IP amplifier using Dante™ audio networking
  • Includes optical, co-ax, and RCA analog input options

SPECIFICATIONS

Audio Inputs (one selectable)

  • 1 Optical TOSLINK Digital Audio Input, Stereo, PCM, 96Hz, 24-bit
  • 1 Coaxial RCA Digital Audio Input, Stereo, PCM, 96Hz, 24-bit
  • 1 Line Level Audio Input, Stereo
  •  Maximum Input Level 2.0 VRMS
  •  Input Sensitivity: 0dbV (1.0 VRMS)
  •  Input Impedance: 47k Ω to 49k Ω

Network

  • 10/100 Ehternet / PoE

Power

  • DC Input 5V, 2A
  • PoE 802.3af/at

Temperature

  • Operating Temperature: +5° C – +45° C (+41°F – +113°F)
  • Operating Humidity: 0 – 90% non-condensing
  • Storage Temperature: 0° C – +60° C (32°F – +140°F)

Dimensions

  • 4.09D X 7.04W X 1.00H in. / 10.38D X 17.88W X 2.54H cm

Weight

  • 0.65 lbs / 0.29 Kg
