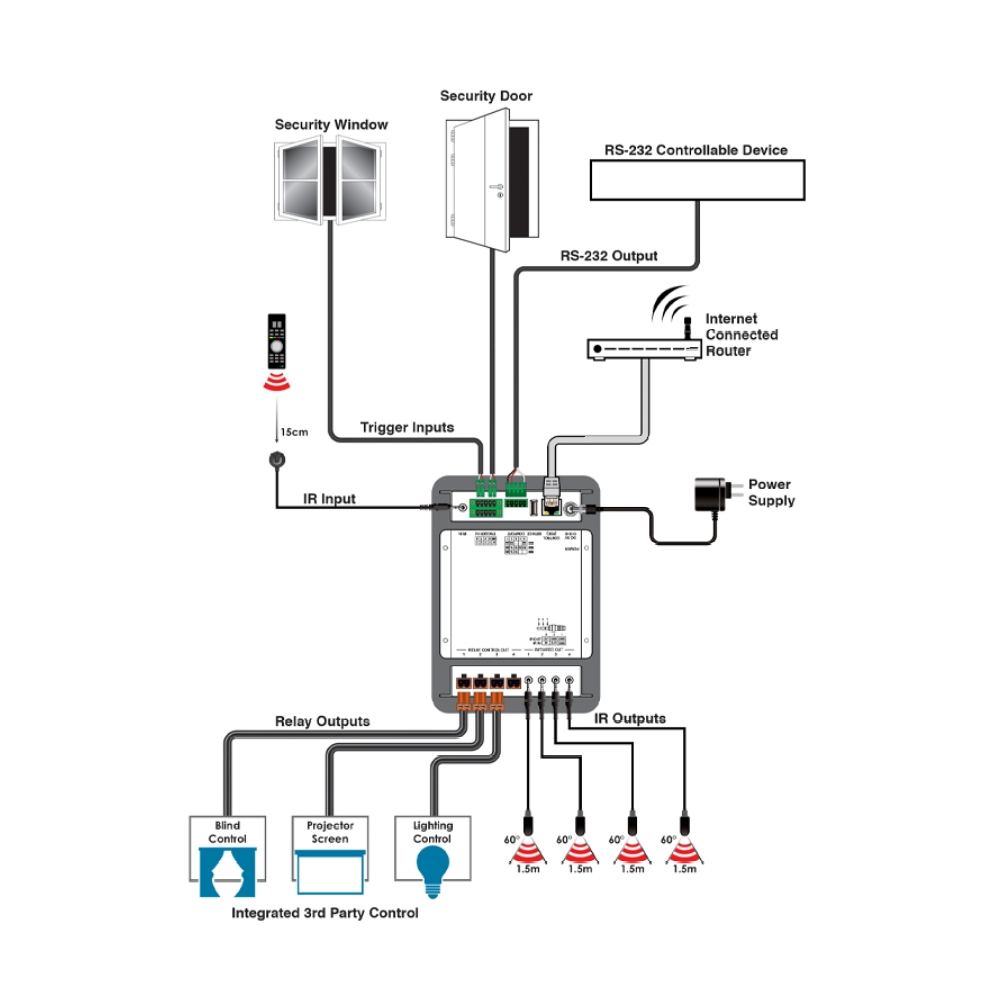

- 8 trigger inputs linked directly to 8 user macros allowing for instant control activation
- 4 relay trigger outputs to control devices such as projector screens, lighting, etc.
- 4 IR outputs to control devices such as TVs, media players, etc.
- Integrated IR code learning functionality
- Multiple user control interfaces including WebGUI, Telnet and RS-232
- Simple configuration of macros, triggers and relay settings via the WebGUI
- PoE (Power over Ethernet) support
- Firmware can easily be updated in the field via USB

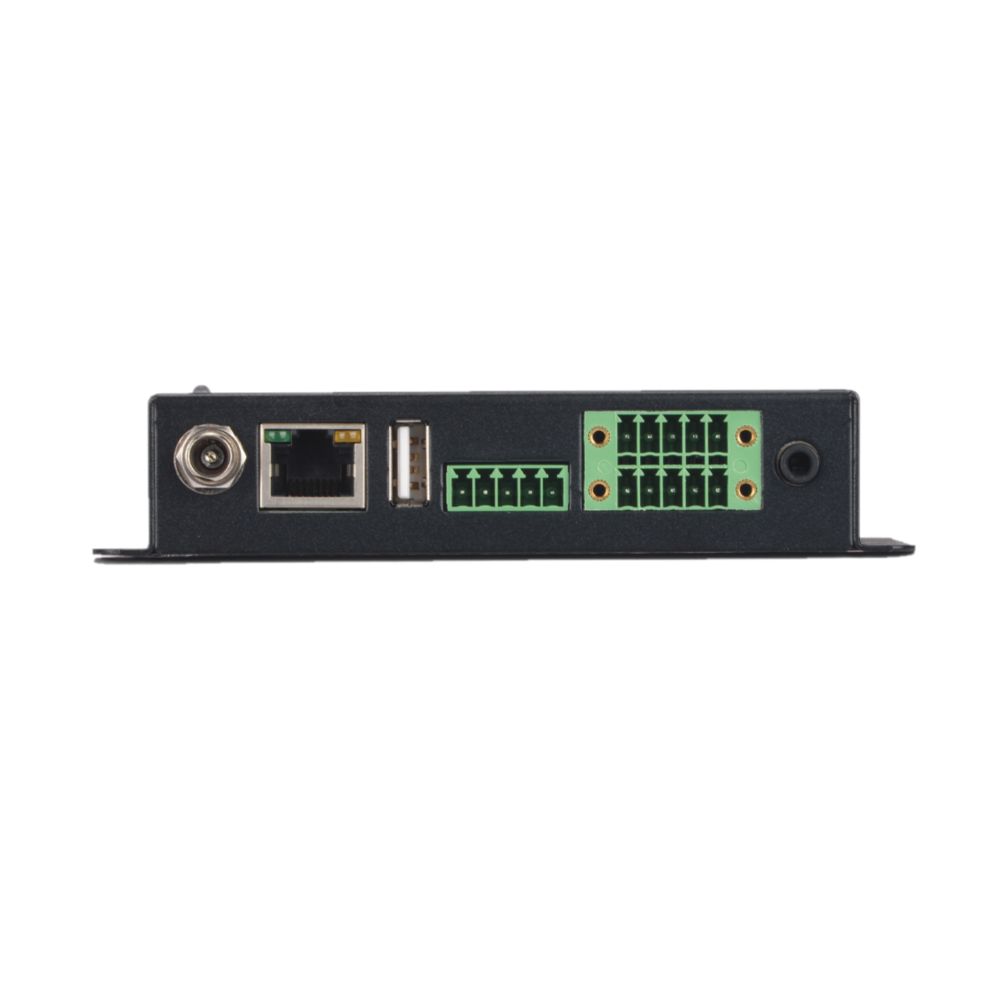

Inputs
- 1x RJ45 [1x IP Control]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 8x 1-Pin Terminal Block [8x Trigger]
- 1x USB Type A [1x SERVICE Propriety Data]

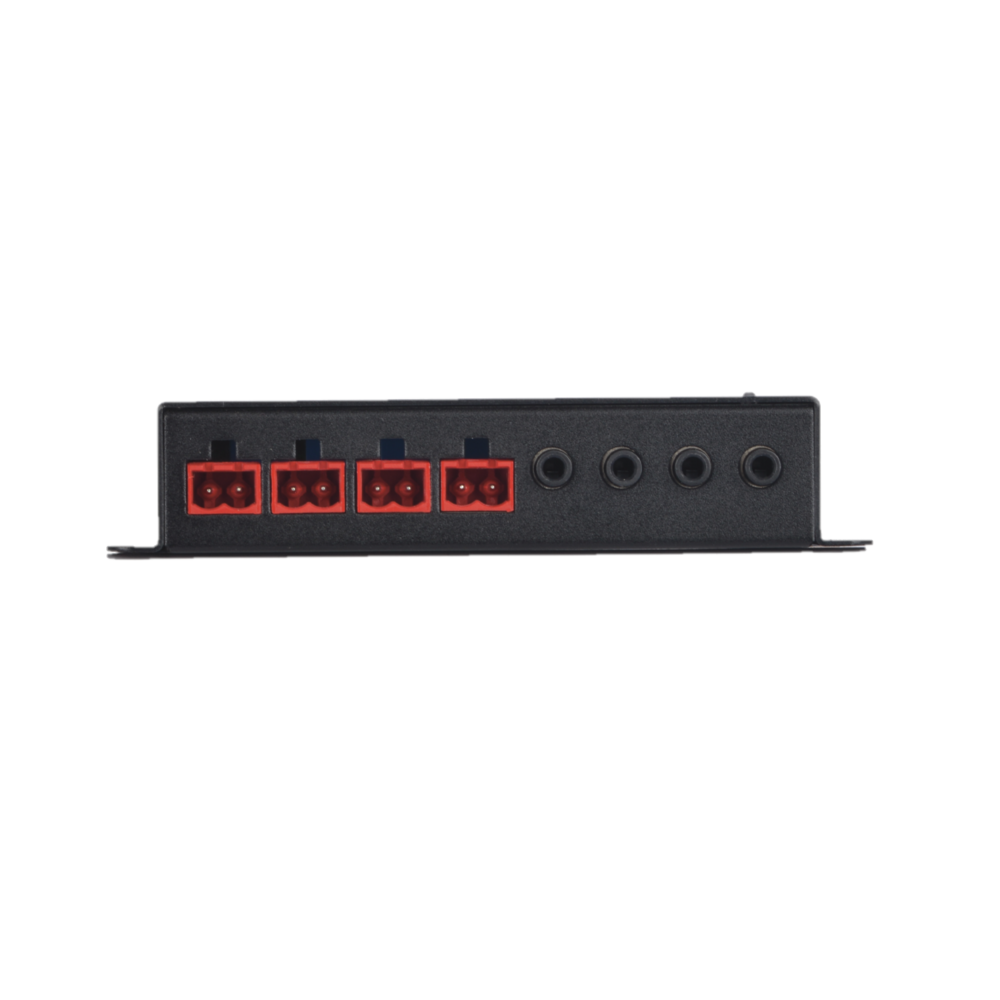

Outputs
- 4x 2-Pin Power Socket [4x Relay]
- 4x 3.5mm Stereo Mini-jack [4x Infrared Emitter]
- 1x 5-Pin Terminal Block [1x RS-232/422/485/DMX512]
PSU:
- 5V/2.6A
Dimensions
- 128mm [W] x 118mm [D] x 25mm [H]
Net Weight
- 400g
