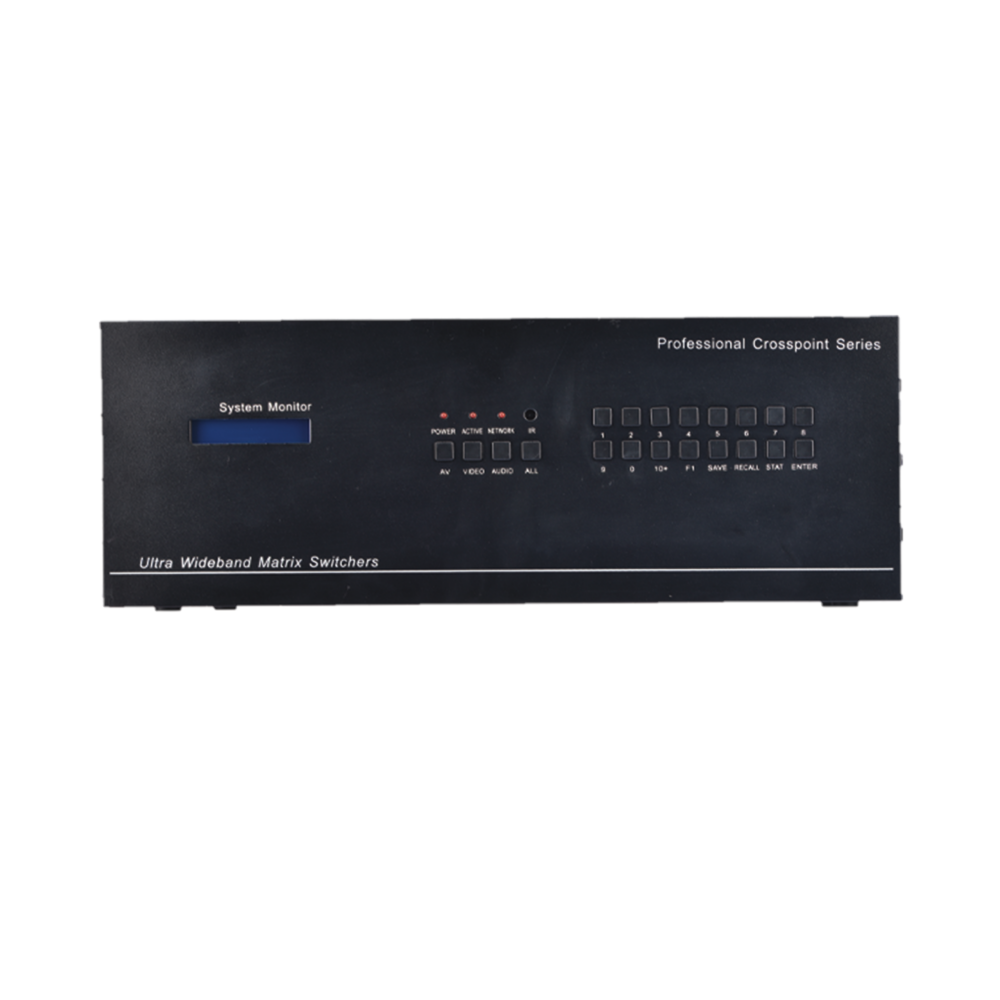

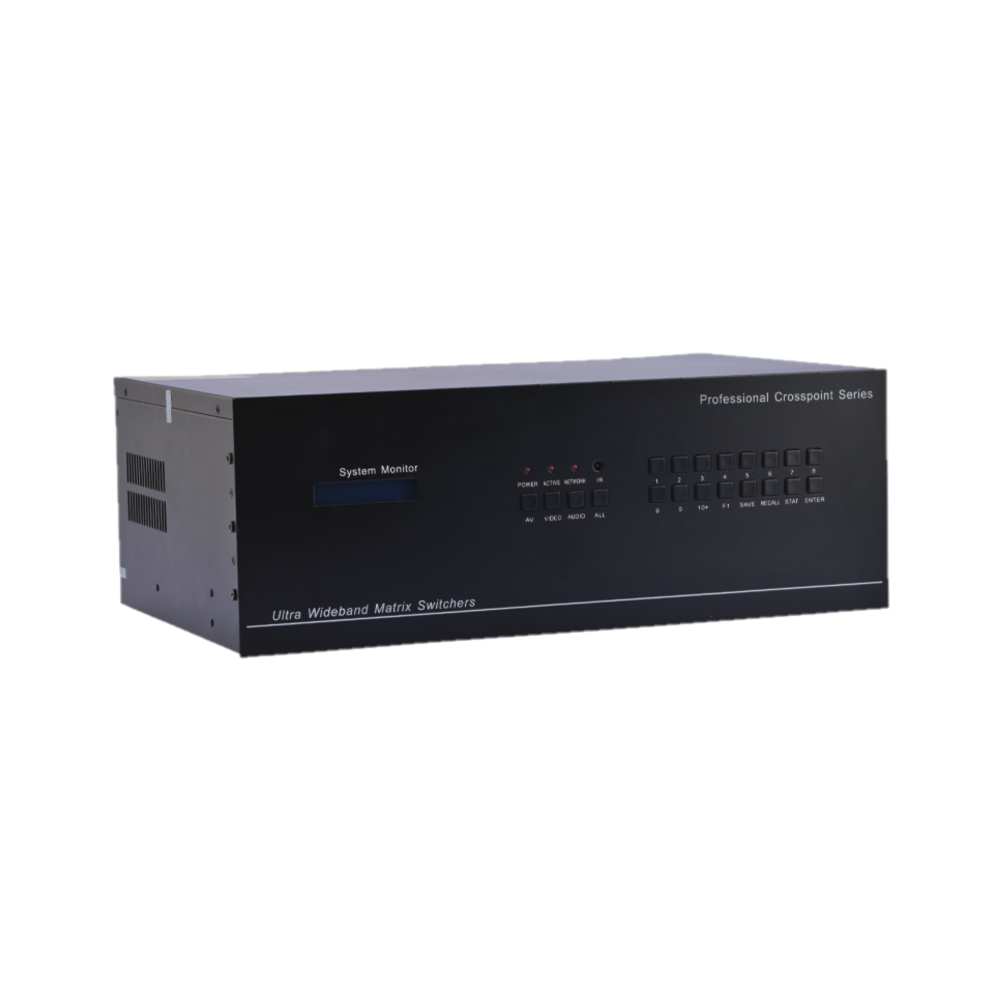

EGE-VGA-16416A

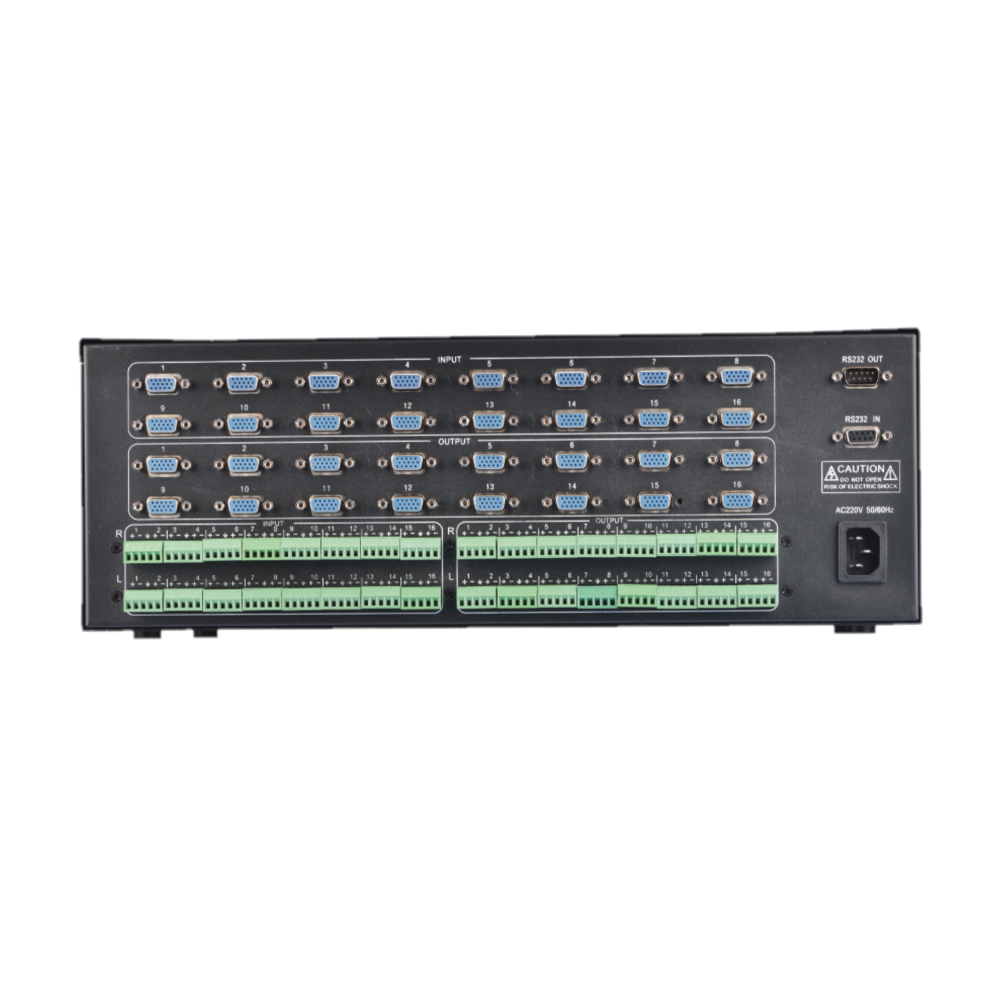

Input/output: VGA port and 3.8mm with bolt screw interface
Singal type: VGA, RGBHV, RGBS, composite video, component video
Height: 4U
Bandwidth: 700MHZ
Input level: 0.5V- 5.0V p-p : 16.0V p-p
Output Level: AGC-TTL: 5Vp-p, unterminated
Output impedance: 75 Ω
Maximum rise / fall time: 16ns
Maximum transmission delay horizontal:90ns vertical:160ns
Video format: NTSC 3.58, NTSC 16.163, PAL, SECAM
Polarity: Positive or negative (fully consistent with input)
Audio signal type: Stereo balanced / unbalanced channels
Audio frequency: 20Hz-20KHz; ±0.05dB
Audio S/N Ratio: ＞90dB
Crosstalk: ＞75dB @20Hz-20KHz
Switching speed: 200 ns (maximum)
Highest Resolution: 1920×1200 @60HZ
Max Input/Output Length: < 40m
Serial control interface: RS-232 IN: DB9 female, RS232 OUT: DB9 male
Baud rate and protocol Baud rate: 9600, data bit: 8, stop bit: 1, no parity
Structure of serial control interface: RS232 IN:2 = TX, 3 = RX, 5 = GND /RS232 OUT: 2 = RX, 3 = TX, 5 = GND
Switch methods
(Button press, RS232, IR remote) default
(ethernet, app on phone, ipad) Optional
Consumption: 40W
Meas (cm3): 48*24*15
Weight: 6kg
Power: AC 100V ～ 240V, 50/60 Hz
Temperature Storage and operating temperature: -20°~ +70°C
Humidity Storage and operating humidity: 10% ~ 90%
MTBF: 160000 h
