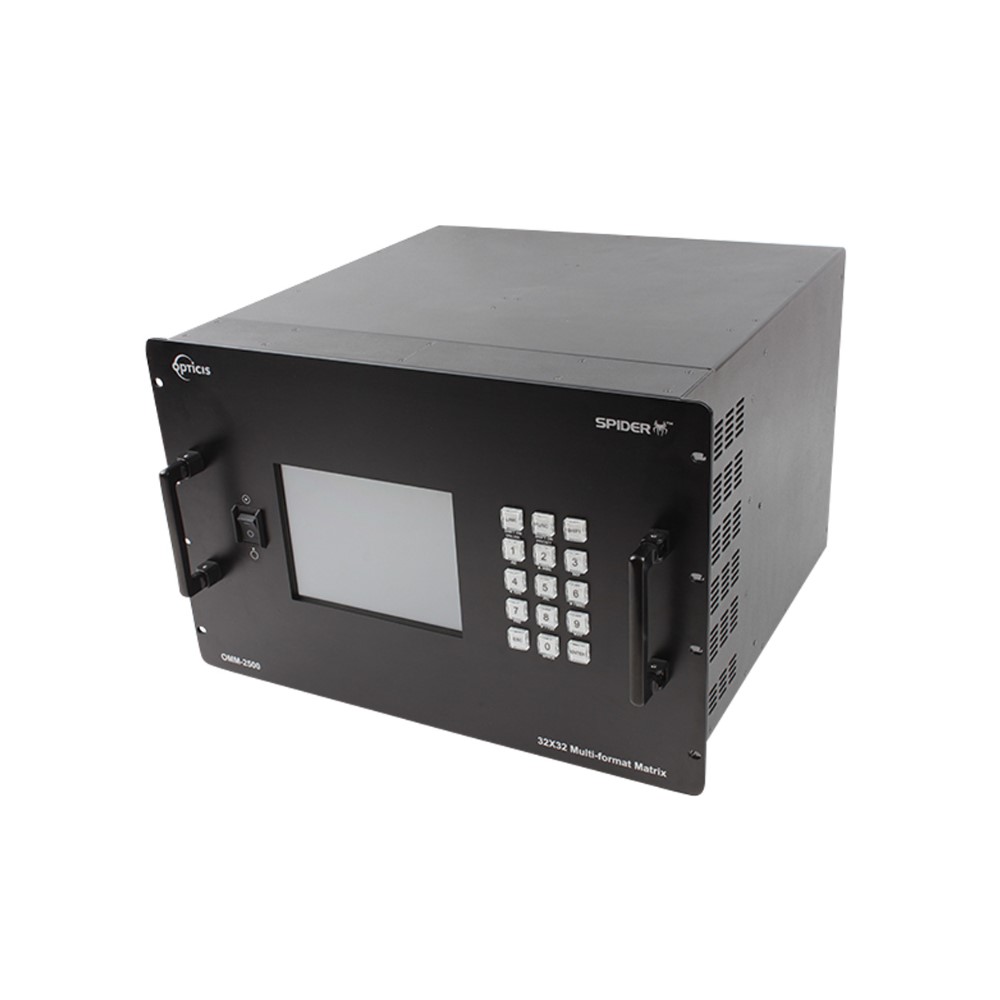

The OMM-2500 enables to switch up to 32 DVI /HDMI / SDI / DisplayPort sources to 32 different digital displays by using general PC software like Hyperlink terminal, telnet or web browser. It can be configured using 8 input and output cards and each card has 4 ports of input and output.
Easy programming feature is accomplished in various manners such as manual input of front key or command line (ASCII or Binary code) input with various interfaces of RS-232, and TCP/IP and it offers you flexible installation with other video controllers or control software.

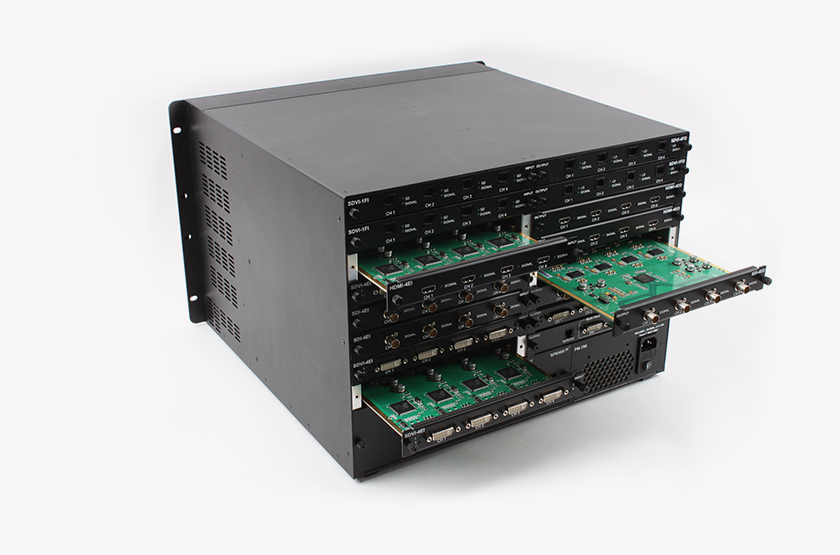

The input and output cards are composed of 4 ports DVI / HDMI /SDI / DisplayPort, therefore user can configures any input and output channels from 4X4 to 32X32 by plugging the cards into OMM-2500 mainframe. In case of Dual link DVI card (DDVI-2EI / DDVI-2EO), it is composed of 2 ports, therefore configuration for input and output channels are from 2×2 to 16×16. It equips electrical DVI, HDMI, SDI, DisplayPort and optical DVI (SDVI-1FI/SDVI-1FO) input and output cards.
Optical DVI input and output cards works perfectly with OPTICIS 1 fiber DVI extension module, DVFX-100 and maximum 1Km DVI signal extension can be managed with this combination. It also supports wide-range compatibility with respect to systems, consisting of various DVI sources and various digital monitors. It has been designed not only to fully execute the DDC /HDCP (Electrical DVI, HDMI cards only) function between any inputs and outputs, but also to have users designate EDID to inputs for wide compatibility.
Embedded video signal generator and diagnostic function help the user solve the installation problem with easy and optional quad multi-viewer card saves the installation cost.
