- Compatible with HDMI, HDCP 1.1 and DVI 1.0
- Replaceable input and output modules
- Input and output module types can be mixed and can be selected 8×8 (1 Input module and 1 Output module) or 16×16 (2 Input modules and 2 Output modules) with DVI, HDMI, CAT5e/6/7 and VGA (Input only) connection types
- Supports HDTV resolutions 480i to 1080p, 4K2K@24/25/30 and PC resolutions from VGA to WUXGA
- Supports Hi-Def audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Control of the matrix via RS-232, on-panel, Telnet and WebGUI controls
- Support 3 EDID modes Standard, Manual and Dynamic
- Supports 10 present preset settings
- Dual power supply units
- Supports HDMI cable input/output lengths up to 15m each way (1080p@8-bit), 10m (1080p@12-bit) or 5m (4K2K@30Hz)
- Supports CAT cable input/output lengths up to 100m (1080p@8-bit/12-bit) or 70m (4K2K@30Hz) that depends on board capabilities
- HDBaseT 3Play convergence: HD Video, HD Audio and IR/RS-232 Control
- HDBaseT 5Play™ convergence: HD Video, HD Audio, PoC, Ethernet and IR/RS-232 Control

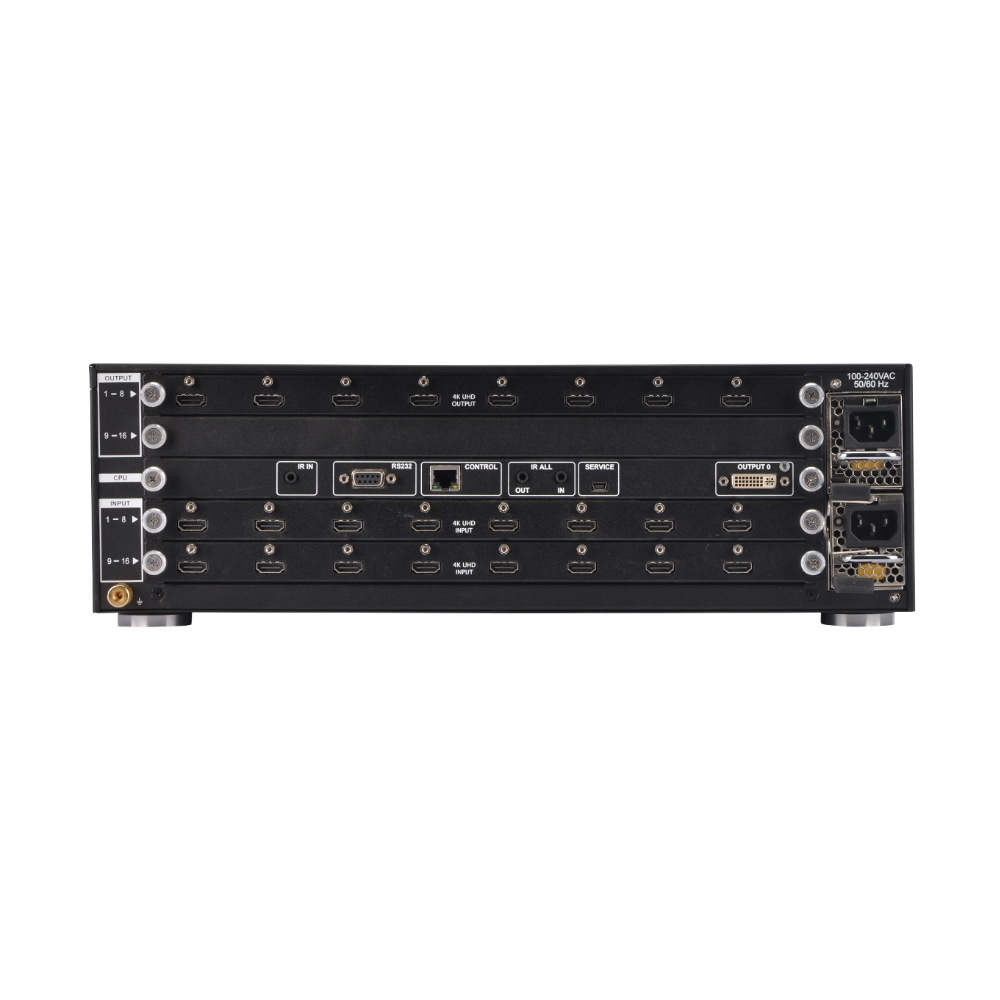

Inputs
- 16x HDMI [16x Uncompressed AV and Data]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x RJ45 [1x IP Control]
- 1x USB Mini-B [1x SERVICE Propriety Data]
- 1x 3.5mm Stereo Mini-jack [1x RESERVED Infrared Receiver]
Outputs
- 16x HDMI [16x Uncompressed AV and Data]
PSU:
- 110V/220V
Dimensions
482mm [W] x 484mm [D] x 145mm [H]
Net Weight
- 14400gr
