• Input and output card slots support 18Gbps (600MHz) 4K UHD with HDR signals
• HDCP 1.x and 2.2 compliant
• 8 high-bandwidth card slots (4 dedicated input slots, 4 dedicated output slots) with a maximum matrix configuration of 17×17
• 1 system control card slot (with support for 1 high-bandwidth input port and 1 high-bandwidth output port)
• System Control Card’s HDMI ports support UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit)
• System Control Card’s HDMI ports support 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit color
• System Control Card’s HDMI ports support 12-bit Deep Color up to 1080p@60Hz
• System Control Card’s HDMI ports support pass-through of audio formats including LPCM (Up to 8 channels) Bitstream, and HD Bitstream
• Advanced EDID Management for rapid integration of sources and displays
• Field updatable firmware

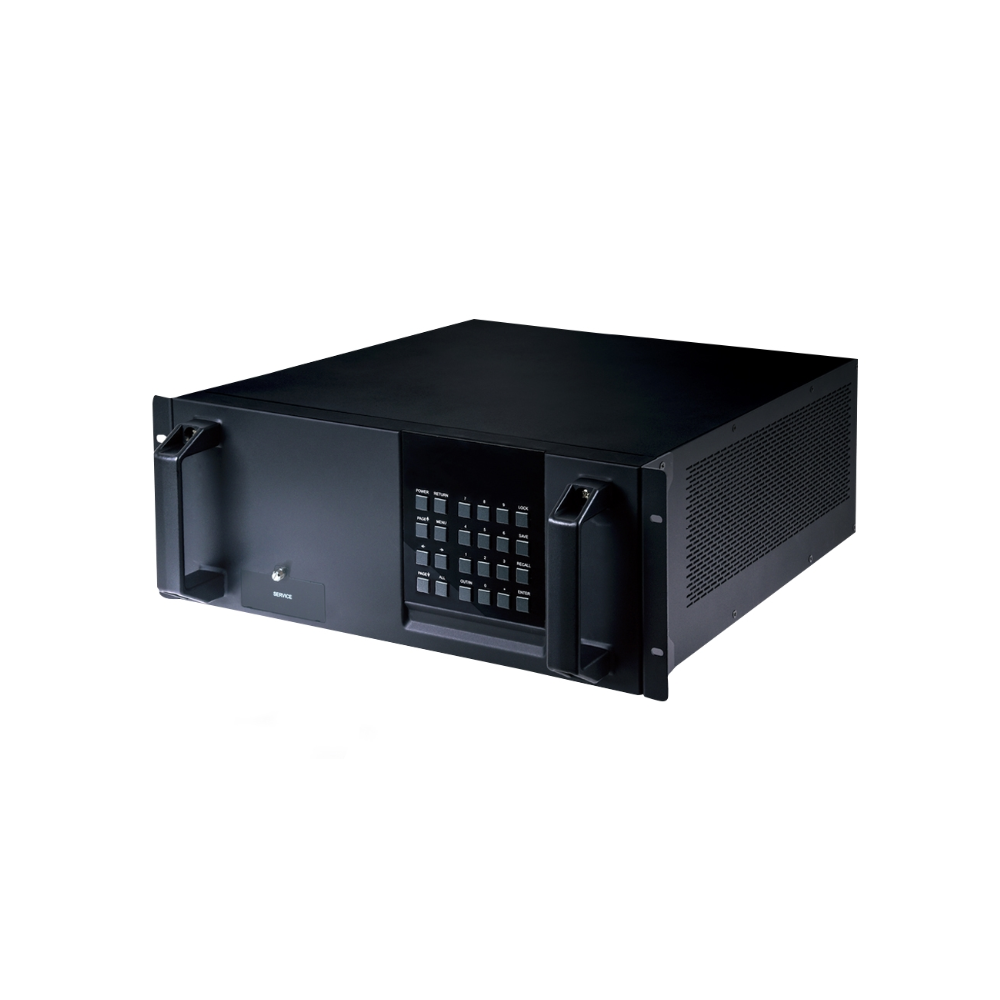

• 3U rack mounted design
• 2 hot-swappable, load sharing, redundant power supplies
• Integrated component failure alarm system

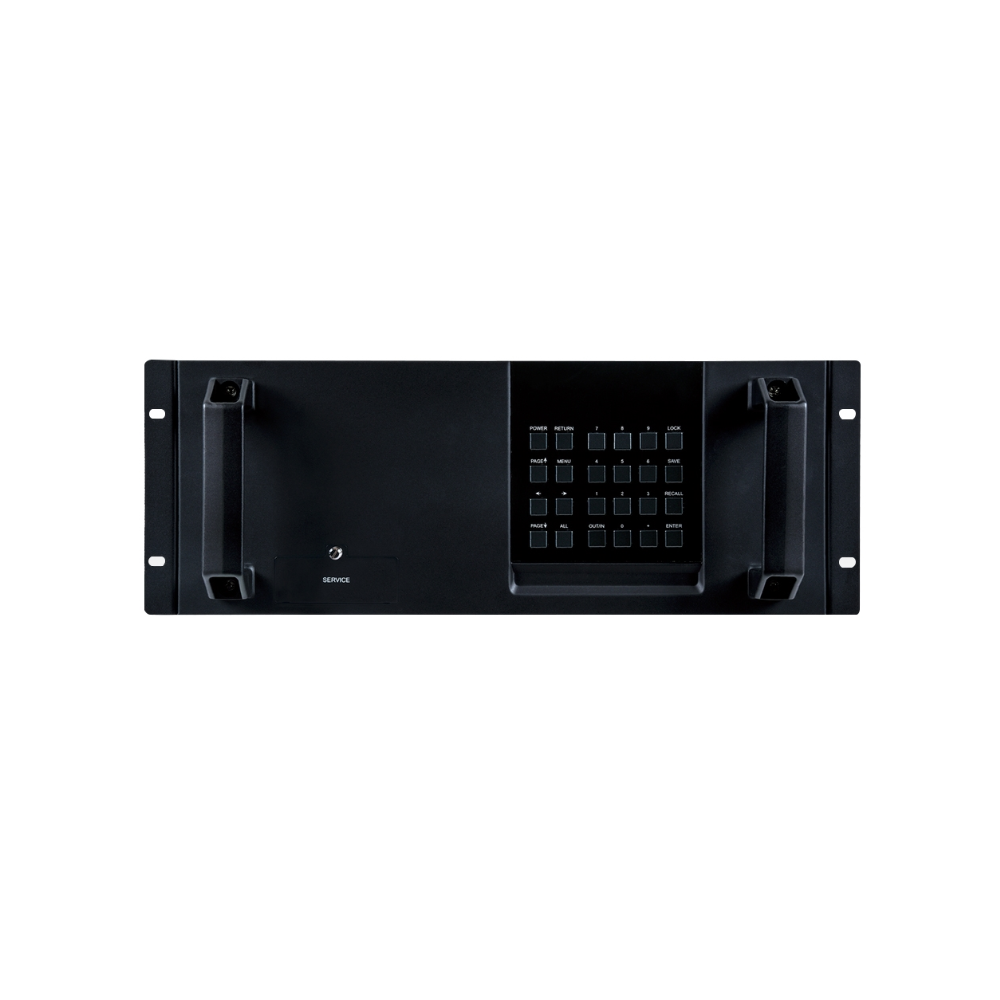

• Control via front panel buttons with LCD menu, Ethernet (Telnet & WebGUI), and RS-232
• 4-port HDMI input and 4-port HDMI output cards are available now
• 4-port HDBaseT (with and without AVLC) input and output cards are under development

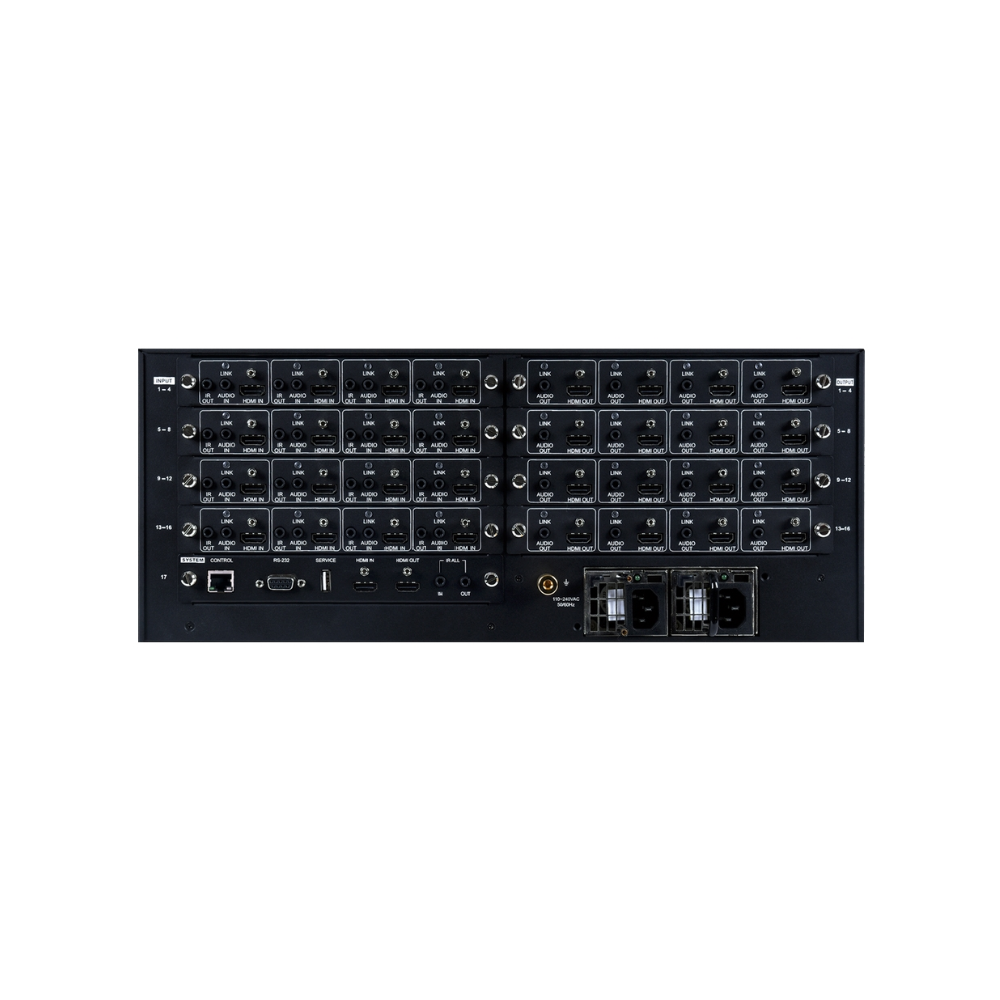

Inputs
16x HDMI [16x Uncompressed AV and Data] 1x DE-9 [1x RS-232 Data] 5x 3.5mm [5x Infrared Emitter]
Outputs
16x HDMI [16x Uncompressed AV and Data] 16x 3.5mm [16x Stereo(L/R)] 1x 3.5mm [1x Infrared Receiver]
PSU:
110V~240V
Dimensions
484mm [W] x 482mm [D] x 182mm [H]
Net Weight
19000g
