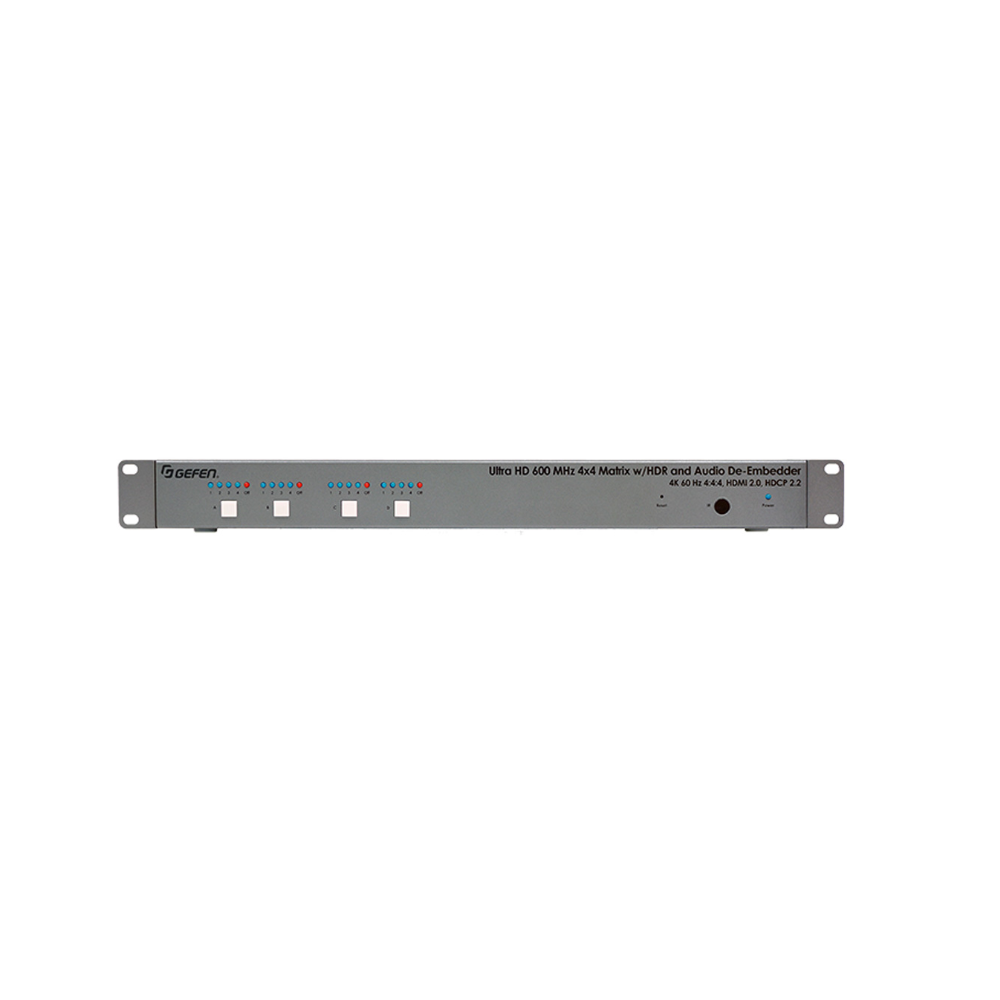

EXT-UHD600A-44-EU
4K Ultra HD 600 MHz 4×4 Matrix with Power Cord for EU territories

Route four 4K 60 Hz 4:4:4 sources to any combination of up to four 4K 60 Hz 4:4:4 displays

Designing systems capable of distributing 4K Ultra High Definition media requires support for the content of today, and headroom for the content of tomorrow. The Gefen 4K Ultra HD 600 MHz 4×4 Matrix for HDMI routes signal from up to four 4K sources to up to four 4K displays or video zones. Reinforcing its commitment to provide commercial integrators with cutting-edge audio/video signal processing solutions, Gefen’s Ultra HD 600MHz Series 4×4 matrix supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. The Gefen EXT-UHD600A-44 features a 1U tall, rack-mountable enclosure that can also be placed on a shelf. It accommodates Gefen locking HDMI cables to ensure secure connections.

Video Support & Scaling

Full bandwidth support allows Gefen’s Ultra HD 600MHz Series 4×4 Matrix Switch to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). This ensures that the scene shown on the display is every bit as brilliant as the picture that the camera captured. HDR lets every subtle nuanced gradation of each pixel play out across the screen in immer(more…)

FEATURES

  • Routes four 4K sources to four 4K displays
  • Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920×1200)
  • Supports HDCP 2.2 and 1.4
  • Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Supports 12-bit Deep Color at 1080p Full HD (60 Hz 4:4:4)
  • 3DTV pass-through
  • Lip Sync pass-through
  • EDID Management for rapid integration of source and displays
  • Supports uncompressed LPCM digital audio up to 7.1 channels
  • Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920×1200), with Gefen CAB-DVI2-HDMI-LCK DVI-to-HDMI cables (not included)
  • Built-in Audio De-Embedders break out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from each HDMI output, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact.
  • 4 independent scalers allow upscaling from 1080p to 4K on two outputs and downscaling(more…)

SPECIFICATIONS

  • Maximum TMDS Clock: 600 MHz
  • Total Signal Bandwidth/Data Rate: : 18 Gbps
  • HDMI Input Connectors: : (4) Type A 19-pin female, locking
  • HDMI Output Connectors: : (4) Type A 19-pin female, locking
  • HDMI Outputs 1 and 2 pin 18 current capability at 5V: : 500 mA
  • Digital Audio Output Connectors: : (4) TOSLINK ® Optical
  • : (4) RCA Coaxial
  • Analog L/R Audio Output Connectors: : (4) 3.5mm mini-stereo jack
  • USB power ports: : (2) Type A, female
  • USB power ports’ current capability: : 2A total at 5V DC (shared)
  • RS-232 serial port: : (1) DB-9, female
  • Ethernet (IP Control) Port: : (1) RJ-45
  • Power Indicator: : (1) LED, Blue
  • Input Indicators: : (16) LEDs, Blue
  • : (4) LEDs, Red
  • Input Selector Buttons: : (4) tact-type
  • Reset Button: : (1) tact-type, recessed
  • IR Sensor: : (1), located on front panel
  • IR In/Ext Port: : (1) 3.5mm mini-stereo jack
  • IR Extender type: : EXT-RMT-EXTIRN (not included)
  • DC Power Connector: : (1) 4-pin, locking
  • Power Supply: : 24V DC
  • Power Consumption: : 40W (both USB power ports loaded), 30W (USB power ports not in use)
  • Operating Temperature: : +32 to +122 °F (0(more…)

OTHER SPECIFICATIONS

Shipping Info

  • Length0 (Inches)
  • Width0 (Inches)
  • Height0 (Inches)
  • Weight0 (Lbs)
  • UPC888814948493

Other Specifications

  • Maximum TMDS Clock: 600 MHz
  • Total Signal Bandwidth/Data Rate: 18 Gbps
  • HDMI Input Connectors: (4) Type A 19-pin female, locking
  • HDMI Output Connectors: (4) Type A 19-pin female, locking
  • HDMI Outputs 1 and 2 pin 18 current capability at 5V: 500 mA
  • Digital Audio Output Connectors: (4) TOSLINKÂ ® Optical
  • (4) RCA Coaxial
  • Analog L/R Audio Output Connectors: (4) 3.5mm mini-stereo jack
  • USB power ports: (2) Type A, female
  • USB power ports’ current capability: 2A total at 5V DC (shared)
  • RS-232 serial port: (1) DB-9, female
  • Ethernet (IP Control) Port: (1) RJ-45
  • Power Indicator: (1) LED, Blue
  • Input Indicators: (16) LEDs, Blue
  • (4) LEDs, Red
  • Input Selector Buttons: (4) tact-type
  • Reset Button: (1) tact-type, recessed
  • IR Sensor: (1), located on front panel
  • IR In/Ext Port: (1) 3.5mm mini-stereo jack
  • IR Extender type: EXT-RMT-EXTIRN (not included)
  • DC Power Connector: (1) 4-pin, locking
  • Power Supply: 24V DC
  • Power Consumption: 40W (both USB power ports loaded), 30W (USB power ports not in use)
  • Operating Temperature: +32 to +122 Â °F (0 to +50 Â °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 Â °F (-20 to +85 Â °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours
  • Rack mounting requirements: Standard 19″ rack, 1U high
  • Dimensions (excluding rack ears and connectors, W x H x D): 17.25″ x 1.75“ x 6.3″ (440mm x 45mm x 160mm)
  • Net Unit Weight: 3.25 lbs (1.5 kg)
  • Shipping Weight: 6.0 lbs (2.7 kg)

In The Box

  • 4K Ultra HD 600 MHz 4×4 Matrix 1
  • 24V DC Power Supply (EXT-PS24U-O or EXT-PS24U-O-6) 1
  • AC Power Cord1
  • Rack Ears2
  • Machine screws for Rack Ears4
  • Self-Adhesive Rubber-Feet4
  • IR Extender (EXT-RMT-EXTIRN) 1
  • IR Remote (RMT-44A) 1
  • Quick-Start Guide1
