- HDMI with 3D & 4Kx2K supported, coherent with HDCP and DVI
- Supports four HDMI inputs and four HDMI outputs
- Supports external audio inputs and outputs for HDMI outputs selection and extra audio extension up to 300 meters
- Supports HDMI and Optical audio format for both HDMI and Optical outputs selection
- Support personal output MUTE function on both video and audio
- Displays any of four High-Definition sources on four HDTV displays contemporaneously with fast switch
- 3D pass-through
- Supports HDTV resolutions up to 4Kx2K (3840×2160@24/25/30 & 50/60 Y420 4096×2160@24 & 50/60Hz Y420)
- Supports data rate up to 300Mbps or 9Gbps and Deep Color up to 1080p 36-bit
- Supports individual EDID or common EDID
- Supports LPCM 2CH with selection up to 192kHz
- Input port HDCP support Standard and Apple mode (The Apple mode selection to guarantees the use of Apple tools)

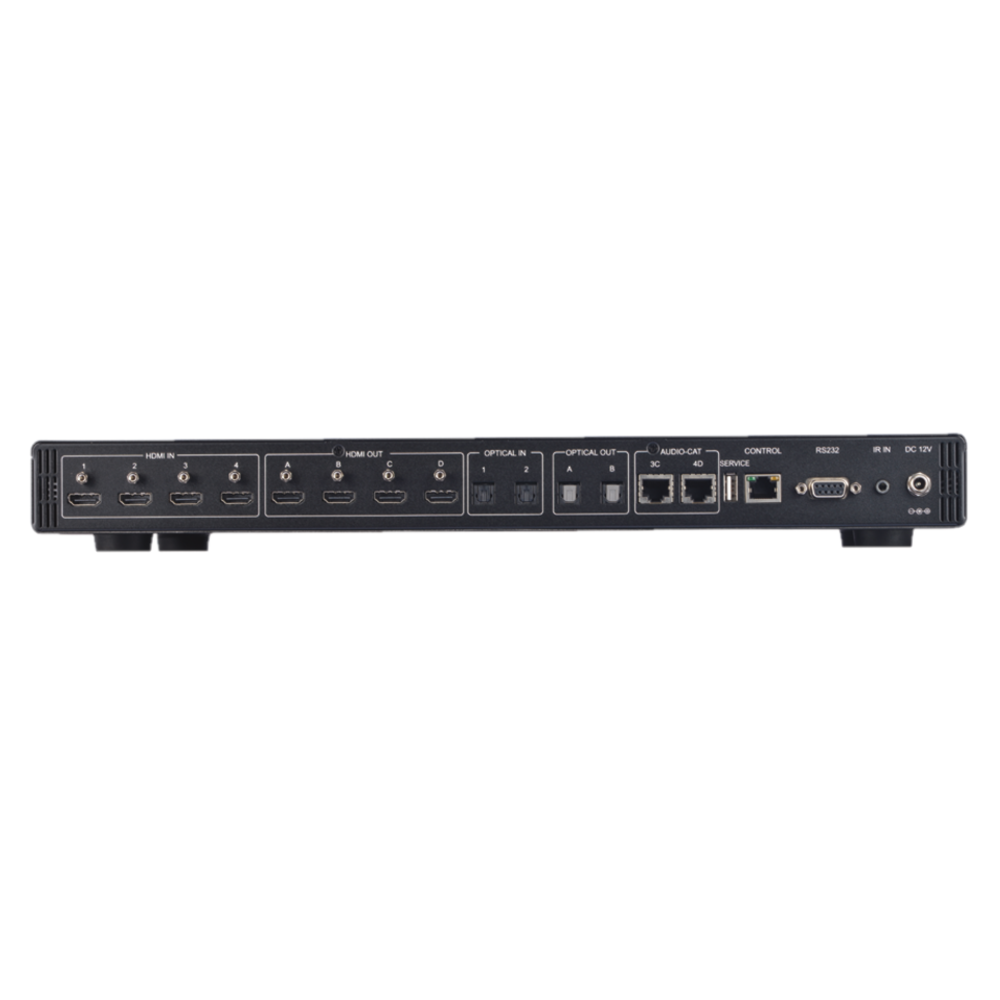

Inputs
- 4x HDMI [4x Uncompressed AV and Data]
- 2x TOSLINK [2x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs
- 4x HDMI [4x Uncompressed AV and Data]
- 2x TOSLINK [2x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]
- 2x RJ45 [2x Digital Audio Propriety Data]
PSU:
- 12V/3A
Dimensions
- 482mm [W] x 278mm [D] x 50mm [H]
Net Weight
- 2936gr
