- Compatible with HDMI, HDCP 2.2
- Supports PC resolutions up to WUXGA and HDTV resolution up to
- 4K2K (3840×2160@24/25/30Hz, 3840×2160@50/60Hz with YUV420, 4096×2160@24/25/30Hz & 4096×2160@50/60Hz with YUV420)
- Supports distances up to 100 meters through CAT5e/6/7 cable
- Supports 3D signal bypass
- Supports passthrough of high-definition audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD & DTS-HD Master Audio
- Supports LAN serving function through the LAN port and PoE (Power over Ethernet) on compatible receivers only
- Supports bidirectional IR from inputs and output locations
- Control of the matrix via RS-232, IR remote control, on-panel control and IP control (Telnet/WebGUI)
- Compliant with DVI source

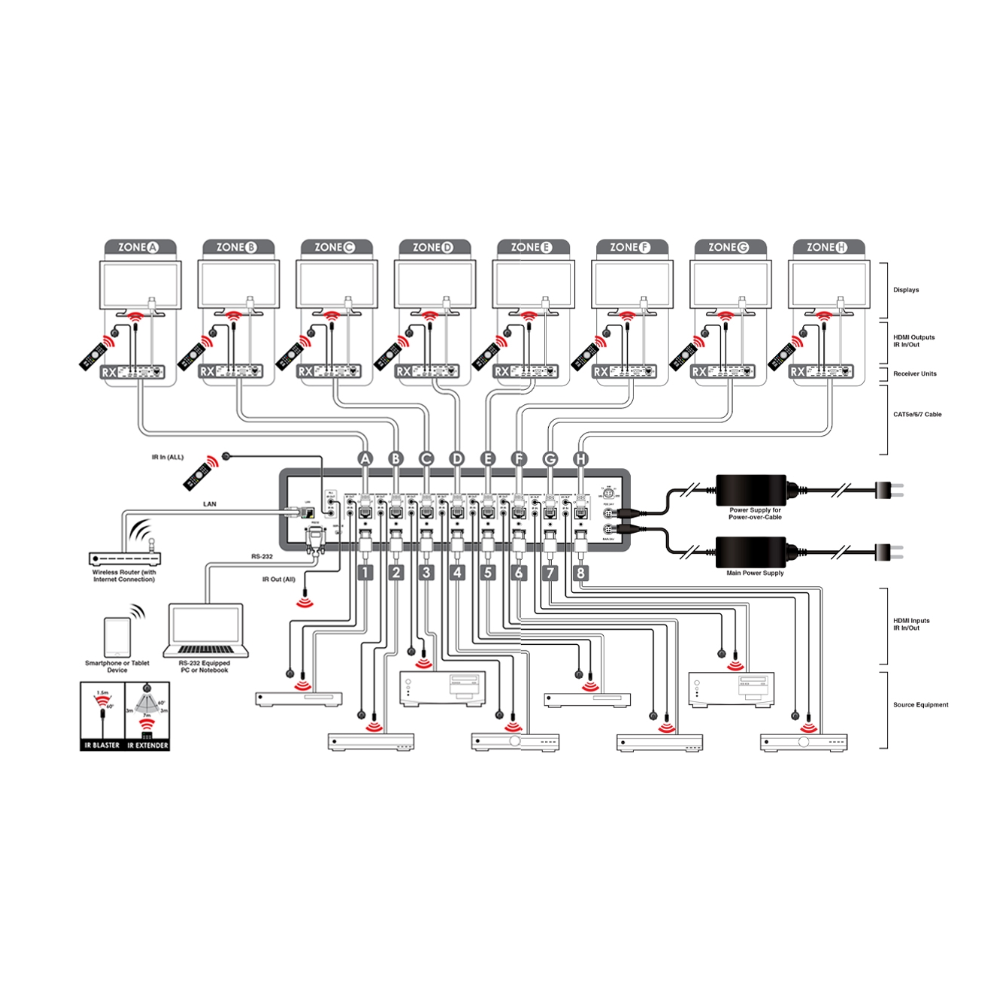

Inputs
- 8x HDMI [8x Uncompressed AV and Data]
- 8x 3.5mm Stereo Mini-jack [8x Infrared Receiver]
- 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Receiver]
- 1x RJ45 [1x IP Control / LAN Serving]
- 1x 9-pin D-sub [1x RS-232 Data]
- 1x USB Mini-B [1x SERVICE Propriety Data]
Outputs
- 8x RJ45 [8x HDMI & Propriety Data]
- 8x 3.5mm Stereo Mini-jack [8x Infrared Emitter]
- 1x 3.5mm Stereo Mini-jack [1x ALL Infrared Emitter]
PSU:
- 24V/6.25A
Dimensions
- 438mm [W] x 257mm [D] x 92mm [H]
Net Weight
- 4402gr
