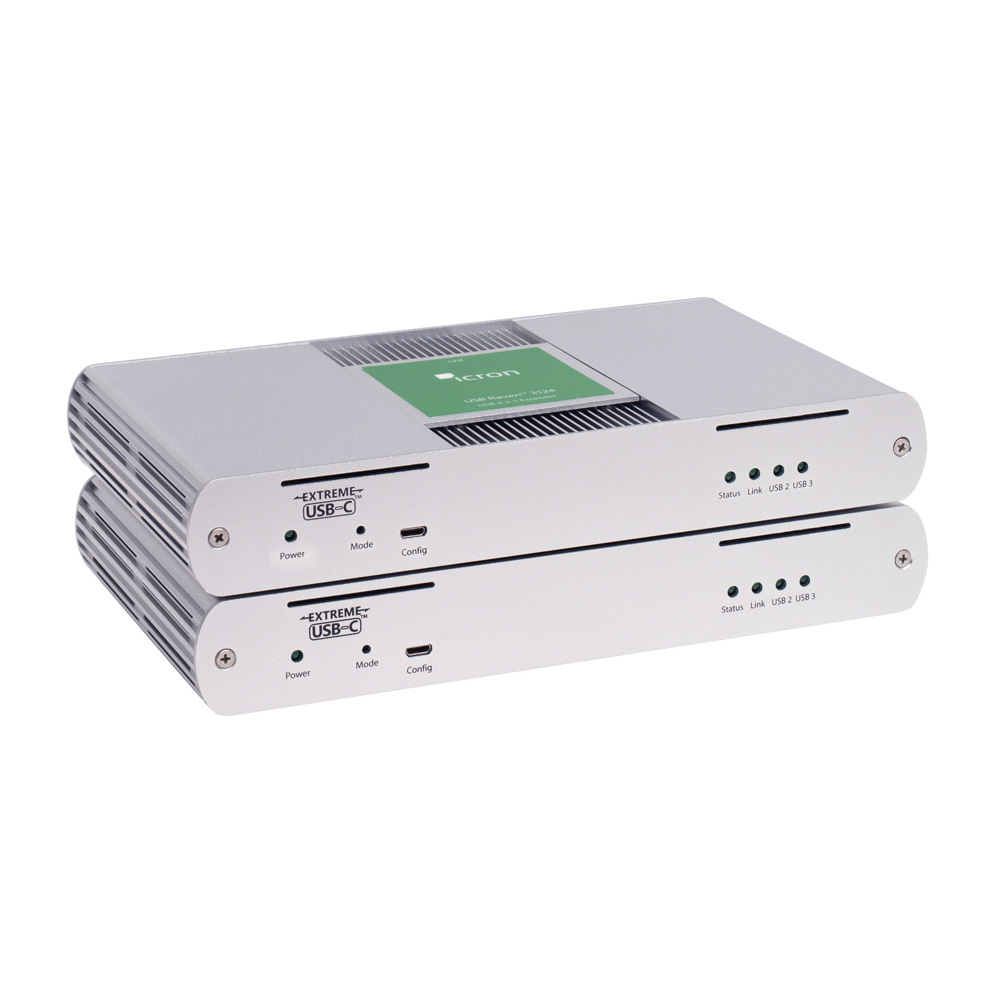

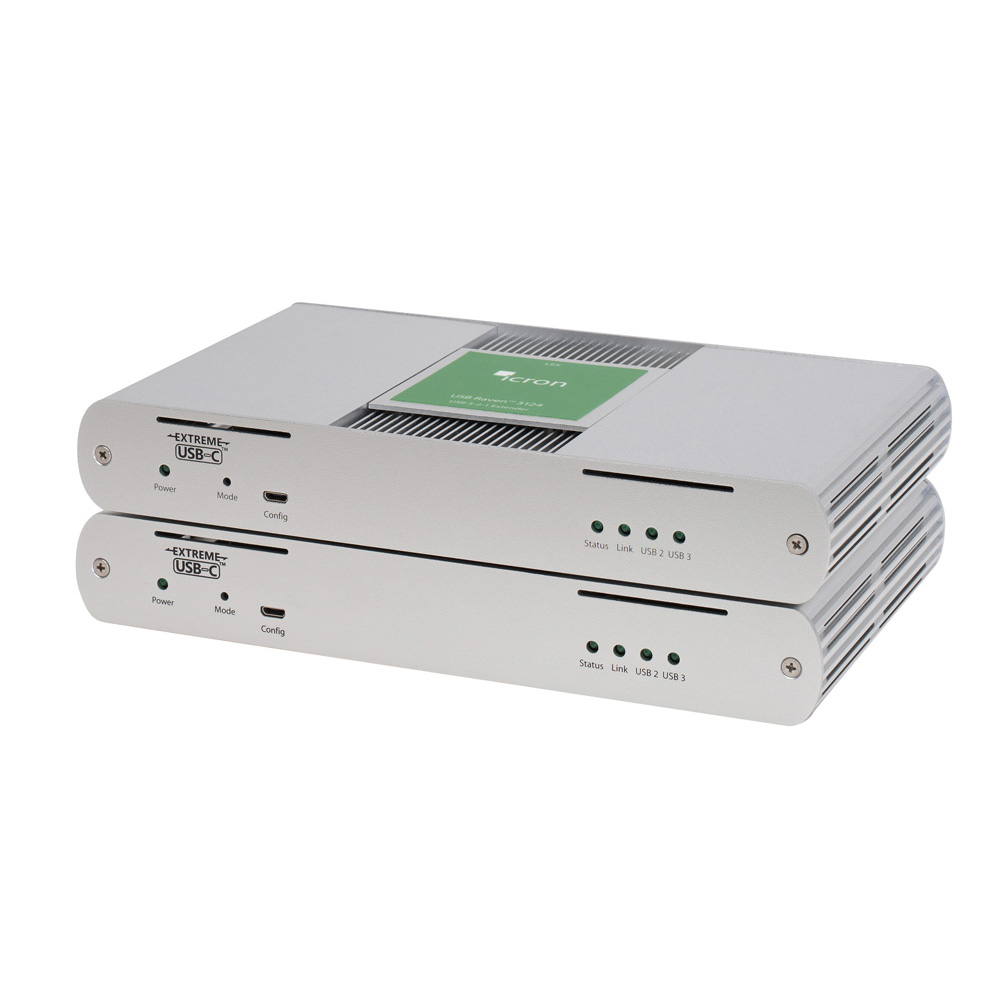

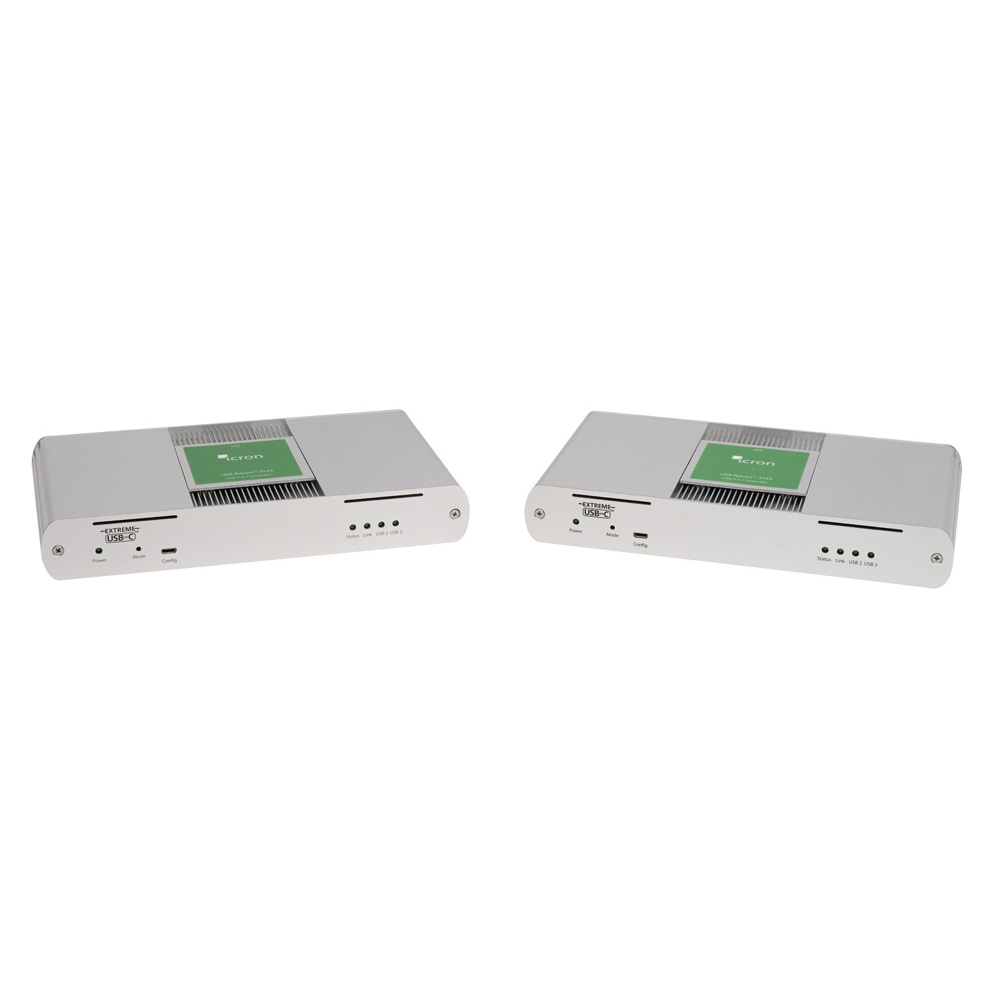

USB 3-2-1 RAVEN 3124
4-port USB 3.1, 200m Multimode Fiber Extender System

The Icron USB 3-2-1 Raven™ 3124 USB 3.1 extender with ExtremeUSB-C™ technology extends all USB 3.1, 2.0 and 1.1 devices simultaneously up to 200 meters over Multimode Fiber making it perfect for: USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and/or any other USB 3, 2 and 1 device. Fiber link cable provides isolation which may be needed for medical or military equipment. If your USB 3.1 extender application requires CAT 6a/7 cable instead, please refer to the Icron USB 3-2-1 Raven 3104 extender.

OVERVİEW

The Icron USB 3-2-1 Raven™ 3124 allows users to extend all USB 3.1 Gen 1 (5 Gbps) device types and is backwards compatible to USB 2.0 and 1.1 across a point-to-point connection up to 200m over a single duplex Multimode Fiber cable.

This 4-port USB 3.1 extender supports data rates at up to 5 Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.

Additionally, this ExtremeUSB-C™ based Multimode Fiber USB 3.1 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.

FEATURES

  • USB 3.1 Gen 1 data rate up to 5 Gbps
  • Integrated four port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
  • Up to 1.2A (6W) per USB port
  • 100 Mbps Ethernet channel; LAN pass-through
  • Single cable, OM3 Multimode Fiber up to 200m
  • Point-to-point connection
  • FCC and CE (Class B) compliance
  • Electrical isolation
  • Two year warranty
  • ExtremeUSB-C™ suite of features:
    • Transparent USB extension supporting USB 3, 2 and 1
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™, Linux® and Chrome OS™

SPECIFICATIONS

  • RANGE
    • Direct connect up to 200m (656 ft) over OM3 or better Multimode Fiber

    SPEEDS

    • USB 3.1: up to 5 Gbps
    • USB 2.0: up to 480 Mbps
    • USB 1.1: up to 12 Mbps

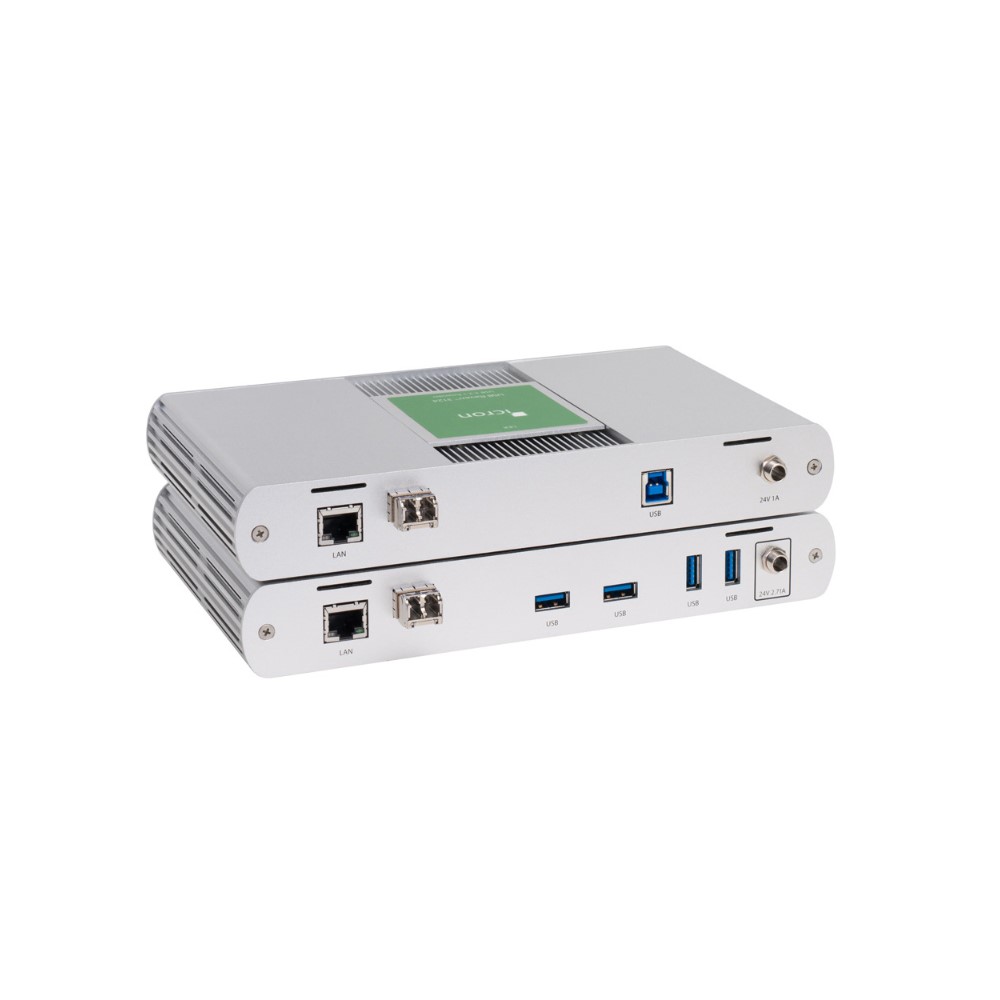

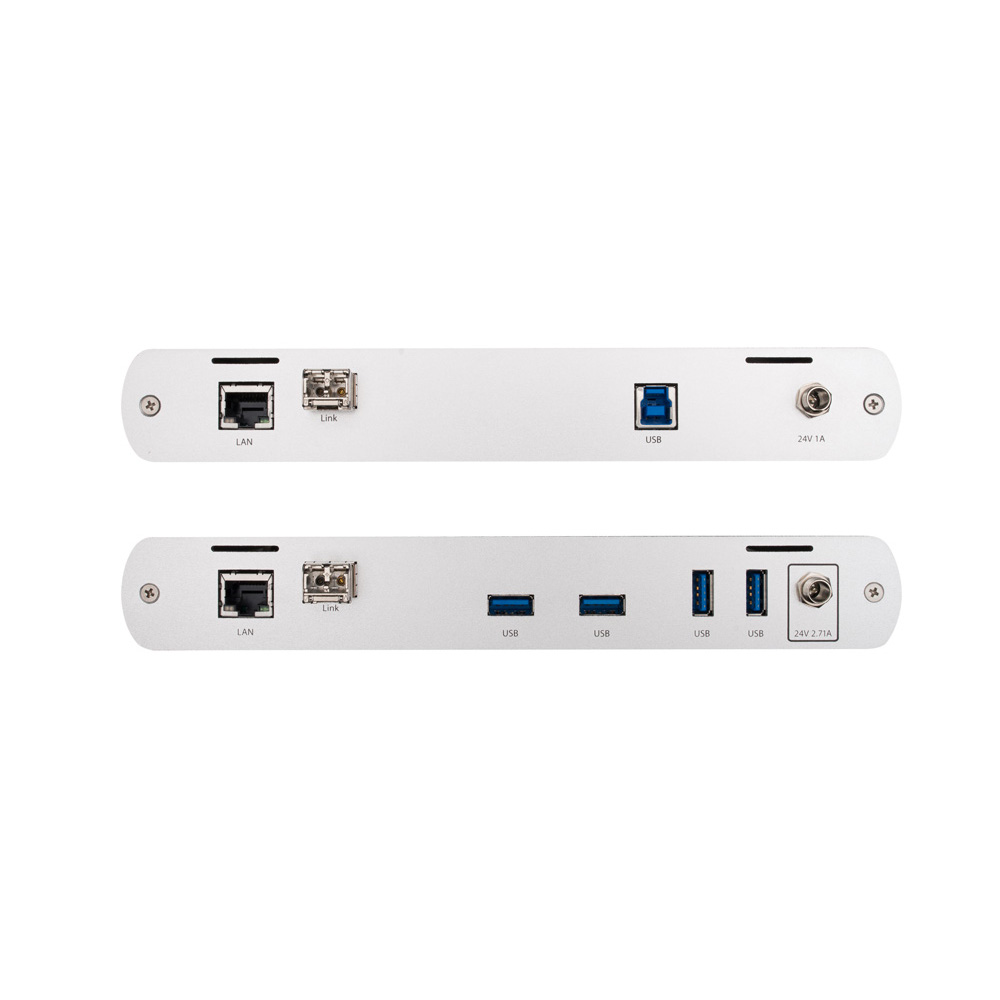

    LEX (Local Extender)

    • 1x USB 3.1 Gen 1 Type B Receptacle
    • 1x RJ45 Ethernet 100 Mbps Port
    • 1x Duplex LC
    • 24V 1A DC Locking Jack
    • Enclosure Material: Silver anodized aluminium
    • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
    • 920g (2.03 lbs.)
    • Mounting: 4 surface mounting holes or optional mounting kit available

    REX (Remote Extender)

    • 4x USB 3.1 Gen 1 Type A Receptacles
    • 1x RJ45 Ethernet 100 Mbps Port
    • 1x Duplex LC
    • 24V 2.71A DC Locking Jack
    • Available Current: up to 1.2A (6W) per USB port
    • Enclosure Material: Silver anodized aluminium
    • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
    • 990g (2.18 lbs.)
    • Mounting: 4 surface mounting holes or optional mounting kit available

    ENVIRONMENTAL

    • Operating Temperature: 0C to 50C (32F to 122F)
    • Storage Temperature: -20C to 70C (-4F to 158F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing

    COMPLIANCE

    • EMC: FCC (Class B), CE (Class B)
    • Environmental: RoHS2, REACH, Conflict Minerals

    SUPPORT

    • Warranty: 2-year

IN THE BOX

The Raven 3124 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • USB 3.1 Gen 1 Cable
  • LEX 24V DC 1A International Power Adapter
  • REX 24V DC 2.71A International Power Adapter
  • 2 x Country Specific Power Cords
  • Quick Start Guide
  • Two year warranty

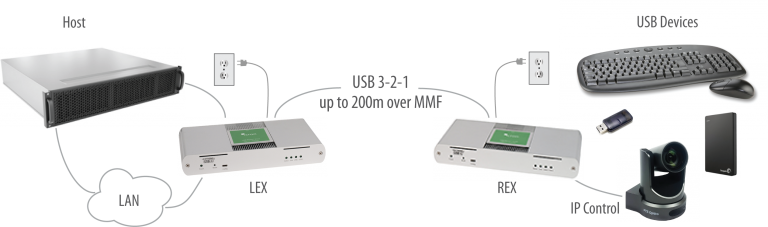

CONNECTION DIAGRAM
