USB 3.0 Spectra™ 3022

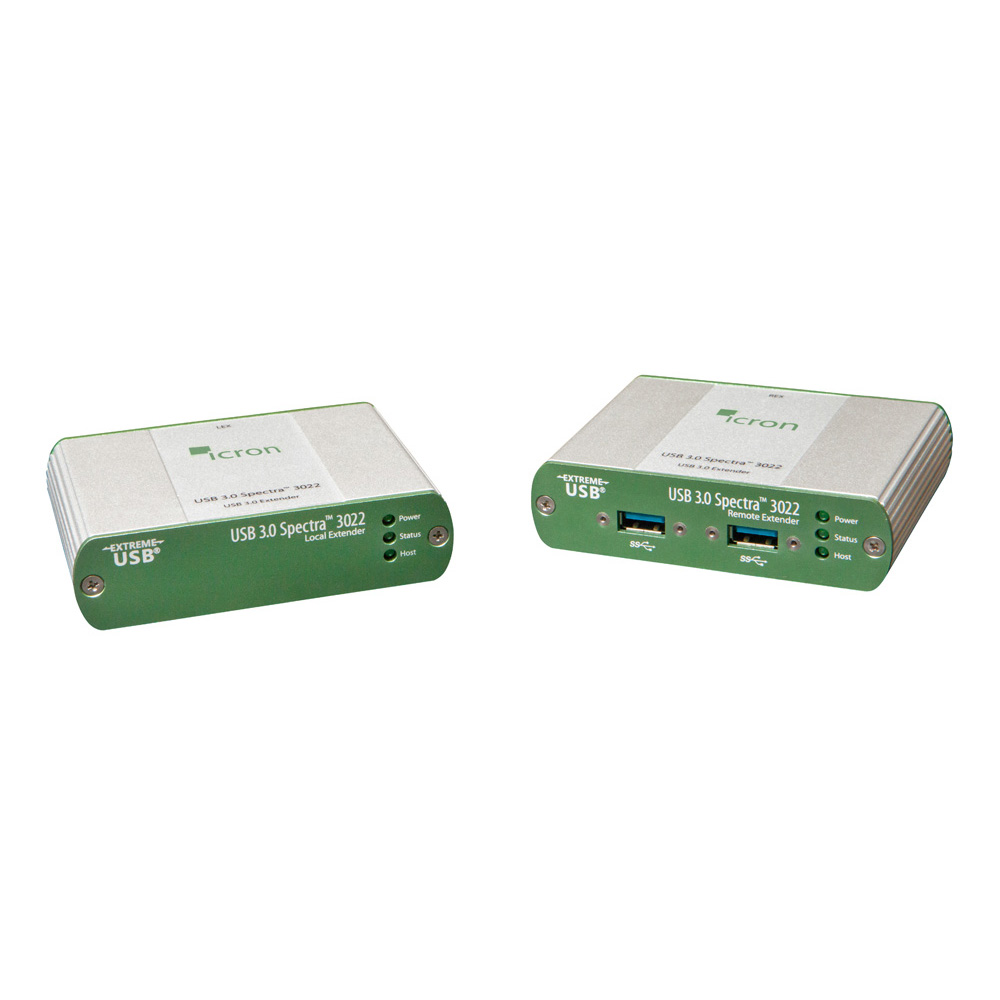

Two-port Multimode fiber 100m Extender

The USB 3.0 Spectra™ 3022 is a two port USB 3.0 SuperSpeed extension solution, enabling USB 3.0 connections at up to 5 Gbps over 100m/330ft* of multimode fiber optic cable. The Spectra 3022 features two locking USB 3.0 ports delivering 900mA power to each port perfectly suited for USB3 Vision camera applications and includes a two-year warranty. Note, backward compatibility to USB 2.0/1.1 is not supported.

For full backwards compatibility, easily extend USB 3, USB 2 and USB 1 devices up to 200m over multimode fiber with the newest generation Raven 3124.

OVERVİEW

USB 3.0’s distance is specified at 3 meters. When greater distances are required, consider the USB 3.0 Spectra 3022 which supports USB 3.0 5 Gbps throughputs up to 100 meters over OM3 multimode fiber optic cabling. A true plug-and-play solution, the Spectra 3022 is compatible with all leading operating systems and features two locking USB ports and a locking power connector. The Spectra 3022 is warranted for 2 years from the date of purchase and is AIA USB3 Vision compliant. Backward compatibility to USB 2.0/1.1 is not supported by this model. For full backwards compatibility, choose the newest generation Raven 3124 to easily extend USB 3, USB 2 and USB 1 peripherals up to 200m over multimode fiber.

FEATURES

  • Up to 50m extension for USB 3.0 storage devices and 100m for USB 3.0 cameras
  • Delivers speed, isolation and security over multimode fiber (SFP transceivers included)
  • USB 3.0 throughputs of up to 5 Gbps
  • Integrated 2-port hub suitable for industrial environments
  • Rugged locking USB and power connectors
  • Enclosures with convenient pre-drilled holes for optional bracket mounting
  • Works with AIA USB3 Vision™ compliant devices
  • Includes the ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all operating systems: Windows®, OS X®, and Linux®
  • 2-year warranty

SPECIFICATIONS

  • Range*
    • OM2 Multimode Fiber: Up to 50m (165 ft)
    • OM3 Multimode Fiber:Up to 100m (330 ft)

    Speeds

    • USB 3.0: Up to 5 Gbps (not backward compatible with USB 2.0/1.1)

    LEX (Local Extender)

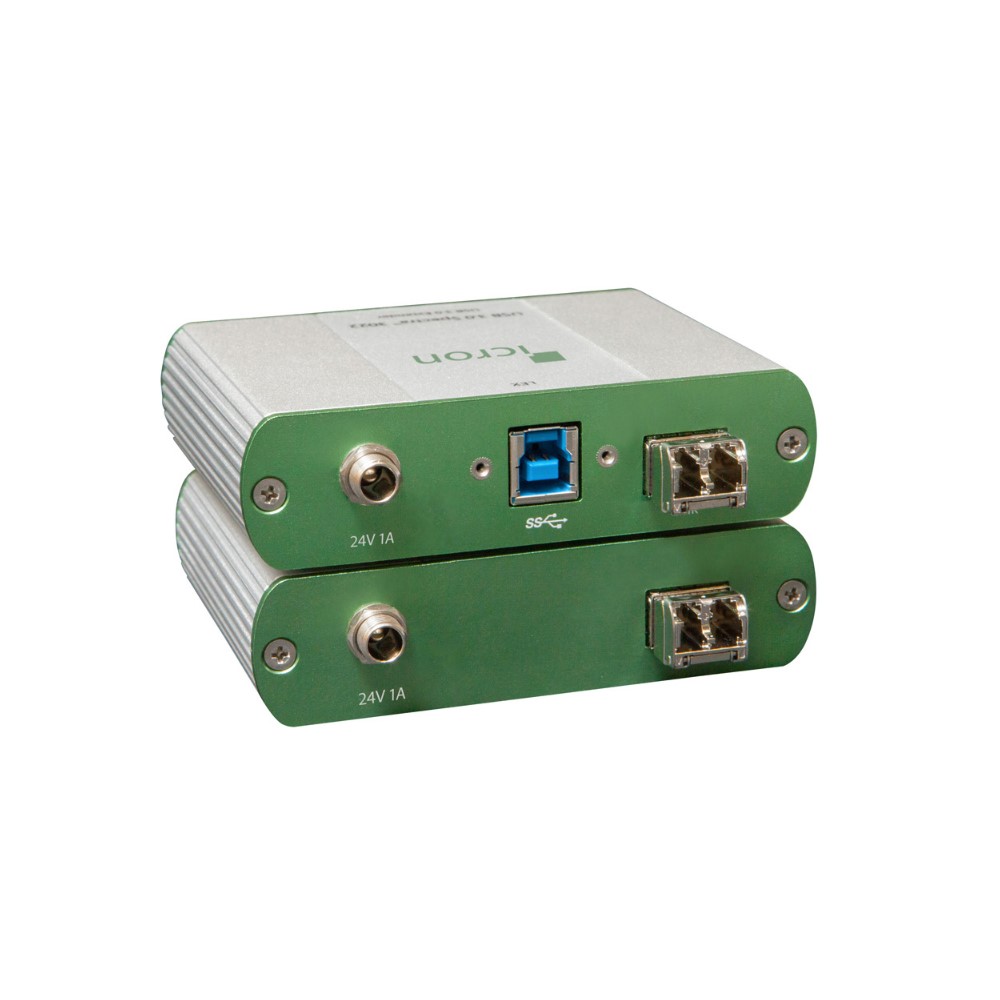

    • USB Connector: 1 x USB 3.0 Type B Locking Receptacle
    • Link Connector: 1 x Duplex LC Connector
    • Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
    • Enclosure Material: Anodized Aluminum

    REX (Remote Extender)

    • USB Connectors: 2 x USB 3.0 Type A Locking Receptacles
    • Link Connector: 1 x Duplex LC Connector
    • Dimensions: 100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
    • Enclosure Material: Anodized Aluminum
    • Power Connector: 24V DC, 1A, Locking, 2.1 mm, center-positive
    • Available Current: 900mA for each USB Port
    • Power Supply: 100-240V AC Brick, Locking

    Environmental

    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing

    Compliance

    • FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1
    • Machine Vision: Works with AIA USB3 Vision™ compliant devices

    Support

    • Warranty: 2-year

    * Up to 50m with storage type USB 3.0 devices; 100m or more is achievable when using USB 3.0 bulk traffic cameras

IN THE BOX

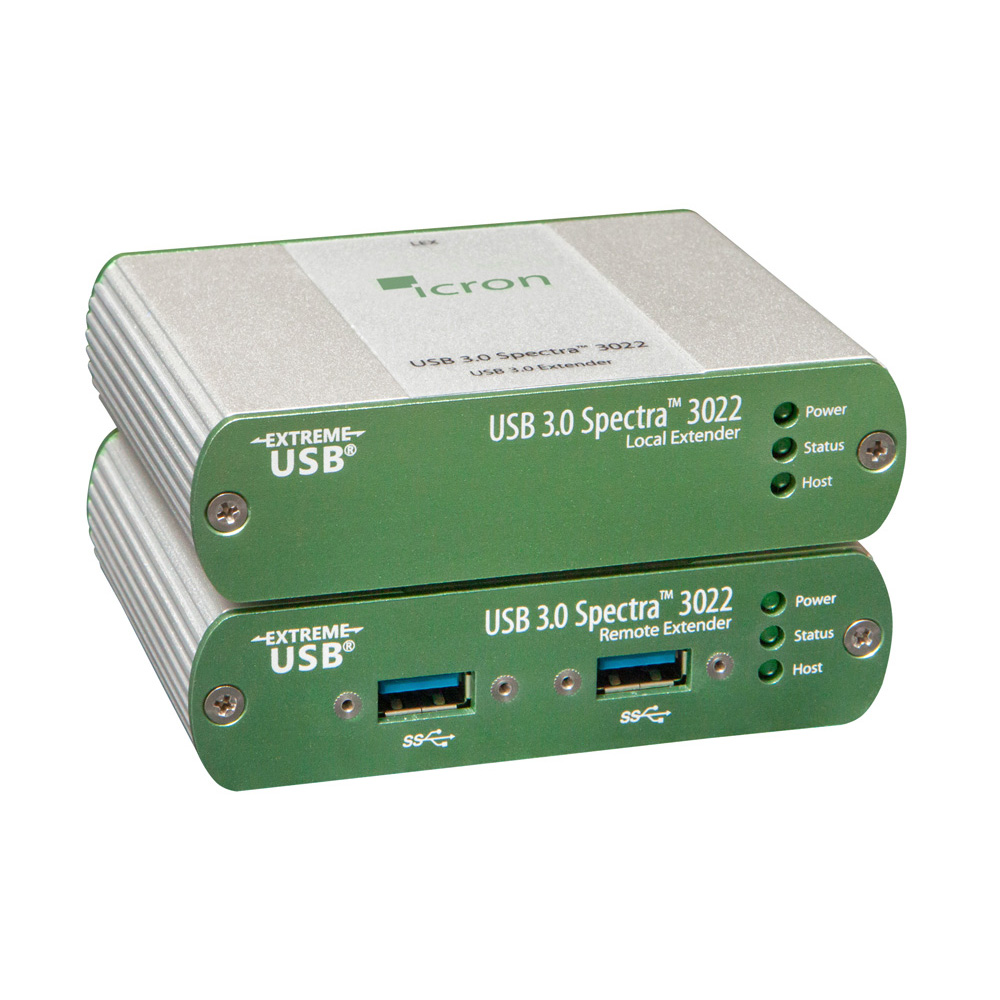

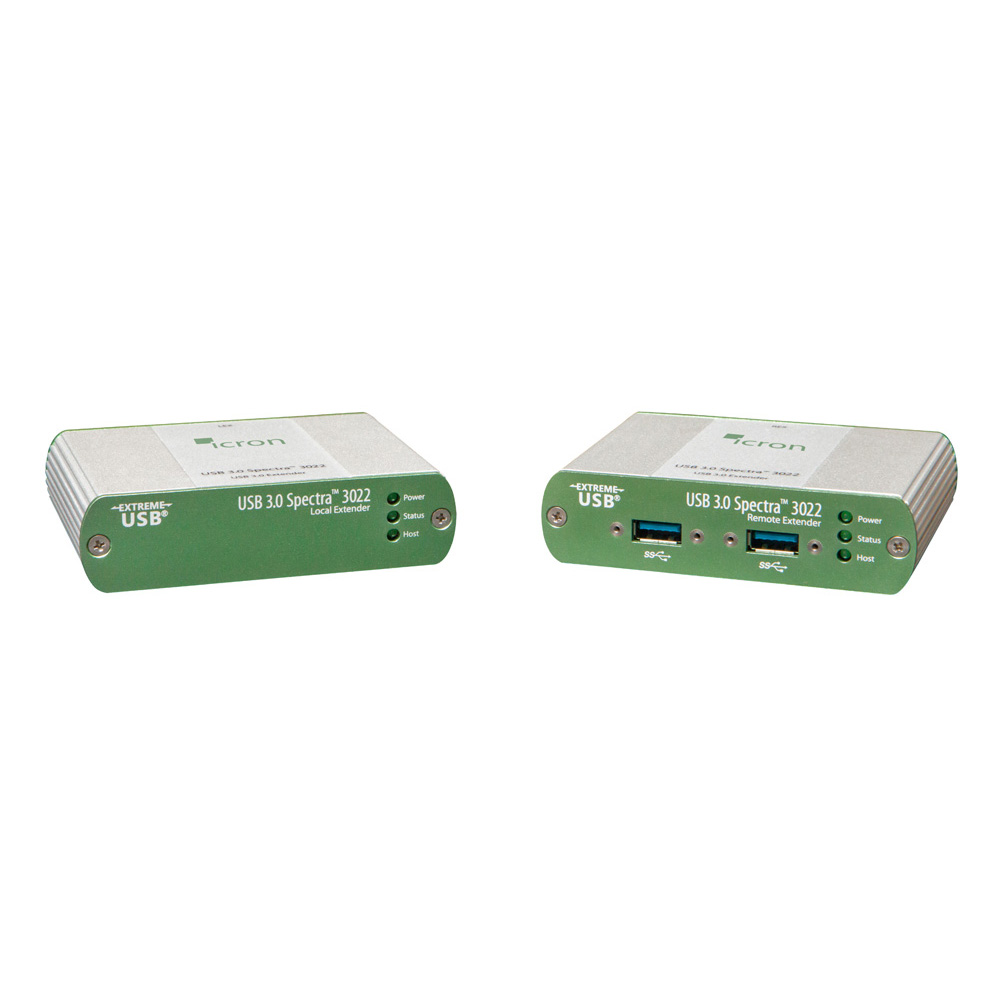

The USB 3.0 Spectra 3022 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • SFP multimode transceiver modules
  • Locking Power Adapter
  • 3.0 USB Cable
  • Country Specific Power Cord (North America, EU, UK, Australia, or Japan)
  • Quick Start Guide
  • Two-year Warranty

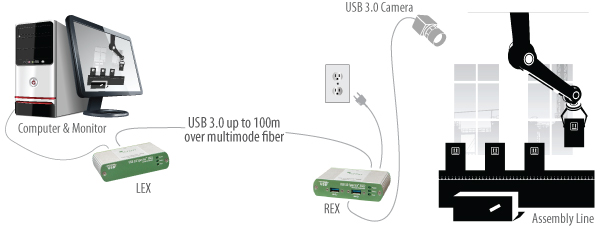

CONNECTION DIAGRAM
