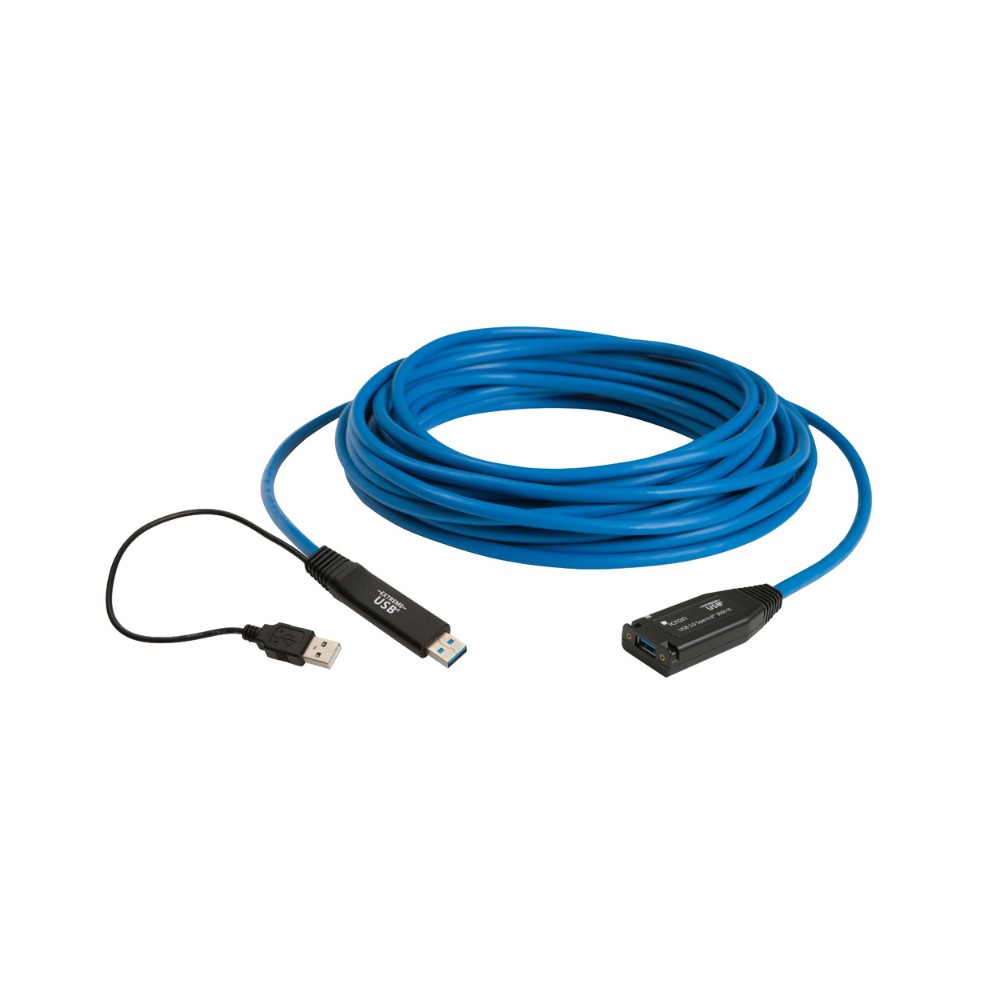

USB 3.0 Spectra 3001-15
1-Port 15m Active Copper Extension Cable

The USB 3.0 Spectra™ 3001-15 is a rugged grade single-port USB 3.0 SuperSpeed active copper extension cable, a perfect short-range extension solution when up to 15 meters distance is required for your application. The Spectra 3001-15 cable supports throughput of 5Gbps, features a locking USB 3.0 port delivering 900mA power, and is bus powered so no external power outlet is required. This cable is well suited for AIA USB3 Vision™ camera applications, and comes with a two year warranty. Note: backward compatibility to USB 2.0/1.1 is not supported

OVERVİEW

USB 3.0’s distance limit is approximately 3 meters. When up to 15 meters is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged bus-powered active cable supports USB 3.0 5Gbps throughputs and provides 5V/900mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a locking USB port as specified by AIA USB3 Vision™. The cable is warranted for 2 years from the date of purchase. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender

FEATURES

  • USB 3.0 extension for 15m
  • Supports USB 3.0 throughputs up to 5Gbps
  • Bus powered from host PC, no external power supply needed
  • USB 3.0 device port provides 5V, 900mA power
  • Second USB power connector for use if additional power is required
  • Locking USB connector
  • Slots on device port for convenient cable tie mounting
  • Rugged grade cabling
  • Status LED at device port with power, enumeration and over-current indication
  • Works with AIA USB3 Vision™ compliant devices
  • 2 year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™, Linux®, and Chrome OS™

SPECIFICATIONS

Range

  • Active Copper Cable: 15m (49.21 ft.)

Speeds

  • USB 3.0: Up to 5Gbps (Not backward compatible with USB 2.0/1.1)

Physical

  • USB Connector on Device Side: 1 x USB 3.0 Type A Locking Receptacle
  • USB Connectors on Host Side: 1 x USB 3.0 Type A Host Connector; and
    1 x USB Type A Power Connector (required for devices drawing more than 2.5W)
  • Cable Diameter: 6.9mm (0.27″)
  • Jacket Material: PVC
  • Bend Radius: 28mm (1.10″)
  • Mounting Slots on Device Side: Slots for Cable Tie

Power

  • Power Source: Bus power
  • Input Power: Up to 1.4A
  • Available Current: 5V, 900mA

Environmental

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 170°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

  • FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1, VW-1 (UL 1581)
  • Machine Vision: Works with AIA USB3 Vision™ compliant devices

Support

  • Warranty: 2 years

IN THE BOX

The USB 3.0 Spectra 3001-15 active extender cable includes:

  • 15 meter USB 3.0 Spectra 3001-15 Active Cable
  • Cable Tie
  • Quick Start Guide
  • Two year warranty

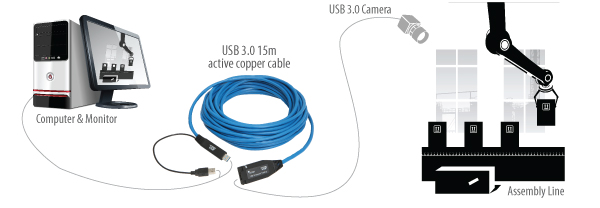

CONNECTION DIAGRAM
