USB 2.0 Ranger 2312
Dual port CAT 5e/6/7 100 meter Extender

The USB 2.0 Ranger® 2312 with flexible power extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote Extender). This dual port USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device. Additionally, it is FCC/CE Class B certifie

OVERVİEW

The USB 2.0 Ranger® 2312 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This dual port USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2312 is plug and play – no software drivers required – and works with all major operating systems: Windows®, macOS™, and Linux®

Additionally, this ExtremeUSB® based extension system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

FEATURES

  • USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
  • Supplies up to 1.5 Amps total when both USB ports are in use
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Supports all USB 2.0/1.1 devices up to 480 Mbps
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™M, and Linux®

SPECIFICATIONS

Range

  • Direct connect up to 100m (330 ft) over CAT 5e/6/7

Speeds

  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps

Power

  • Power Supply: 100-240V AC Input, 24V 1A DC Output. Apply at either LEX or REX.

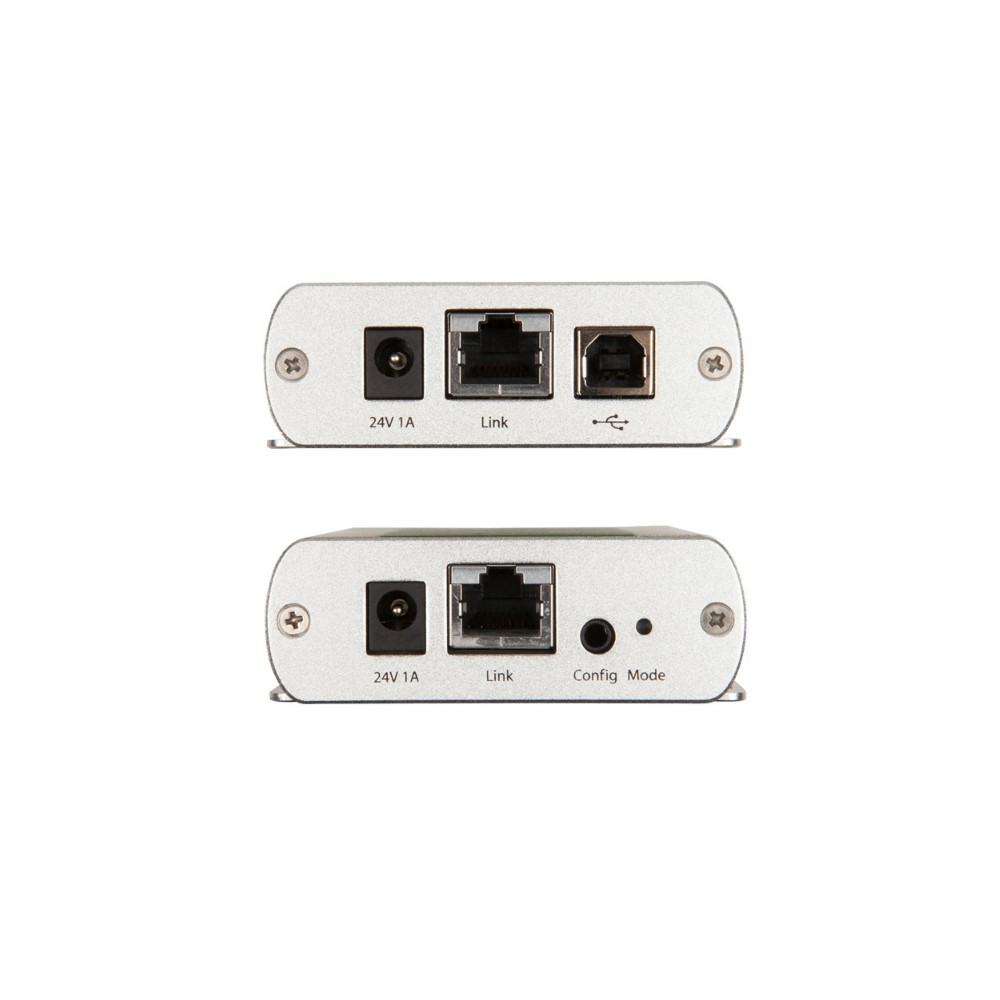

LEX (Local Extender)

  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x RJ45
  • Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver anodized aluminum

REX (Remote Extender)

  • USB Connector: 2 x USB Type A Receptacle
  • Link Connector: 1 x RJ45
  • Available Current: up to 1 Amp to USB port; 1.5 Amps total shared
  • Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver anodized aluminum

Environmental

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

  • FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1

Support

  • Warranty: 2-year

IN THE BOX

The USB 2.0 Ranger 2312 system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • 2 meter USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

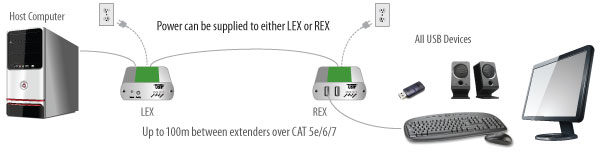

CONNECTION DIAGRAM
