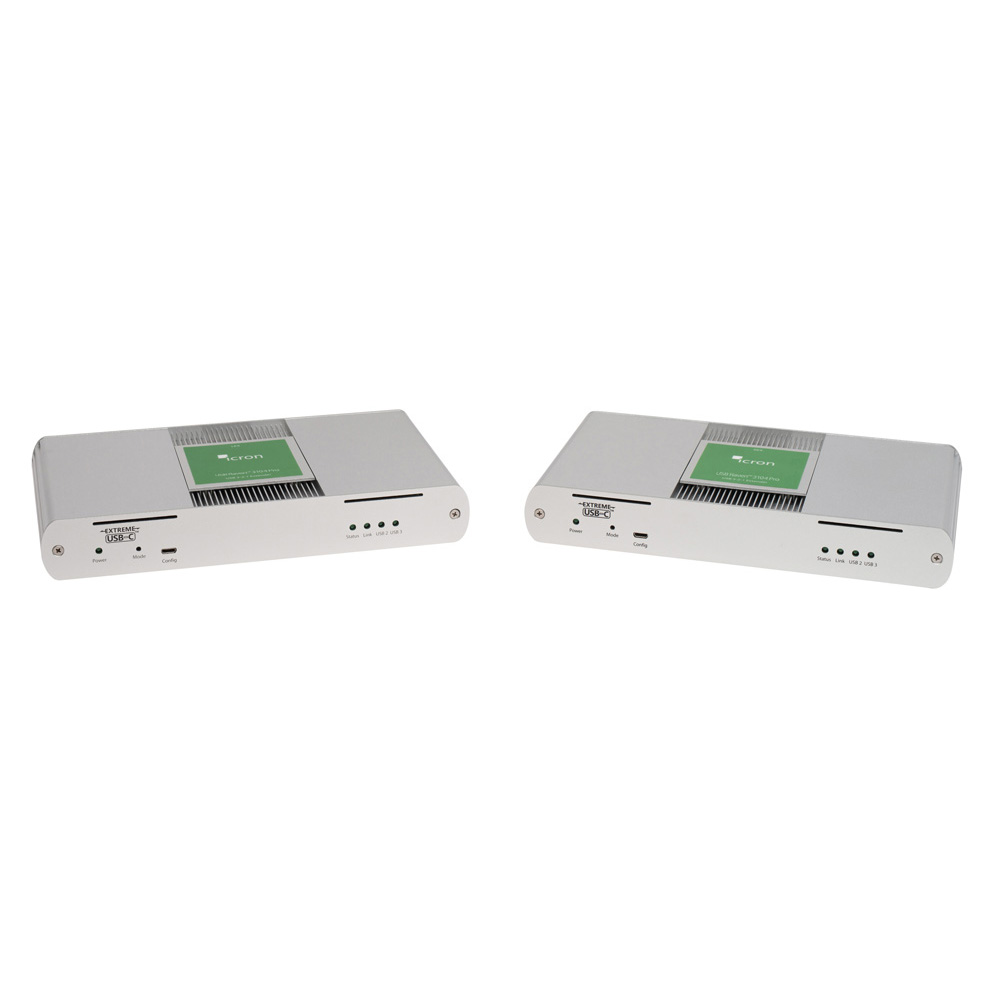

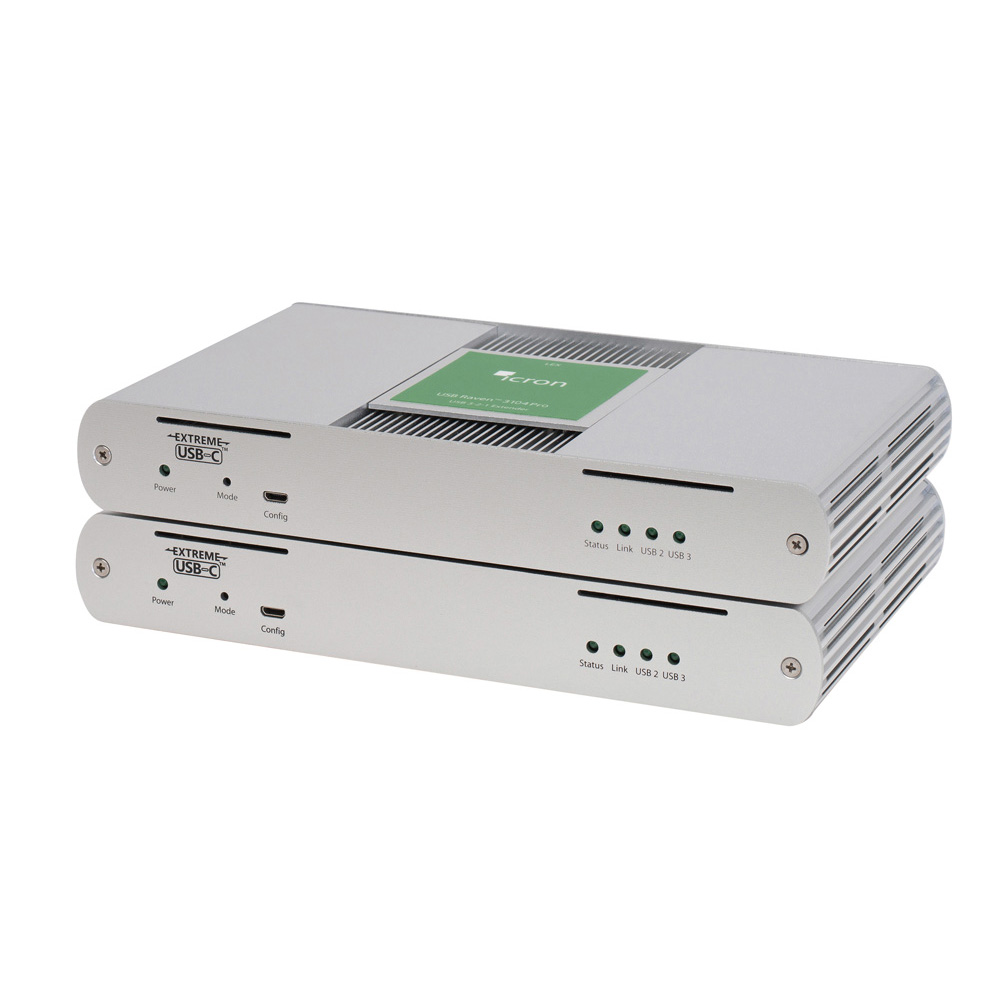

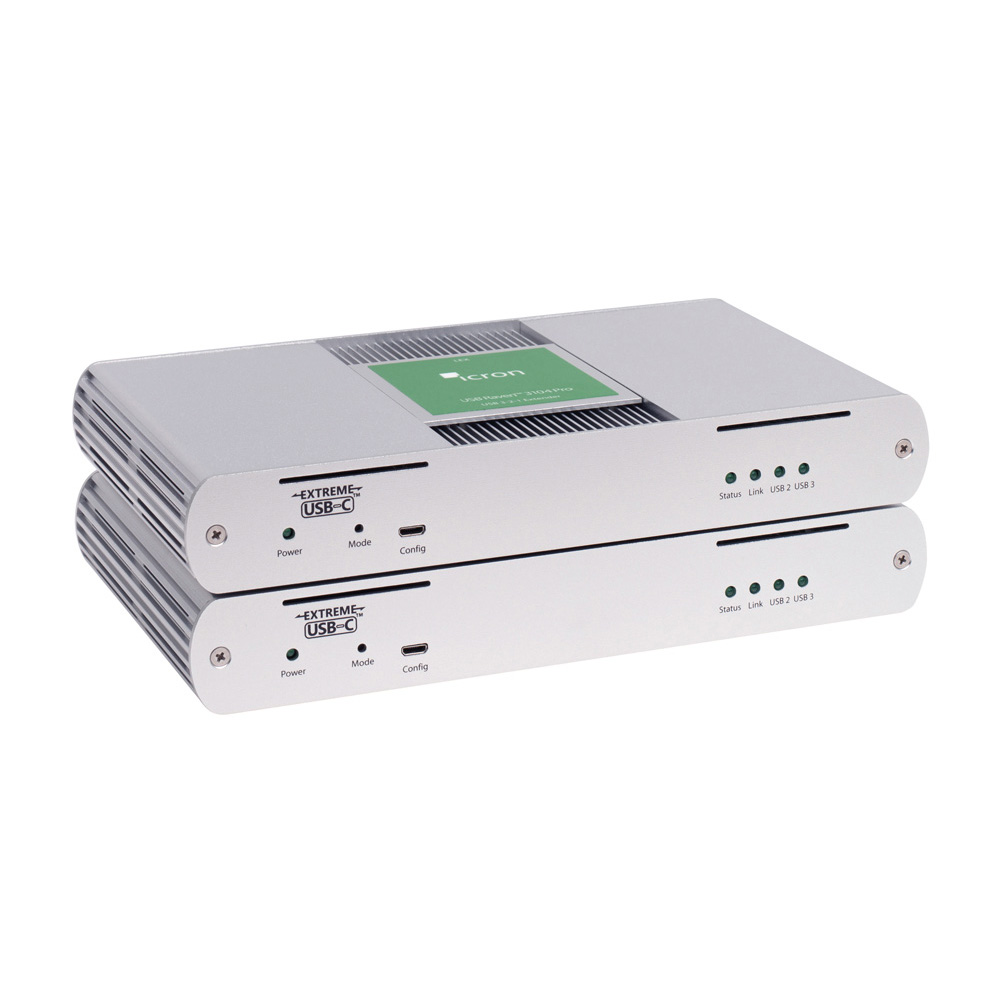

Icron USB 3-2-1 Raven 3104 Pro
4-port USB 3.2, 100m CAT 6a/7 Extender System

The Icron USB 3-2-1 Raven™ 3104 Pro is Icron’s latest innovation in USB 3-2-1 extension technology. Featuring ExtremeUSB-C™ technology extending all USB 3.2 Gen 1, 2.0 and 1.1 devices simultaneously up to 100 meters over CAT 6a/7 now with enhanced support for cameras and video capture devices. The USB 3-2-1 Raven 3104 Pro is ideal for multiple applications including Unified communications spaces for extension and distributions of USB 3 cameras, touch screens, docking station, capture and video converters, and any other USB 3, 2 or 1 device.

OVERVİEW

The Icron USB 3-2-1 Raven™ 3104 Pro is Icron’s latest innovation in ExtremeUSB-C™ technology. The Raven 3104 Pro allows of simultaneous extension of USB 3.2 Gen 1, 2.0, and 1.1 protocols across a single link with auto negotiated communication between hosts and devices for maximum interoperability and ease of use. The Raven 3104 Pro is specially designed and enhanced for better performance with USB 3 cameras and video capture devices, offering support for higher frame rates and resolution support than standard Raven products. The Raven 3104 Pro is easy to install; simply plug and play (no software drivers required) and it works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.

Additionally, this ExtremeUSB-C™ based USB 3.2 extender system is FCC/CE Class B certified and backward compatible for use with all USB 3, 2, and 1 devices such as conference cameras, flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, docking stations, USB to video converters and audio devices.

FEATURES

  • USB 3.2 Gen 1 data rate up to 5Gbps
  • Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
  • Four available 3.2 Gen 1 ports
  • Up to 1.2A (6W) per USB port
  • 100/1000 Ethernet channel; LAN pass-through
  • Single cable, CAT 6a/7 up to 100m
  • Point-to-point connection
  • Supports all USB transfer types (Control, Interrupt, Isochronous and Bulk)
  • Optimized for camera and video capture devices
  • FCC and CE (Class B) compliance
  • Two year warranty
  • ExtremeUSB-C™ suite of features:
    • Transparent USB extension supporting USB 3, 2 and 1
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™, Linux® and Chrome OS™

SPECIFICATIONS

RANGE

  • Direct connect up to 100m (328 ft) over CAT 6a/7 cable

SPEEDS

  • USB 3.2: up to 5Gbps
  • USB 2.0: up to 480Mbps
  • USB 1.1: up to 12Mbps

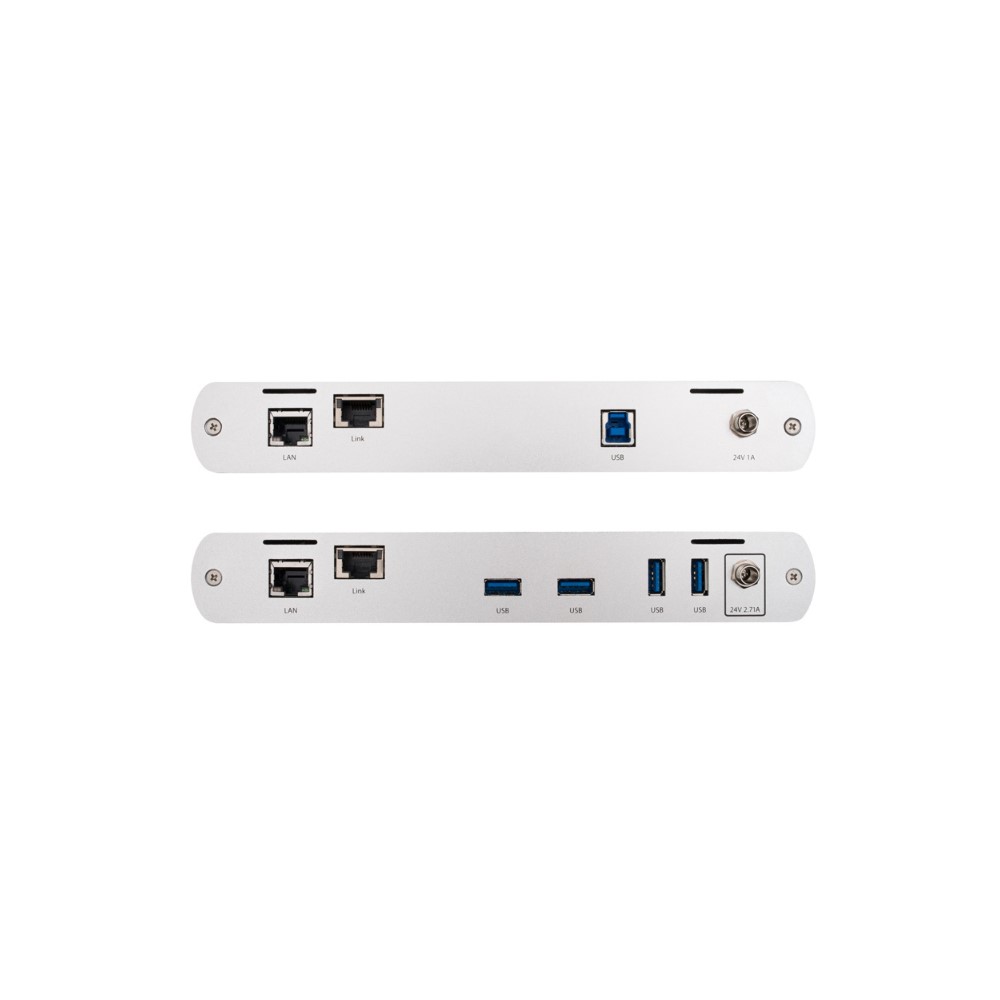

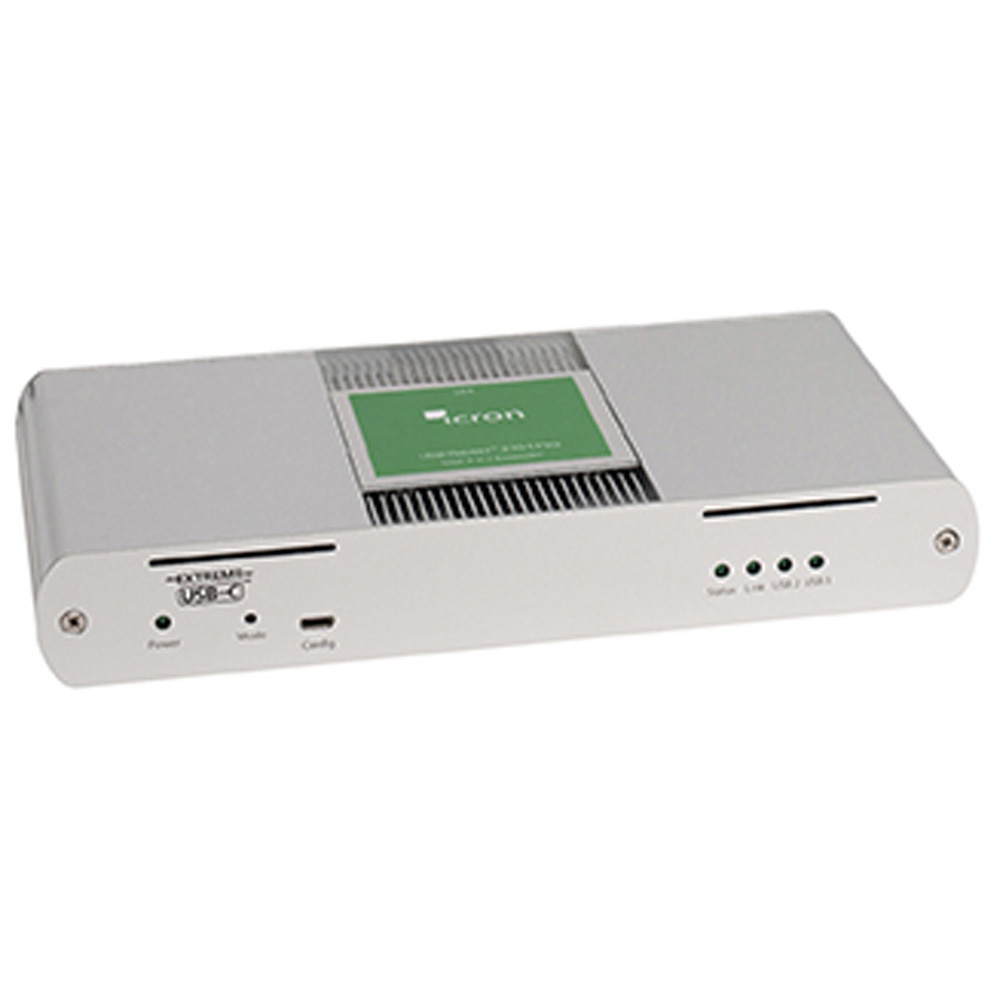

LEX (Local Extender)

  • 1x USB 3 Type B Receptacle
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 1A DC Locking Jack
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 920g (2.03 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

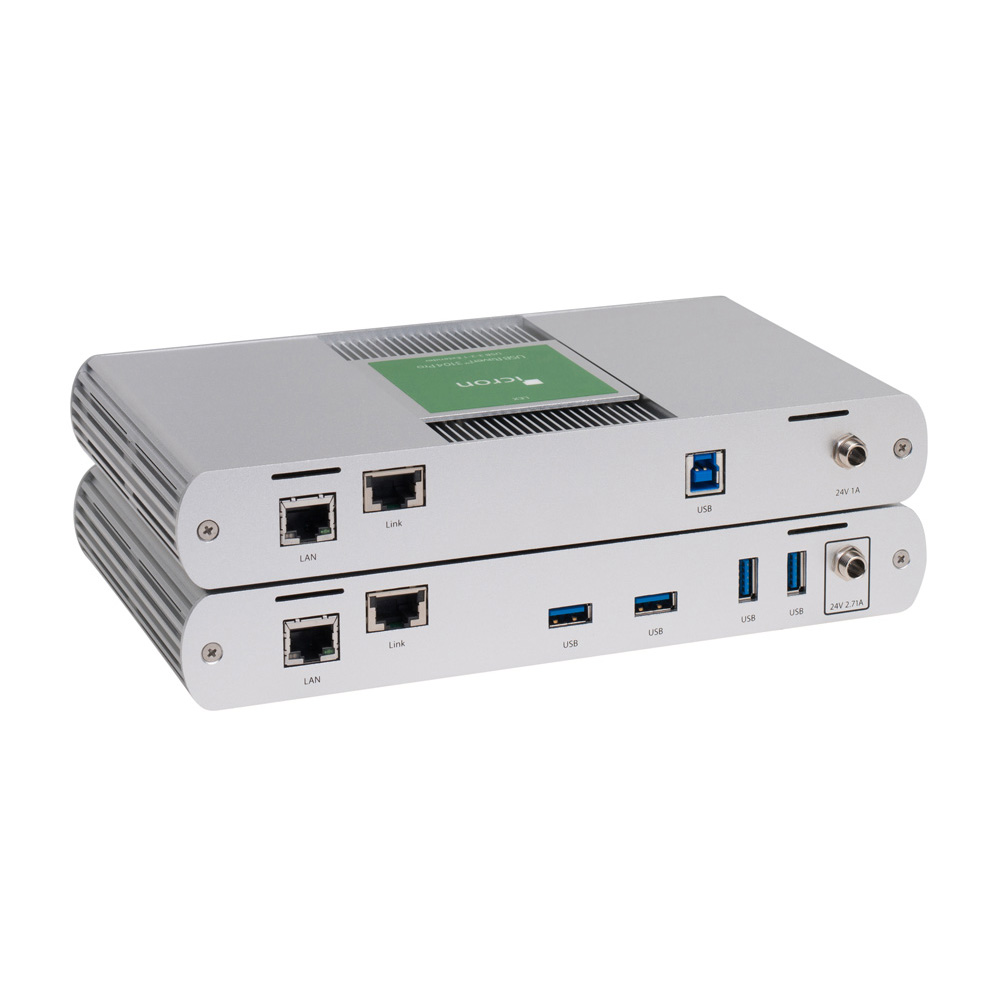

REX (Remote Extender)

  • 4x USB 3 Type A Receptacles
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 2.71A DC Locking Jack
  • Available Current: up to 1.2A (6W) per USB port
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 990g (2.18 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

ENVIRONMENTAL

  • Operating Temperature: 0C to 50C (32F to 122F)
  • Storage Temperature: -20C to 70C (-4F to 158F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2/3, REACH, Conflict Minerals

SUPPORT

  • Warranty: 2-year

IN THE BOX

The Icron Raven 3104 Pro extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • USB 3.1 Gen 1 Cable
  • LEX 24V DC 1A International Power Adapter
  • REX 24V DC 2.71A International Power Adapter
  • 2 x Country Specific Power Cords
  • Quick Start Guide
  • Two year warranty

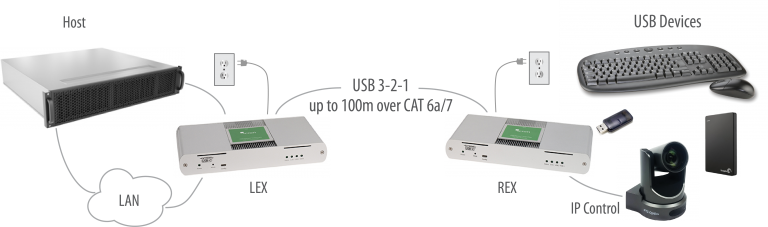

CONNECTION DIAGRAM
