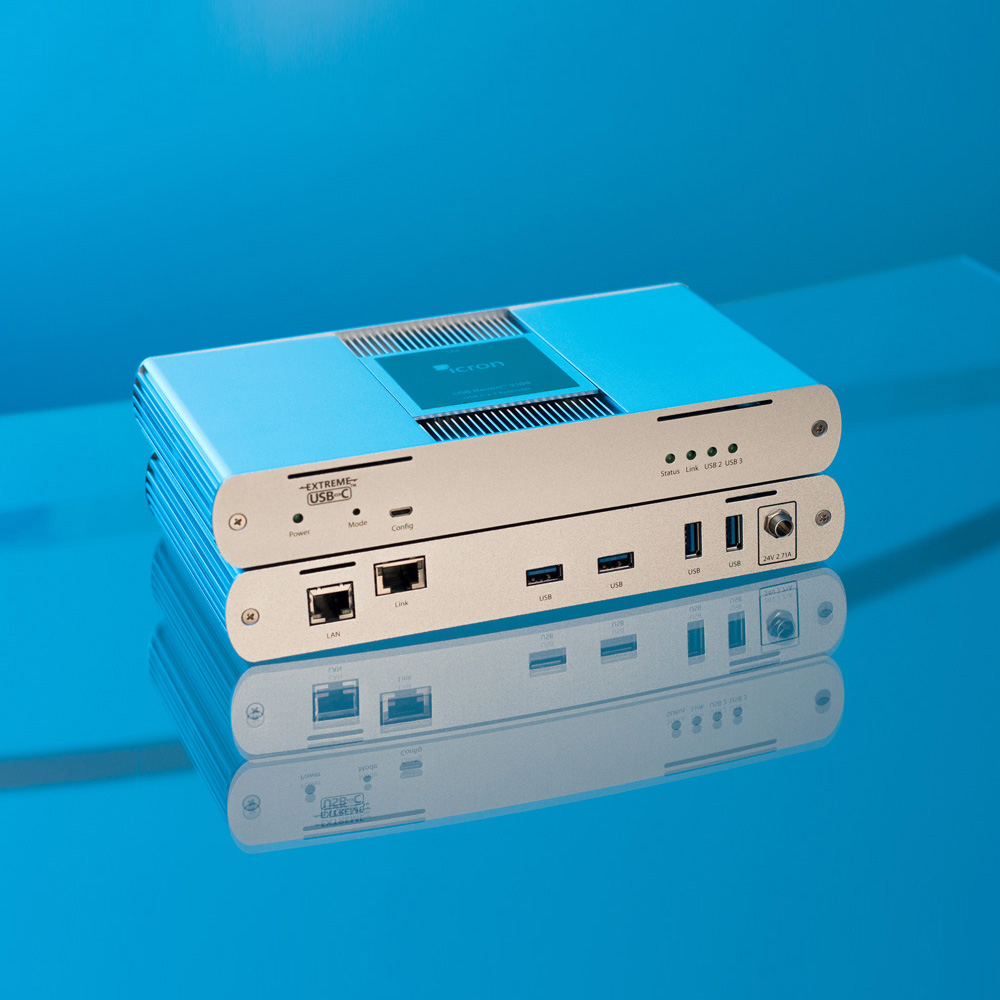

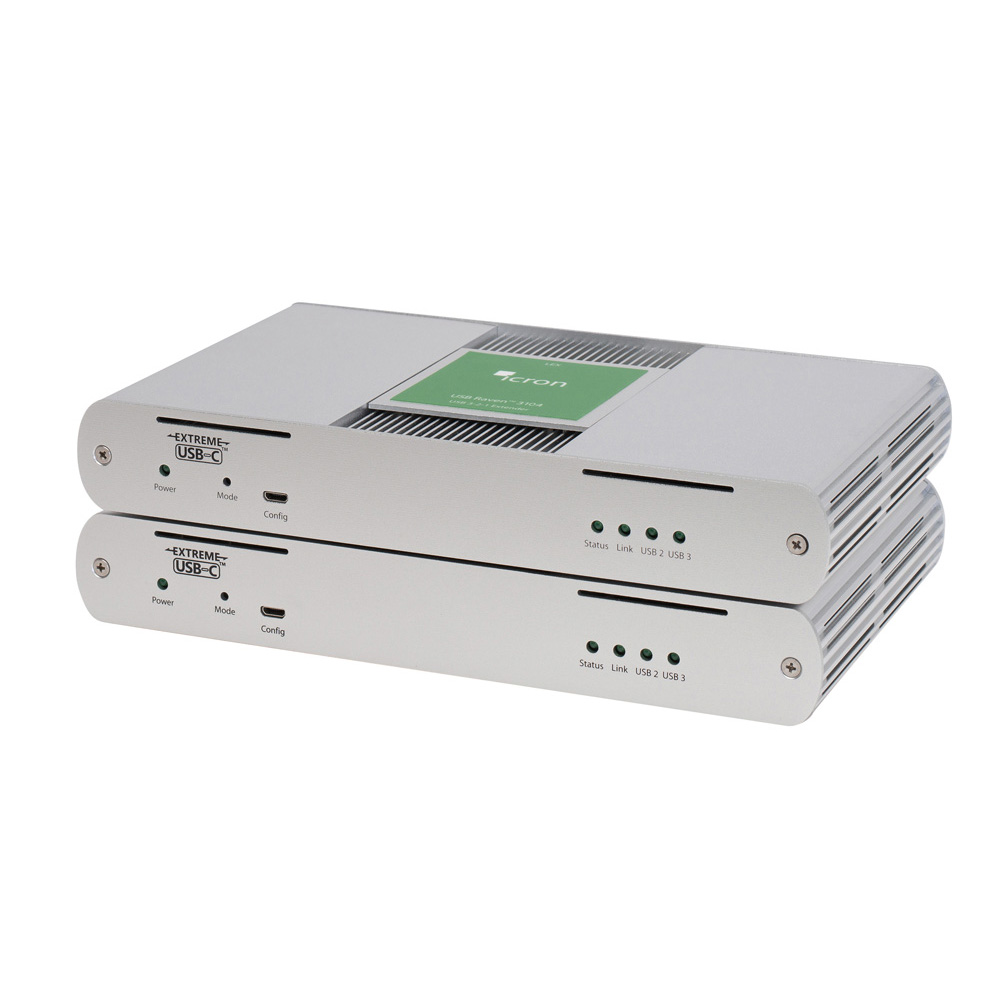

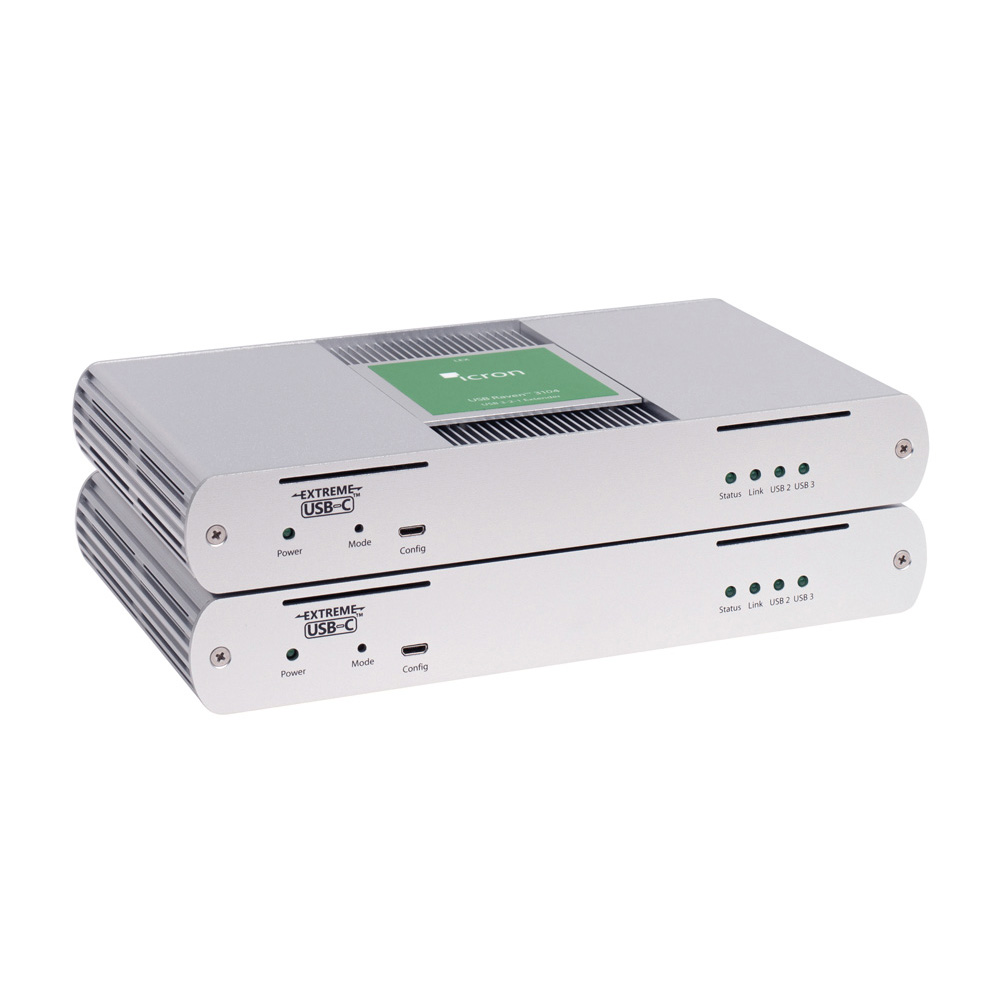

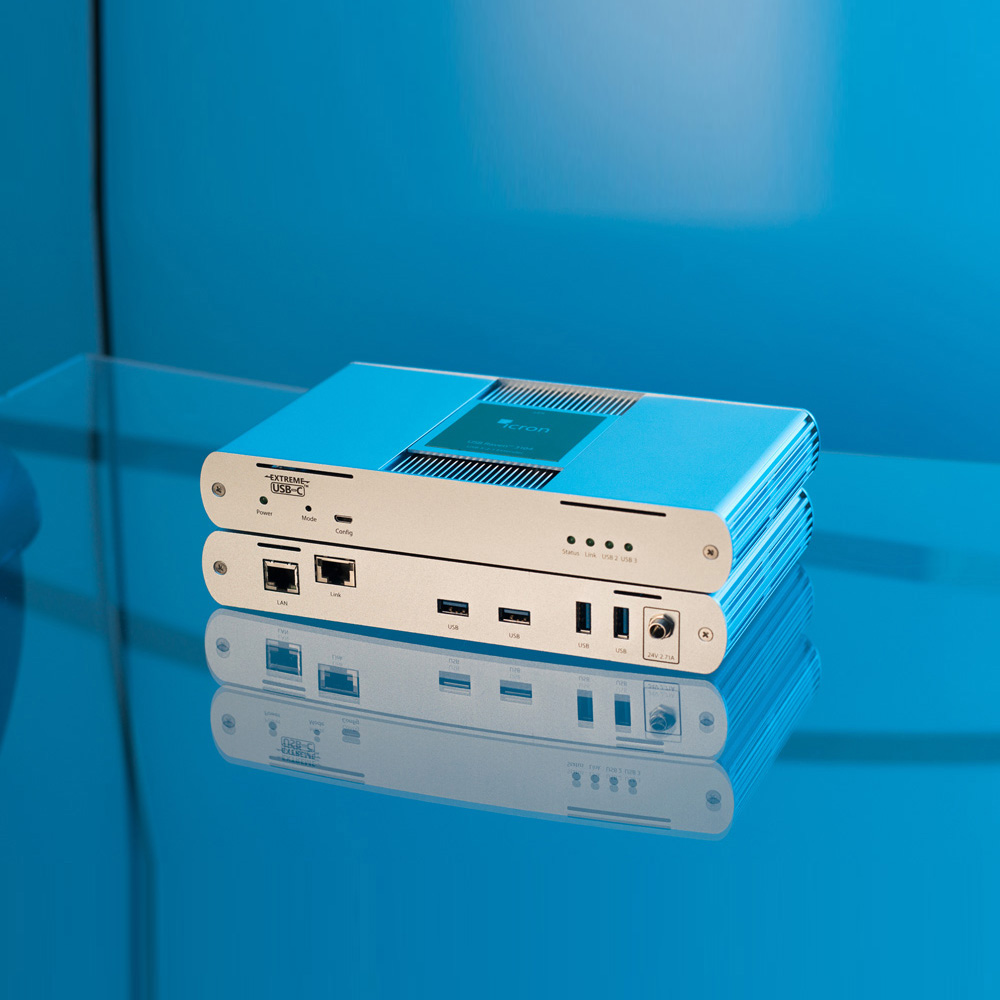

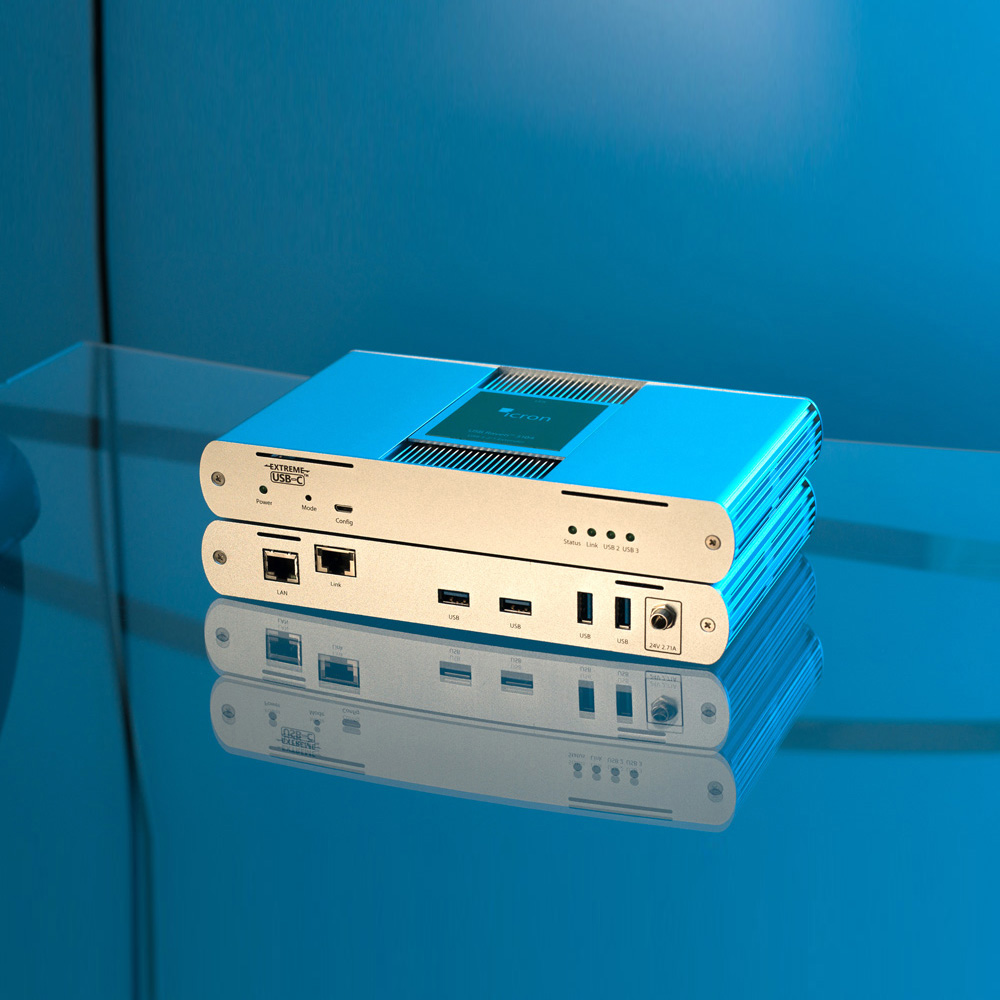

Icron USB 3-2-1 Raven 3104
4-port USB 3.1, 100m CAT 6a/7 Extender System

The Icron USB 3-2-1 Raven™ 3104 is the world’s first USB 3.1 extender over CAT with ExtremeUSB-C™ technology, extending USB 3.1, 2.0 and 1.1 devices simultaneously up to 100 meters over CAT 6a/7. The Raven 3104 is used to extend: high-resolution USB 3.1 conferencing cameras, USB 3 and USB 2 flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, audio devices, and many other USB 3, 2 and 1 devices. If your USB 3.1 extender application requires fiber optic cabling, refer to the Icron USB 3-2-1 Raven 3124 extender

OVERVİEW

The Icron USB 3-2-1 Raven™ 3104 is the world’s first USB 3.1 extender allowing users to extend USB 3.1 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conferencing cameras and audio devices for boardrooms and conference rooms. The Raven extension series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Skype).

This 4-port USB 3.1 extender supports data rates at up to 5Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.

Additionally, this ExtremeUSB-C™ based USB 3.1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras including: flash drives, hard drives, keyboards, mice, interactive white boards, touchscreens, audio devices, and other USB 3, 2 and 1 devices.

FEATURES

  • USB 3.1 Gen 1 data rate up to 5Gbps
  • Integrated 4-port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth; although if Isochronous support is required, use Raven 3104 Pro
  • Up to 1.2A (6W) per USB port
  • 100/1000Mbps Ethernet channel; LAN pass-through
  • Single cable, CAT 6a/7 up to 100m
  • Point-to-point connection
  • FCC and CE (Class B) compliance
  • Two year warranty
  • ExtremeUSB-C™ suite of features:
    • Transparent USB extension supporting USB 3, 2 and 1
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™, Linux® and Chrome OS™

SPECIFICATIONS

Range

  • Direct connect up to 100m (328 ft) over CAT 6a/7 cable

Speeds

  • USB 3.1: up to 5Gbps
  • USB 2.0: up to 480Mbps
  • USB 1.1: up to 12Mbps

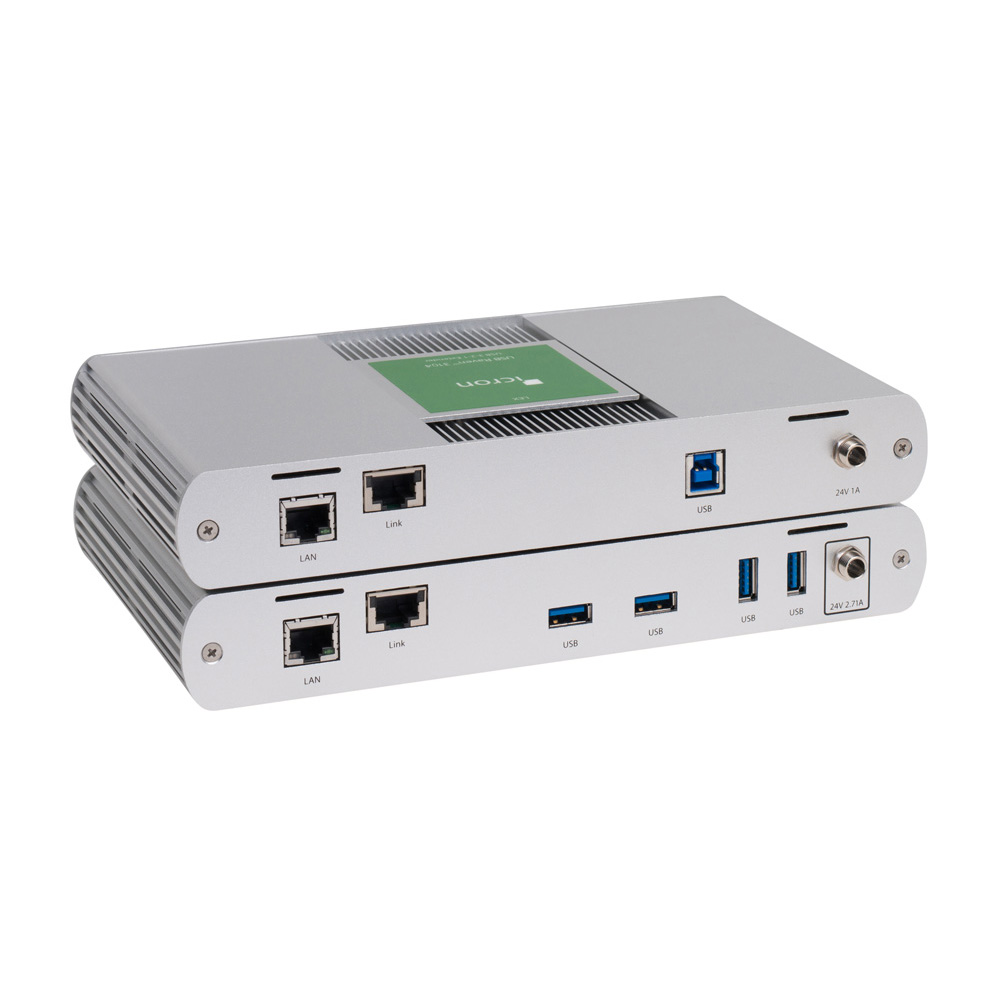

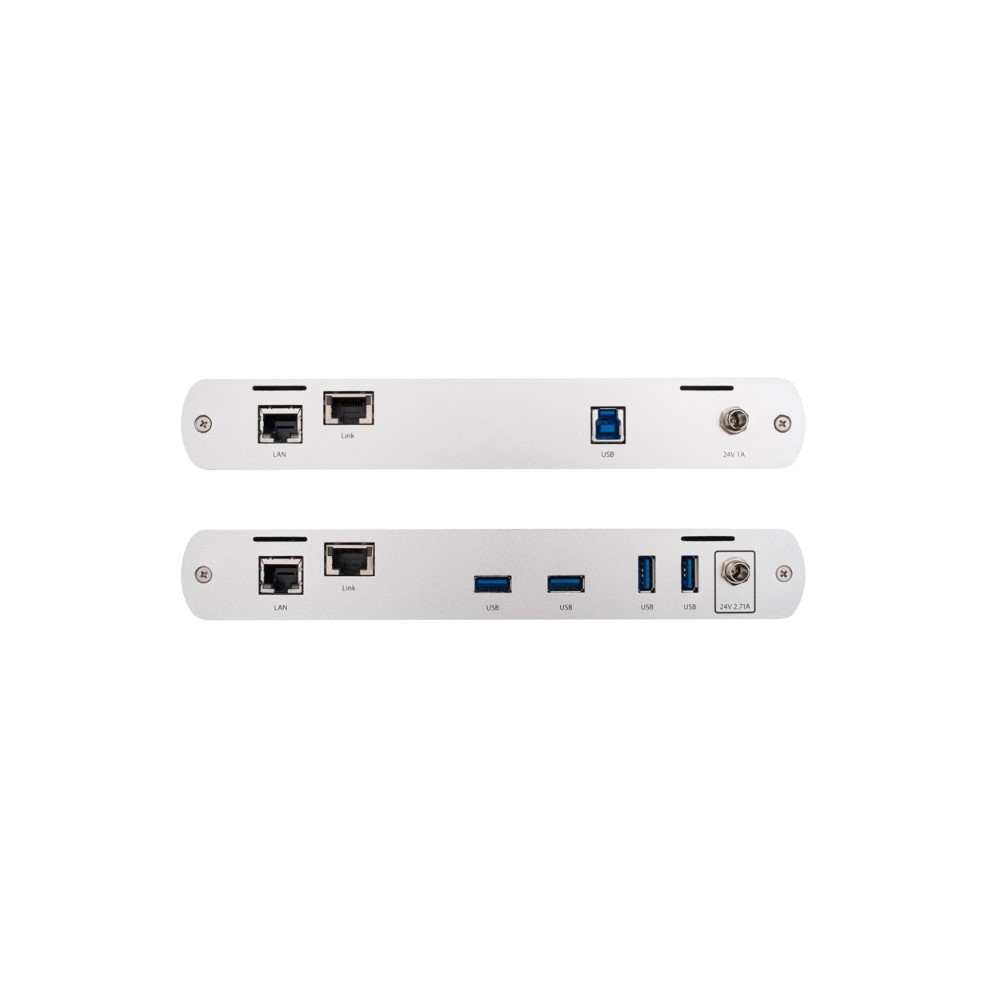

LEX (Local Extender)

  • 1x USB 3.1 Gen 1 Type B Receptacle
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 1A DC Locking Jack
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 920g (2.03 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

REX (Remote Extender)

  • 4x USB 3.1 Gen 1 Type A Receptacles
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 2.71A DC Locking Jack
  • Available Current: up to 1.2A (6W) per USB port
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 990g (2.18 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

Environmental

  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

Compliance

  • FCC (Class B), CE (Class B), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1

Support

  • Warranty: 2-year

IN THE BOX

The Raven 3104 extender system includes:

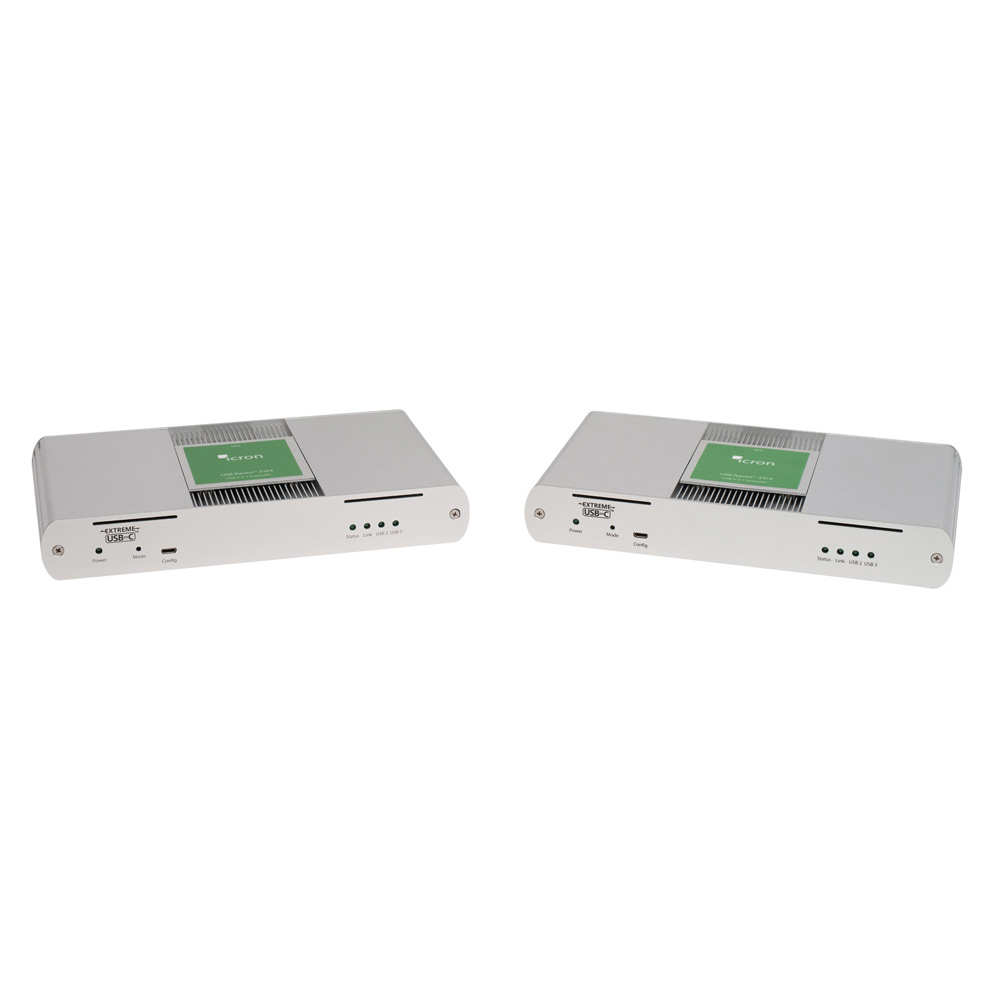

  • Local Extender (LEX)
  • Remote Extender (REX)
  • USB 3.1 Gen 1 Cable
  • LEX 24V DC 1A International Power Adapter
  • REX 24V DC 2.71A International Power Adapter
  • 2 x Country Specific Power Cords
  • Quick Start Guide
  • Two year warranty

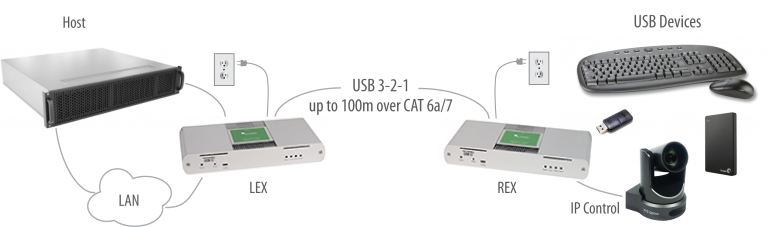

CONNECTION DIAGRAM
