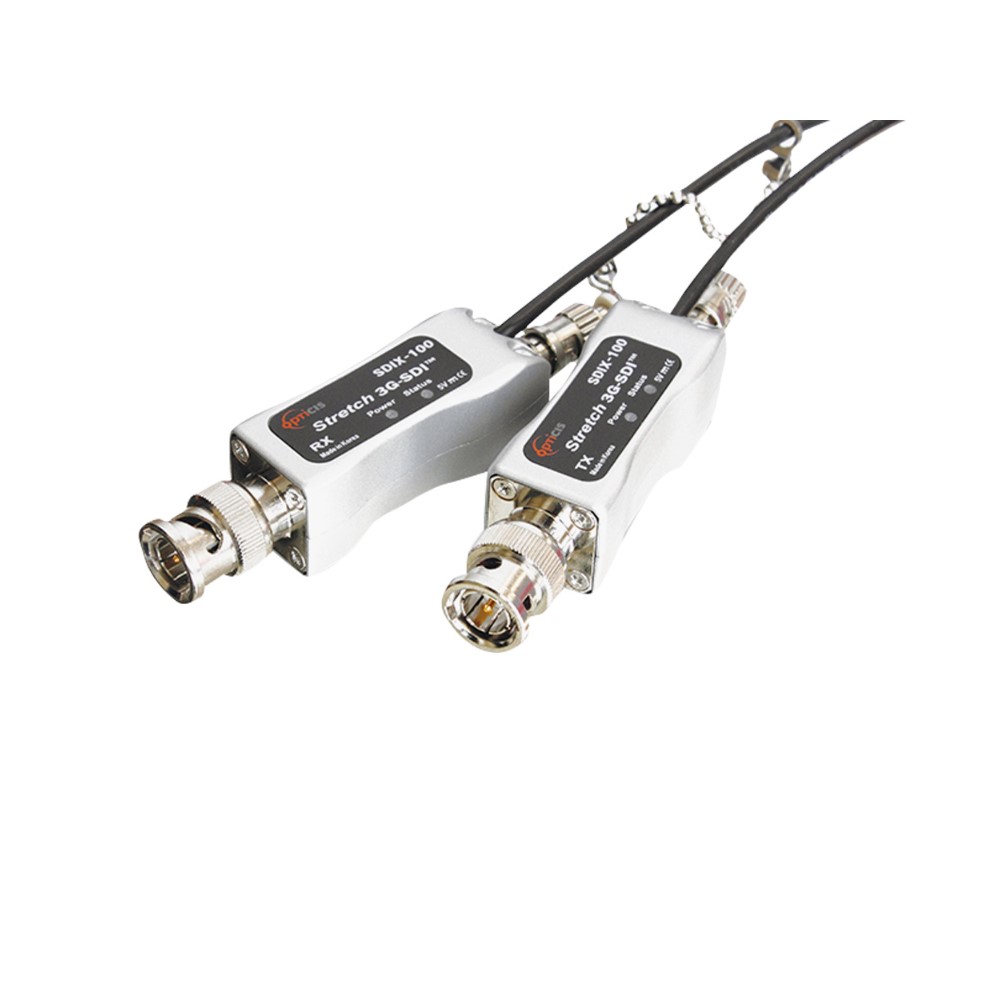

SDIX-100-TR
Miniature Fiber Optic Extender 3G-SDI Module

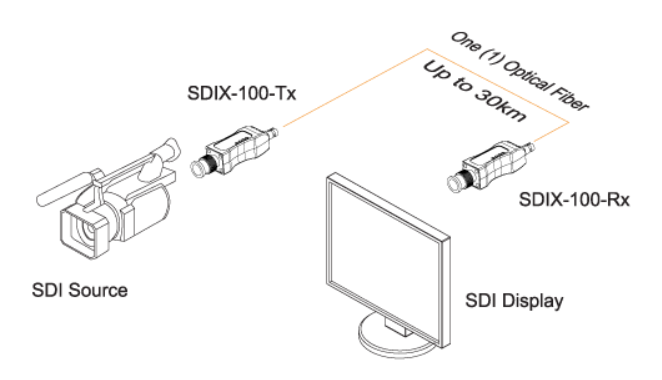

The OPTICIS 3G-SDI extender, SDISE-100-TR is a miniature, fiber-optic 3G-SDI digital video extender supporting full HD 1080p, 60Hz and designed to transmit multi-rate SDI signal including 3G-SDI (SMPTE-424M), HD-SDI (SMPTE-292M) or DVB-ASI and serial digital video signal (SMPTE-259M) up to 2Km over one (1) ST single-mode fiber.

Using advanced digital fiber optic transmission technology, no user adjustments are required in the mini 3G-SDI extender system, so that SDISE-100-TR enables quick setup and trouble-free operation. SDISE-100-TR can simply extend over the limits such as falloff of video quality, signal delay and maintenance, security problem by distribution, repeater for long-distance transmission in IP base or copper wire system.

PRODUCT SPECIFICATIONS

– Supports multi-rate SDI up to 3G-SDI over one (1) fiber
– Extends up to 2Km at 3Gbps
– Applicable to both single and multi-mode fibers
– Offers Clock and Data Recovery (CDR) included model, (PN: SDIX-100C-TR) as an option.
– SDI BNC input connector and ST terminated fiber optical connector
– Latch-locking power connector (mini-XL)
– Robust metal die-casting enclosure for harsh environment
– Operating temperature: 0 ~ 50℃
– Storage temperature: -30 ~ 70℃
– Input power: +5V 1A
– Dimensions (WDH): 19.5 x 82.7 x 19.5mm
