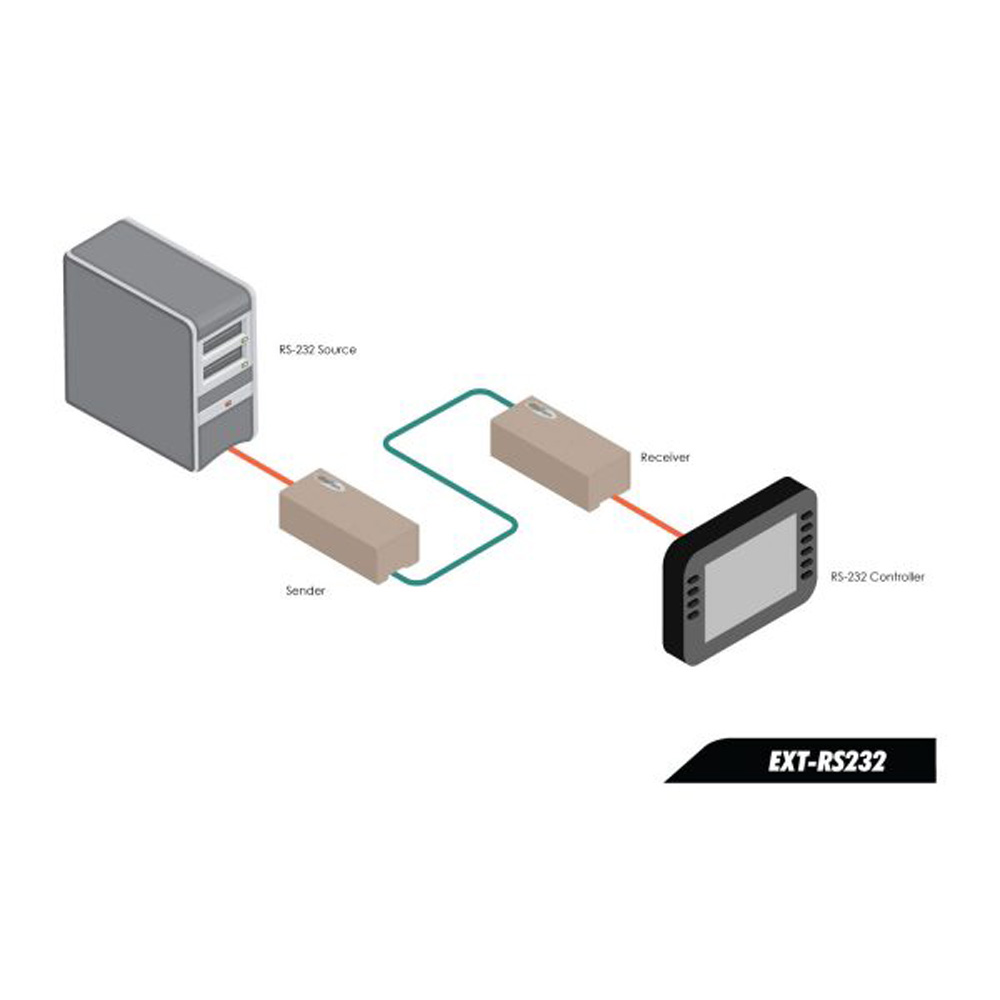

Now you can extend your RS-232 peripherals to a remote location 1000 feet (300 meters) away. Control your favorite Gefen products that use RS-232 or any other serial control devices that use RS-232. All 9-pins are perfectly reproduced from one end to the other.
FEATURES
- Extends any RS-232 compliant device up to 1000 feet (300 meters) from the computer
- Supports the full 9-pin RS-232 standard with a maximum data transfer rate of 115,200 baud
- Perfect for digital signage applications
- Only one CAT-5e cable required for extension
- Power only required on Sender unit
SPECIFICATIONS

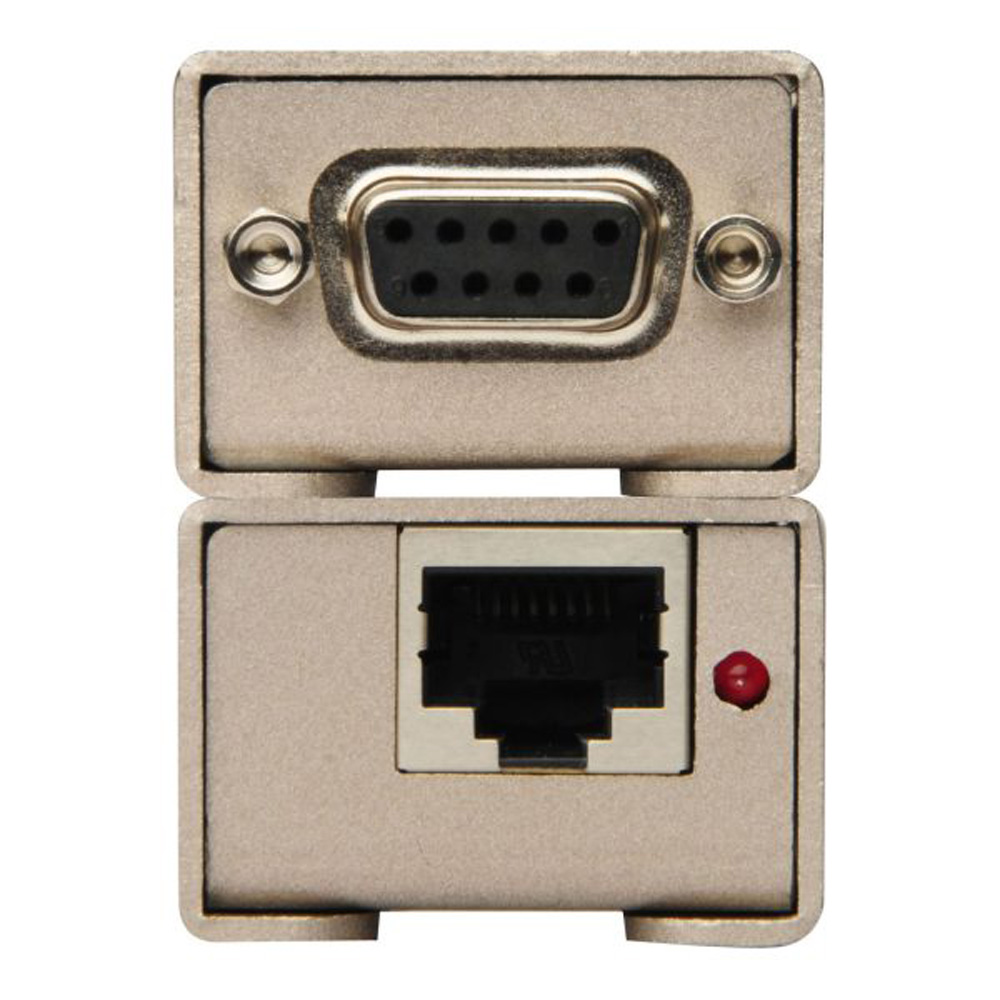

- RS-232 Input Connector: DB-9 female

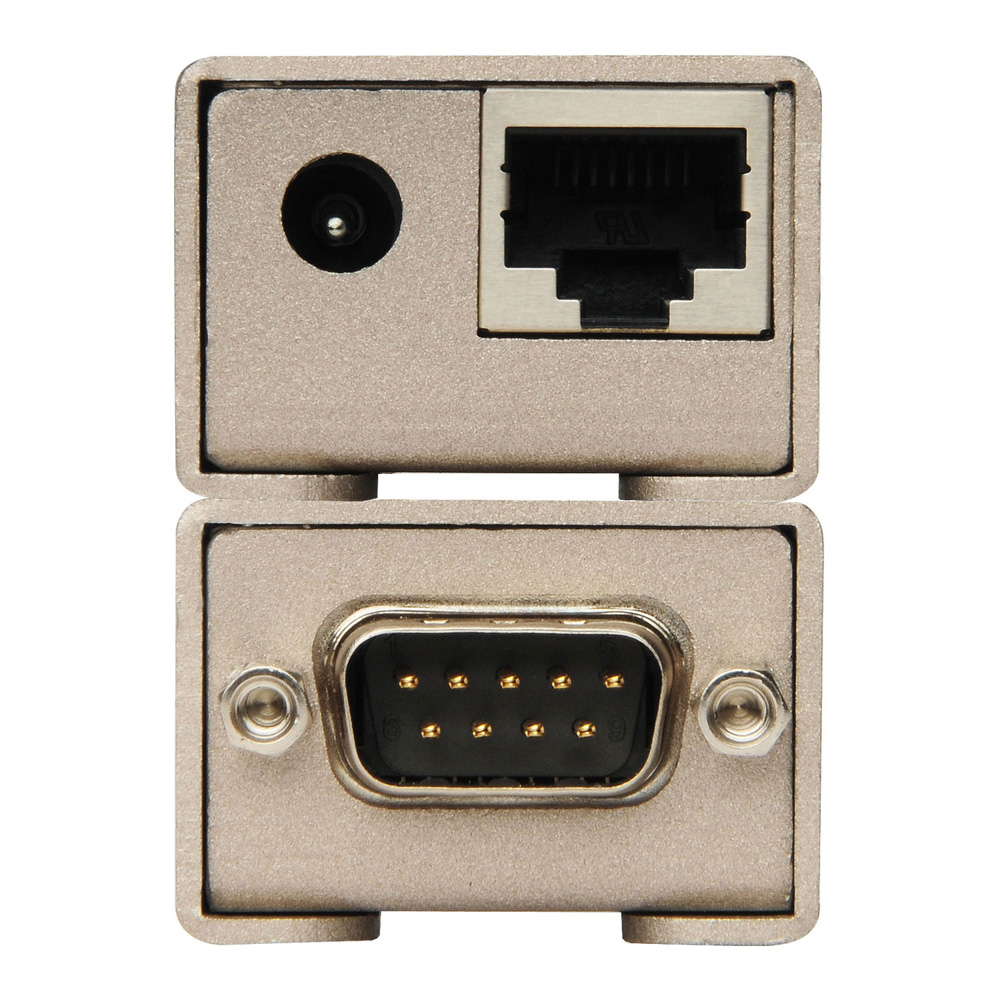

- RS-232 Output Connector: DB-9 male
- Link Connector: RJ-45 Shielded
- Conforms to the full 9-pin RS-232 standard
- Maximum data transfer rate: 115,200 baud
- Operating temperature range: +5 to +45 deg. Celsius
- Operating humidity range: 5 to 65% RHL, non-condensing
- Storage temperature range: -20 to +70 deg. Celsius
- Storage humidity range: 5 to 95% RHL, non-condensing
- Power Supply: 5V DC
- Power Consumption: 5W (max)
- Dimensions: 3.8″ W x 1.2″ H x 1.4″ D
- Shipping Weight: 2 lbs.
OTHER SPECIFICATIONS
Shipping Info
- Length10.6 (Inches)
- Width7.5 (Inches)
- Height2.65 (Inches)
- Weight1.3 (Lbs)
- UPC845344000015
Other Specifications
- RS-232 Input Connector: DB-9 female
- RS-232 Output Connector: DB-9 male
- Link Connector: RJ-45 Shielded
- Conforms to the full 9-pin RS-232 standard
- Maximum data transfer rate: 115,200 baud
- Operating temperature range: +5 to +45 deg. Celsius
- Operating humidity range: 5 to 65% RHL, non-condensing
- Storage temperature range: -20 to +70 deg. Celsius
- Storage humidity range: 5 to 95% RHL, non-condensing
- Power Supply: 5V DC
- Power Consumption: 5W (max)
- Dimensions: 3.8″ W x 1.2″ H x 1.4″ D
- Shipping Weight: 2 lbs.
In The Box

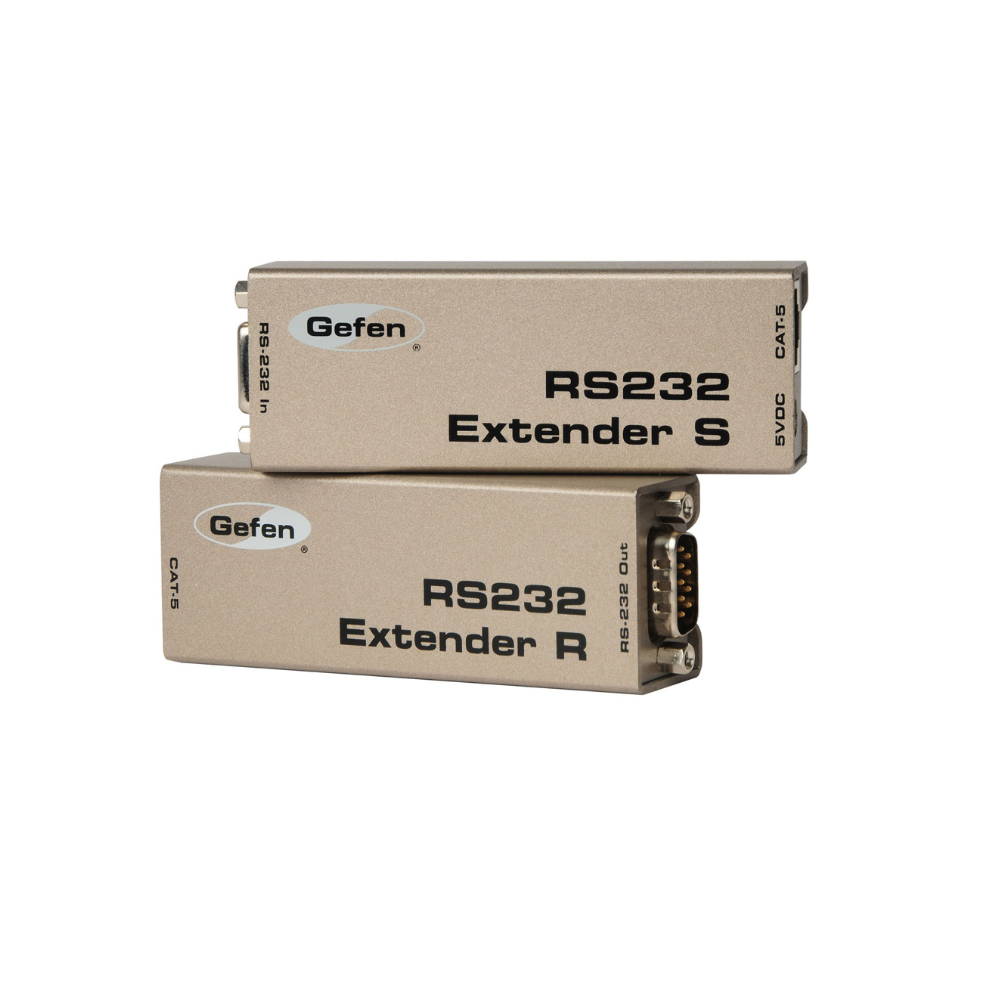

- RS232 Extender (Sender Unit) (EXT-RS232S)(1)
- RS232 Extender (Receiver Unit) (EXT-RS232R)(1)
- 6 ft. DB-9 Cable (CAB-DB9-6MF)(1)
- 5V DC Power Supply (EXT-PS526AIPN or EXT-PS526AIPN -6)(1)
- Quick-Start Guide (QSG-RS232)(1)
