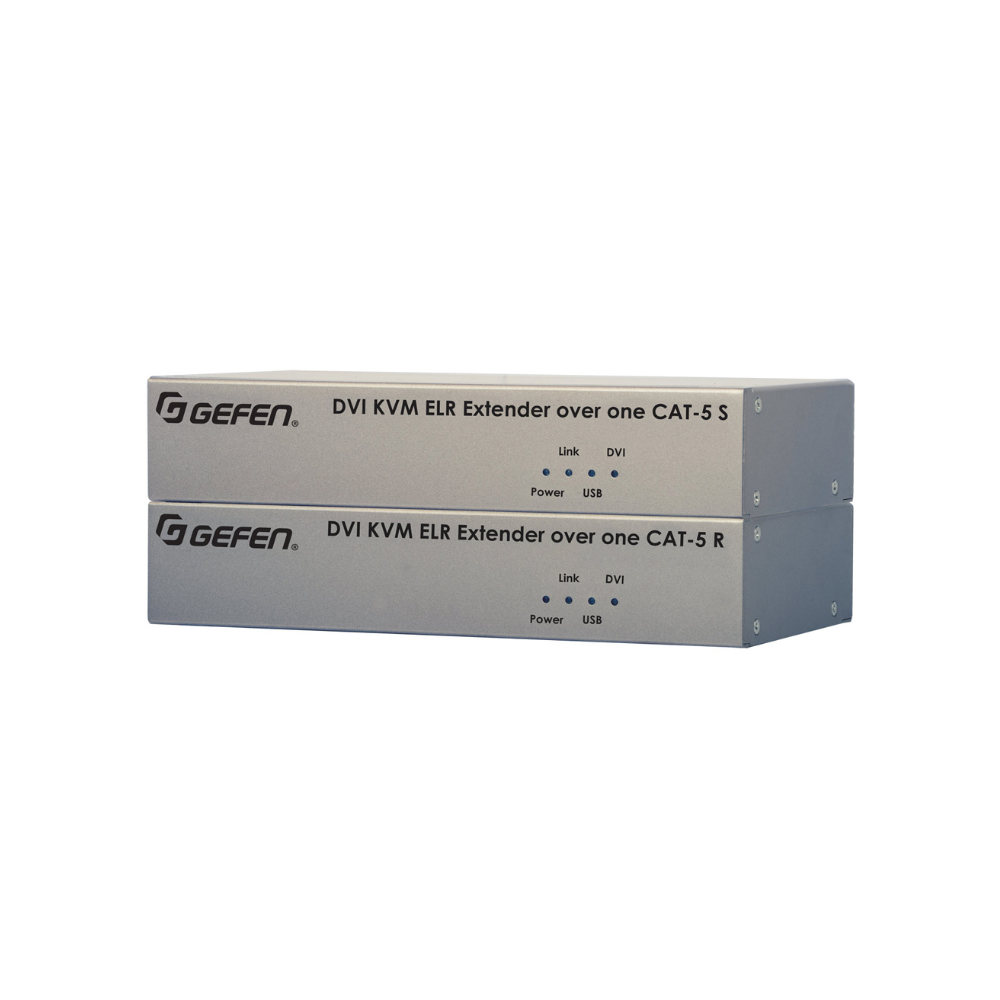

EXT-DVIKVM-ELR-UK
DVIKVM Extra Long Range Extender with Power Cords for UK territories

Extra Long Range KVM Extender for DVI and USB over one Cat-5 cable

FEATURES

  • Extends DVI and USB 2.0 up to 330 feet (100 meters)
  • Supports resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD
  • Extends USB 2.0 up to 330 feet (100 meters)
  • Supports up to 30 Mbps of data throughput when using USB 2.0
  • Backward-compatible with USB 1.1
  • HDCP support (when in EDID pass-thru mode)
  • EDID management for rapid integration of source and display
  • Supports all Operating Systems
  • Locking Power Supply connectors
  • 1U tall, half rack width enclosures
  • Ideal for placement on a shelf or rack mounting using the EXT-RACK-1U tray (available separately)

SPECIFICATIONS

  • Maximum Pixel Clock: 165 MHz
  • MaximumTMDS Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I 29-pin, female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I 29-pin, female (digital only)
  • USB Host Connector (Sender): (1) USB Type B, female
  • USB Device Connectors (Receiver): (3) USB Type A, female, 500mA per port
  • Link Connector (Sender/Receiver): (1) RJ-45, Shielded
  • Power Supply (Sender / Receiver): 5V DC, Locking
  • Power Consumption (Sender / Receiver): 10W (max.)
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Operating Humidity: 20% to 80% RH, non-condensing
  • Storage Temperature: -4 to +158 °F (-20 to +70 °C)
  • Storage Humidity: 10% to 90% RH, non-condensing
  • Dimensions (W x H x D, Sender/Receiver, excluding feet and connectors):
  • 8.4″ x 1.6″ x 4.5″ (213mm x 41mm x 113mm)
  • Net Weight (Sender/Receiver): 1.0 lbs (0.45 kg) each
  • Shipping weight: 8 lbs.
