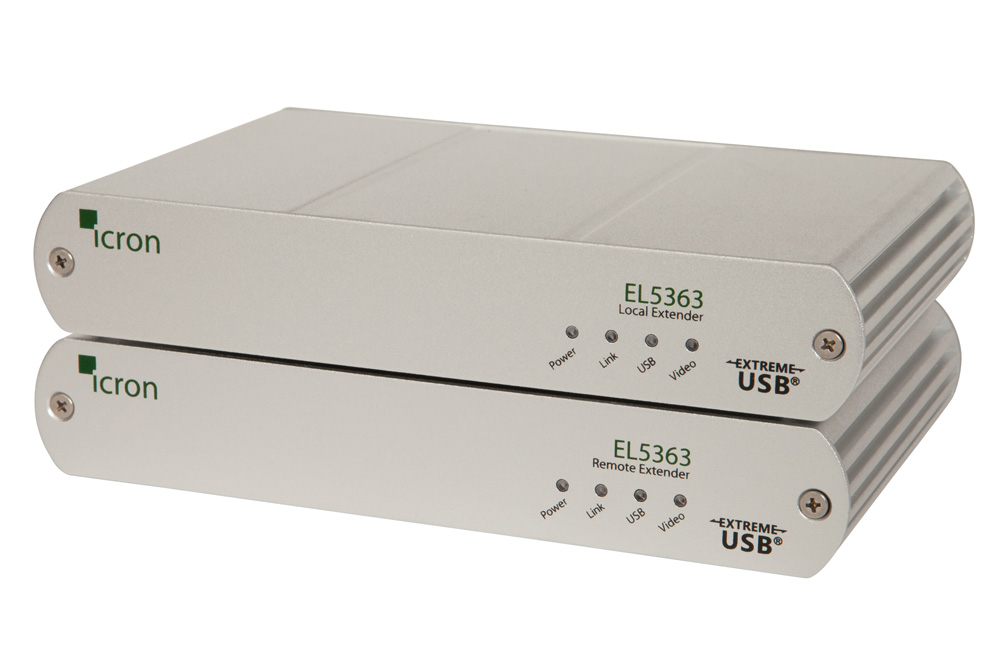

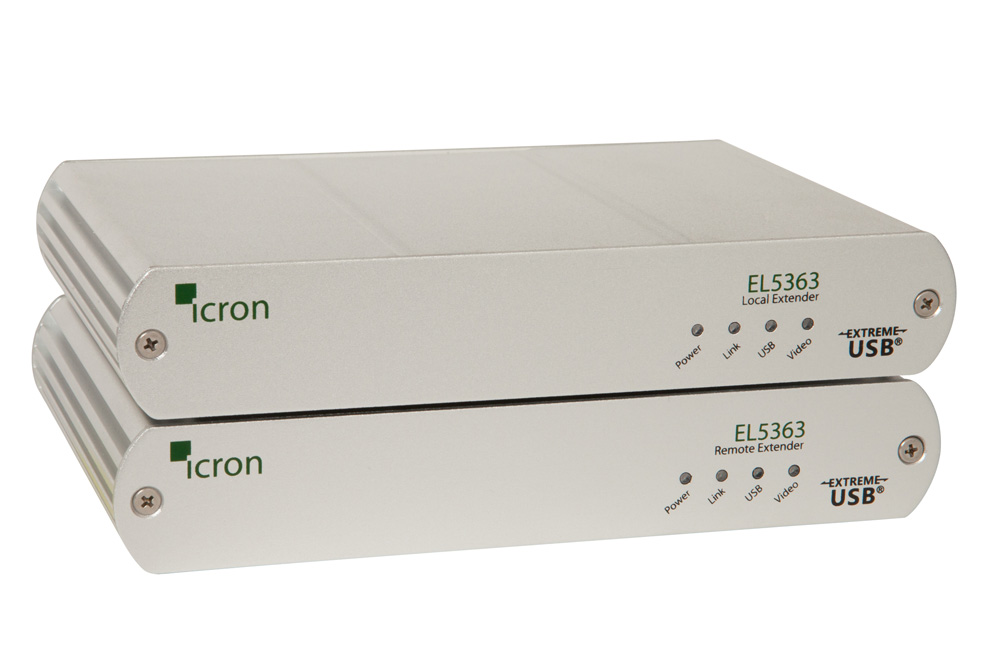

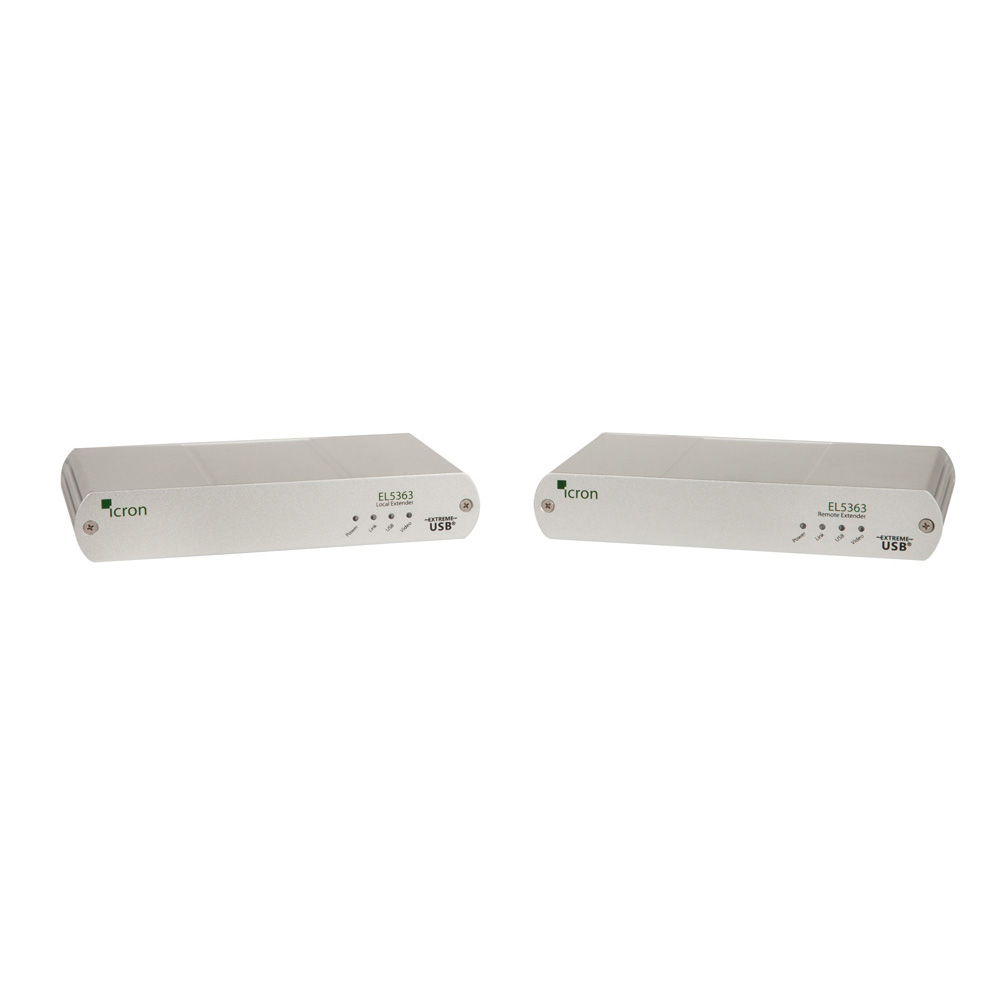

EL5363 HDMI + USB 2.0
KVM Extender HDMI + USB 2.0 over 100m CAT 5e/6/7

The EL5363 KVM Extender features the latest and most robust HD video and USB extension technology from Icron Technologies. The EL5363 lets you place a computer up to 100m (330 ft) away from a workstation using a single CAT 5e/6/7 cable. The system supports full HD video and USB 2.0, providing the ability to control keyboards, mice, flash drives, audio peripherals and other USB 2.0 and 1.1 devices. This extender supports HDMI video features such as 1080p, 4Kp30, Deep Color and CEC/HDCP pass-through. This KVM extender is suitable for proAV, interactive digital signage, security, medical and industrial applications.

OVERVİEW

The EL5363 KVM Extender provides HDMI uncompressed HD video, and USB 2.0 up to 100 meters over a single CAT 5e/6/7 cable. This extender supports HDMI video features such as 1080p, 4Kp30, Deep Color and CEC/HDCP pass-through. This KVM extender can be used in applications for proAV, interactive digital signage, security, medical, and industrial. There is no video degradation even at the full 100 meter distance.

FEATURES

  • Long Distance: Video and USB over a single solid core shielded CAT 5e/6/7 cable at distances up to 100m (330ft)
  • Full uncompressed 1080p or 1920 x 1200 resolution HD video
  • 3D
  • 4Kp30
  • Deep Color
  • x.v. Color
  • Lip Sync Pass-through
  • CEC Pass-through
  • HDCP Pass-through
  • USB 2.0: all device types supporting up to 40 Mbps. Recommended with keyboard, mouse, flash drive, printer, speakers, microphones, USB 1.1 web camera and other USB devices which require moderate amounts of bandwidth.
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, OS X®, and Linux®
  • Mounting Kit: allows units to be mounted to walls, desks or trays for 19″ racks.
  • 2-year warranty

SPECIFICATIONS

  • Range
    • Direct Connect: Up to 100m (330 ft) over Cat 5e (or better)

    Video

    • Resolution: High Definition 1080p, 1920 x 1200, 4K
    • Color: 36-bit, Deep Color, and x.v. Color
    • Depth: 2D and 3D
    • Latency: Less than 1ms

    Speeds

    • USB 2.0: Up to 40Mbps
    • USB 1.1: Up to 12Mbps

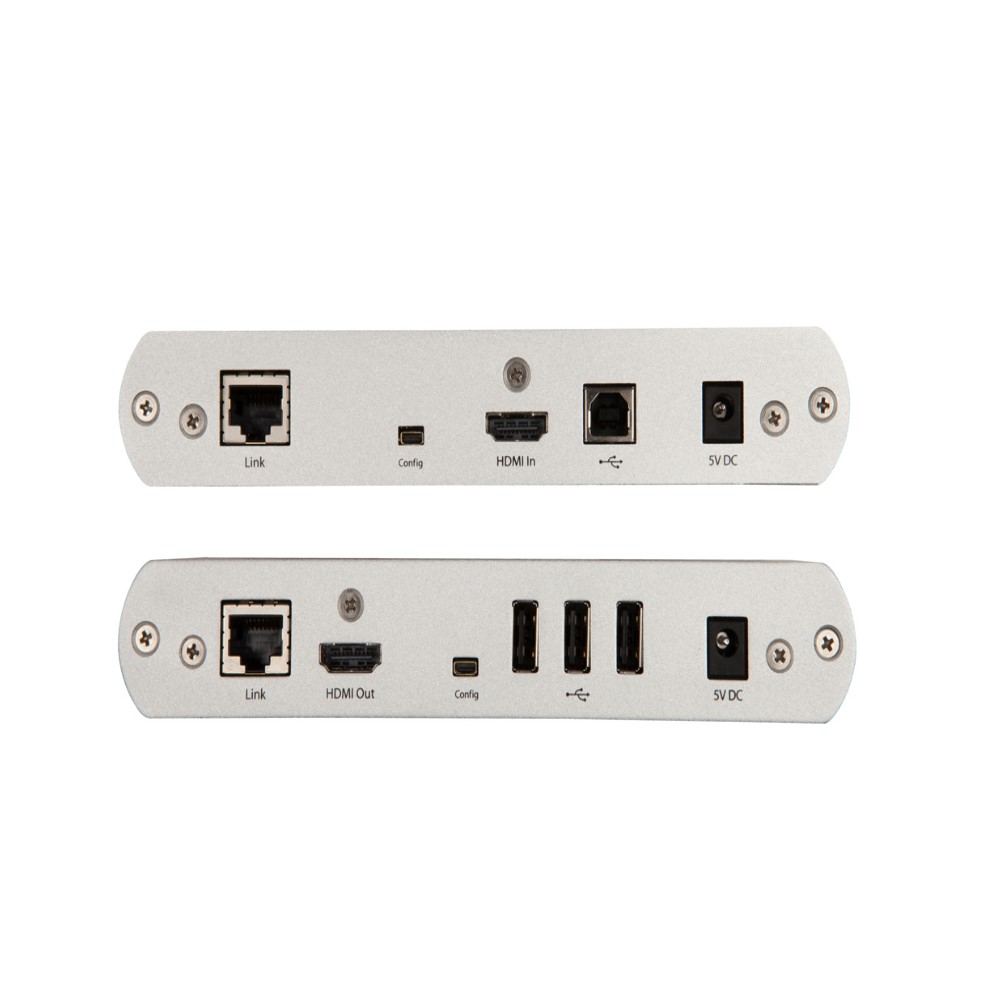

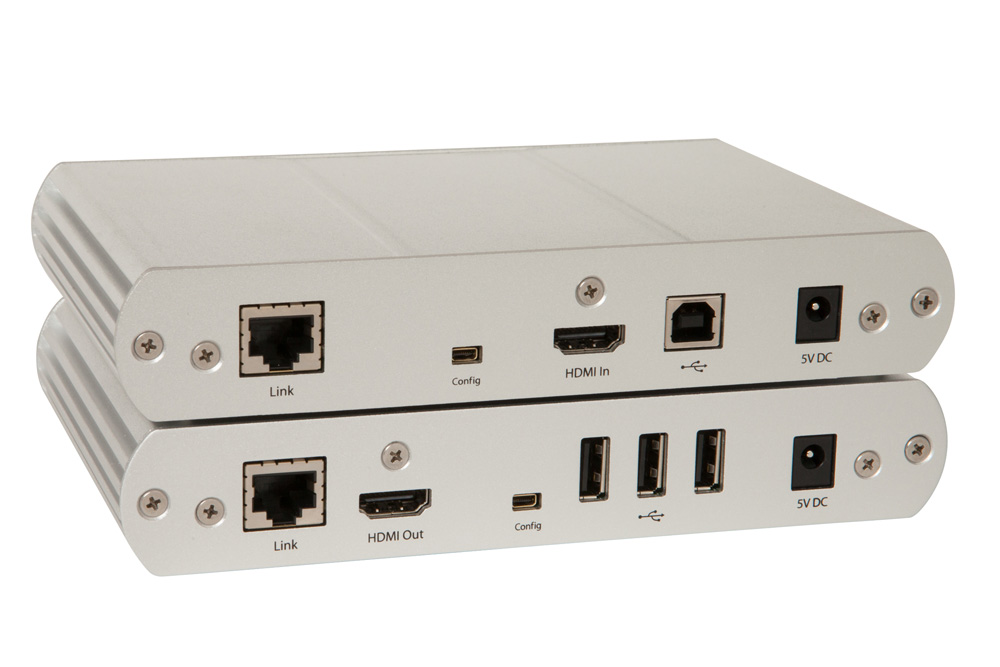

    LEX (Local Extender)

    • Video Connector: 1 x HDMI
    • USB Connector: 1 x USB Type B Receptacle
    • Link Connector: 1 x RJ45
    • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
    • Enclosure Material: Silver Anodized Aluminum
    • Power Supply: 100-240V AC input, 5V DC output

    REX (Remote Extender)

    • Video Connector: 1 x HDMI
    • USB Connectors: 3 x USB Type A Receptacles
    • Link Connector: 1 x RJ45
    • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
    • Enclosure Material: Silver Anodized Aluminum
    • Available Current: 500mA for each USB port
    • Power Supply: 100-240V AC input, 5V DC output

    Environmental

    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing

    Compliance

    • FCC (Class A), CE (Class A), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1

    Support

    • Warranty: 2 years

IN THE BOX

The EL5200 KVM extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • USB cable
  • HDMI cable
  • Quick Start Guide
  • 2 international power adapters with country specific cord (North America, EU, UK, Australia, or Japan)
  • 2-year warranty

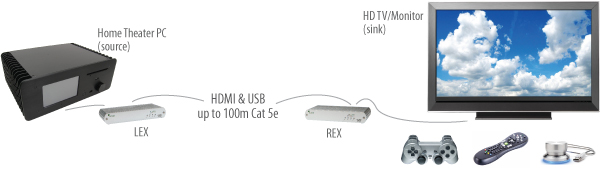

CONNECTION DIAGRAM
