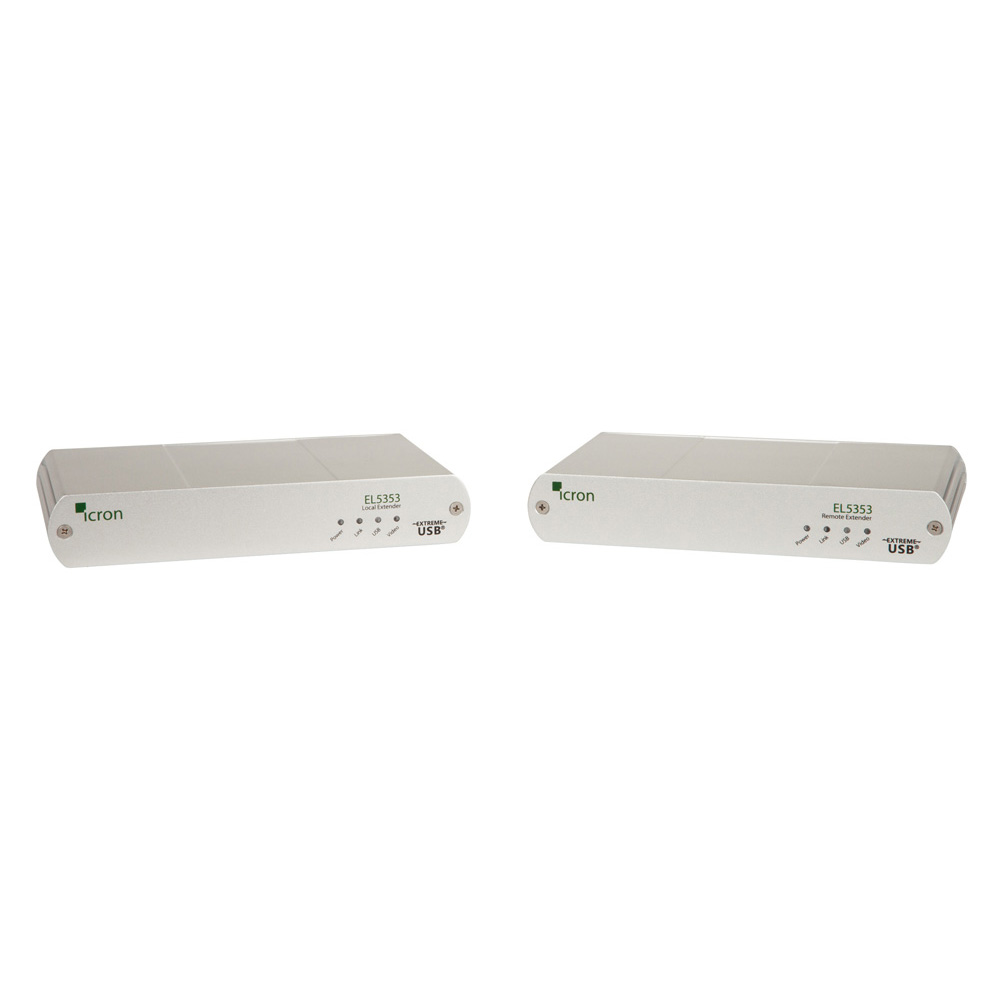

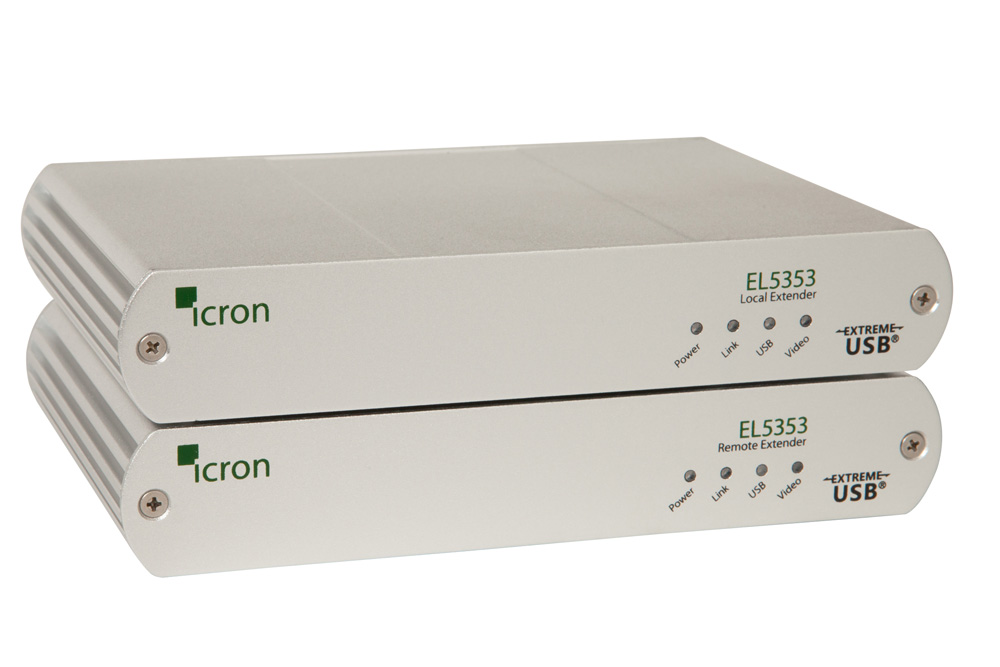

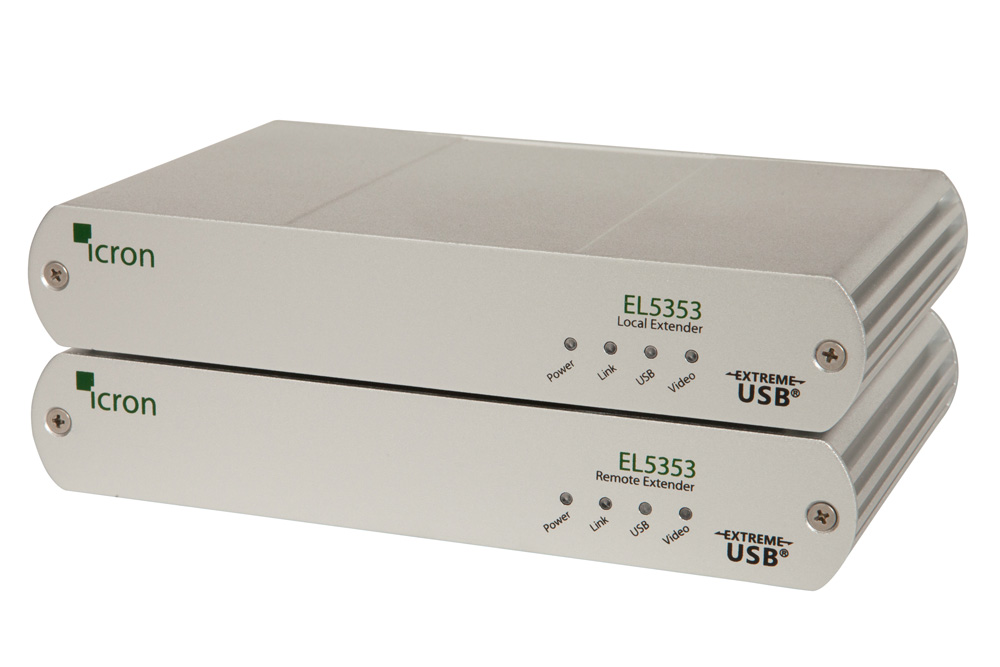

EL5353 DVI + USB 2.0
KVM Extender DVI + USB 2.0 over 100m CAT 5e/6/7

The EL5353 KVM Extender System features the latest and most robust HD video and USB extension technology from Icron Technologies. The EL5353 lets you place a computer up to 100m (330 ft) away from a workstation using a single CAT 5e/6/7 cable. The system supports full HD video and USB 2.0, providing the ability to control keyboards, mice, flash drives, audio peripherals and other USB 2.0 and 1.1 devices.

OVERVİEW

The EL5353 extends DVI uncompressed HD video, audio and USB 2.0 up to 100 meters. This KVM extender can be used in applications for proAV, interactive digital signage, medical and industrial environments. The video resolution is 1920 x 1200 with 24-bit color depth and it can support USB 2.0 throughput up to 40 Mbps. The video quality remains high even at the full 100 meter distance

FEATURES

  • Key features include:
    • Point-to-point video and USB extension up to 100m over a single CAT 5e/6/7 cable
    • Full uncompressed 1920 x 1200 resolution HD video
    • 24-bit color depth
    • USB 2.0 throughput support up to 40 Mbps
    • ExtremeUSB® suite of features:
      • Transparent USB extension
      • True plug and play; no software drivers required
      • Works with all major operating systems:  Windows®, OS X®, and Linux®
    • Mounting Kit: allows units to be mounted to walls, desks or trays for 19″ racks.
    • 2-year warranty

SPECIFICATIONS

  • Range
    • Direct Connect: Up to 100m (330 ft) over a single CAT 5e/6/7 cable

    Video

    • Resolution: High Definition 1920 x 1200
    • Color Depth: 24-bit color depth
    • Latency: Less than 1ms

    Speeds

    • USB 2.0: Up to 40 Mbps
    • USB 1.1: Up to 12 Mbps

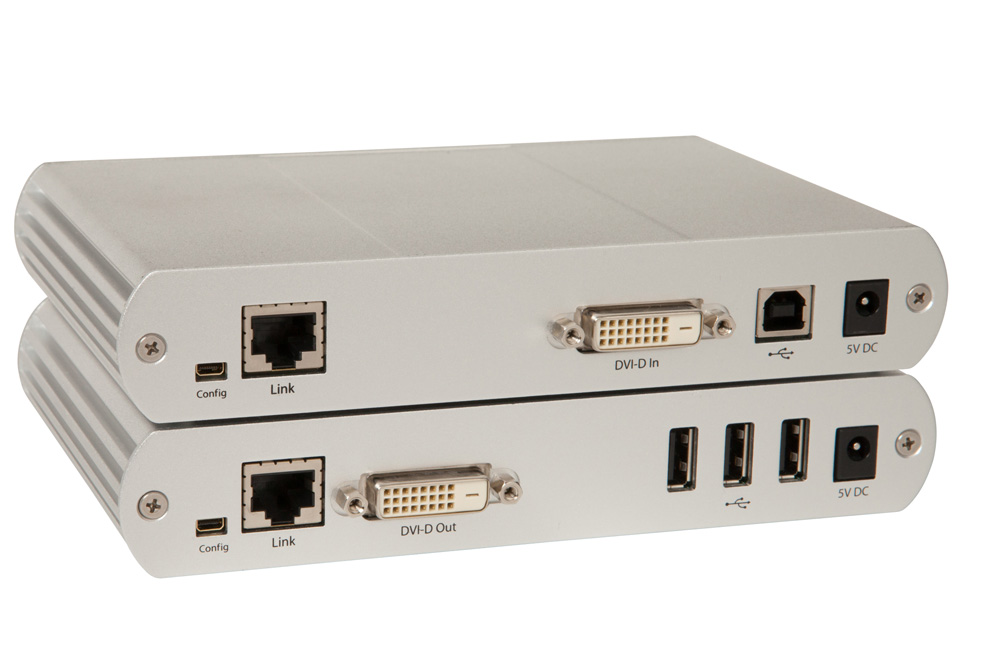

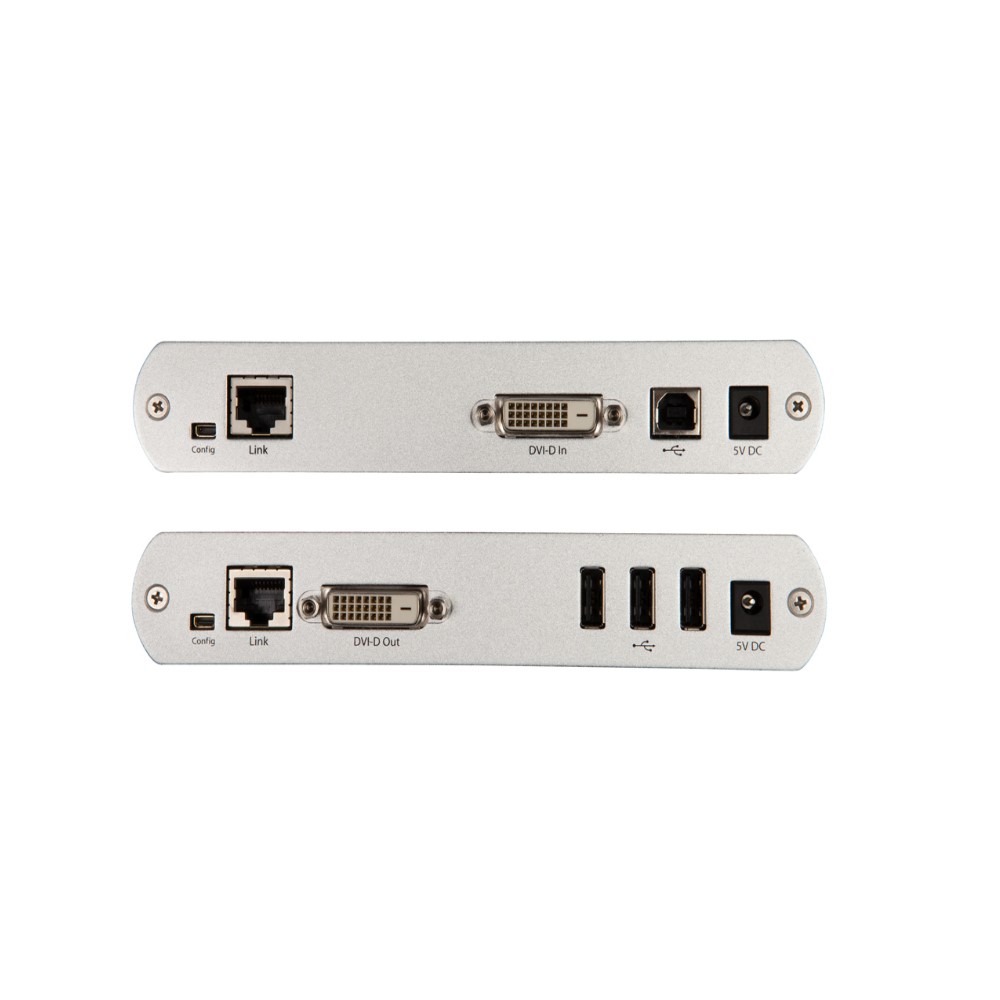

    LEX (Local Extender)

    • Video Connector: 1 x DVI
    • USB Connector: 1 x USB Type B Receptacle
    • Link Connector: 1 x RJ45
    • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
    • Enclosure Material: Silver Anodized Aluminum
    • Power Supply: 100-240V AC input, 5V DC output

    REX (Remote Extender)

    • Video Connector: 1 x DVI
    • USB Connectors: 3 x USB Type A Receptacles
    • Link Connector: 1 x RJ45
    • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
    • Enclosure Material: Silver Anodized Aluminum
    • Available Current: 500mA for each USB port
    • Power Supply: 100-240V AC input, 5V DC output

    Environmental

    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Operating Humidity: +20% to 80% (non condensing)

    Compliance

    • FCC (Class A), CE (Class A), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1

    Support

    • Warranty: 2-year

IN THE BOX

The EL5353 KVM extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • USB cable
  • DVI cable
  • Quick Start Guide
  • Two international power adapters with country specific cord
  • 2-year warranty

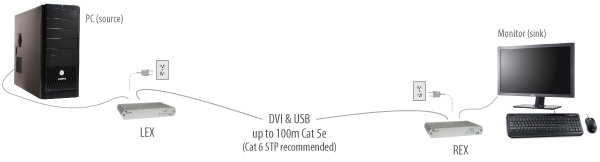

CONNECTION DIAGRAM
