LHM2-P
HDMI 2.0 Detachable Active Optical Cable

Detachable 4K HDMI 2.0 Active Optical Cable, It enables to deliver 4K DCI (4096×2160) at 60Hz signal up to 100m (328ft). It avoids any scaling or data compression for lessening a burden of data transmission.

FEATURES

Detachable 4K HDMI 2.0 Active Optical Cable, It enables to deliver 4K DCI (4096×2160) at 60Hz signal up to 100m (328ft). It avoids any scaling or data compression for lessening a burden of data transmission.

LHM2-P is designed for critical display applications that demand flawless HDMI signal integrity and it provides transparent signal transmission over plenum graded, LSZH graded, or TPU hybrid cable.

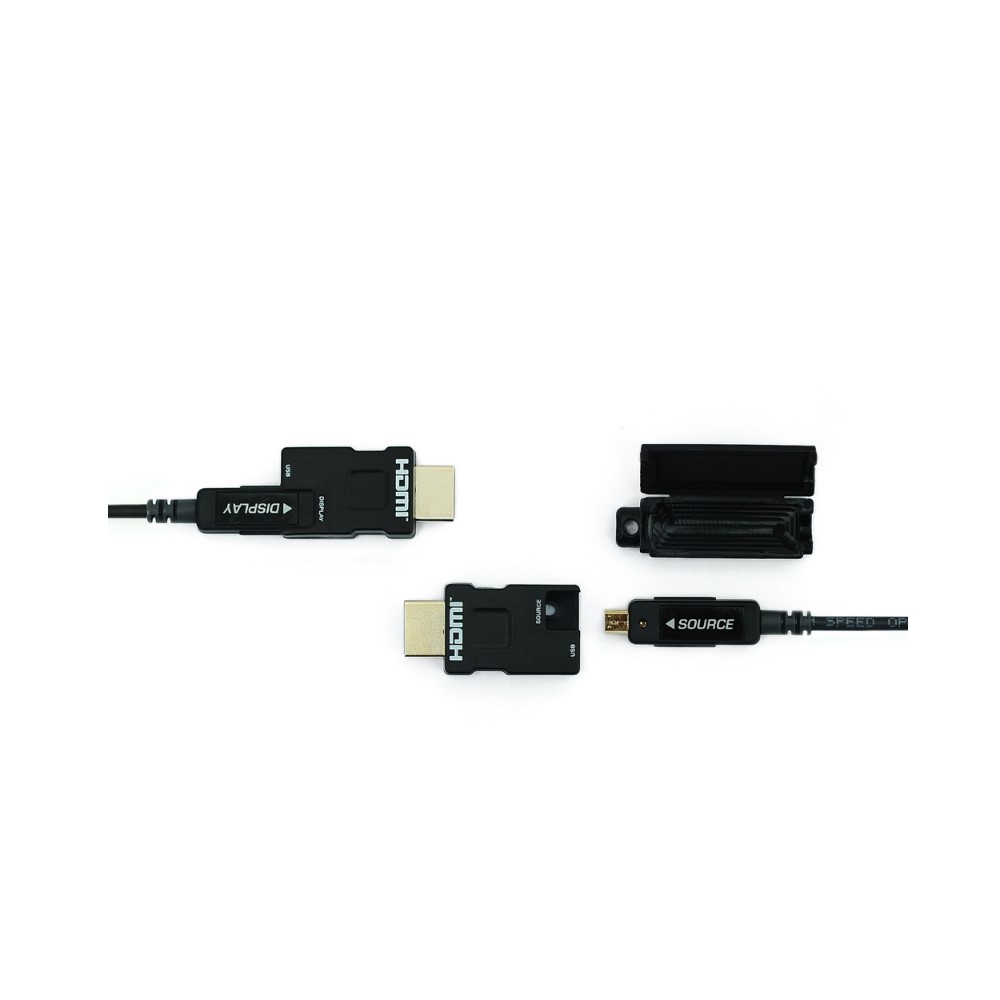

LHM2-P offers perfect flexibility during installation by separating HDMI connector part and Active Optical Cable part. It gives slim, light, easy installation like a general copper HDMI cable. LHM2-P is powered by external 5V micro USB power supply cable.

It passes CEC, EDID & HDCP (High Definition Contents Protection) for better installation flexibility and compatibility.

PRODUCT SPECIFICATIONS

• Extends 4K DCI (4096×2160) at 60Hz, (RGB & YCbCr : 4:4:4)
• Transmits HDMI data up to 100m (328feet) over hybrid cable
• Cable options available:
-LHM2-PPxx : Plenum Jacket
-LHM2-PLxx: LSZH Jacket
-LHM2-PTxx:TPU Jacket
*Note: “xx” stands for the length of the cable
Ex: 10m of LHM2-PP LHM2-PP10 (“A0” for 100m)
• Offers perfect flexibility during installation by separating HDMI connector from cable
• Offers 500N pulling and crush load strength with bending radius of 6mm
• Supports 3D contents transmission
• Supports HDMI2.0 standards feature
• Complies with CEC, EDID, and HDCP 2.2
• Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps

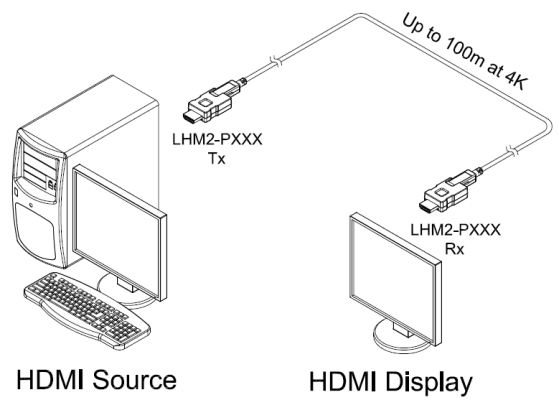

CONNECTION DIAGRAM
