LHM2-N
HDMI 2.0 Active Optical Cable

4K HDMI 2.0 Active Optical Cable, LHM2-N enables to deliver 4K DCI (4096×2160) at 60Hz signal up to 100m (328ft) with non-detachable cable. It avoids any scaling or data compression for lessening a burden of data transmission.

FEATURES

4K HDMI 2.0 Active Optical Cable, LHM2-N enables to deliver 4K DCI (4096×2160) at 60Hz signal up to 100m (328ft) with non-detachable cable. It avoids any scaling or data compression for lessening a burden of data transmission.

LHM2-N is designed for critical display applications that demand flawless HDMI signal integrity and it provides transparent signal transmission over plenum graded, LSZH graded, or TPU hybrid cable.

LHM2-N series give slim, light, easy installation like a general copper HDMI cable. It holds firmly distinctive performance advantage as it requires absolutely no external power to operate. It solely utilizes TX and RX of the cable to function without any additional setting requirements.

PRODUCT SPECIFICATIONS

• Extends 4K DCI (4096×2160) at 60Hz, (RGB & YCbCr : 4:4:4)
• Transmits HDMI data up to 100m (328feet) over hybrid cable
• Cable options available:
-LHM2-NPxx : Plenum Jacket
-LHM2-NLxx: LSZH Jacket
-LHM2-NTxx:TPU Jacket
*Note: “xx” stands for the length of the cable.
Ex: 10m of LHM2-NP  LHM2-NP10 (“A0” for 100m)
• Easy Plug & Play Feature
• Offers 500N pulling and crush load strength with bending radius of 6mm
• Supports 3D contents transmission
• Supports HDMI2.0 standards feature
• Complies with CEC, EDID, and HDCP 2.2
• Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps

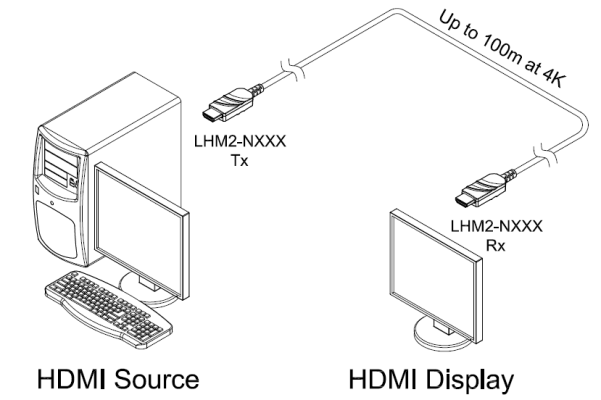

CONNECTION DIAGRAM
