FEATURES

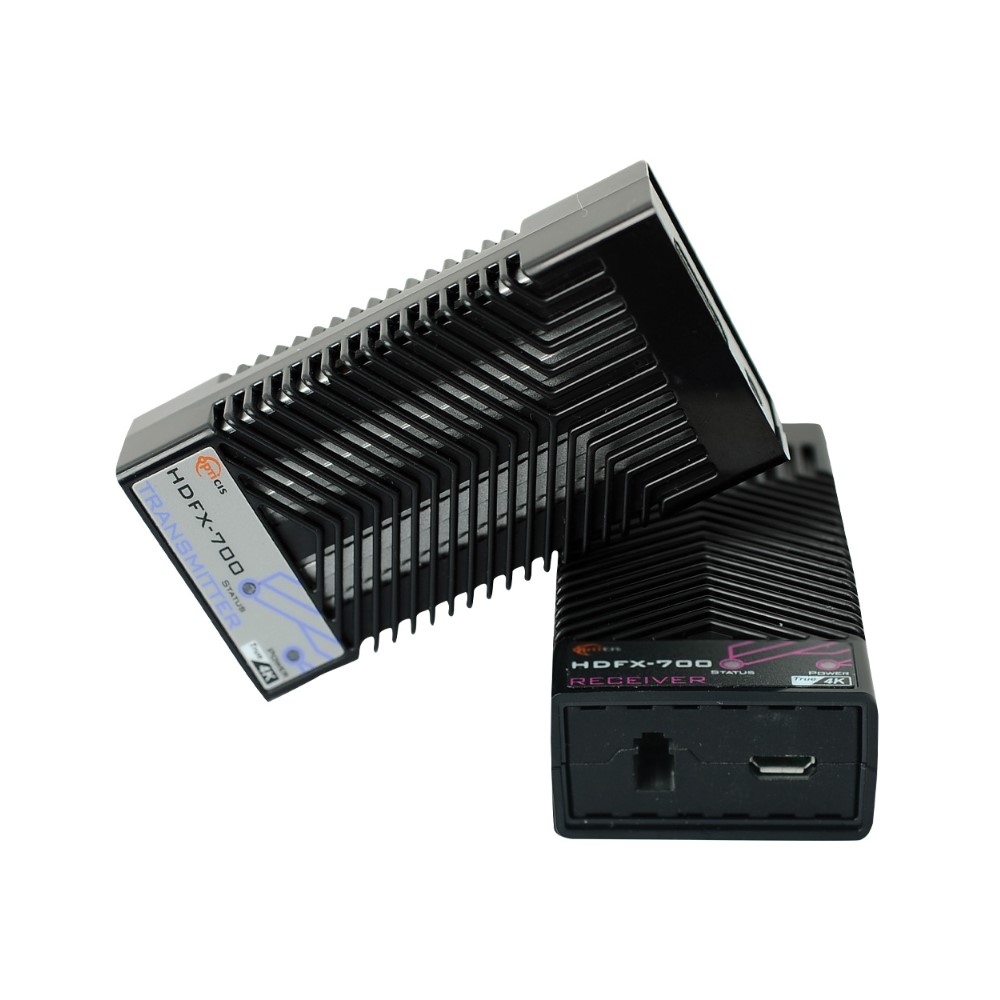

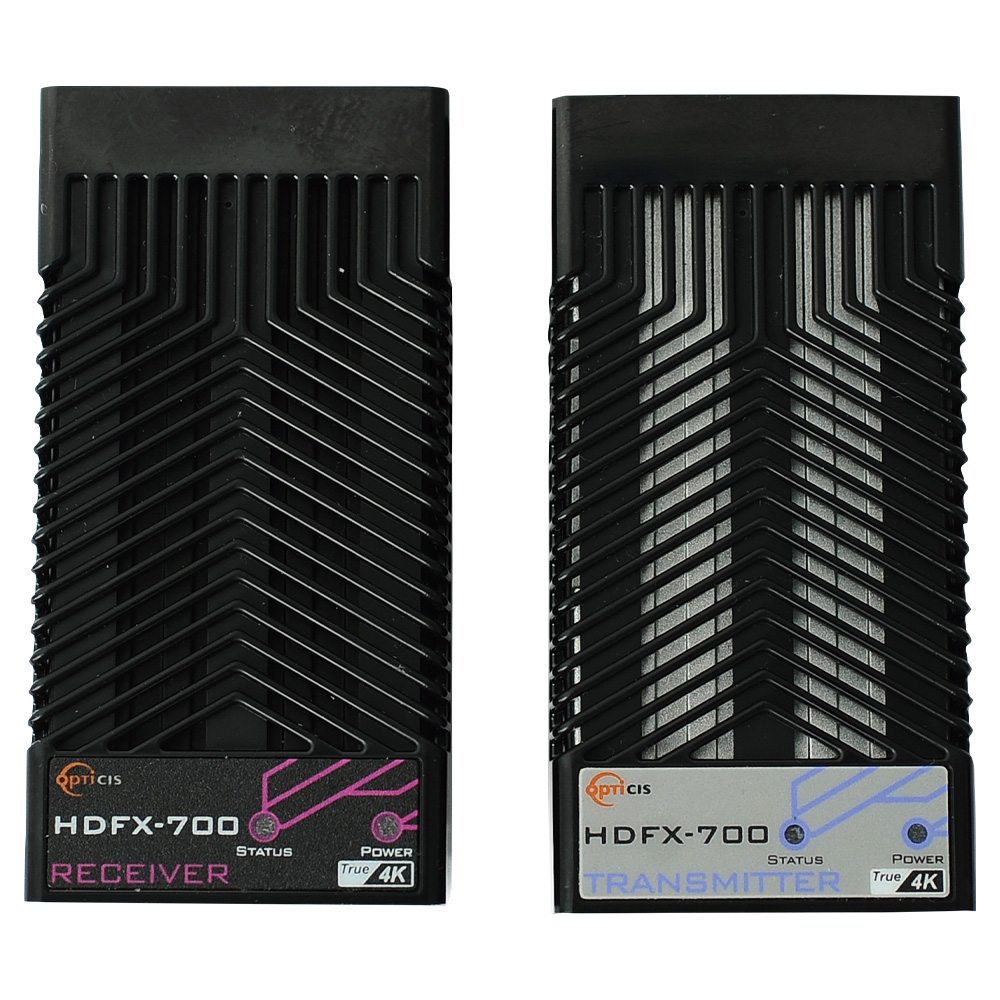

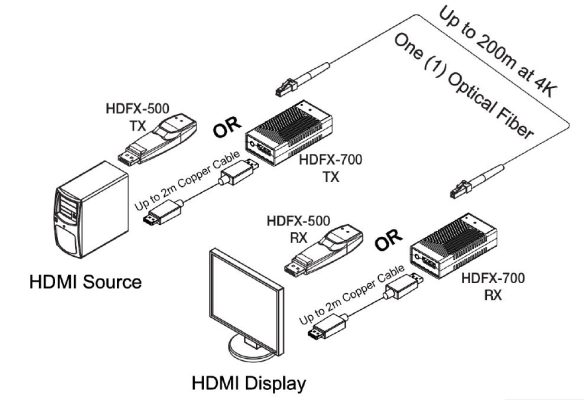

HDMI 2.0 one(1) fiber optical detachable extender with copper extension, HDFX-700-TR, extends HDMI 2.0 signal up to 200m (656feet) and transmits 4K UHD (4096×2160) at 60Hz over one(1) LC multi-mode fiber(OM3). Cutting-edge technology of Opticis reduces limits in the installation by providing an option for longer copper extension.
HDFX-700-TR transmits uncompressed and transparent data signal even when used with up to 3 m copper cable as an intermediary. This enables installation of the product in the limited spaced area in such our small module type extender cannot be used. 2m copper cables for both sides are provided in the shipping group.

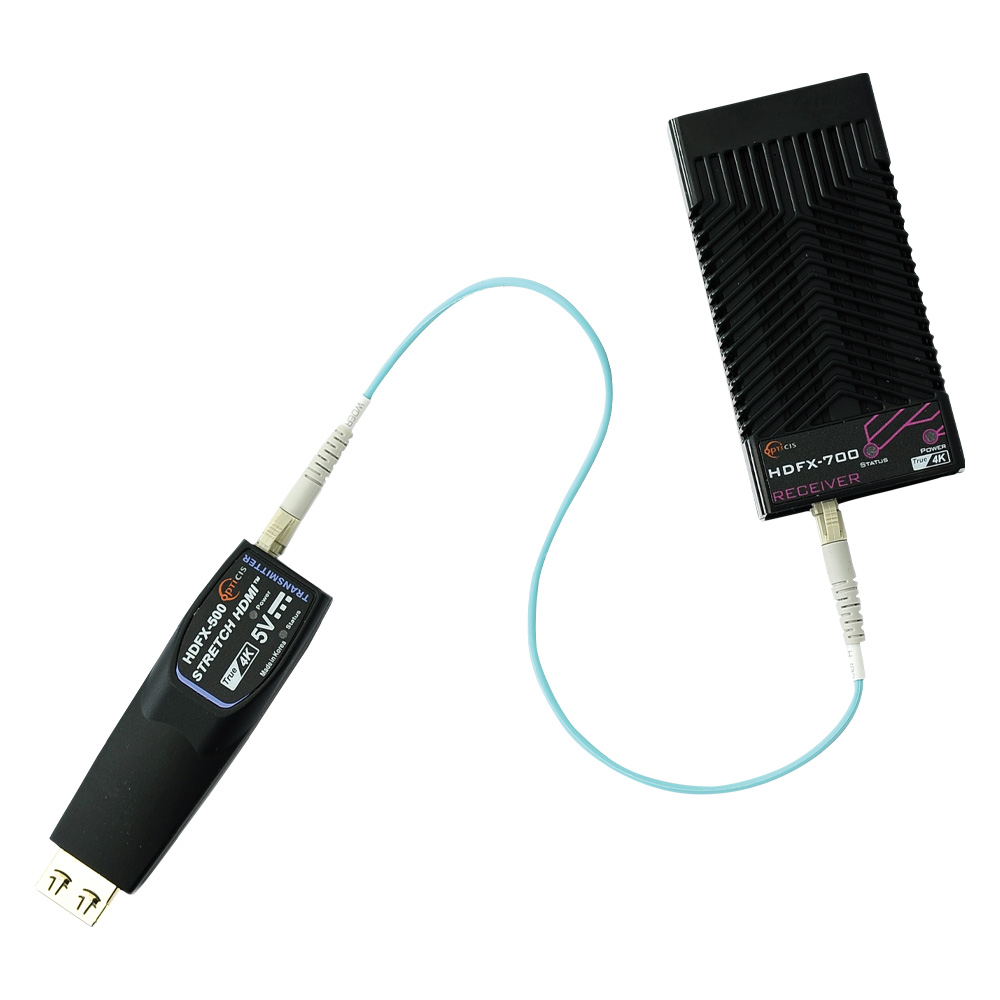

Furthermore, HDFX-700-TR offers two selectable functions by choosing certain type of firmware. Each firmware allows different function: 1. ARC support up to 200m; 2. full interoperability with HDFX-500 as a pair. The default setting is ARC mode, but depending on the circumstances, the customer can change the firmware to use a direct connection type module (HDFX-500) on one side, and a copper extension type module on the other side.
