The Gefen GTB-UHD600-HBTL is a compact and high-performance solution for extending full-bandwidth HDMI 2.0 audio/video with HDR up to 40 meters (132 feet), over a CAT-5e or better cable. It supports 18.2 Gbps of data throughput and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. This extender uses HDBaseT technology along with Gefen’s visually lossless proprietary compression algorithms with very high PSNR (Peak Signal to Noise Ratio), to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 to 60 Hz, 4:4:4) with HDR. High Dynamic Range (HDR) delivers greater contrast between light and dark areas of a video image, resulting in tremendous improvement in picture quality and color depth. HDCP 2.2 and the legacy HDCP 1.4 are both supported. The GTB-UHD600-HBTL also supports 1080p Full HD, WUXGA (1920 x 1200), 3DTV, and Deep Color (up to 1080p resolution). Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio are passed through to the HDMI outputs. The GTB-UHD600-HBTL provides 2-way IR extension between the Sender and the Receiver units, facilitating the control of (more…)
FEATURES
- Supports 18.2 Gbps bandwidth and 600 MHz TMDS clock

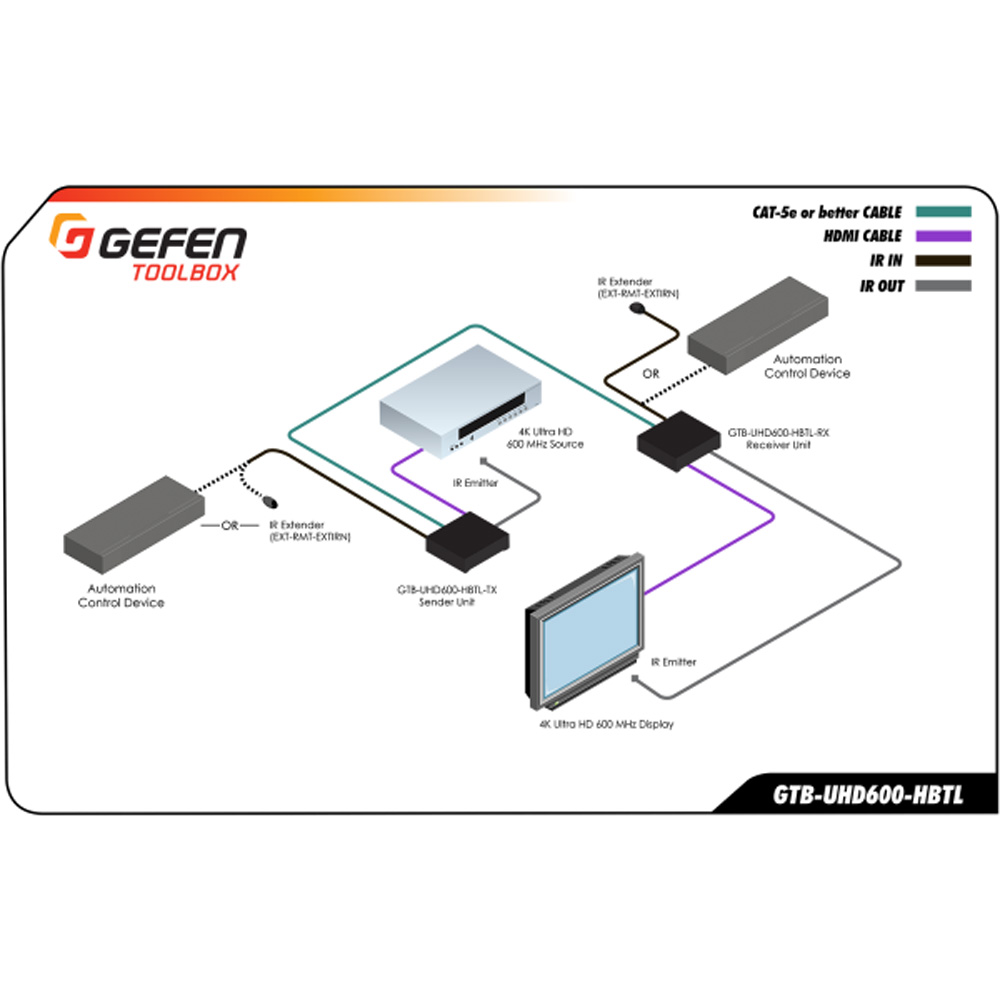

- Extends HDMI & Bi-Directional IR over a single CAT-5e/CAT-6A:
- 4K Ultra HD (3840 x 2160 to 60 Hz, 4:4:4), up to 132 feet/40 meters (8-bit color)
- 4K Cinema (DCI) (4096 x 2160 to 60 Hz 4:4:4), up to 132 feet/40 meters (8-bit color)
- 1080p Full HD (60 Hz) and WUXGA (1920 x 1200 to 60 Hz), up to 200 feet/60 meters (up to 12-bit Deep Color)
- HDMI Features Supported:
- HDMI 2.0 (full bandwidth to 18 Gbps/600 MHz)
- HDR (High Dynamic Range) 10-bit color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
- HDCP 2.2 and 1.4
- 12-bit Deep Color (at 1080p)
- Uncompressed LPCM digital audio up to 7.1 channels
- HBR (High Bit Rate) digital audio up to 7.1 channels, including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
- 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920×1200), with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (not included)
- Gefen€™s Bi-Directional POL provides power to the Sender or the Receiver unit over the link cable – only one side wil(more…)
SPECIFICATIONS
- Maximum TMDS Clock: 600 MHz
- Total Signal Bandwidth/Data Rate: 18.2 Gbps

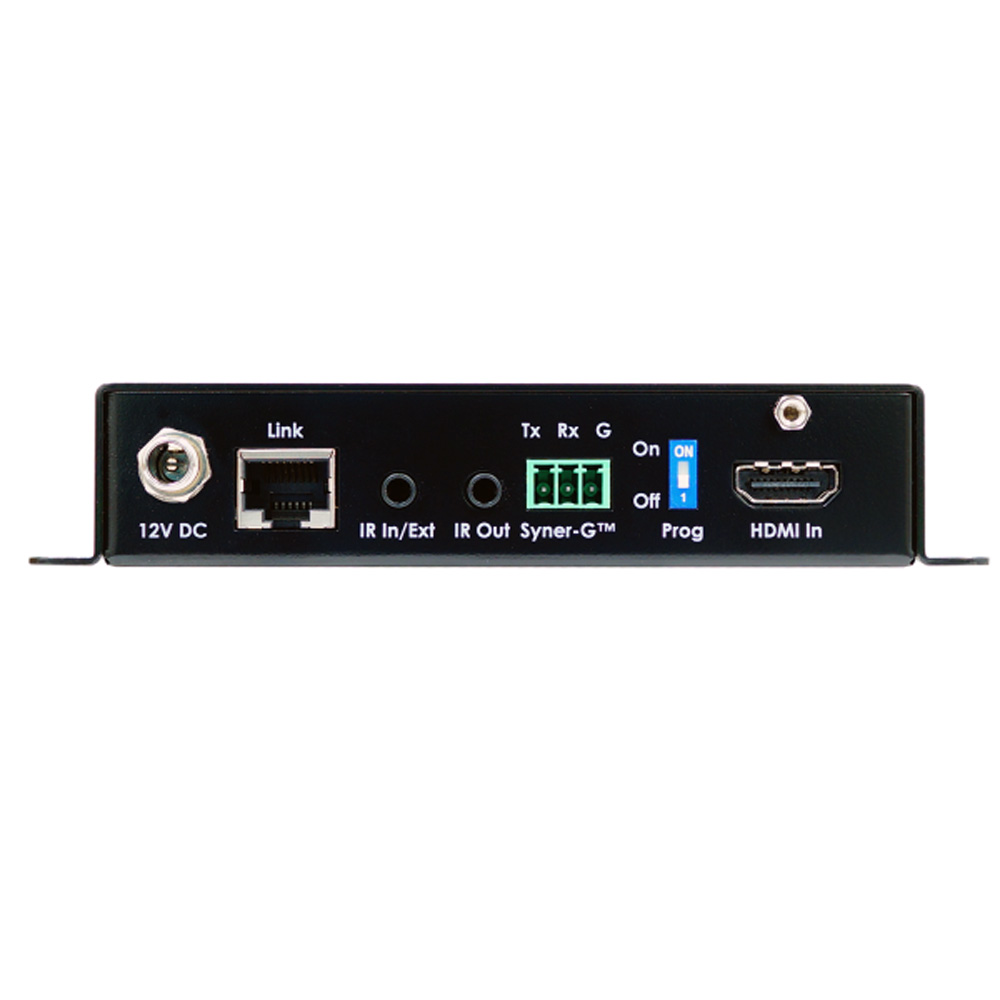

- Video Input Connector (Sender): (1) HDMI Type A 19-pin, female, locking
- Video Output Connector (Receiver): (1) HDMI Type A 19-pin, female, locking
- Link Connector (Sender/Receiver): (1) RJ-45, shielded
- Gefen Syner-Gâ„¢ port (Sender): (1) 3-pin Phoenix
- Gefen Syner-Gâ„¢ port (Receiver): (1) 3-pin Phoenix
- IR In/Ext port (Sender/Receiver): (1) 3.5mm mini-stereo jack
- IR Extender type: EXT-RMT-EXTIRN
- IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack
- Power Indicator LED (Sender/Receiver): (1) Blue
- Link Indicator LED (Sender/Receiver): (1) Green
- HDMI-Active Indicator LED (Sender/Receiver): (1) Green
- Power Supply: (1) 12V DC, locking plug, 5.5mm barrel/2.1mm pin
- Power Consumption (Sender and Receiver combined): 14W maximum
- Operating Temperature: +32 to +113 °F (0 to +45 °C)
- Operating Humidity: 5% to 90% RH, non-condensing
- Storage Temperature: -4 to +185 °F (-20 to +85 °C)
- Storage Humidity: 0% to 95% RH, non-condensing
- MTBF: 50000 hours
- Dimensions (W x H x D, Sender/Receiver): 4.7� x 1� x 2.9� (119mm x 26mm x 73mm)
- Net Weight (Sender/Receiver): 0.3 lbs. (0.14 kg) each
- Shipping Weight(more…)
OTHER SPECIFICATIONS
Shipping Info
- Length10.5 (Inches)
- Width6.75 (Inches)
- Height3.75 (Inches)
- Weight1 (Lbs)
- Unit of MeasureSet
- UPC888814999938
Other Specifications
- Maximum TMDS Clock 600 MHz
- Total Signal Bandwidth/Data Rate 18.2 Gbps
- Video Input Connector (Sender) (1) HDMI Type A 19-pin, female, locking
- Video Output Connector (Receiver) (1) HDMI Type A 19-pin, female, locking
- Link Connector (Sender/Receiver) (1) RJ-45, shielded
- Gefen Syner-Gâ„¢ port (Sender) (1) 3-pin Phoenix
- Gefen Syner-Gâ„¢ port (Receiver) (1) 3-pin Phoenix
- IR In/Ext port (Sender/Receiver) (1) 3.5mm mini-stereo jack
- IR Extender type EXT-RMT-EXTIRN
- IR Out port (Sender/Receiver) (1) 3.5mm mini-mono jack
- Power Indicator LED (Sender/Receiver) (1) Blue
- Link Indicator LED (Sender/Receiver) (1) Green
- HDMI-Active Indicator LED (Sender/Receiver) (1) Green
- Power Supply (1) 12V DC, locking plug, 5.5mm barrel/2.1mm pin
- Power Consumption (Sender and Receiver combined) 14W maximum
- Operating Temperature +32 to +113 °F (0 to +45 °C)
- Operating Humidity 5% to 90% RH, non-condensing
- Storage Temperature -4 to +185 °F (-20 to +85 °C)
- Storage Humidity 0% to 95% RH, non-condensing
- MTBF 50000 hours
- Dimensions (W x H x D, Sender/Receiver) 4.7″ x 1″ x 2.9″ (119mm x 26mm x 73mm)
- Net Weight (Sender/Receiver) 0.3 lbs. (0.14 kg) each
- Shipping Weight 2.1 lbs (0.95 kg)
- * Features and specifications are subject to change without notice
In The Box

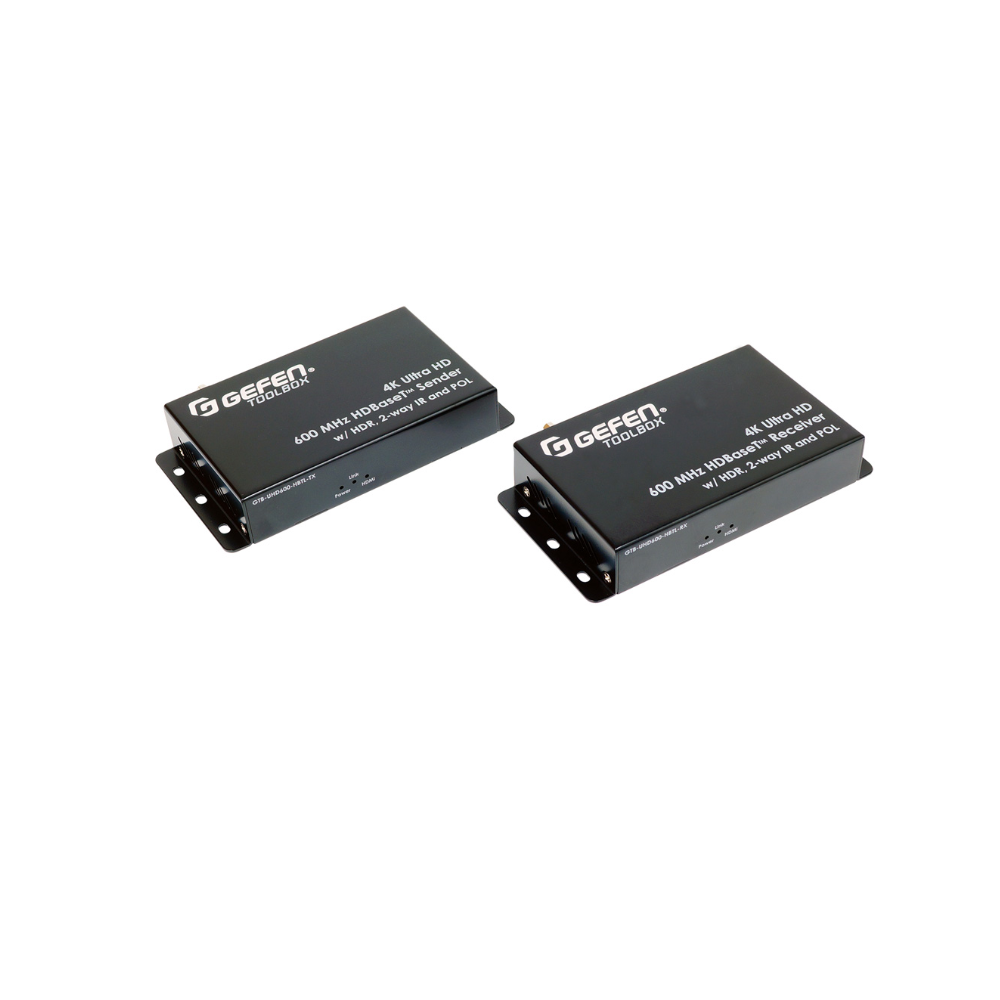

- Sender Unit (GTB-UHD600-HBTL-TX)1

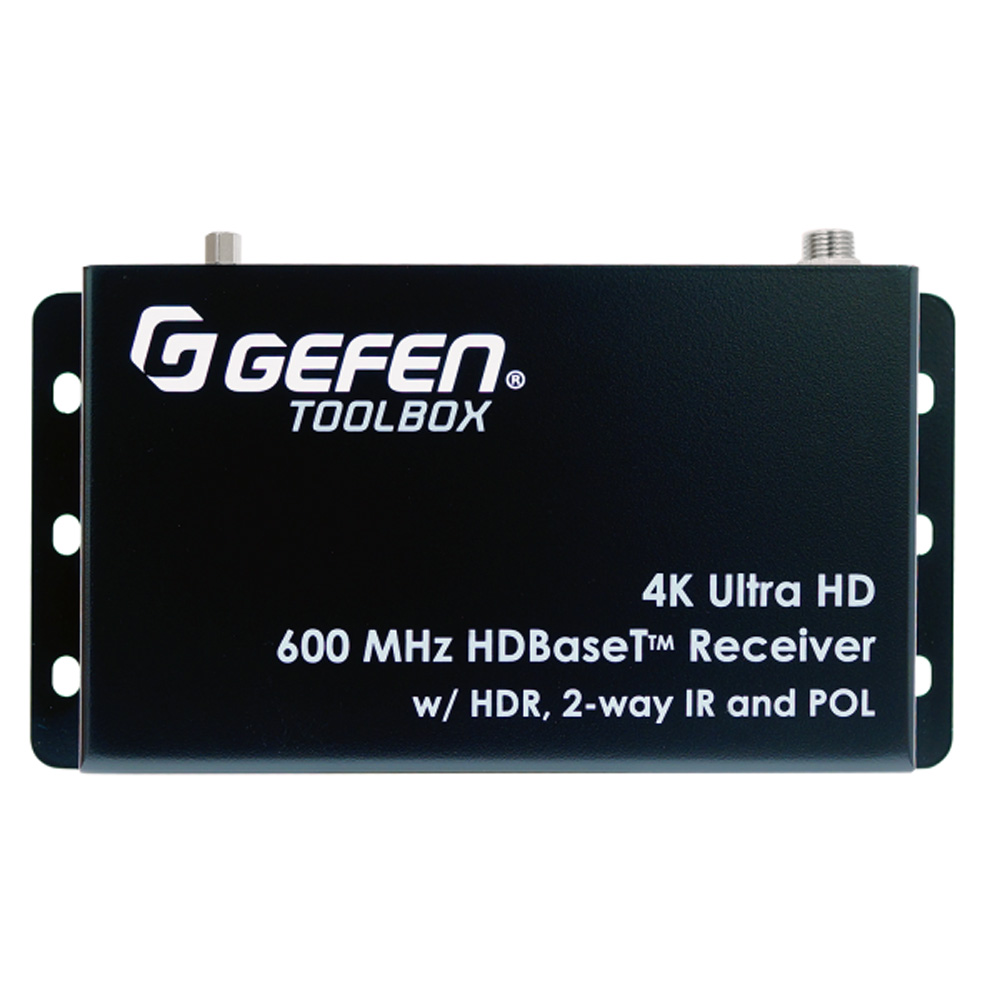

- Receiver Unit (GTB-UHD600-HBTL-RX) 1
- HDMI-to-HDMI Male-to-Male Locking cable, 6 feet1
- IR Emitter (EXT-IREMIT) 1
- IR Extender (EXT-RMT-EXTIRN)
1
- 12V DC power supply with US/EU/UK/AU reginal AC plugs and 5.5mm/2.1mm DC plug (EXT-PS121.5AIP-LP-6)1
- Quick-Start Guide 1
