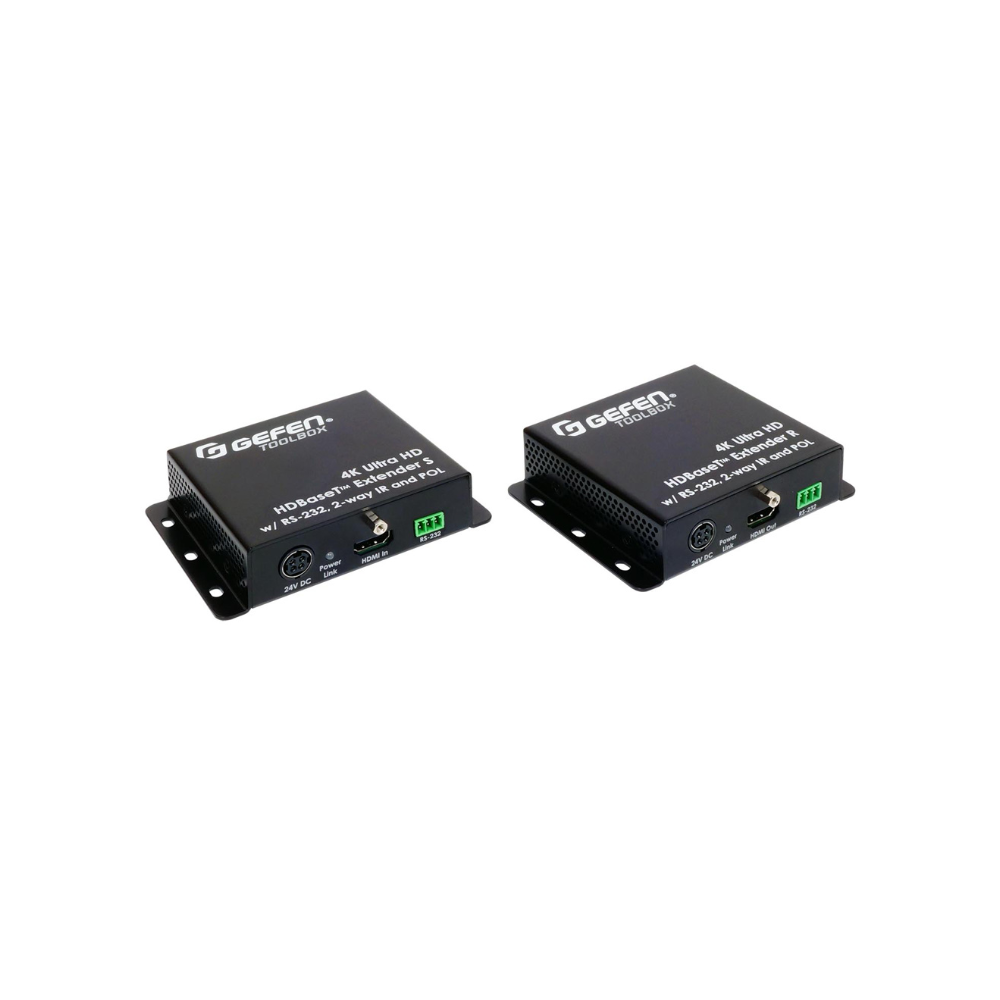

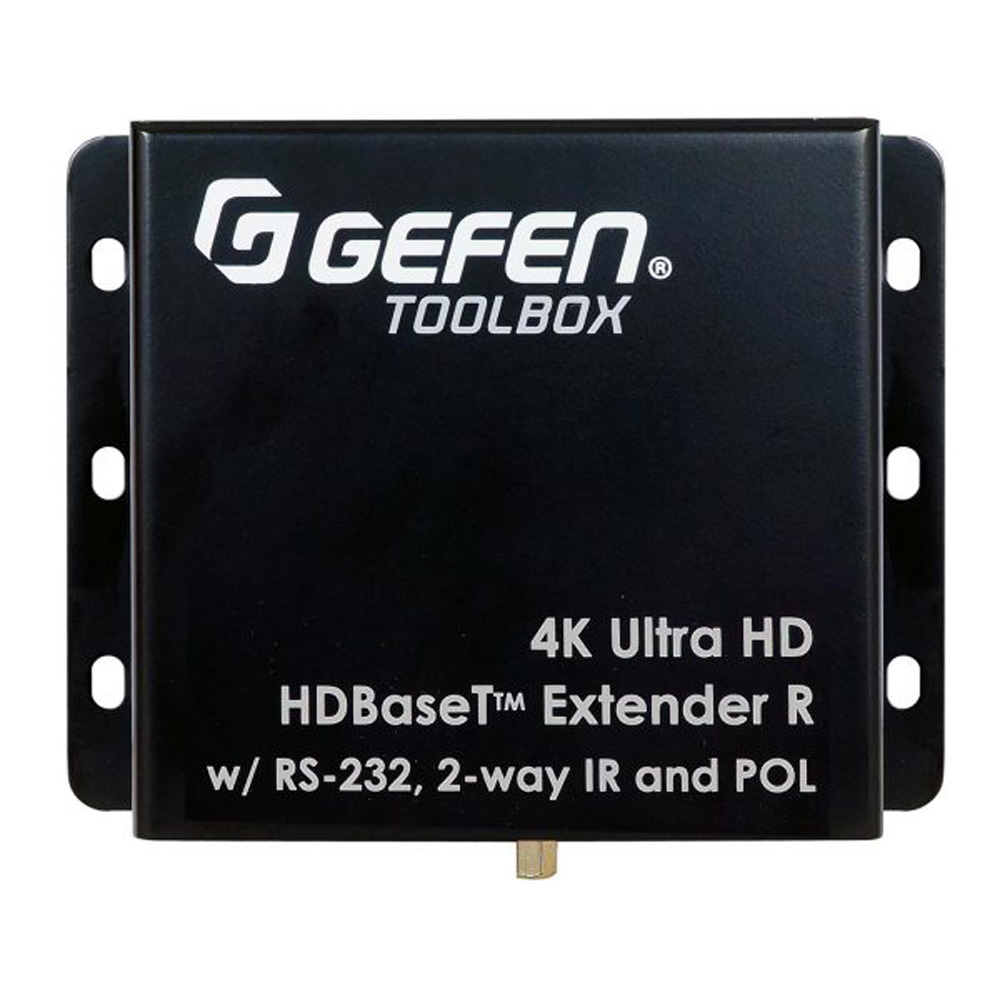

GTB-UHD-HBT
4K Ultra HD HDBaseT Extender

4K Ultra HD HDBaseTâ„¢ Extender over one CAT-5 with RS-232, 2-way IR, and Bi-Directional POL

The GTB-UHD-HBT 4K Ultra HD Extender uses Gefens implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.

Video Support

Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.

Audio Support

The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver.

IP & Serial Extension

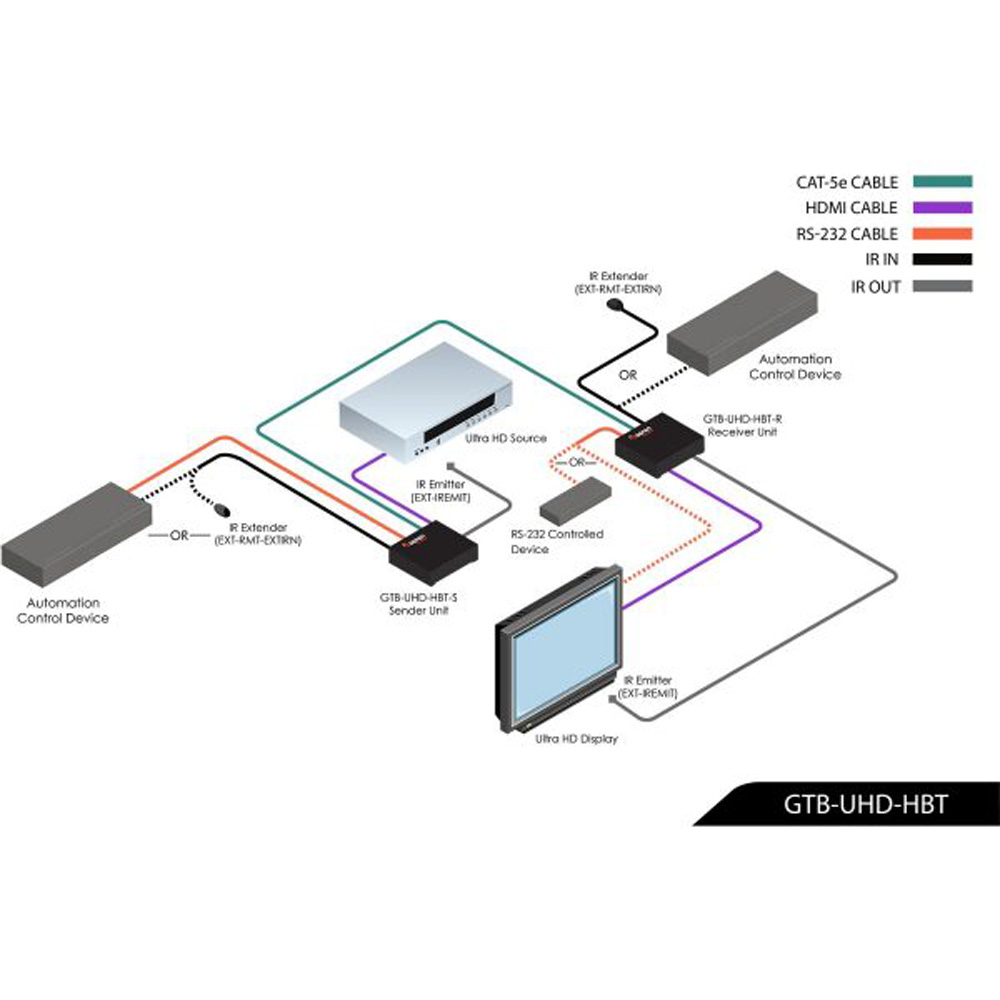

This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit.

Bi-Directional Power Over HDBaseT

Gefen Bi-Directional POL (Power Over L(more…)

FEATURES

  • Extends HDMI, RS-232, and 2-way IR over a single CAT-5e/CAT-6A
  • 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
  • 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
  • 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
  • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
  • 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
  • HDMI Features Supported:
  • HDMI 2.0
  • HDCP 2.2 and 1.4
  • 12-bit Deep Color
  • LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master
  • Audio pass-through
  • 3DTV pass-through
  • CEC pass-through
  • Lip Sync pass-through
  • IR extension from Sender to Receiver and from Receiver to Sender
  • Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable – only one side will need external power
  • Uses Gefen€™s implementation of HDBaseT technology with enhanced features
  • Advanced EDID Management
  • Firmware updatable via RS-232
  • Locking power connector

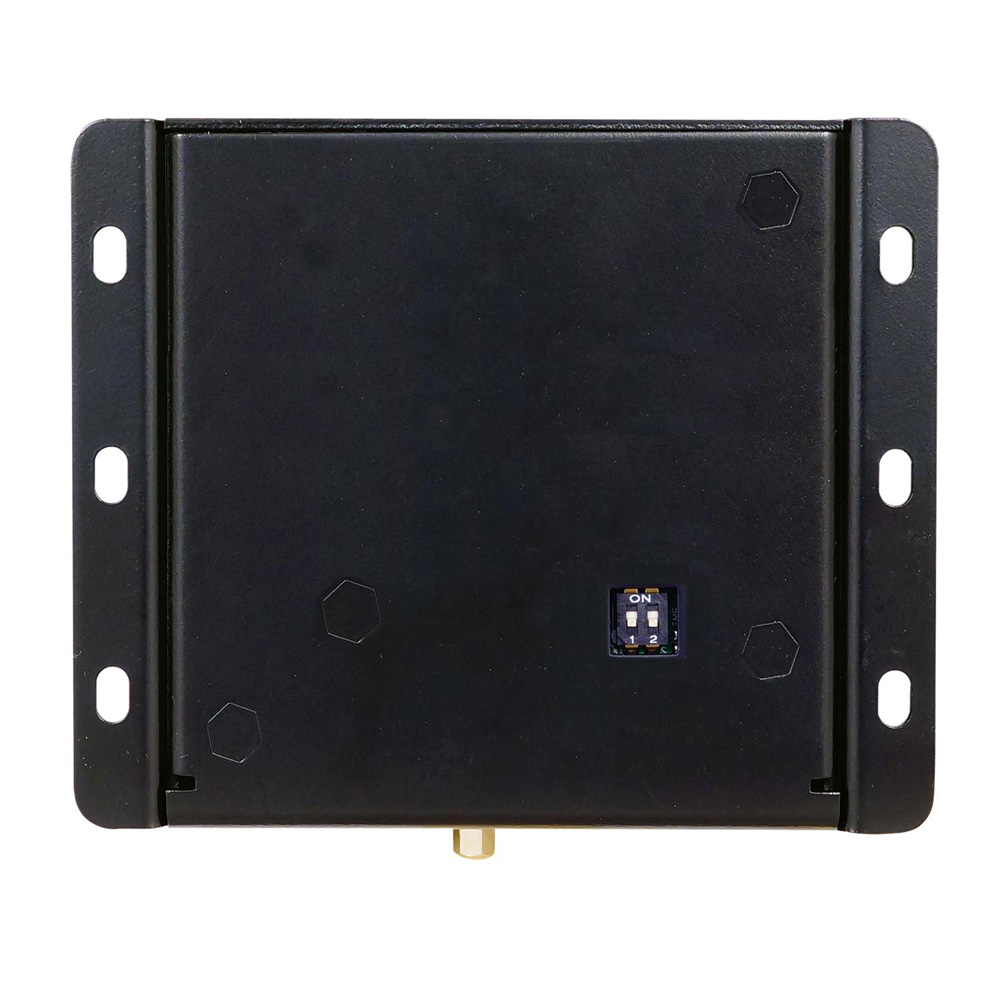

  • Surface mountable
  • Features and spec(more…)

SPECIFICATIONS

  • Maximum Pixel Clock: 300 MHz
  • Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking
  • Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking

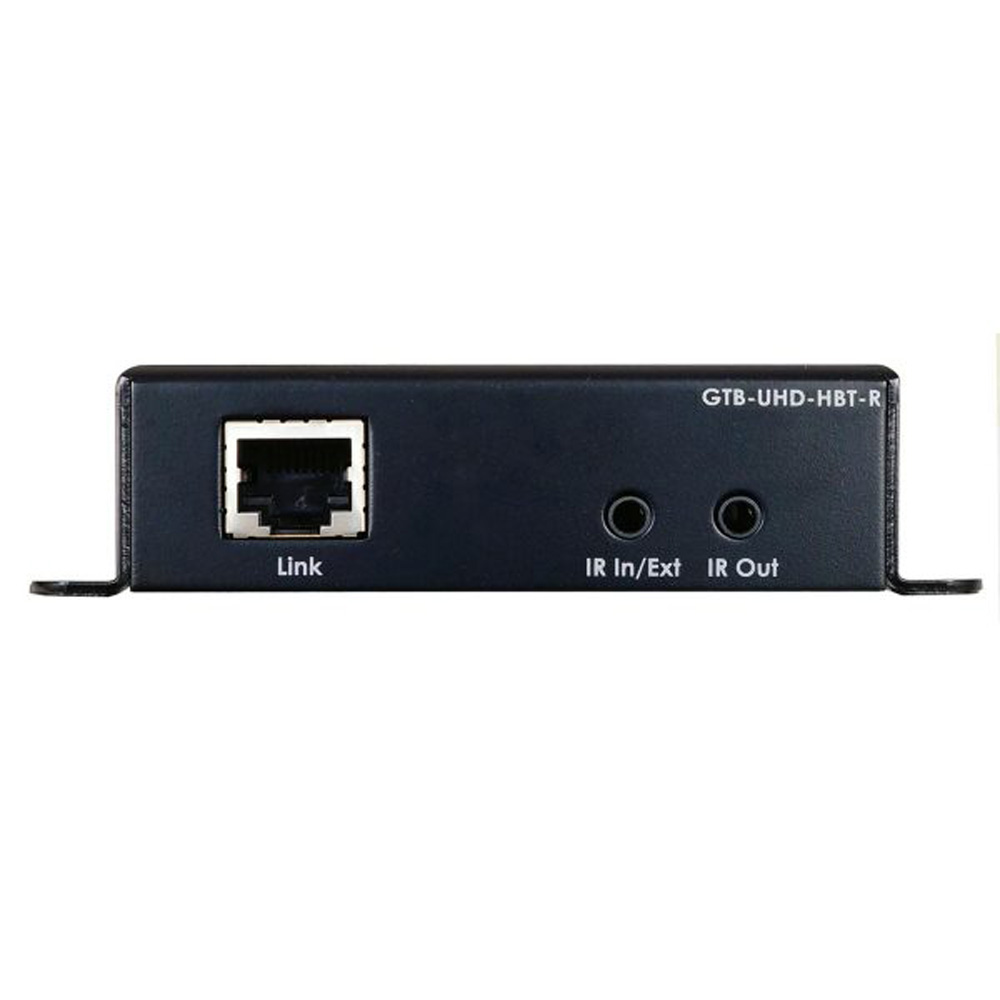

  • Link connector (Sender/Receiver): (1) RJ-45, shielded
    RS-232 port (Sender): (1) 3-pin Phoenix – DB-9 adaptor cable included
    RS-232 port (Receiver): (1) 3-pin Phoenix – DB-9 adaptor cable included
    IR Ext/In port (Sender/Receiver): (1) 3.5mm mini-stereo jack
  • IR Extender type: EXT-RMT-EXTIRN
  • IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack

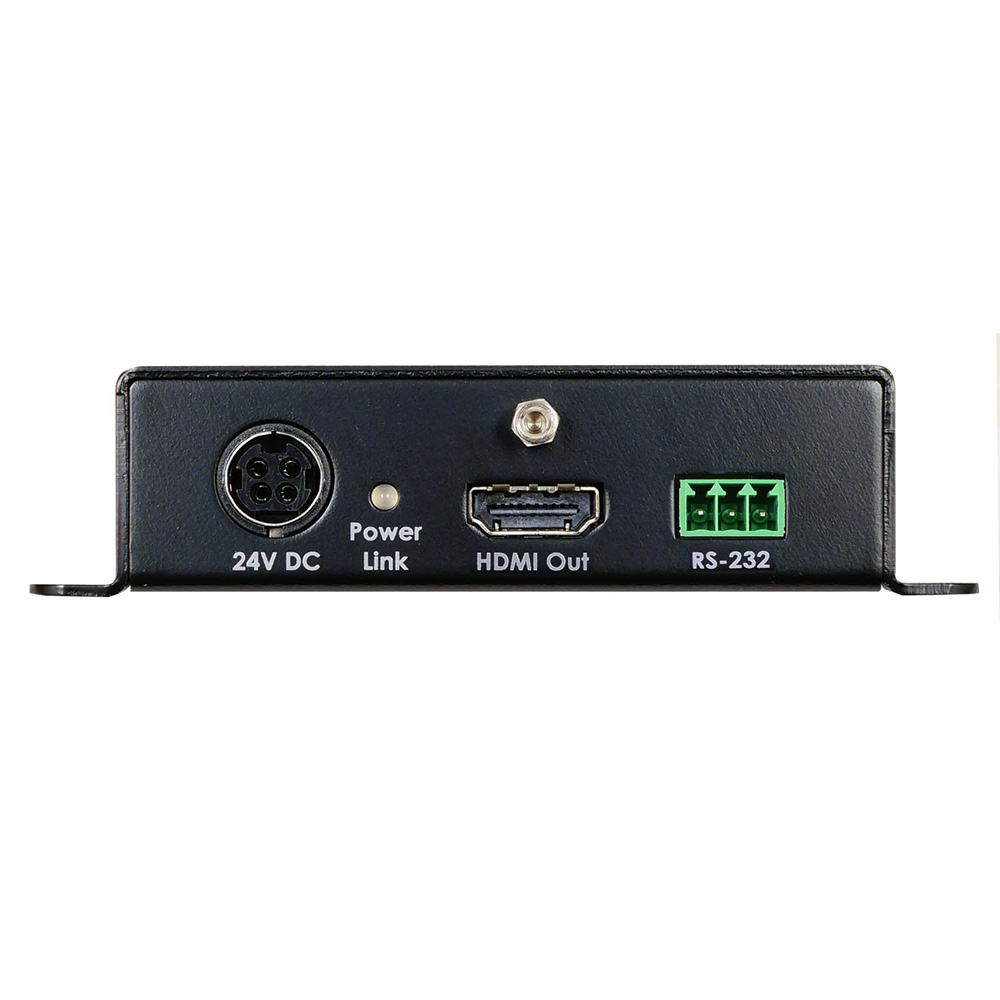

  • Power/Link Indicator LED (Sender/Receiver): (1) Bi-color: Blue/Green
  • Power Supply : (1) 24V DC, locking
  • Power Consumption (Sender and Receiver combined): 12W maximum
    Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions (W x H x D, Sender/Receiver):
    4.3″ x 1″ x 3.2″ (110mm x 26mm x 85mm)
  • Net Weight (Sender/Receiver): 0.4 lbs (0.2 kg) each
    Shipping Weight: 2.6 lbs. (1.2 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length4.25 (Inches)
  • Width12.1 (Inches)
  • Height6 (Inches)
  • Weight2.3 (Lbs)
  • Unit of MeasureSet
  • UPC888814999549

Other Specifications

  • Maximum Pixel Clock 300 MHz
  • Video Input connector (Sender) (1) HDMI Type A 19-pin, female, locking
  • Video Output connector (Receiver) (1) HDMI Type A 19-pin, female, locking
  • Link connector (Sender/Receiver) (1) RJ-45, shielded
  • RS-232 port (Sender) (1) 3-pin Phoenix – DB-9 adaptor cable included
  • RS-232 port (Receiver) (1) 3-pin Phoenix – DB-9 adaptor cable included
  • IR Ext/In port (Sender/Receiver) (1) 3.5mm mini-stereo jack
  • IR Extender type EXT-RMT-EXTIRN
  • IR Out port (Sender/Receiver) (1) 3.5mm mini-mono jack
  • Power/Link Indicator LED (Sender/Receiver) (1) Bi-color: Blue/Green
  • Power Supply (1) 24V DC, locking
  • Power Consumption (Sender and Receiver combined) 12W maximum
  • Operating Temperature +32 to +122 °F (0 to +50 °C)
  • Operating Humidity 5% to 90% RH, non-condensing
  • Storage Temperature -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity 0% to 95% RH, non-condensing
  • MTBF 50000 hours
  • Dimensions (W x H x D, Sender/Receiver) 4.3″ x 1″ x 3.2″ (110mm x 26mm x 85mm)
  • Net Weight (Sender/Receiver) 0.4 lbs (0.2 kg) each
  • Shipping Weight2.6 lbs. (1.2 kg)
