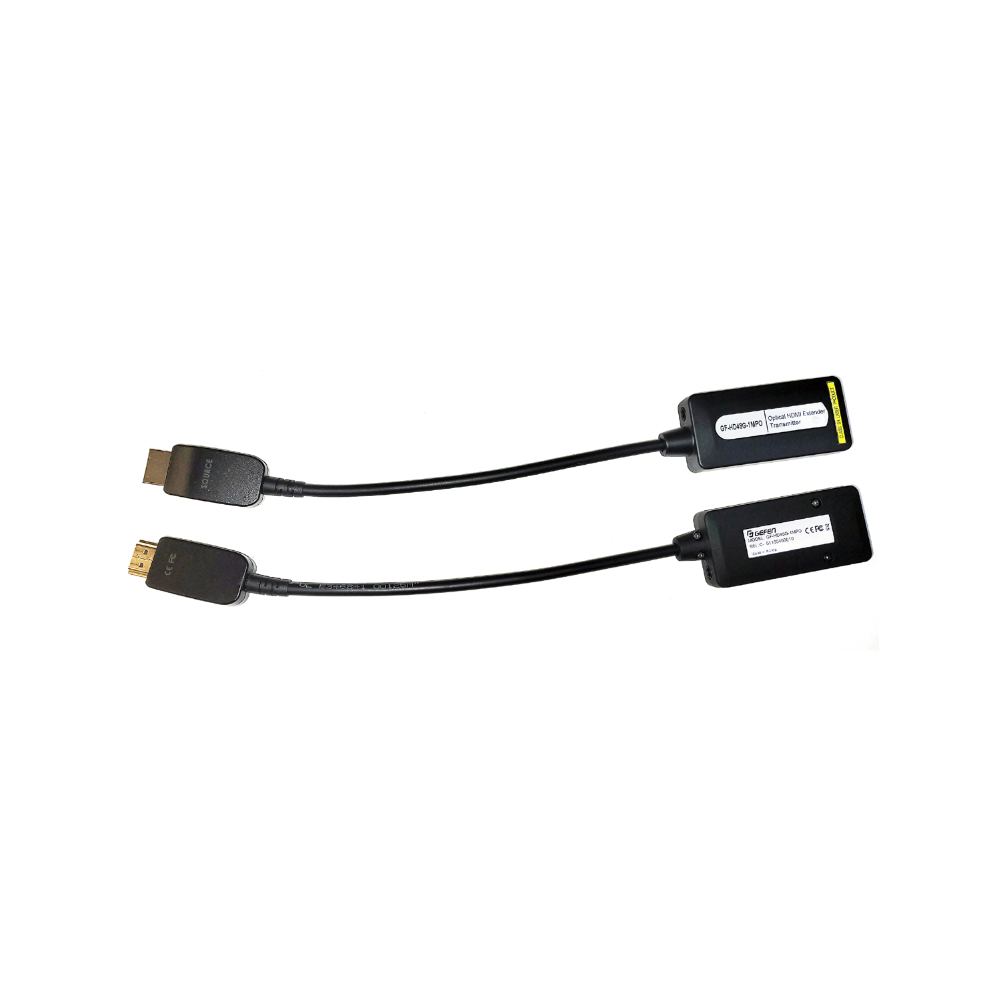

GF-HD48G-1MPO
HDMI 2.1 Optical Fiber Extender

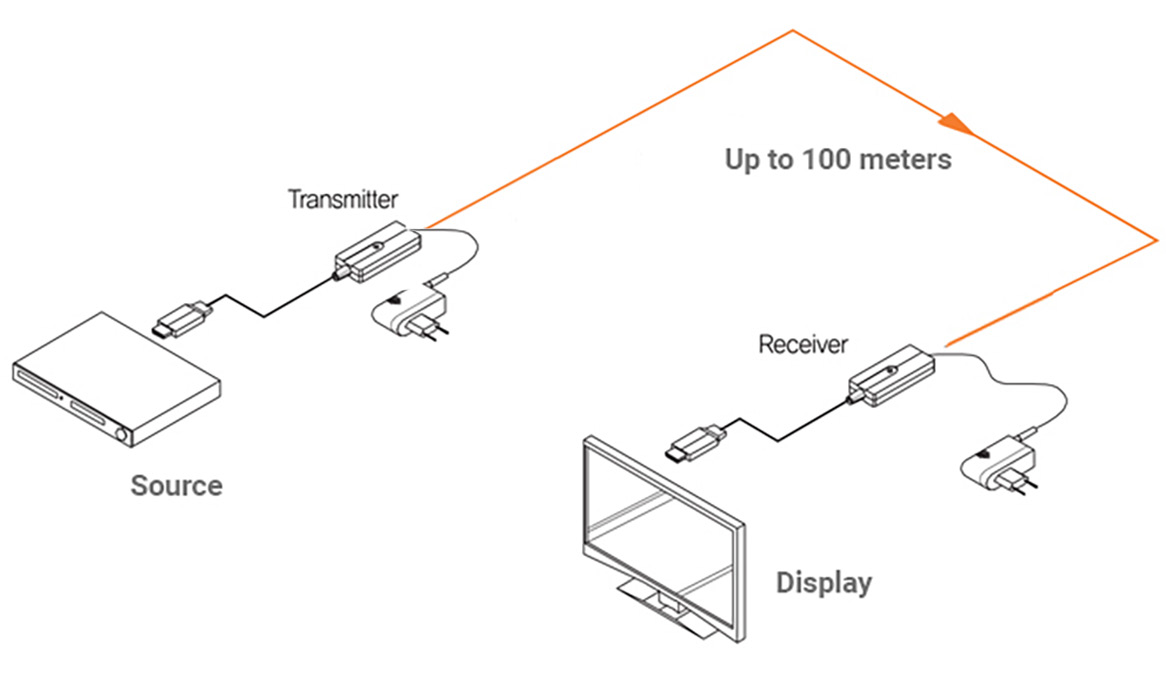

The Gefen GF-HD48G-1MPO extends uncompressed, full-bandwidth HDMI 2.1 audio/video up to 100m (330 feet)

  • High-speed & long-distance transmission by optical fiber
  • Compatible with HDMI standard v2.1
  • Supports OM3 (or OM4) fiber with
  • 8 core MPO/MTP connectors
  • I2C Data and Hot Plug Detection signal is transmitted by optical fiber
  • CEC control, EDID, and HDCP 2.3 premium content protection
  • Support for static & dynamic HDR, allowing for extended dynamic range and wide color gamut support
  • Supports VRR (Variable Refresh Rate)
  • EMI & Safety: CE, FCC
  • Optical Source: VCSEL Laser
  • O/E Converter: PIN Photo Diode
  • Using Fiber: 8-core (or 12-core)
  • MPO/MTP fiber optical cable (OM3, 50/125 μm, Polarity type A)
