EXT-HDKVM-ELR-SW
HDHDKVM ELR Extender for HDMI and USB over One CAT5 SW

Extra Long Range KVM Extender for HDMI and USB over one CAT-5 cable

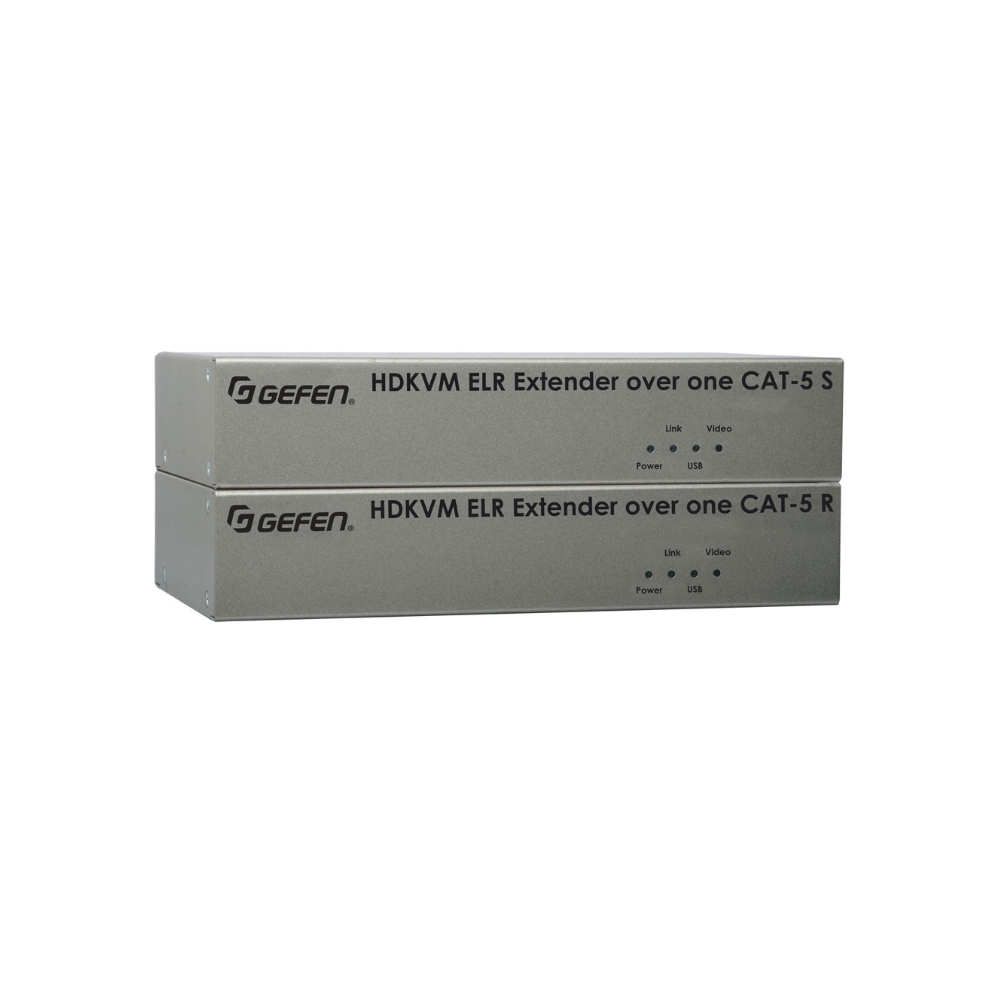

The Gefen HDMI KVM Extra Long Range Extender extends HDMI and USB up to 330 feet (100 meters) over a single CAT-5 cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60Hz 4:2:0 or @ 30Hz 4:4:4), 4K Cinema-DCI (4096 x 2160 @ 24 or 30Hz), 1080p Full HD, and 1920 x 1200 (WUXGA) are supported. HDCP, USB 2.0 up to 30 Mbps, and USB 1.1 are also supported. The Receiver unit accommodates up to three USB devices, providing access to keyboard, mouse, touch-panels, printers, scanners, and external storage media. Typical applications include remote workstations and interactive digital signage with touch-screens. This product uses Gefen’s ELR implementation that integrates the proven HDBaseT™ technology with powerful EDID Management capabilities. HDMI and USB are transported over the same CAT-5e cable, reducing cabling costs in addition to providing easier and more reliable installation.

Video Support

Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) are supported.. This product is compliant with the HDCP 1.4 protocol.

Audio Support

LPCM 7.1 audio, Dolby ® TrueHD, Dolby Digital ® Plus, and DTS-HD ® Master Audi&tra(more…)

FEATURES

  • Extends 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0 or 30Hz, 4:4:4), and USB over a single CAT-5e cable up to 330 feet/100 meters (8-bit color)
  • Extends 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4), and USB over a single CAT-5e cable up to 330 feet/100 meters (8-bit color)
  • Extends HDMI at 1080p Full HD, and USB over a single CAT-5e cable up to 330 feet/100 meters (up to 12-bit Deep Color)
  • Supported HDMI features:
    • •HDMI 2.0
    • •HDCP 1.4 compliant
    • •12-bit Deep Color
    • •LPCM 7.1 audio, Dolby ® TrueHD, Dolby Digital ® Plus, and DTS-HD ® Master Audioâ„¢ pass-through
    • •3DTV pass-through
    • •CEC pass-through
    • •Lip Sync pass-through
  • Supports up to 30 Mbps when using USB 2.0
  • Backward-compatible with USB 1.1
  • EDID management for rapid integration of source and display devices
  • ELR and HDBaseT ® technologies
  • Locking power supplies
  • 1U tall, half-rack width enclosures are rack-mountable using EXT-RACK-1U

SPECIFICATIONS

  • Maximum Pixel Clock: 300 MHz
  • Maximum TMDS Clock: 300MHz
  • Video Input Connector (Sender): HDMI Type A, 19-pin, female, locking
  • Video Output Connector (Receiver): HDMI Type A, 19-pin, female, locking
  • USB Connector (Sender): (1) Type B, female
  • USB Connector (Receiver): (3) Type A, female
  • Link Connector (Sender / Receiver): RJ-45, shielded
  • Service Connector for field upgrades (Sender / Receiver): USB mini-B
  • Power Supply (Sender / Receiver): 5V DC, locking
  • Power Consumption (Sender / Receiver): 10W (max.)
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Dimensions (W x H x D): 8.5″ x 1.75″ x 4.5″ (216mm x 45mm x 114mm)
  • Shipping Weight: 6 lbs. (2.7 kg)
