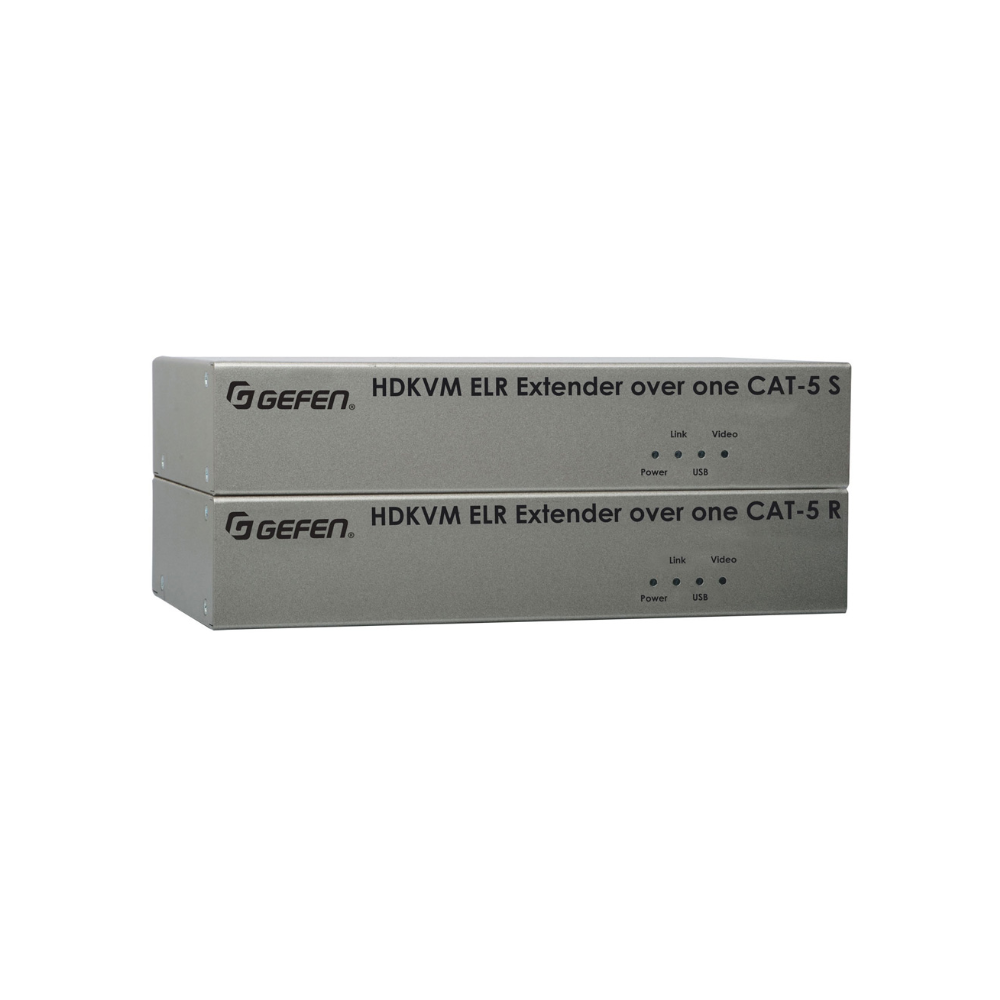

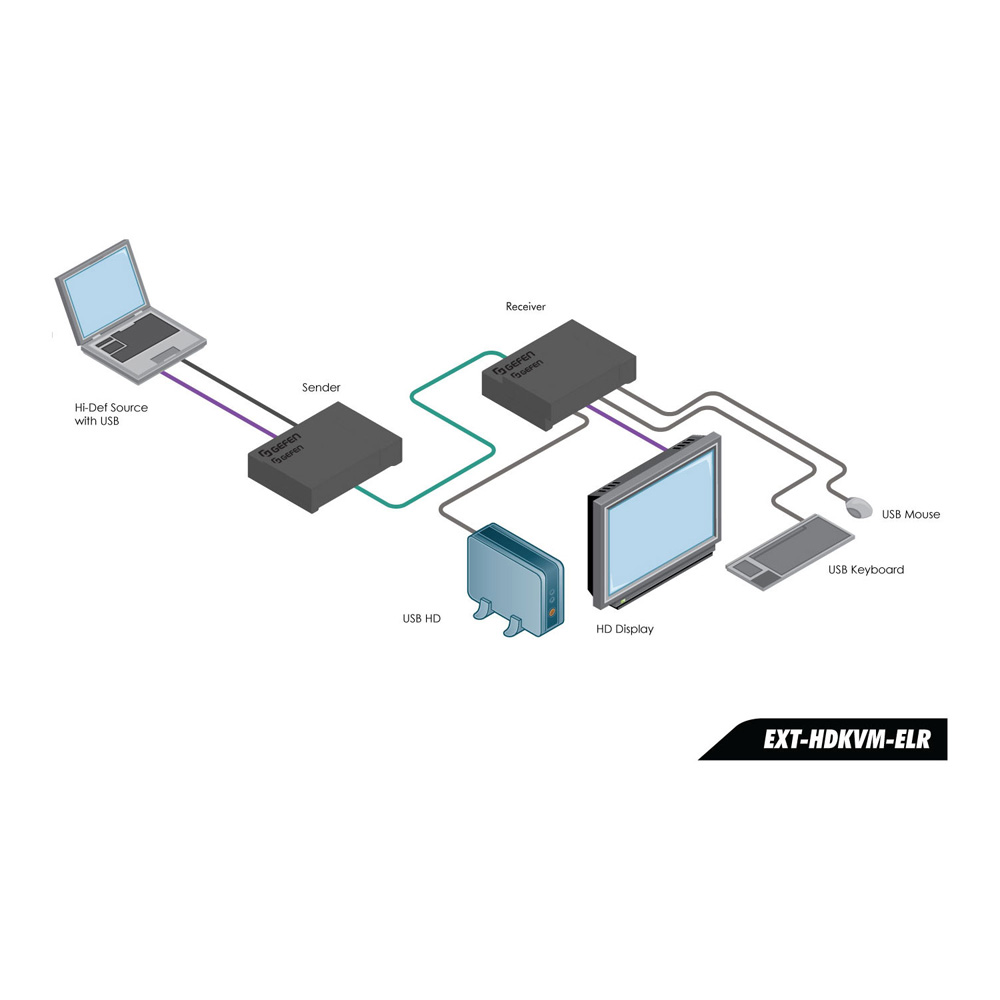

The Gefen HDMI KVM Extra Long Range Extender extends HDMI and USB up to 330 feet (100 meters) over a single CAT-5 cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60Hz 4:2:0 or @ 30Hz 4:4:4), 4K Cinema-DCI (4096 x 2160 @ 24 or 30Hz), 1080p Full HD, and 1920 x 1200 (WUXGA) are supported. HDCP, USB 2.0 up to 30 Mbps, and USB 1.1 are also supported. The Receiver unit accommodates up to three USB devices, providing access to keyboard, mouse, touch-panels, printers, scanners, and external storage media. Typical applications include remote workstations and interactive digital signage with touch-screens. This product uses Gefen’s ELR implementation that integrates the proven HDBaseT™ technology with powerful EDID Management capabilities. HDMI and USB are transported over the same CAT-5e cable, reducing cabling costs in addition to providing easier and more reliable installation.
Video Support
Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) are supported.. This product is compliant with the HDCP 1.4 protocol.
Audio Support
LPCM 7.1 audio, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Master Audi™ pass-through
USB & Serial Extension
This product provides RS-232 and USB extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit, aas well as providing human input device (HID) extension.
