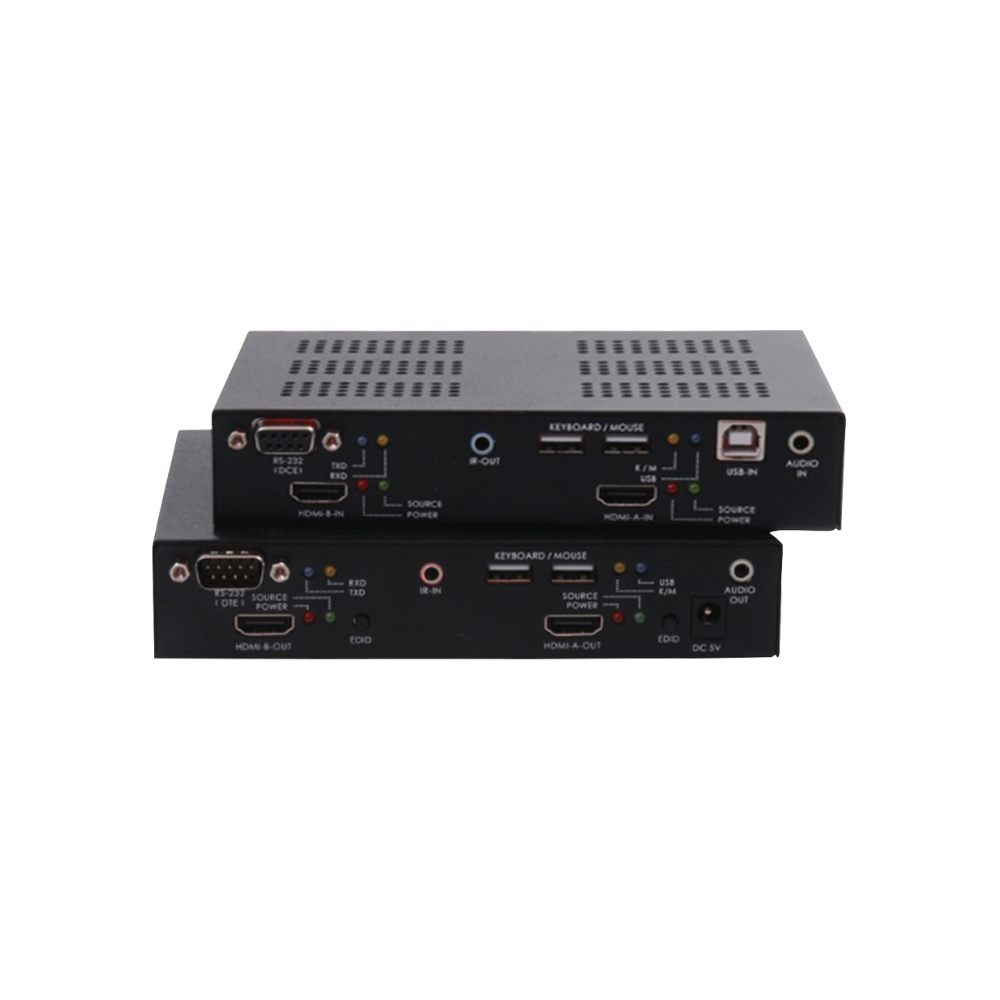

EGE-2HDKVM-CAT
Dual-Head HDMI Extender

Dual-Head HDMI Extender
with USB/IR/RS-232/Audio
1920×1080 (HDMI) / 1920X1200 (DVI)

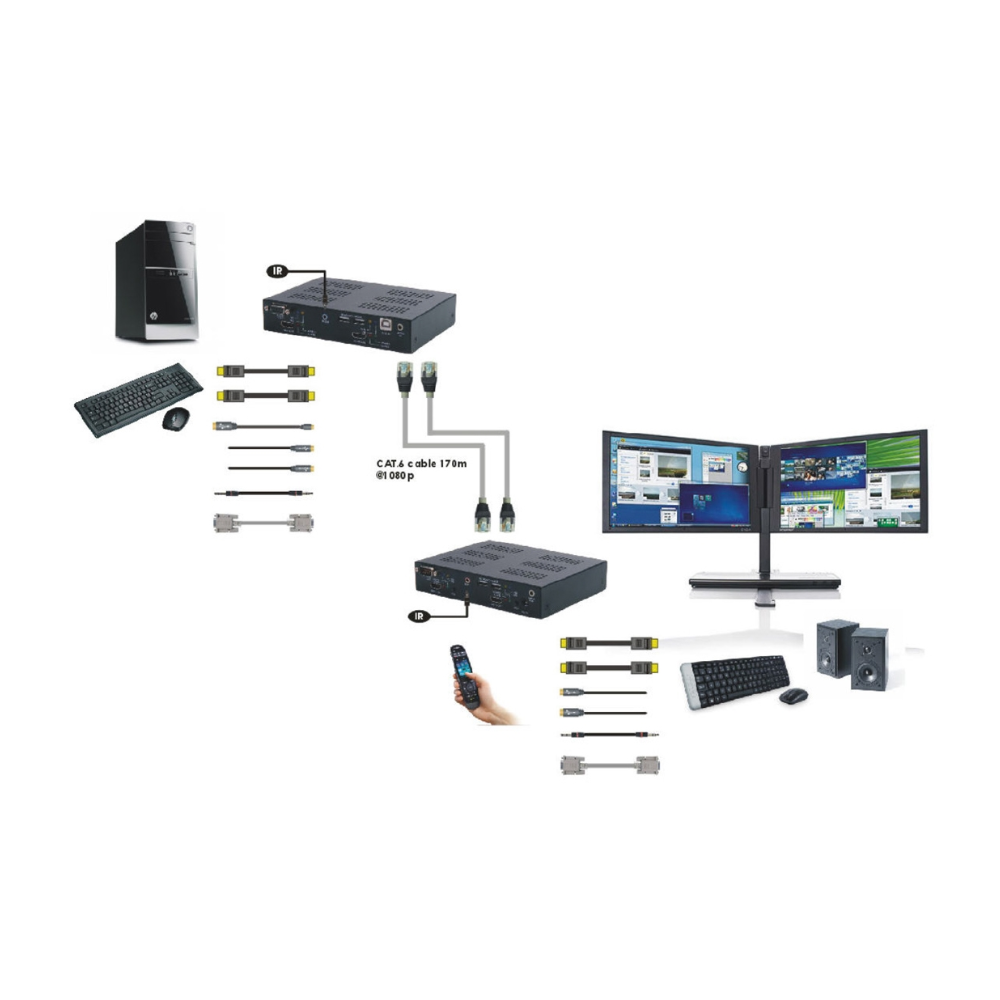

  • Extends Dual-Head Video/Keyboard/Mouse/Audio/IR/RS-232 signals of PC via two CAT.5e/6 cables.
  • Supports up to 2 HDMI (DVI-D via adapter) sources. * Dual-Head Video *
  • Supports USB keyboard / mouse.
  • Supports 3.5mm audio function (speaker).
  • Compatible with all major operating systems.
  • The bandwidth of video and keyboard/mouse is separated so keyboard/mouse can full speed without any delay.
  • Supports resolution up to 1920×1080 (HDMI) / 1920X1200 (DVI).
  • Supports transmission distance up to 140m (CAT.5e) / 170m (CAT.6).
  • EDID Copy function makes the optimal high resolution for your displays
  • Supports RS-232 (Full Duplex).
  • Supports IR (Simplex) (Frequency: 20~60 KHz).
  • Supports surge protection.
  • Simple LED indication for easy status monitoring.
  • HDMI 1.3 / HDCP compliant.
  • Supports Plug & Play; Software not required.
