- Supports the HDBaseT 1.0 specification
- HDBaseT 5PlayTM convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 pass-through)
- Supports UHD resolutions up to 3840×2160@50/60Hz (YUV 4:4:4) & 4096×2160@50/60Hz (YUV 4:4:4)
- Supports pass-through of all standard digital audio: LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream
- Supports RS-232 baud rates from 110~115200bps • 10/100 Ethernet network support
- Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K@60Hz, YUV 4:2:0)
- HDMI with 18Gbps (600MHz) 4K support and HDCP 2.2 compliant
- Supports Deep Color up to 1080p/12-bit • Supports DVI to HDMI conversion
- Supports signal bypass on HDMI output (on the Transmitter)
- Transmitter can upscale 1080p signals to 4K over HDBaseT output or downscale 4K signal to 1080p (same framerate is maintained)
- Receiver supports signal bypass on both outputs or output B can upscale 1080p signals to 4K and output A can downscale a 4K signal to 1080p (same framerate is maintained)
- Supports 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- Supports OAR (Optical Audio Return) and DAC audio balance conversion
- Test pattern generation at select resolutions for on-site display testing
- Integrated EDID management
- OSD with instant I/O resolution display

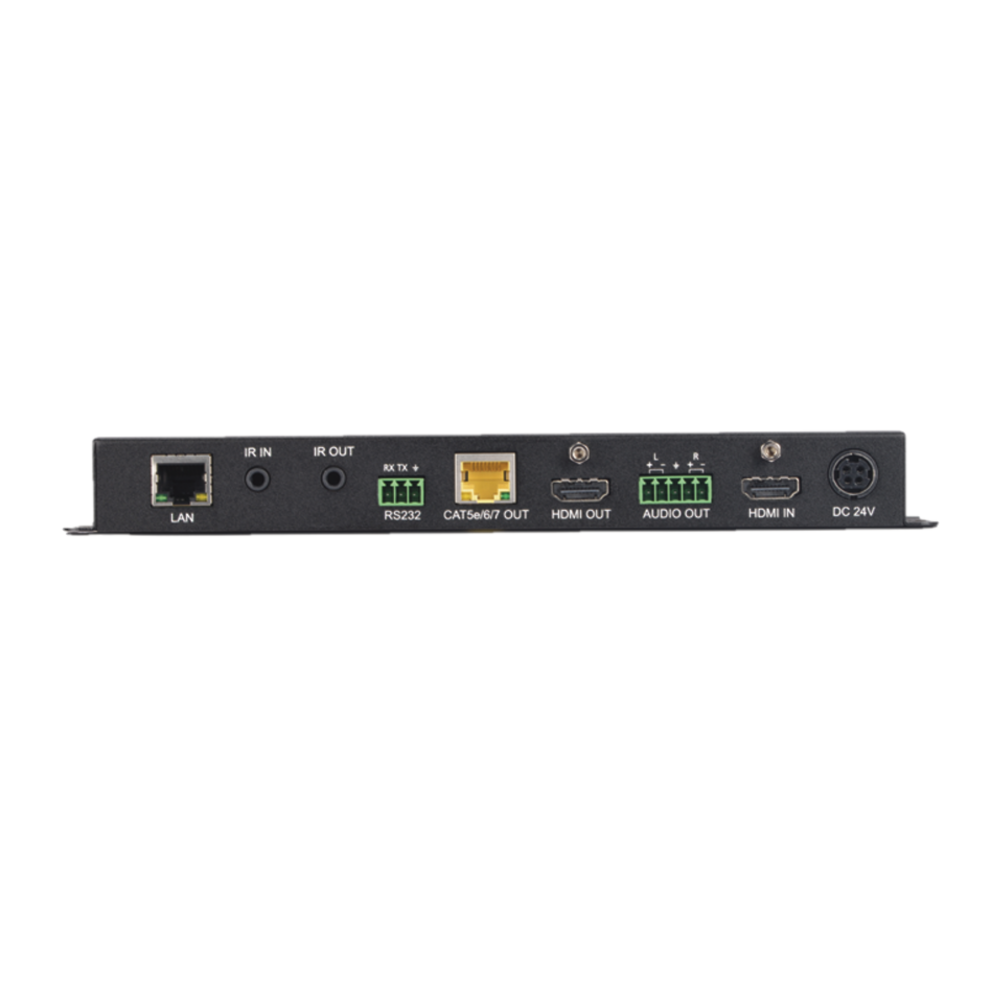

Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm [1x Infrared Receiver]
- 3x 1-Pin Terminal Block [1x RS-232]
- 1x RJ-45 [1x LAN Serving]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x RJ-45 [1x HDMI & Propriety Data]
- 1x Terminal Block 5-pin [1x Stereo (Balanced)]
- 1x 3.5mm [1x Infrared Emitter]
PSU: 24V/2.7A
Dimensions: 231mm [W] x 117mm [D] x 25mm [H]
Net Weight: 648g
