- HDMI input and output with 18Gbps (600MHz) 4K UHD support
- DVI 1.0 coherent with the use of an HDMI-DVI adapter
- Coherent with HDCP 1.4 and 2.2
- Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
- Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream audio formats
- Video source signal and display EDID analysis
- HDCP 2.2 to 1.4 transformation
- EDID selectable between internal, external and user’s custom EDID
- PC-based EDID administration device support

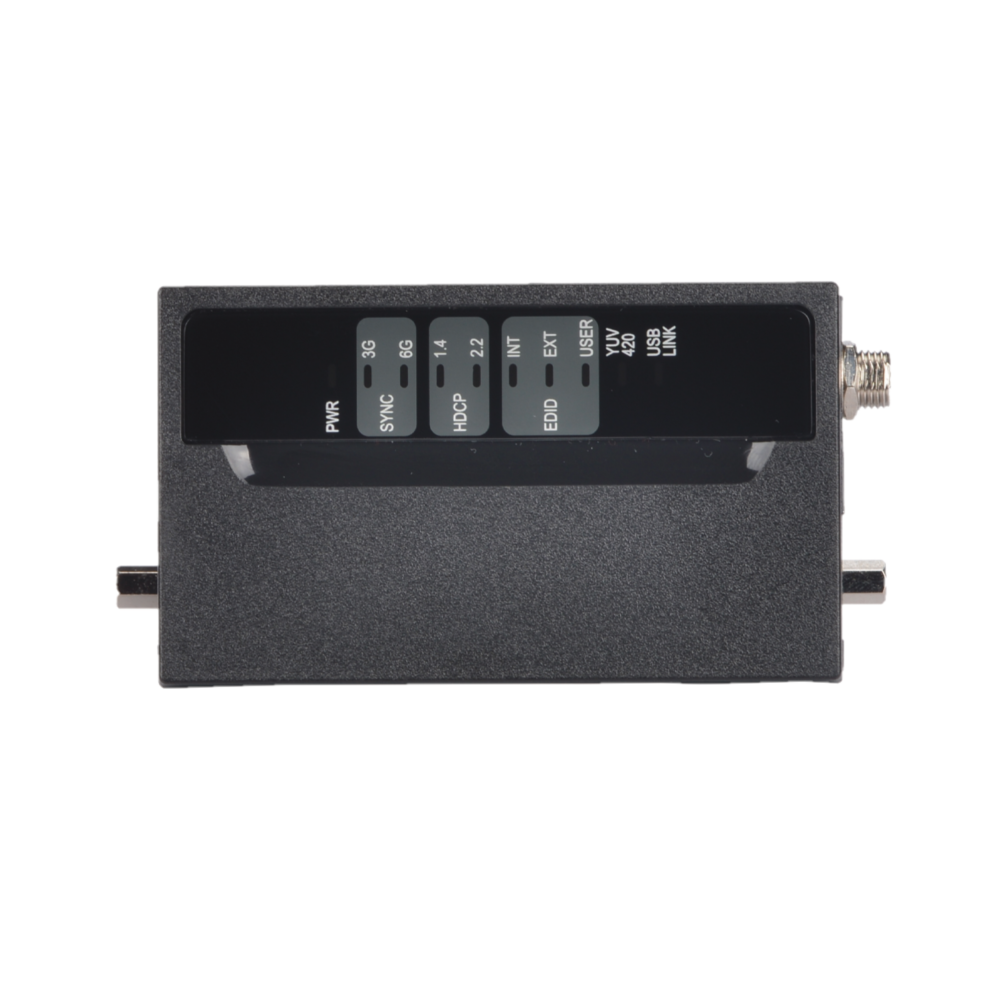

- LED display with easy viewing of the current signal status
- Supports 18Gbps bandwidth bypass and 18Gbps color sub-sampling to 10.2Gbps (4K@50/60Hz, 4:4:4 to 4K@50/60Hz, YUV 4:2:0)
- Supports firmware updates via USB
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x USB Type B [1x SERVICE Propriety Data]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
PSU:
- 5V/2.6A
Dimensions
- 51mm [W] x 22mm [D] x 97mm [H]
Net Weight
- 58gr
