EXT-DVI-FM15
DVI Fiber Optic

Modular DVI extension using a single-strand multimode fiber optic cable with Virtual EDID

The Gefen DVI FM15 Modular Fiber Optic Extender allows DVI signal to be extended up to 3300 feet (1 km) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. A single-strand of 50/125um laser-optimized multimode (OM3) SC-terminated fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.

Video Support

Supports resolutions up to 1920 x 1200

FEATURES

  • Extends DVI up to 3300 feet (1 kilometer) over a single-strand of OM3 (laser-optimized 50/125um) multimode fiber optic cable
  • Extends DVI up to 1650 feet (500 meters) over a single-strand of OM2 (conventional 50/125um) multimode fiber optic cable
  • Extends DVI up to 1000 feet (300 meters) over a single-strand of OM1 (62.5/125um) multimode fiber optic cable
  • Supports resolutions up to 1920 x 1200 (WUXGA)
  • Virtual EDID allows EDID copying from the display to the source
  • Fiber optic transmission eliminates electromagnetic interference (EMI)

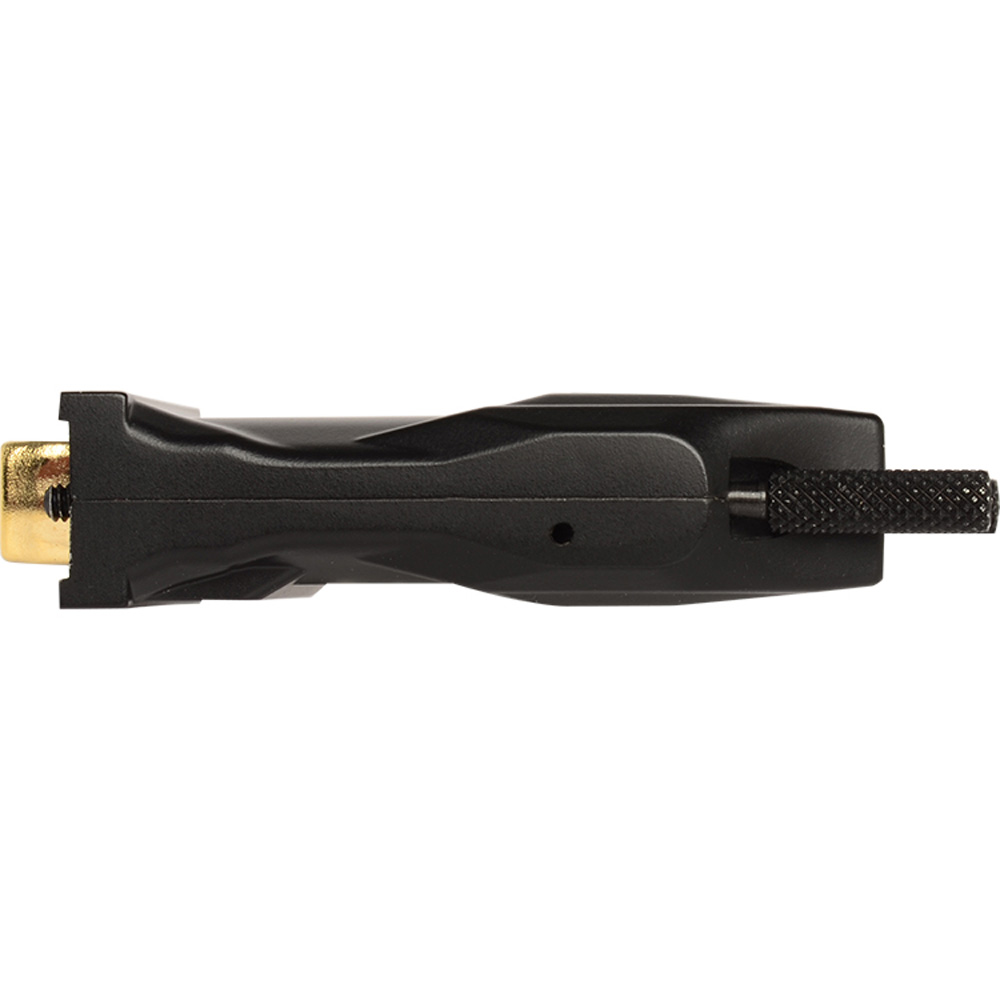

  • Sturdy metal die-cast enclosures are perfect for professional and industrial applications
  • Compact Sender and Receiver modules provide a clean, easy installation
  • Use Gefen CAB-1SC-xxxx OM1 Fiber Optic Link Cables for distances from 30 – 330 feet (9-100 meters)
  • FCC and CE compliant for EMI/RFI emission

SPECIFICATIONS

  • Maximum Pixel Clock: 165 MHz

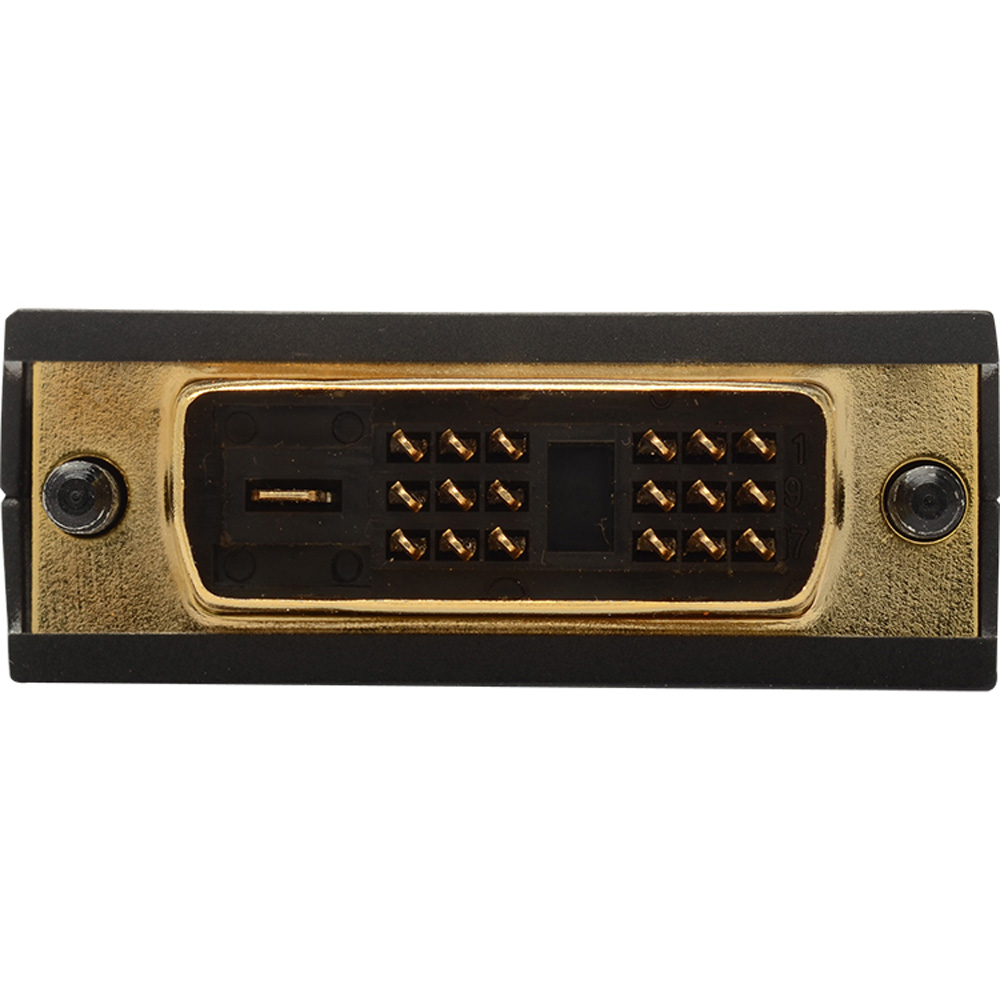

  • Video Input Connector (Sender): DVI-D, 19-pin, male
  • Video Output Connector (Receiver): DVI-D, 19-pin, male

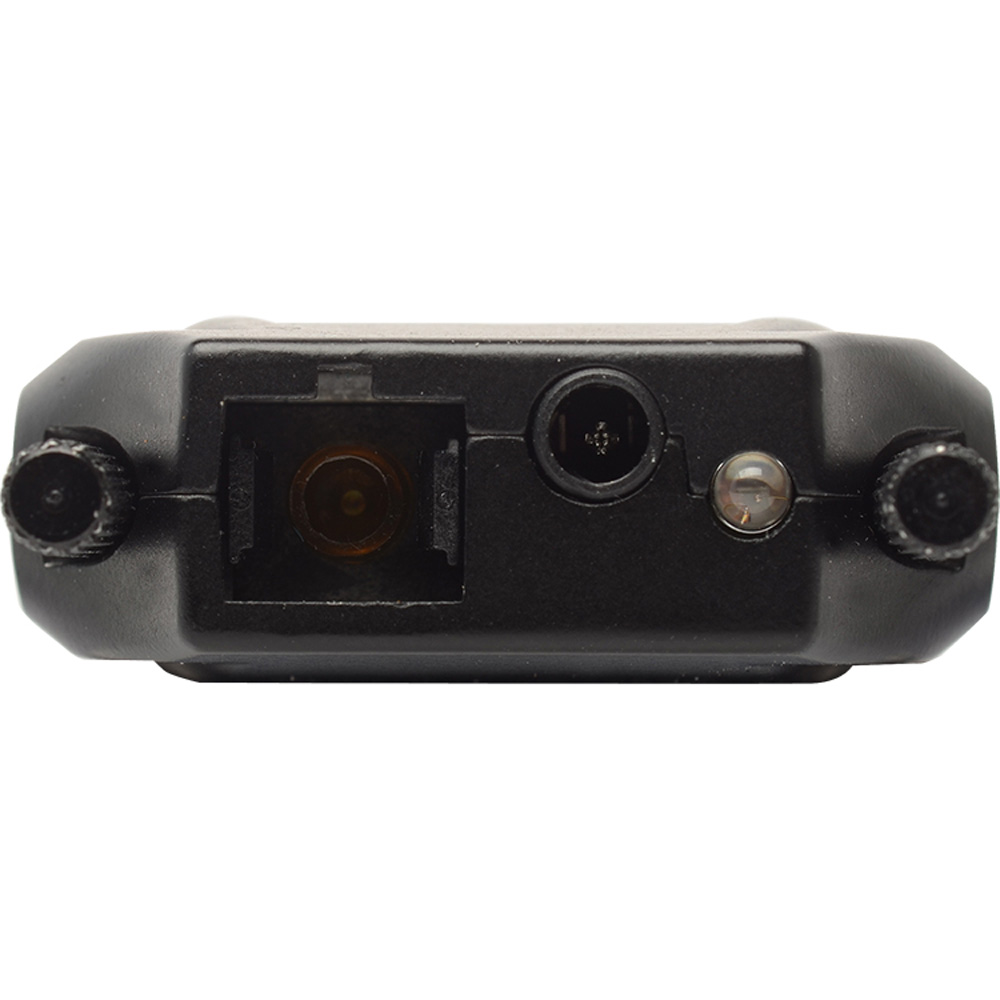

  • Link Connector (Sender / Receiver): (1) Type SC fiber (50/125?m)
  • Power Supply (Sender): 5V DC (not needed for most applications)
  • Power Supply: (Receiver): 5V DC
  • Power Consumption (Receiver): 0.95 W (max.)
  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Storage Temperature: -22 to +158 °F (-30 to +70 °C)
  • Relative Humidity: 5% to 85%
  • Dimensions (W x H x D): 1.96″ x 0.59″ x 2.98″ (49.78mm x 14.98mm x 75.69mm)
  • Shipping Weight: 2 lbs. (0.91 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length9 (Inches)
  • Width5 (Inches)
  • Height2.25 (Inches)
  • Weight1 (Lbs)
  • UPC845344044903

Other Specifications

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): DVI-D, 19-pin, male
  • Video Output Connector (Receiver): DVI-D, 19-pin, male
  • Link Connector (Sender / Receiver): (1) Type SC fiber (50/125°m)
  • Power Supply (Sender): 5V DC (not needed for most applications)
  • Power Supply: (Receiver): 5V DC
  • Power Consumption (Receiver): 0.95 W (max.)
  • Operating Temperature: +32 to +122 Â °F (0 to +50 Â °C)
  • Storage Temperature: -22 to +158 Â °F (-30 to +70 Â °C)
  • Relative Humidity: 5% to 85%
  • Dimensions (W x H x D): 1.96″ x 0.59″ x 2.98″ (49.78mm x 14.98mm x 75.69mm)
  • Shipping Weight: 2 lbs. (0.91 kg)

In The Box

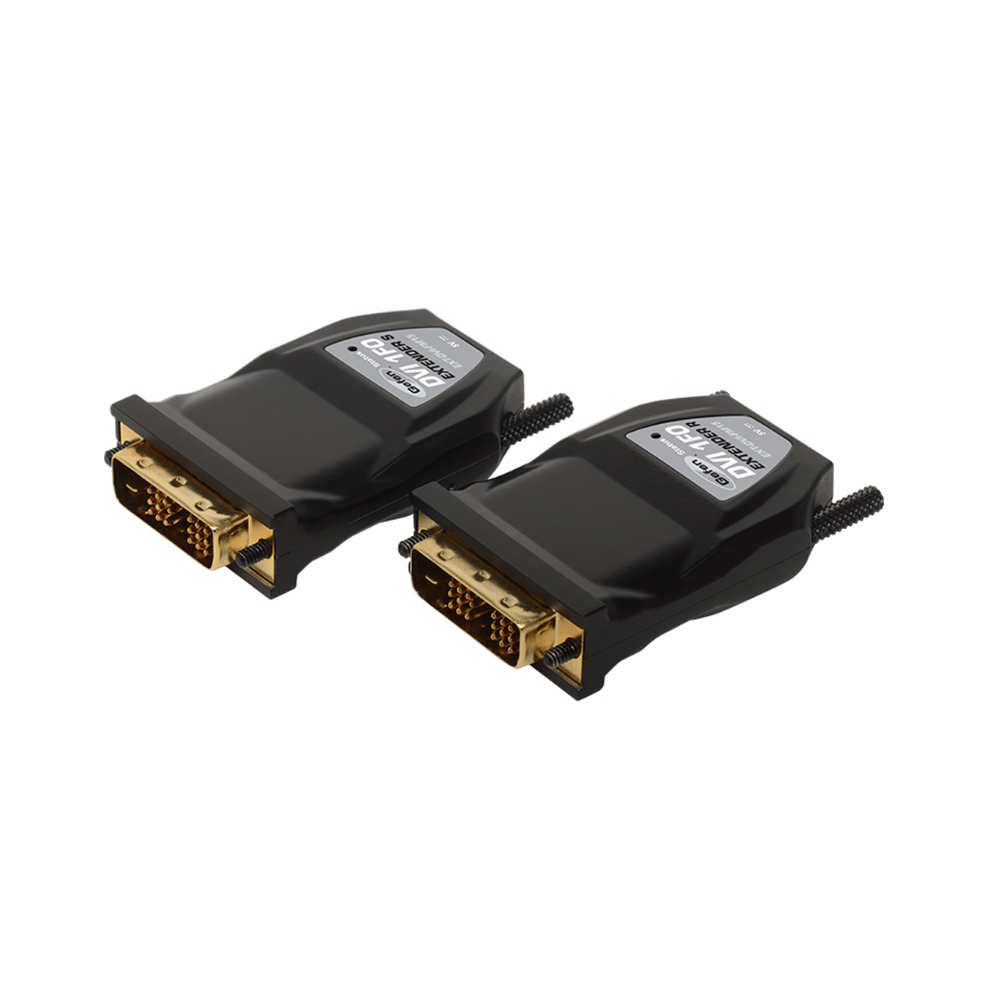

  • DVI Fiber Optic (Dongle Modules) (Sender Module) (EXT-DVI-FM15S)(1)
  • DVI Fiber Optic (Dongle Modules) (Receiver Module) (EXT-DVI-FM15R)(1)
  • 5V DC Power Supply (EXT-PS51AIP-1.3)(2)
  • Quick-Start Guide (QSG-DVI-FM15)(1)
