EXT-DVI-FM1000
DVI FM 1000 Extender

Extend DVI over One Strand of Fiber Cable — up to 5600 feet (1.7 km) away

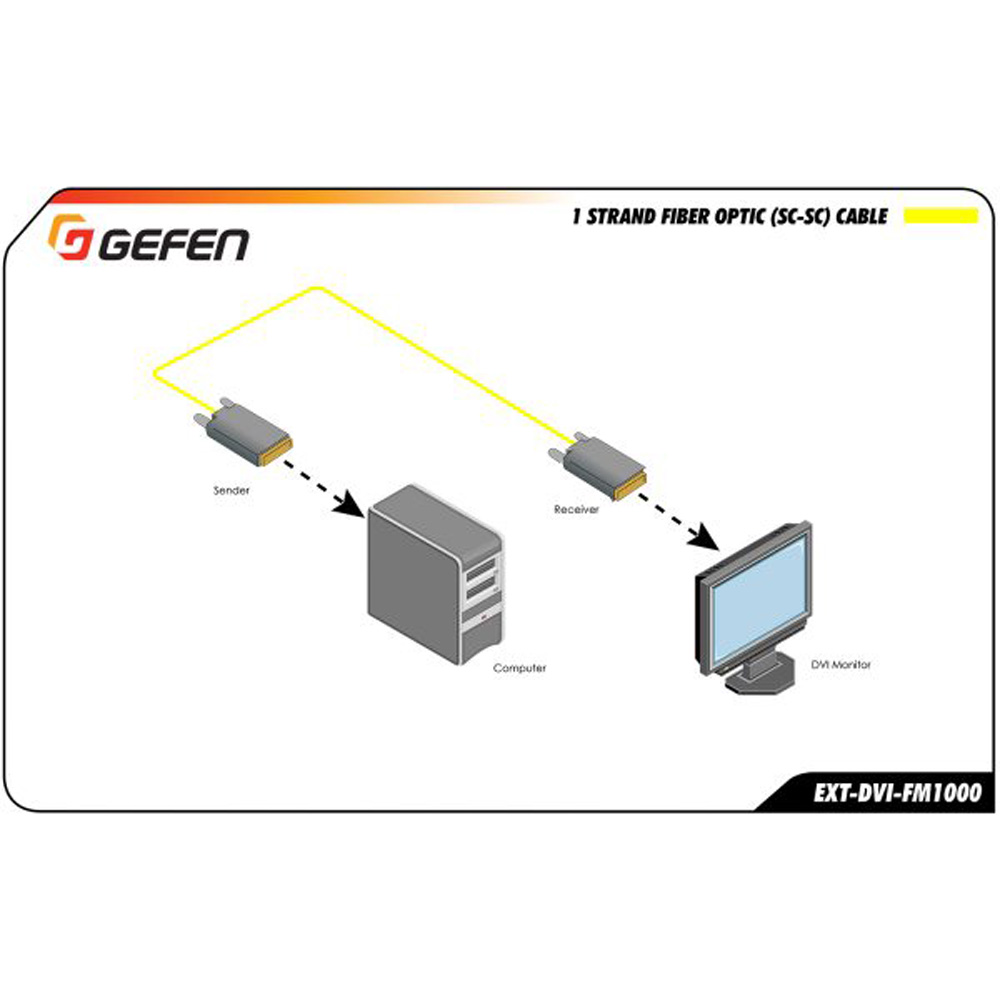

The Gefen DVI FM1000 Fiber Optic Extender allows DVI signal to be extended up to 5600 feet (1.7 km.) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. A single strand of SC-terminated fiber optic cable is used for extension, providing excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The automatic EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.

Video Support

Supports resolutions up to 1920 x 1200

FEATURES

  • Extends DVI up to 5600 feet (1.7 km) over a single-strand of OM3e/OM4 (50/125um) multimode fiber optic cable
  • Extends DVI up to 4950 feet (1.5 km) over a single-strand of OM3 (50/125um) multimode fiber optic cable
  • Extends DVI up to 3300 feet (1 km) over a single-strand of OM2 (50/125um) multimode fiber optic cable
  • Extends DVI up to 1640 feet (500 meters) over a single-strand of OM1 (62.5/125um) multimode fiber optic cable
  • Supports resolutions up to 1920 x 1200
  • Supports DDWG standard for DVI-compliant monitors
  • Uses single-strand multi-mode SC-terminated fiber optic cable
  • EDID Programming feature enables quick and correct sync of source to display
  • Fiber cable provides immunity from electromagnetic interference (EMI)
  • Eliminates computer noise at your workstation

SPECIFICATIONS

  • Maximum Pixel Clock: 165MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)

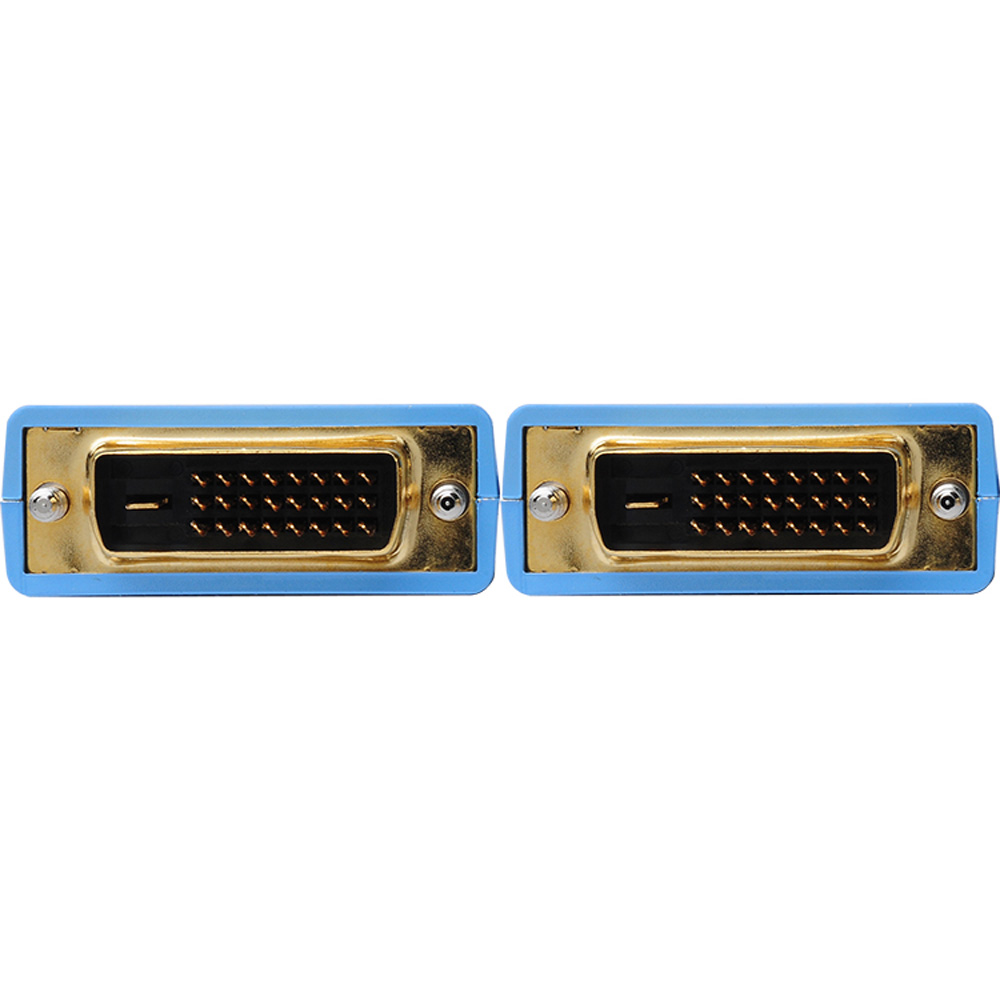

  • Video Input Connector (Sender): (1) DVI-D 19-pin, male (digital only)
  • Video Output Connector (Receiver): (1) DVI-D 19-pin, male (digital only)

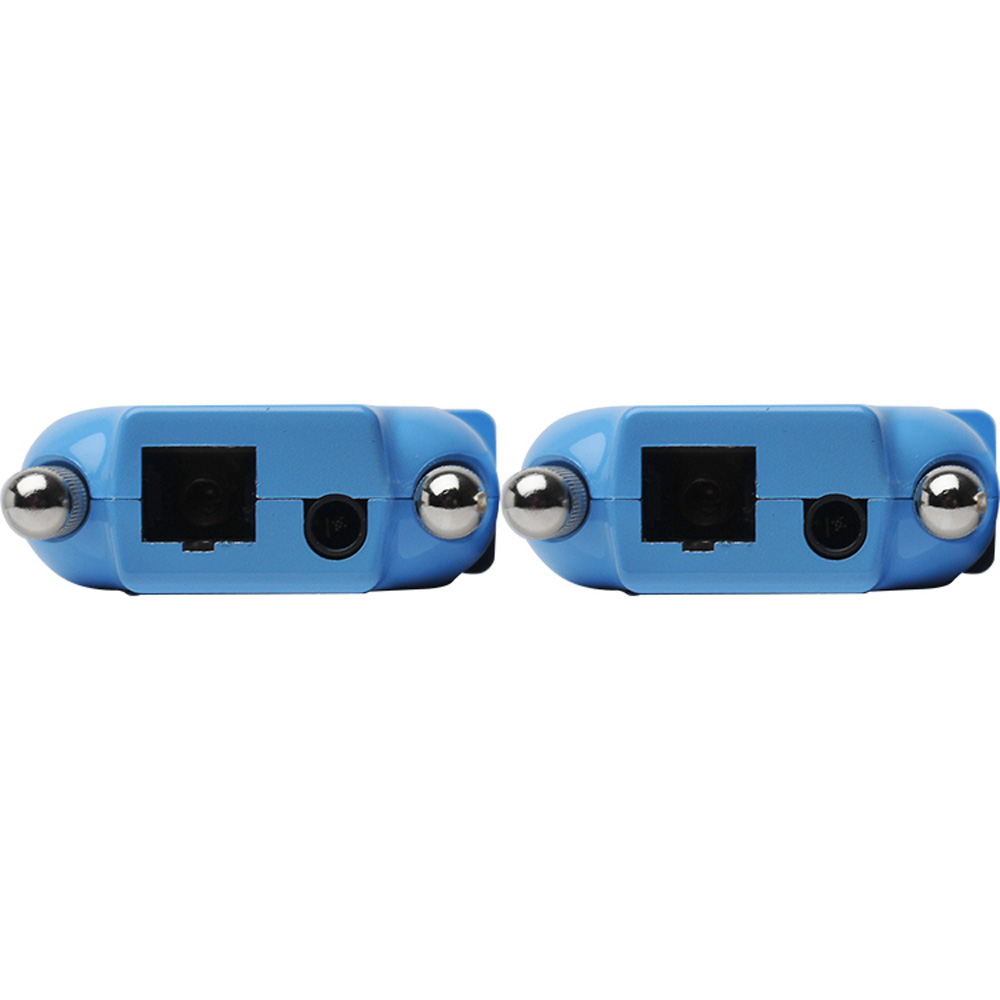

  • Link Connector (Sender / Receiver): (1) Type SC Fiber connector
  • Fiber Cable: SC-terminated, Multi-Mode OM1 (62.5/125 µm), or OM2/OM3/OM3e/OM4 (50/125 µm)
  • Operating Temperature Range: 0 to +50 deg C
  • Storage Temperature Range: -30 to +70 deg C
  • Storage Relative Humidity: 10% to 85% RH
  • Power Supply (Receiver): 5V DC
  • Power Consumption: 2.5W (max.)
  • Dimensions (Sender / Receiver): 2.6″ D x 1.6″ W x 0.6″ H
  • Shipping Weight: 2 lbs.

OTHER SPECIFICATIONS

Shipping Info

  • Length6.5 (Inches)
  • Width5.7 (Inches)
  • Height2.7 (Inches)
  • Weight0.85 (Lbs)
  • UPC845344068046

Other Specifications

  • Maximum Pixel Clock: 165MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)
  • Video Input Connector (Sender): (1) DVI-D 19-pin, male (digital only)
  • Video Output Connector (Receiver): (1) DVI-D 19-pin, male (digital only)
  • Link Connector (Sender / Receiver): (1) Type SC Fiber connector
  • Fiber Cable: SC-terminated, Multi-Mode OM1 (62.5/125Â µm), or OM2/OM3/OM3e/OM4 (50/125Â µm)
  • Operating Temperature Range: 0 to +50 deg C
  • Storage Temperature Range: -30 to +70 deg C
  • Storage Relative Humidity: 10% to 85% RH
  • Power Supply (Receiver): 5V DC
  • Power Consumption: 2.5W (max.)
  • Dimensions (Sender / Receiver): 2.6″ D x 1.6″ W x 0.6″ H
  • Shipping Weight: 2 lbs.

In The Box

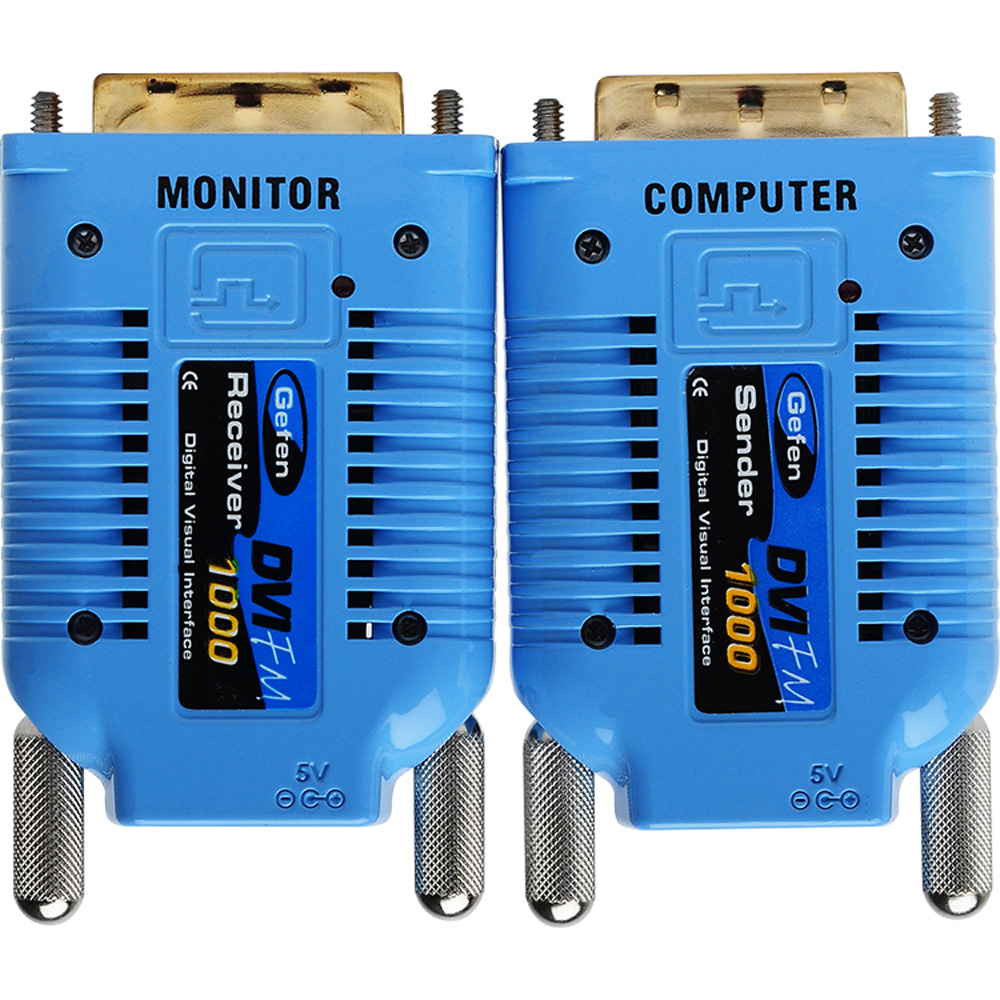

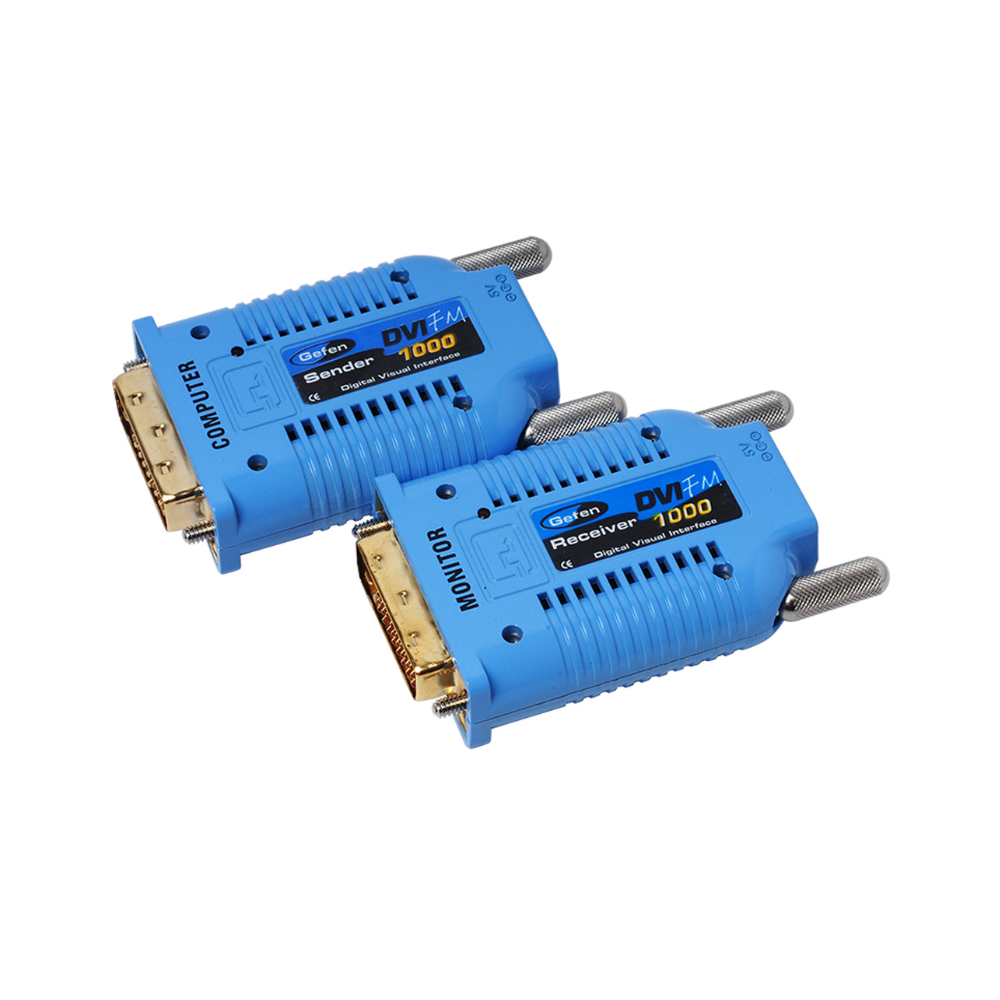

  • DVI FM1000 Sender unit(1)
  • DVI FM1000 Receiver unit(1)
  • 5V DC Power Supply (EXT-PS52AIP-1.3-6-AL)(1)
