EXT-DVI-CP-FM10
DVI Fiber Optic

Pigtail module DVI extension using a single-strand multimode fiber optic cable with HDCP support

The Gefen DVI fiber optic pigtail module extender with HDCP support extends DVI up to 3300 feet (1000 meters) using single-strand 50/125 um multimode (OM2/OM3) SC-terminated fiber optic cable. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules. The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DVI.

Video Support

Supports resolutions up to 1920 x 1200 (WUXGA)

FEATURES

  • Extends DVI up to 3300 feet (1000 meters) using a single-strand 50/125um multimode (OM2/OM3) SC-terminated fiber optic cable
  • Supports resolutions up to 1920 x 1200 (WUXGA)
  • Fiber optic transmission eliminates electromagnetic interference (EMI)

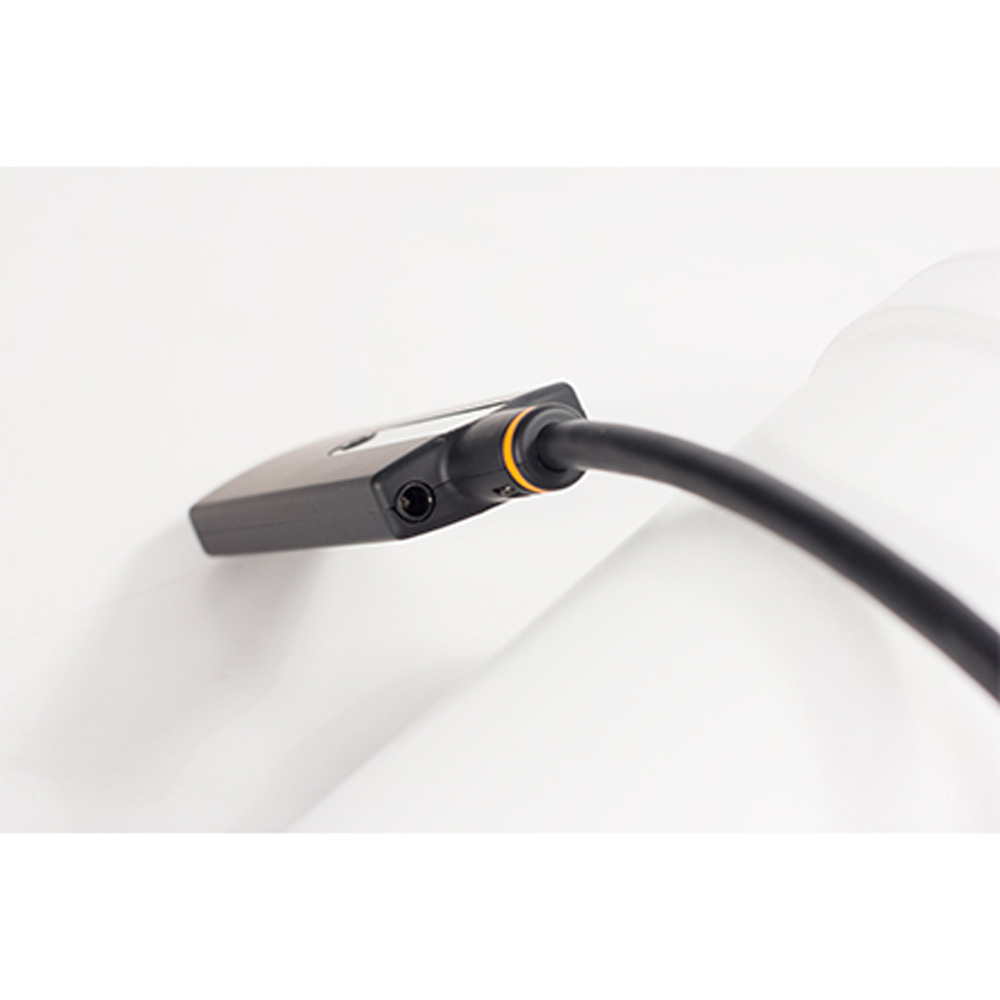

  • Pigtail design relieves stress and clutter on the source and display connector panels
  • DDC bidirectional support
  • HDCP pass-through
  • Compact Sender and Receiver modules provide a clean, easy installation
  • FCC and CE compliant for EMI/RFI emission

SPECIFICATIONS

  • Maximum Pixel Clock: 165 MHz

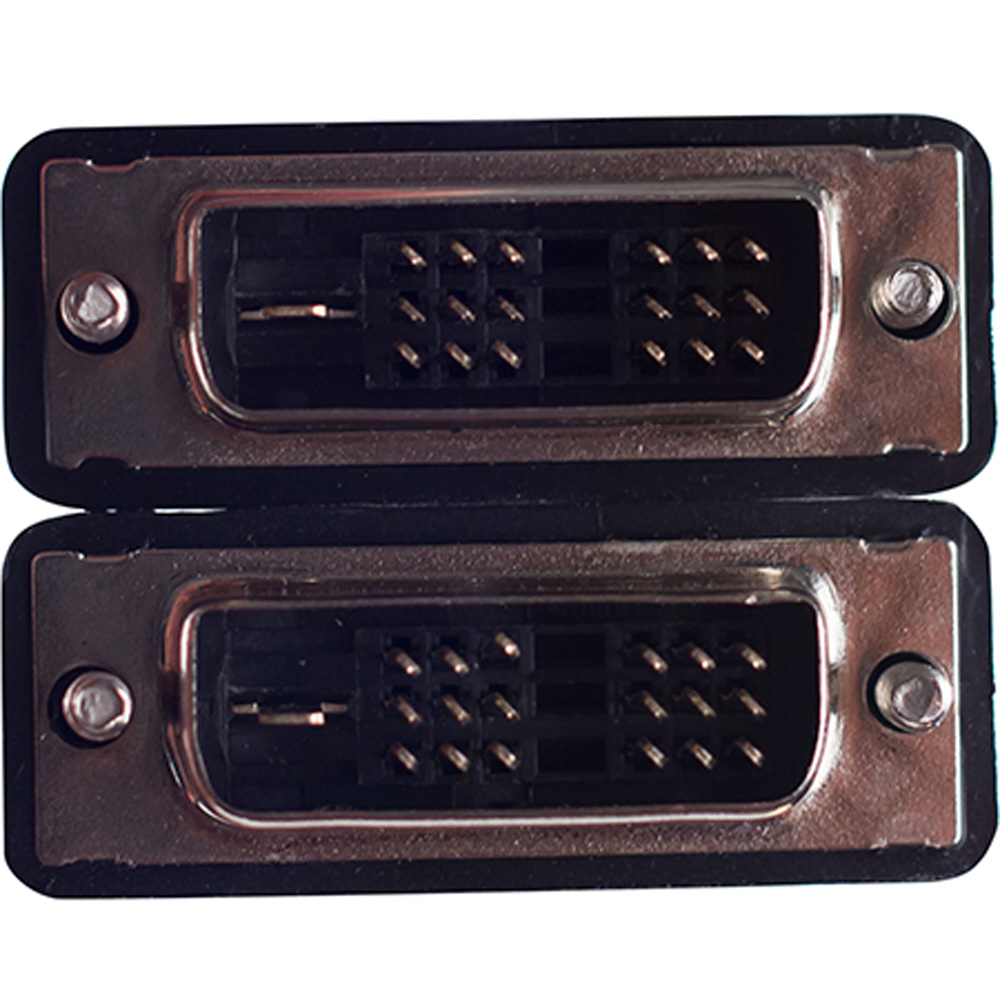

  • Video Input Connector (Sender): (1) DVI-D, 19-pin, male
  • Video Output Connector (Receiver): (1) DVI-D, 19-pin, male

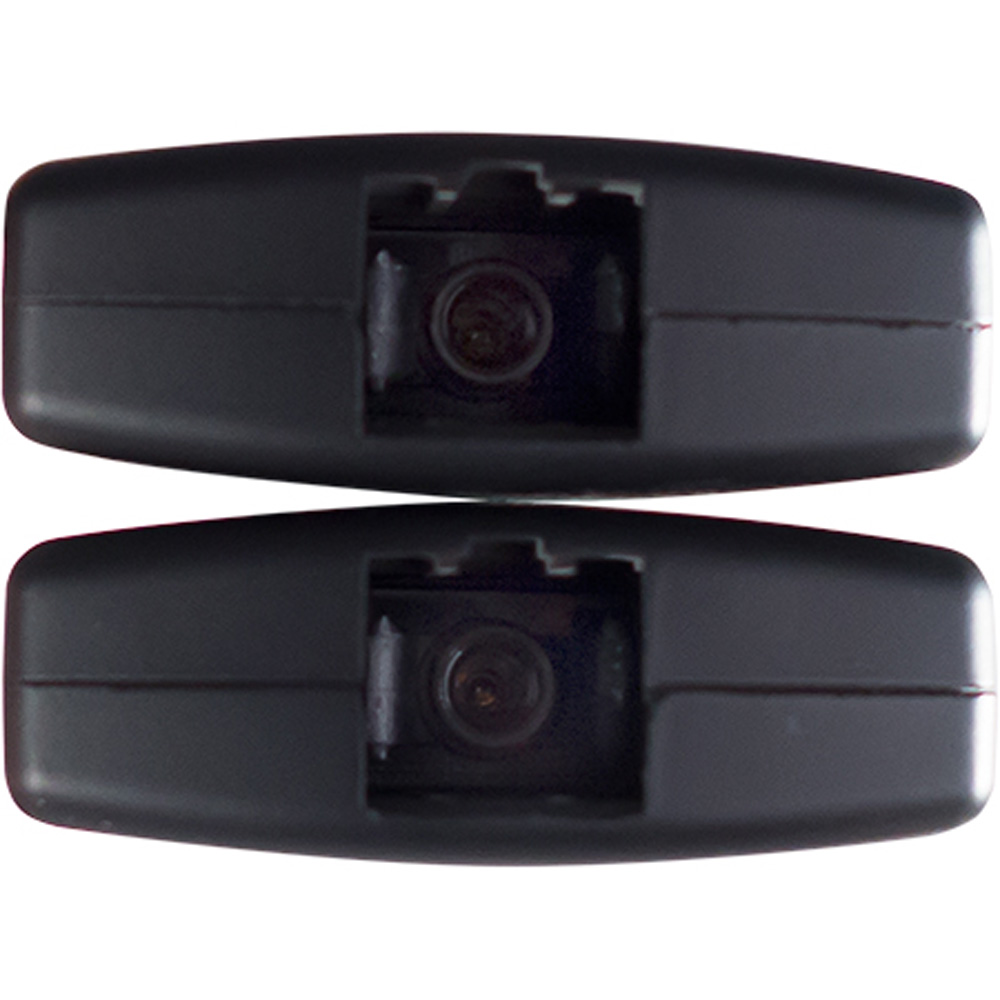

  • Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125?m)
  • Power Supply (Sender): 5V DC (not needed for most applications)
  • Power Supply (Receiver): 5V DC
  • Power Consumption (Receiver): 1.5W (max.)
  • Operating Temperature: +32 to 122 °F (0 to +50 °C)
  • Storage Temperature: -4 to 158 °F (-20 to +70 °C)
  • Relative Humidity: 10% to 80%
  • Dimensions (W x H x D): 1.54″ x 0.63″ x 11.49″ (39.11mm x 16mm x 291.84mm)
  • Shipping Weight: 1 lb. (0.45 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length14 (Inches)
  • Width7 (Inches)
  • Height3 (Inches)
  • Weight1.3 (Lbs)
  • UPC845344090375

Other Specifications

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-D, 19-pin, male
  • Video Output Connector (Receiver): (1) DVI-D, 19-pin, male
  • Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125°m)
  • Power Supply (Sender): 5V DC (not needed for most applications)
  • Power Supply (Receiver): 5V DC
  • Power Consumption (Receiver): 1.5W (max.)
  • Operating Temperature: +32 to 122 Â °F (0 to +50 Â °C)
  • Storage Temperature: -4 to 158 Â °F (-20 to +70 Â °C)
  • Relative Humidity: 10% to 80%
  • Dimensions (W x H x D): 1.54″ x 0.63″ x 11.49″ (39.11mm x 16mm x 291.84mm)
  • Shipping Weight: 1 lb. (0.45 kg)

In The Box

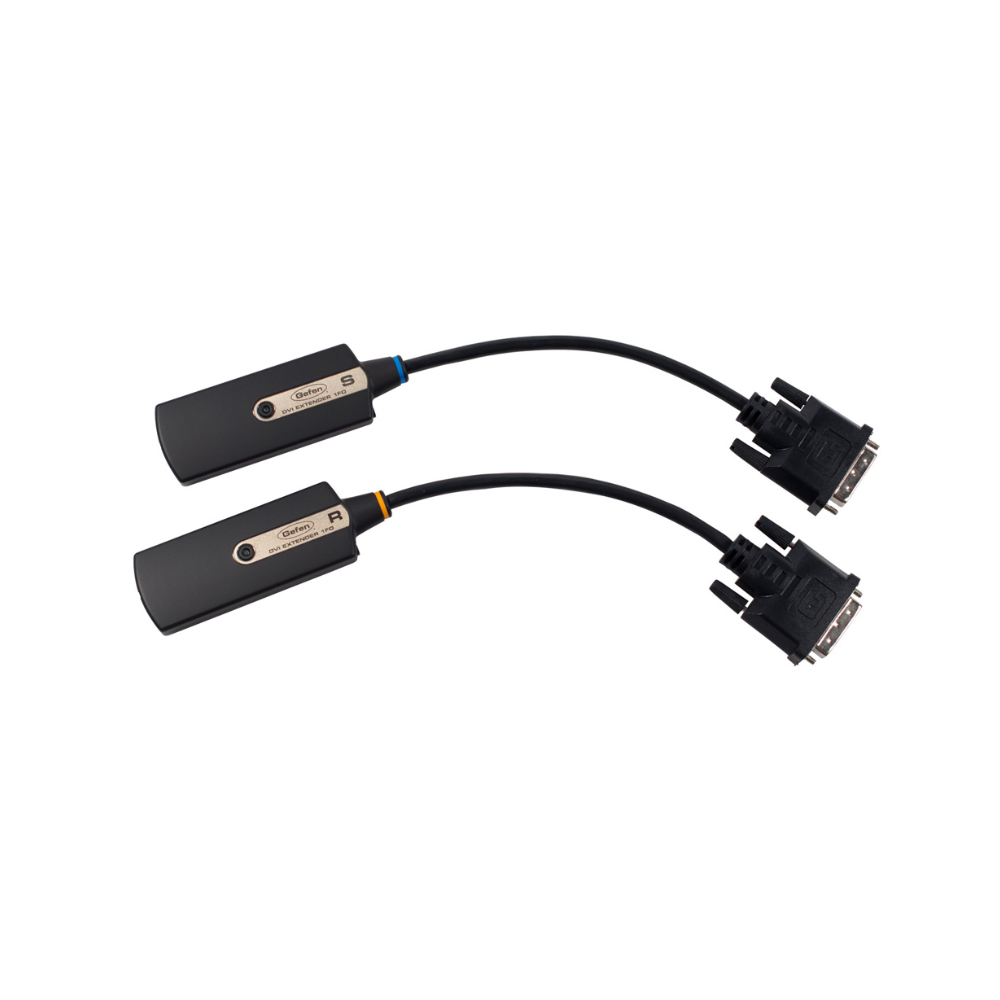

  • DVI Fiber Optic Modular Extender with HDCP (Sender Pigtail) (EXT-DVI-CP-FM10S)(1)
  • DVI Fiber Optic Modular Extender with HDCP (Receiver Pigtail) (EXT-DVI-CP-FM10R)(1)
  • 5V DC Power Supply (EXT-PS52AIP-1.3 or EXT-PS52AIP-1.3-6 or EXT-PS52AIP-1.3-6-AL)(1)
  • Quick-Start Guide (QSG-DVI-CP-FM10)(1)
