GEF-DVI-FM2000
DVI FM 2000 Extender

Extend Dual Link DVI up to 1000 feet (300 meters) over two fiber optic cables

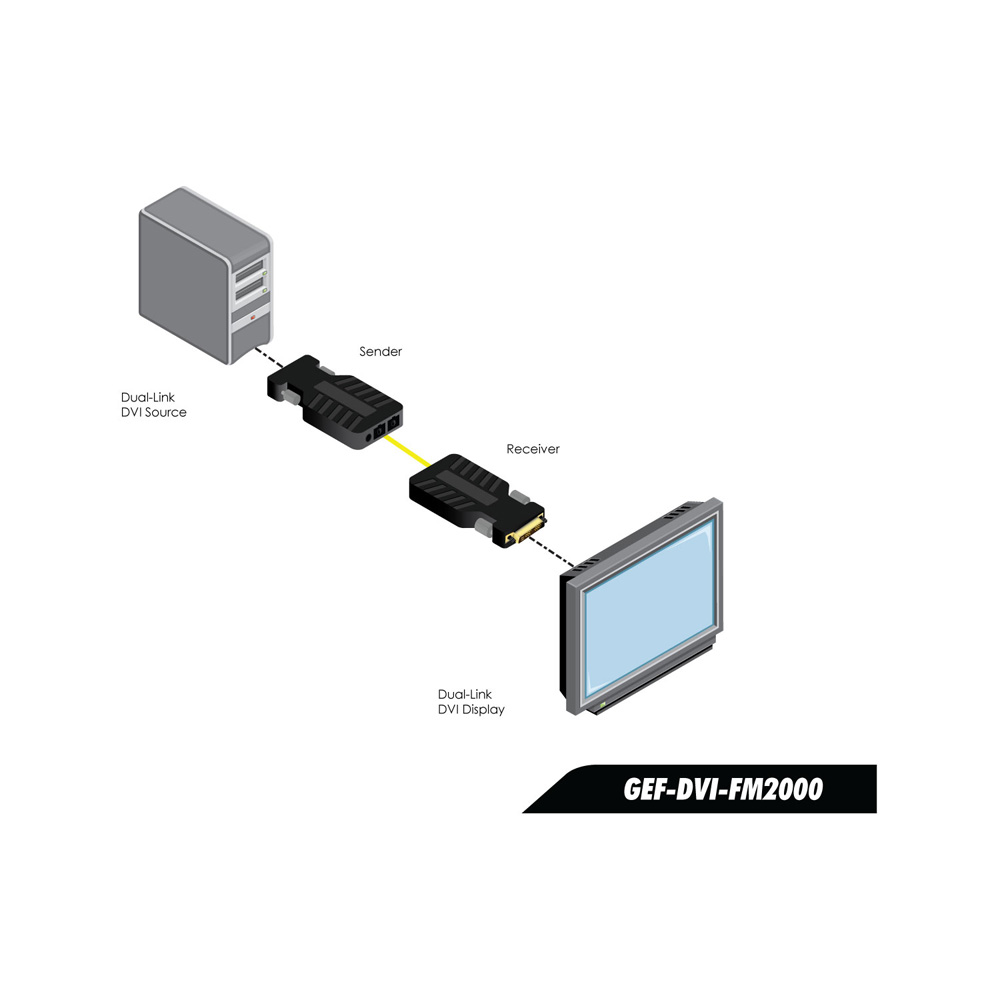

The Gefen FM2000 Dual-link DVI Fiber Optic Extender allows Dual-link DVI signal to be extended up to 1000 feet (300 meters) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. Two strands of SC-terminated multimode fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity.

Video Support

Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400

FEATURES

  • Extends any Dual-link DVI source up to 1000 feet (330 meters) over multi-mode 50/125 fiber cable
  • Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400
  • Fiber optic transmission eliminates electromagnetic interference (EMI)

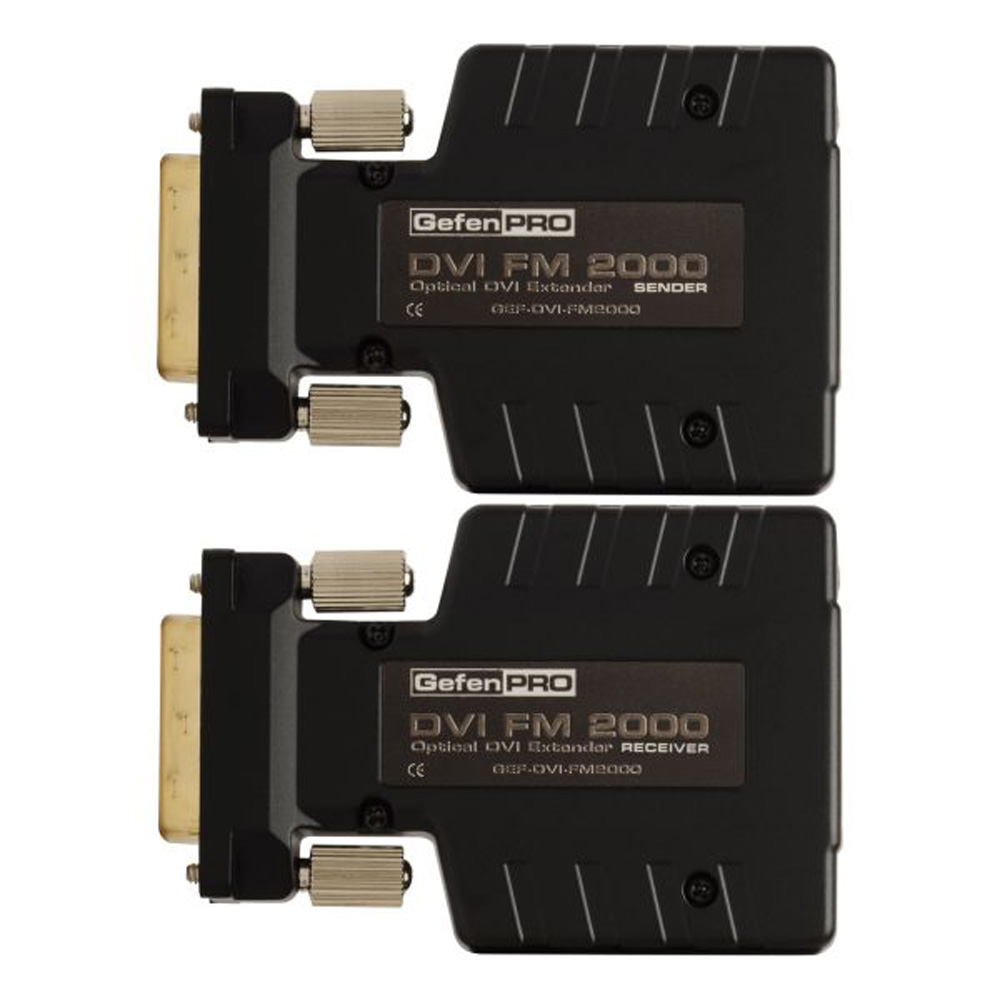

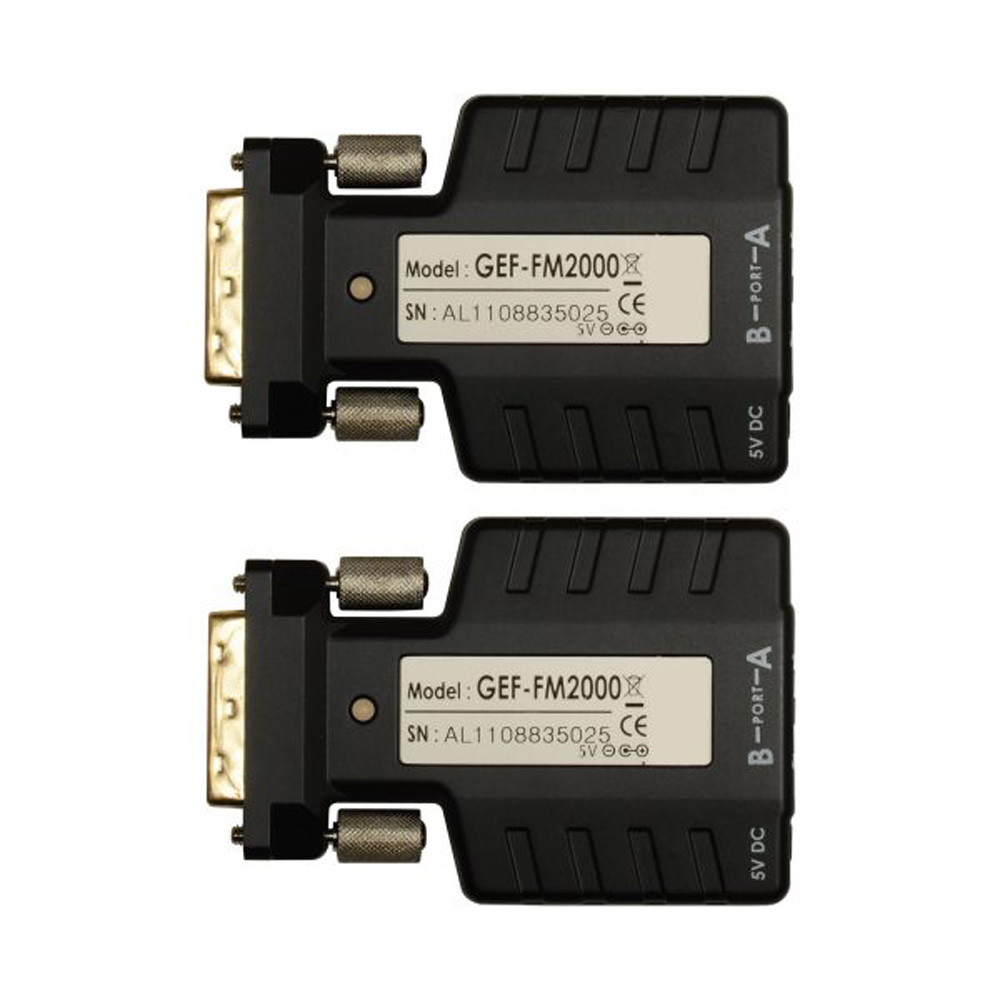

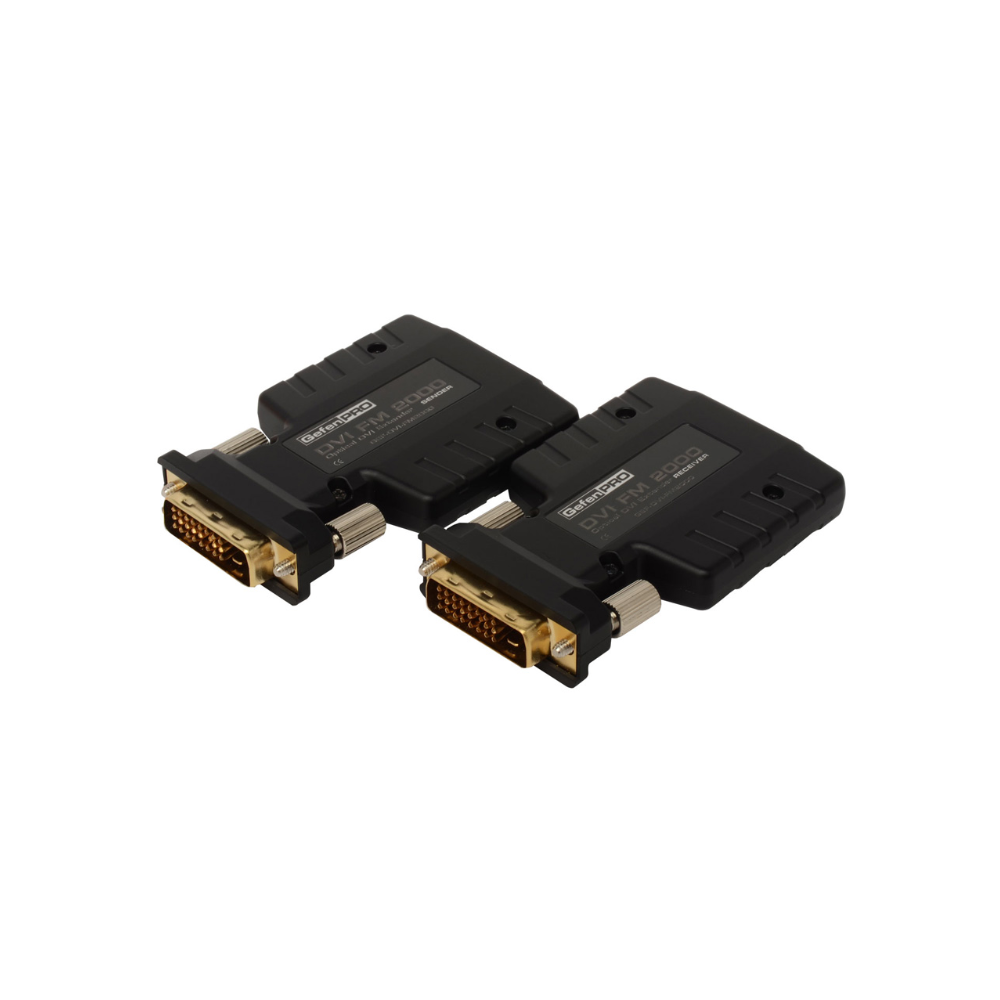

  • Compact Sender module and Receiver module provide a clean, easy installation.
  • Sender module does not require power if the DVI source provides sufficient power on pin 14 of the DVI connector (most sources do)
  • HDCP pass-through

SPECIFICATIONS

  • Maximum Pixel Clock: 2 x 165 MHz

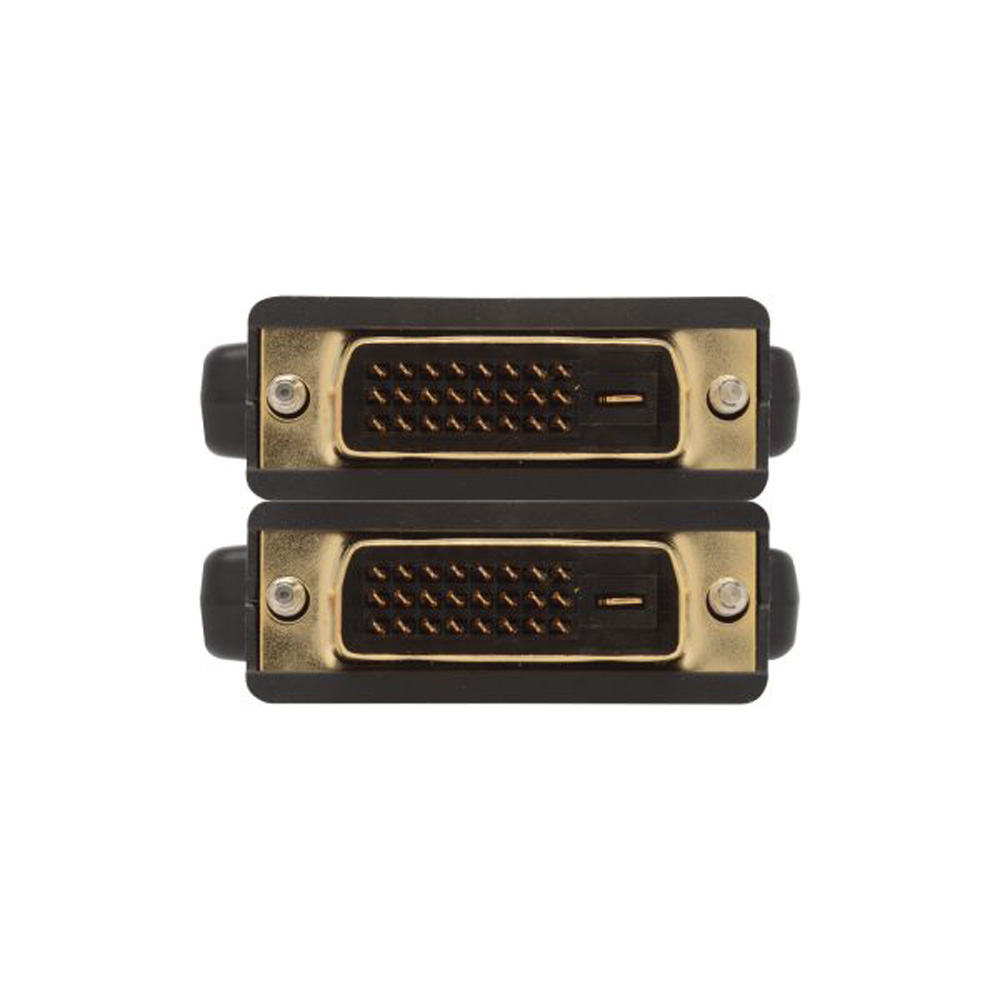

  • Video Input Connector (Sender): (1) DVI-D 24-pin, male
  • Video Output Connector (Receiver): (1) DVI-D 24-pin, male

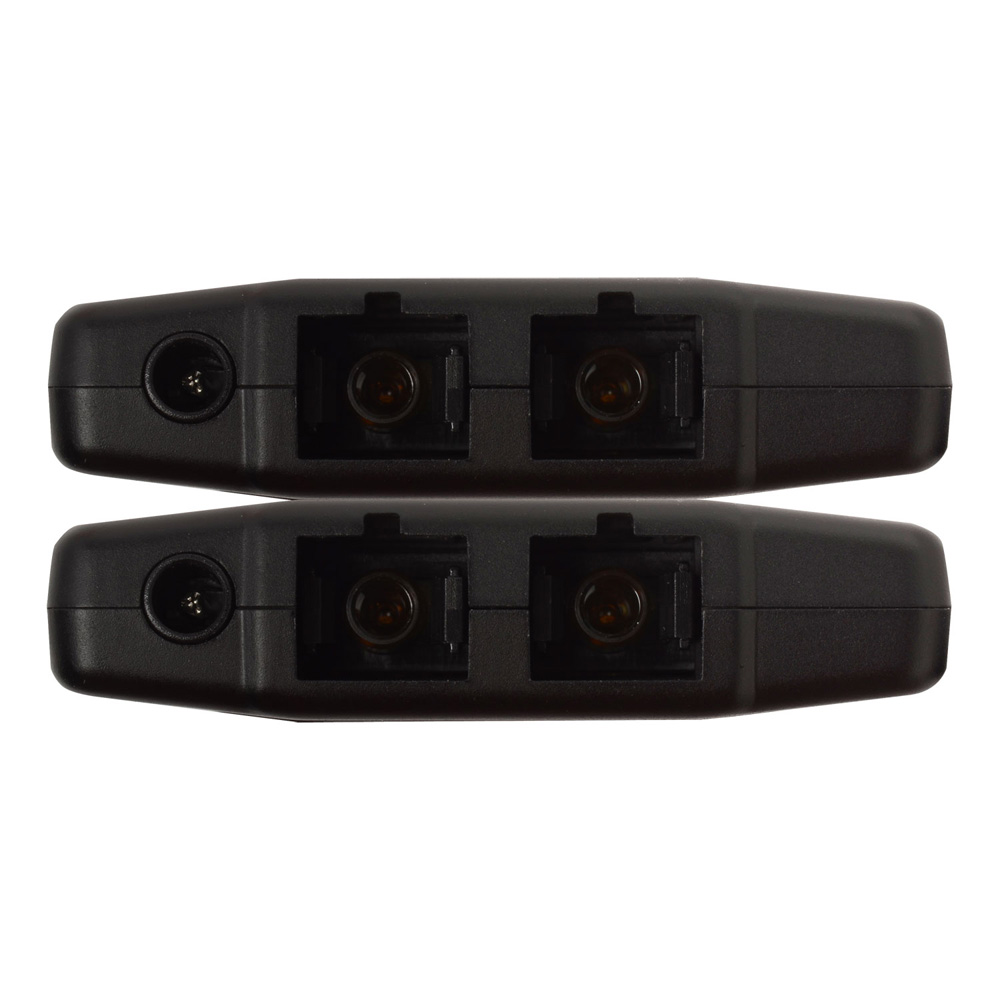

  • Fiber Optic Connectors (Sender / Receiver): (2) Type SC fiber connector
  • Fiber Cable: CAB-2SC-150-M (50? multi-mode)
  • Power Supply (Receiver): 5V DC (Sender power supply optional)
  • Power Consumption (Receiver): 1.3W (max.)
  • Operating Temperature: 0 ° – 50 ° C
  • Storage Temperature: -20 ° – 50 ° C
  • Dimensions: 2″ W x 3″ D x 0.6″ H
  • Shipping Weight: 1 lb.

OTHER SPECIFICATIONS

Shipping Info

  • Length7.5 (Inches)
  • Width5.25 (Inches)
  • Height2.5 (Inches)
  • Weight1 (Lbs)
  • UPC845344015514

Other Specifications

  • Maximum Pixel Clock: 2 x 165 MHz
  • Video Input Connector (Sender): (1) DVI-D 24-pin, male
  • Video Output Connector (Receiver): (1) DVI-D 24-pin, male
  • Fiber Optic Connectors (Sender / Receiver): (2) Type SC fiber connector
  • Fiber Cable: CAB-2SC-150-M (50° multi-mode)
  • Power Supply (Receiver): 5V DC (Sender power supply optional)
  • Power Consumption (Receiver): 1.3W (max.)
  • Operating Temperature: 0Â ° – 50Â ° C
  • Storage Temperature: -20Â ° – 50Â ° C
  • Dimensions: 2″ W x 3″ D x 0.6″ H
  • Shipping Weight: 1 lb.

In The Box

  • DVI FM 2000 – Sender unit (GEF-DVI-FM2000S)(1)
  • DVI FM 2000 – Receiver unit (GEF-DVI-FM2000R)(1)
  • 5V DC power supply (EXT-PS52AIP-1.3)(1)
  • Quick Start Guide (QSG-GEF-DVI-FM2000)(1)
