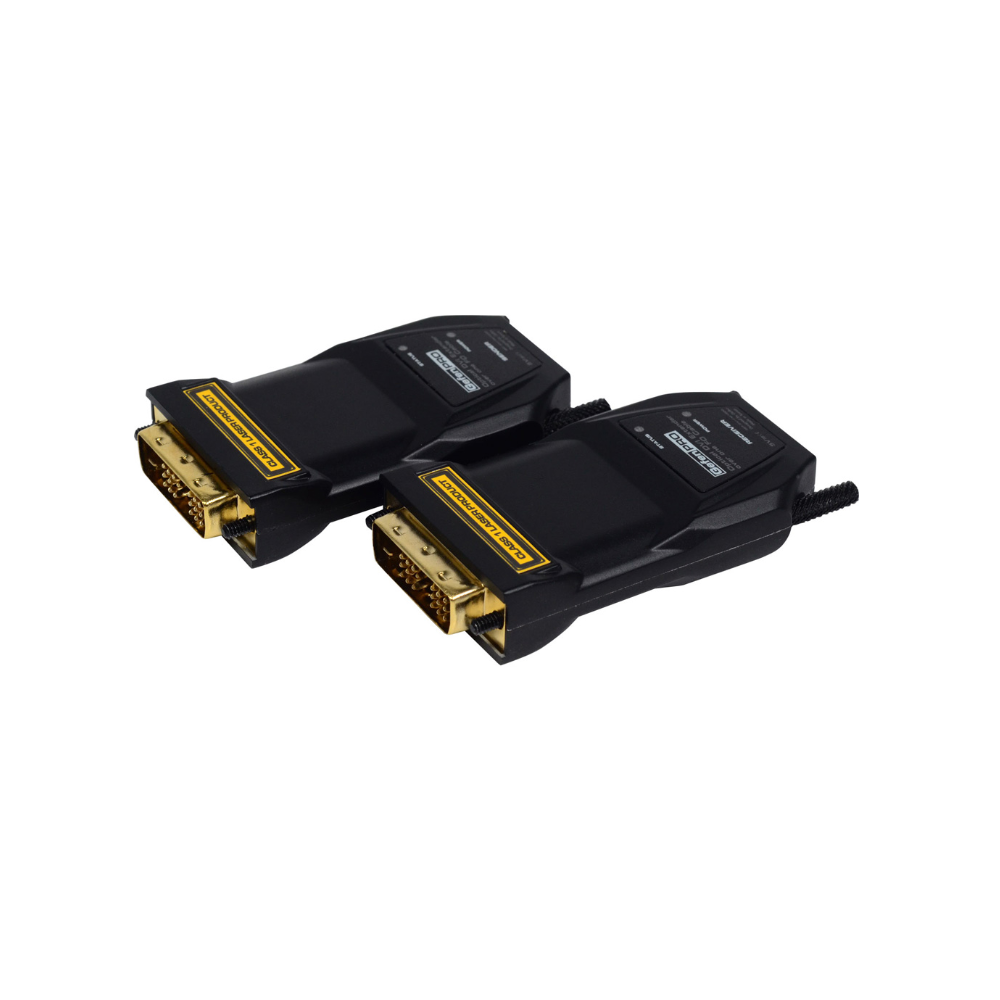

GEF-DVI-FM1500
Optical DVI Extender with Recordable EDID

Extend a DVI source over a single strand of SC fiber optic cable up to 3280 feet (one kilometer)

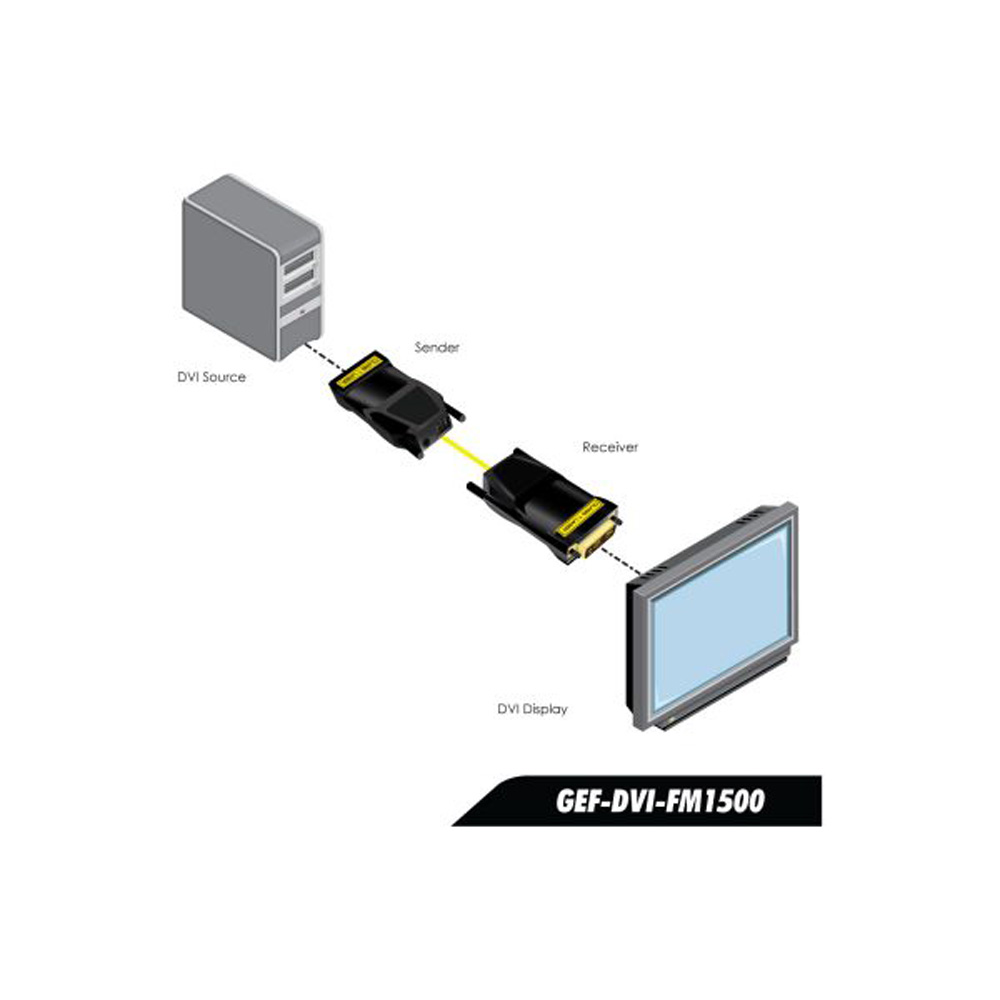

The Gefen FM1500 DVI Fiber Optic Extender allows DVI signal to be extended up to 3280 feet (1 km) away. This extender is the ideal for installations where a DVI source and display are located apart from each other in an interference-prone operating environment. A single strand of SC-terminated single mode fiber optic cable provides maximum extension and provides excellent protection from electromagnetic interference (EMI), and preserving signal integrity. The virtual EDID programming feature enables quick and correct synchronization of the video source to the display without any manual configuration needed. This allows rapid recovery of picture upon display power up or when used in conjunction with Switchers and Matrixes.

Video Support

Supports resolutions up to 1920 x 1200 (WUXGA) at 60Hz

FEATURES

  • Extends DVI up to 3280 feet (1000 meters) in single mode
  • Extends DVI up to 1640 feet (500 meters) in multimode
  • Supports resolutions up to 1920 x 1200 (WUXGA)
  • Optical signal transmission provides good immunity to electromagnetic interference
  • Virtual EDID programming feature provides quick installation and compatibility between source and display
  • Uses one strand of single mode or multimode SC terminated fiber optic cable
  • Fully supports DVI 1.0 specifications and DDC2B via virtual DDC
  • Sender module does not require power if the DVI source provides sufficient power on pin 14 of the DVI connector (most sources do)

SPECIFICATIONS

  • Maximum Pixel Clock: 165 MHz
  • Optical Wavelength: 1310 nm / 1550 nm (typical)

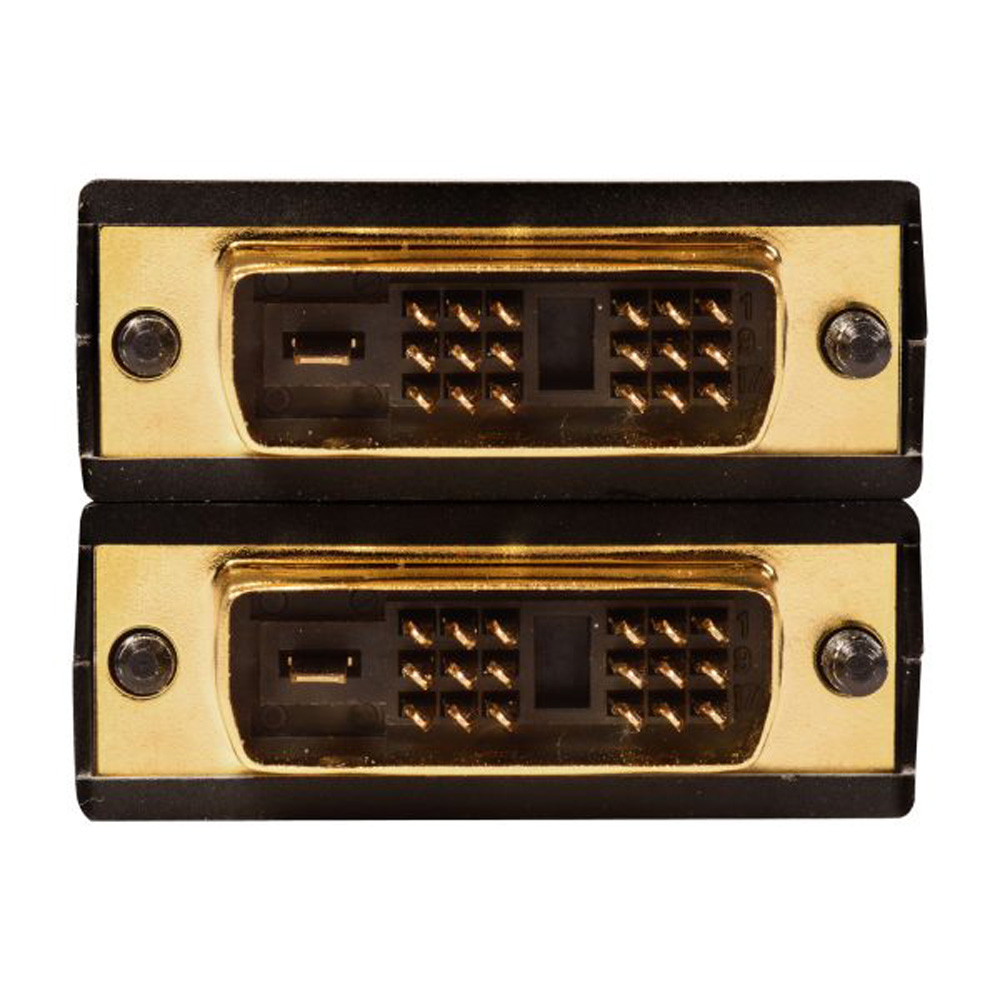

  • Video Input (Sender): DVI-D, 19-pin, male
  • Video Output (Receiver): DVI-D, 19-pin, male

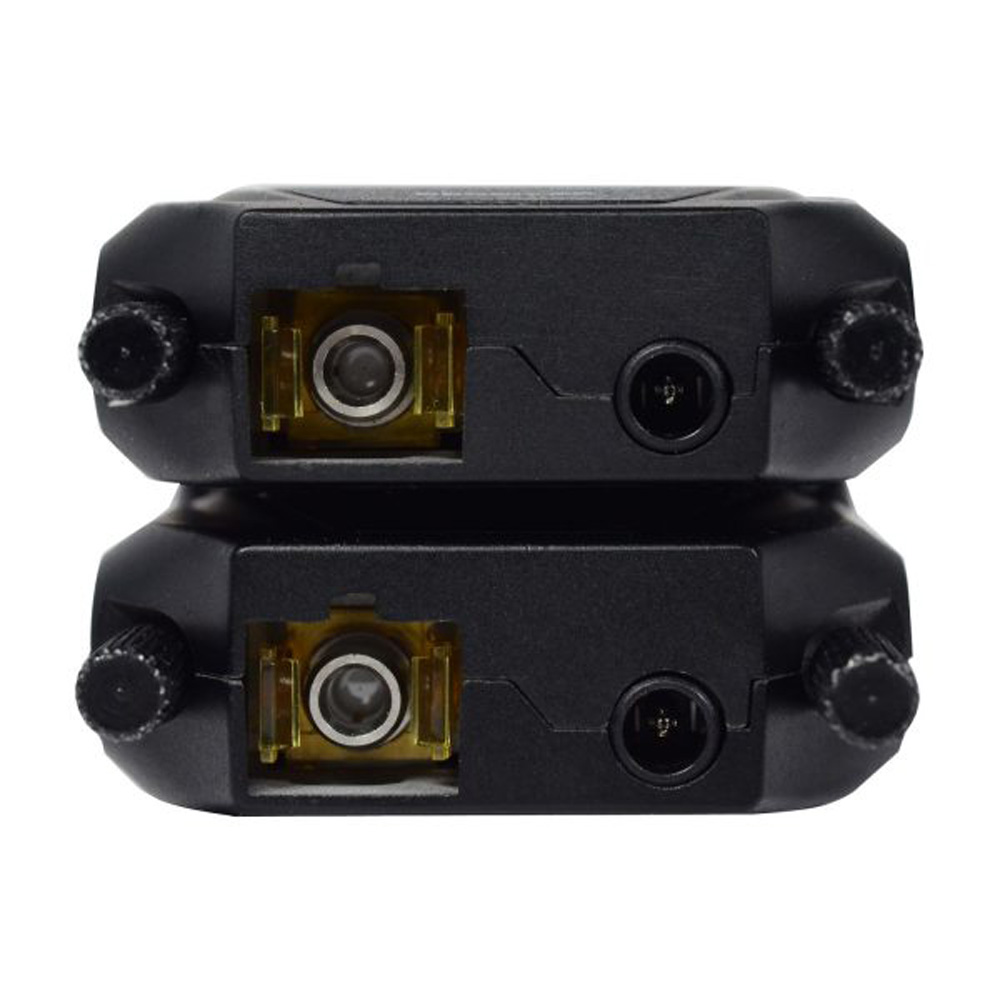

  • Fiber Optic Connectors (Sender / Receiver): (1) SC type
  • Power Supply (Sender / Receiver): 5V DC
  • Power Consumption (Sender / Receiver): 250 mA (max.) / 190 mA (max.)
  • Dimensions: 1.96″ W x 0.59″ H x 2.98″ D
  • Shipping Weight: 2 lbs.

OTHER SPECIFICATIONS

Shipping Info

  • Length0 (Inches)
  • Width0 (Inches)
  • Height0 (Inches)
  • Weight0 (Lbs)
  • UPC845344098456

Other Specifications

  • Maximum Pixel Clock: 165 MHz
  • Optical Wavelength: 1310 nm / 1550 nm (typical)
  • Video Input (Sender): DVI-D, 19-pin, male
  • Video Output (Receiver): DVI-D, 19-pin, male
  • Fiber Optic Connectors (Sender / Receiver): (1) SC type
  • Power Supply (Sender / Receiver): 5V DC
  • Power Consumption (Sender / Receiver): 250 mA (max.) / 190 mA (max.)
  • Dimensions: 1.96″ W x 0.59″ H x 2.98″ D
  • Shipping Weight: 2 lbs.

In The Box

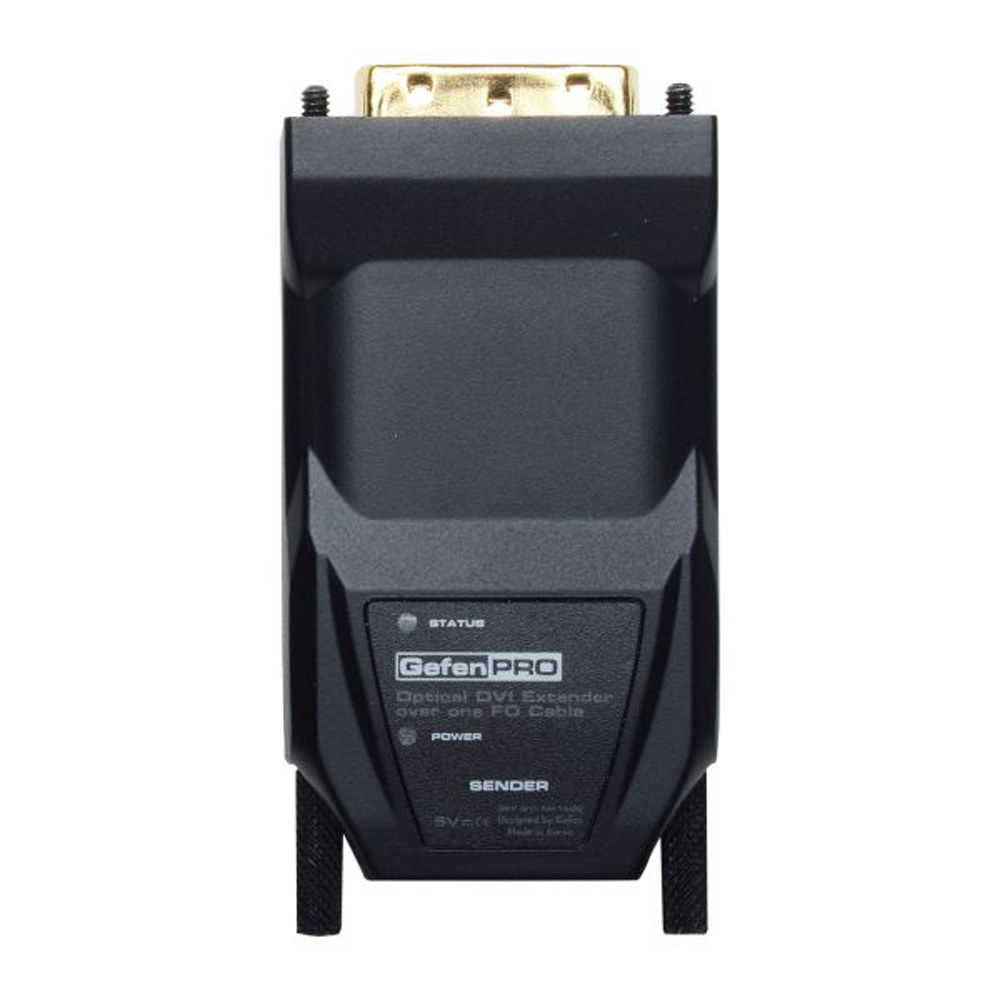

  • DVI FM1500 Optical DVI Extender with Recordable EDID – Sender unit(1)

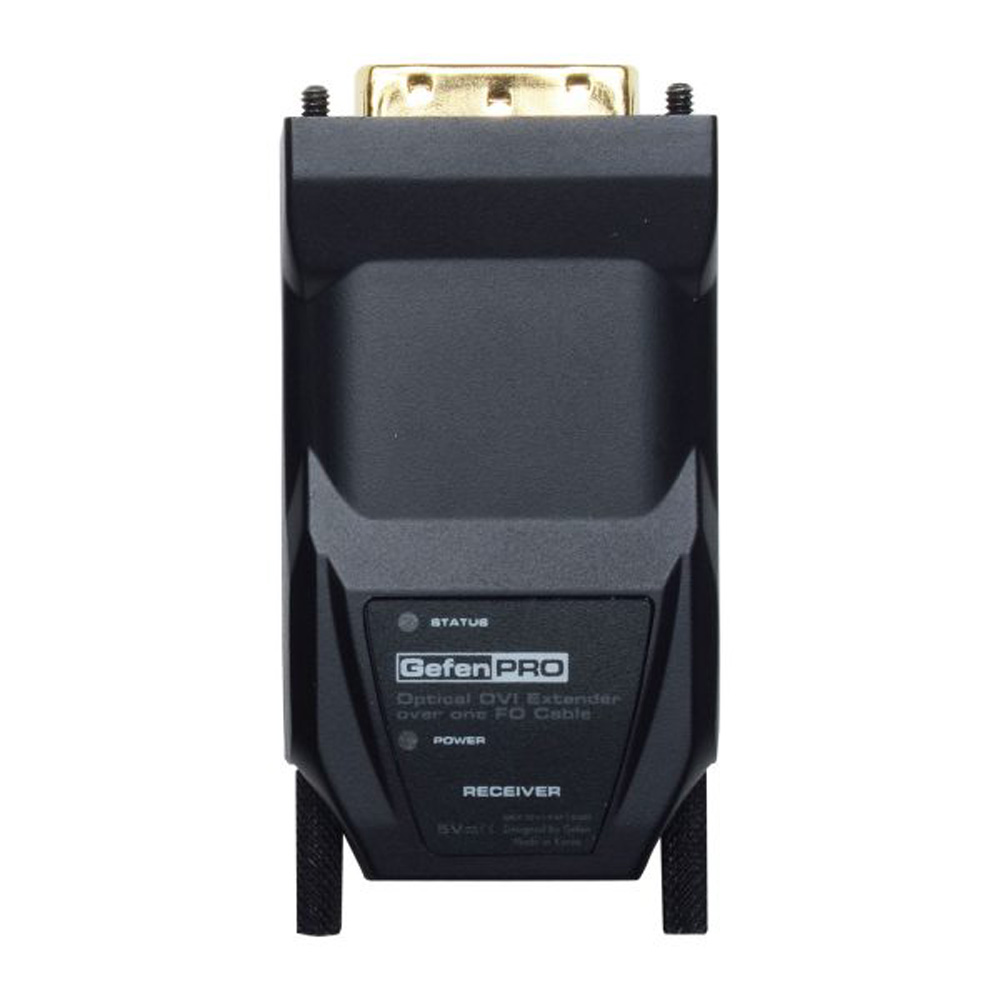

  • DVI FM1500 Optical DVI Extender with Recordable EDID – Receiver unit(1)
  • 5V DC Power Supplies (EXT-PS52AIP-1.3)(2)
  • Quick-Start Guide (GEF-DVI-FM1500)(1)
