EXT-DVI-1CAT5-SR
DVI Short Range Extender over one CAT5

Extend DVI up to 230 feet (70 meters) over one CAT-6A cable, or up to 200 feet (60 meters) over one CAT-5e

The DVI Short Range Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen’s ELR Lite implementation of HDBaseT® Lite technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.

Video Support

Supports resolutions up to 1920 x 1200 (WUXGA)

FEATURES

  • Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
  • Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
  • Supports resolutions up to 1920 x 1200 (WUXGA)
  • EDID management for rapid integration of source and display
  • HDCP compliant
  • Locking power supplies
  • Surface-mountable

SPECIFICATIONS

  • Maximum Pixel Clock: 165 MHz

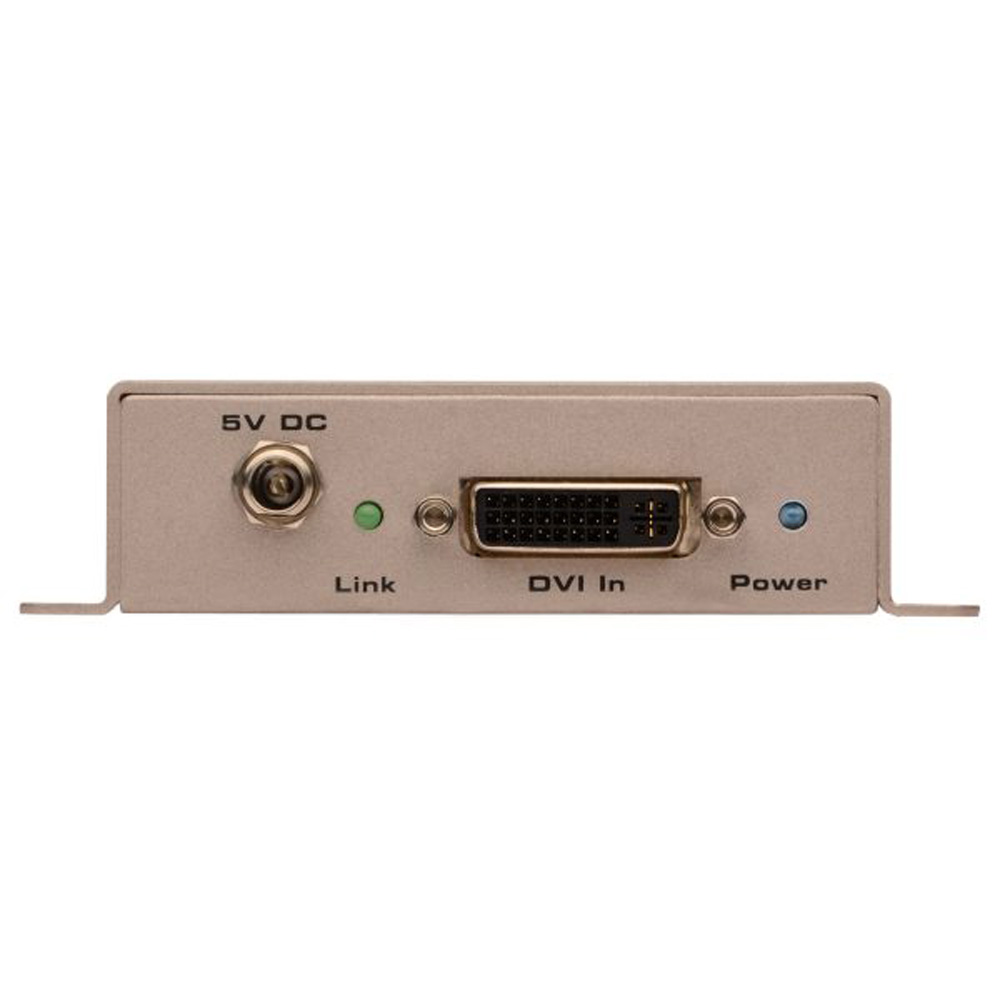

  • Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)

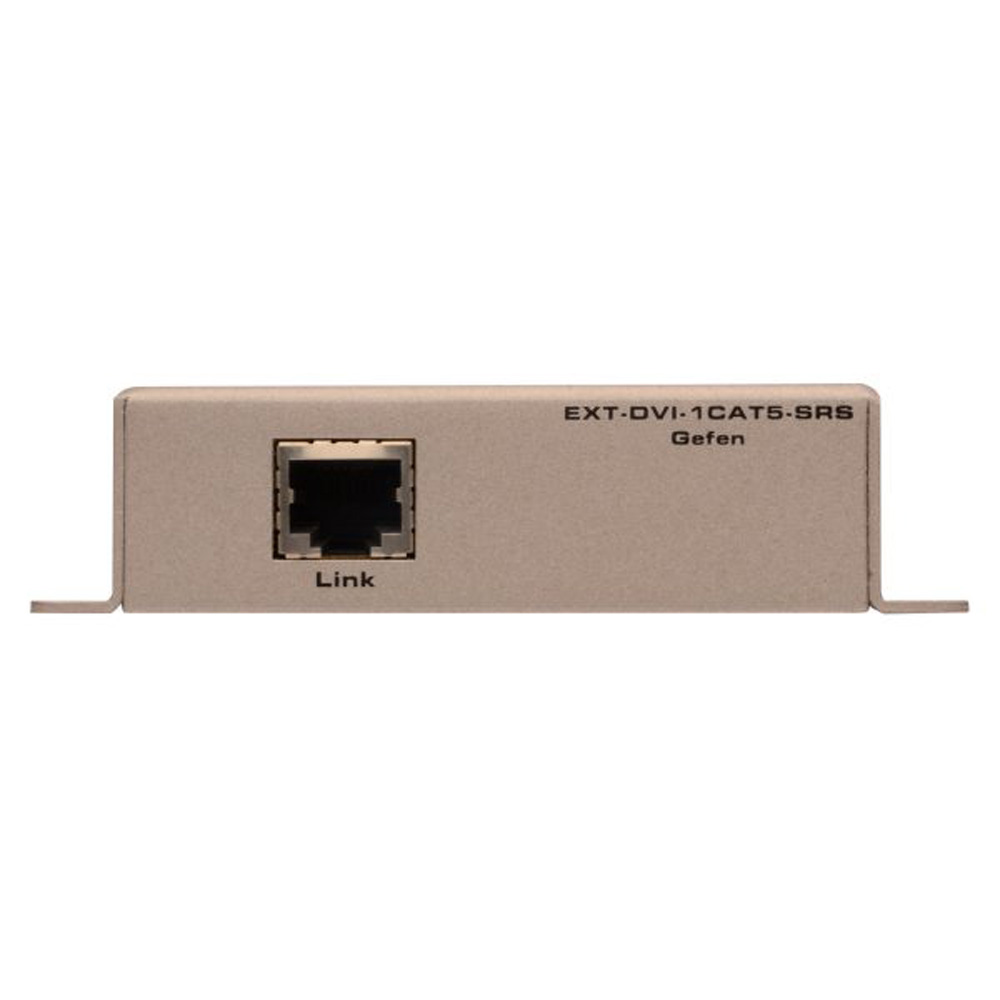

  • Link Connector (Sender / Receiver): (1) RJ-45

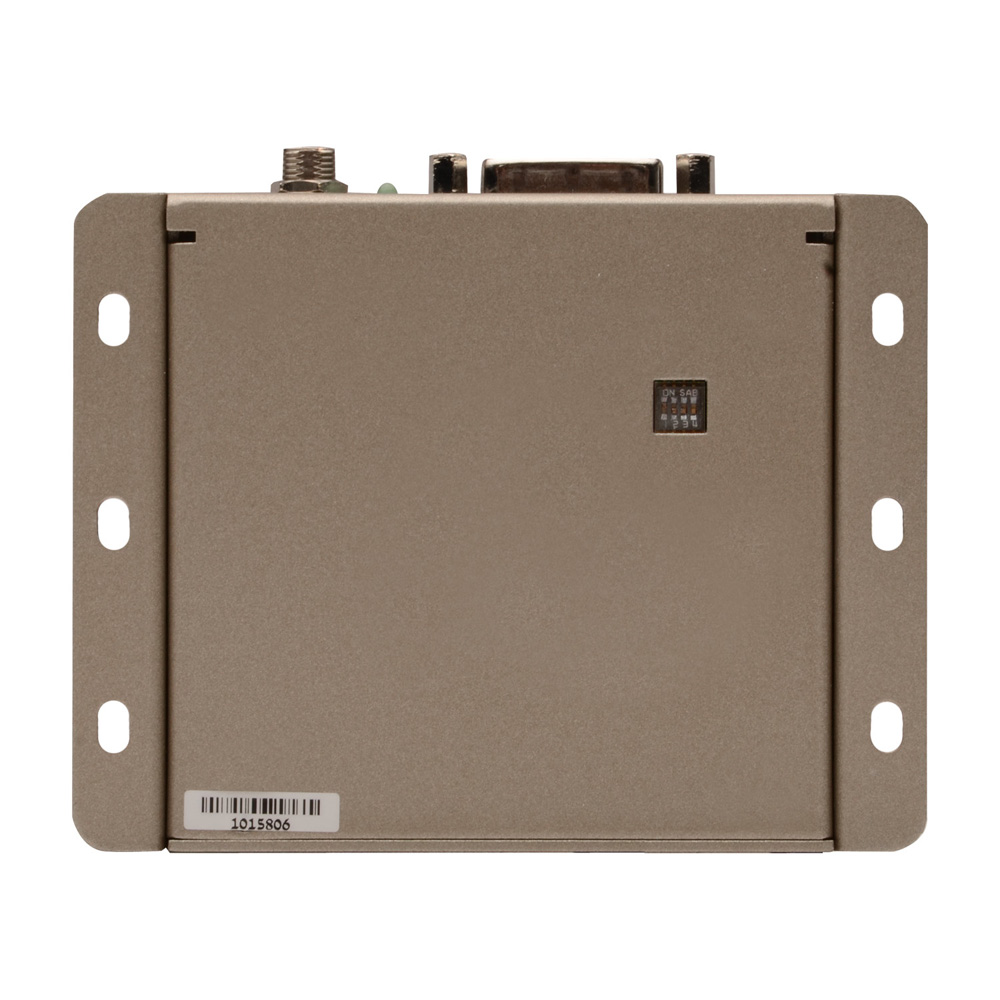

  • Internal/External EDID Selector (Sender): (1) DIP switch
  • HPD Pass-Through Selector (Sender): (1) DIP switch
  • HDCP Pass-Through Selector (Sender): (1) DIP switch
  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Supply (Sender / Receiver): 5V DC, Locking
  • Power Consumption (Sender/Receiver): 10 W per unit (max.)
  • Operating Temperature: 0 to +45 °C
  • Operating Humidity: 0 to 90% RH, non-condensing
  • Dimensions (W x H x D): 4.3″ x 1″ x 3.4″ (110mm x 26mm x 86mm)
  • Shipping Weight: 3 lbs (1.4 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length12 (Inches)
  • Width6.1 (Inches)
  • Height4.3 (Inches)
  • Weight2.7 (Lbs)
  • UPC845344038759

Other Specifications

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
  • Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)
  • Link Connector (Sender / Receiver): (1) RJ-45
  • Internal/External EDID Selector (Sender): (1) DIP switch
  • HPD Pass-Through Selector (Sender): (1) DIP switch
  • HDCP Pass-Through Selector (Sender): (1) DIP switch
  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Supply (Sender / Receiver): 5V DC, Locking
  • Power Consumption (Sender/Receiver): 10 W per unit (max.)
  • Operating Temperature: 0 to +45Â °C
  • Operating Humidity:0 to 90% RH, non-condensing
  • Dimensions (W x H x D): 4.3″ x 1″ x 3.4″ (110mm x 26mm x 86mm)
  • Shipping Weight: 3 lbs (1.4 kg)

In The Box

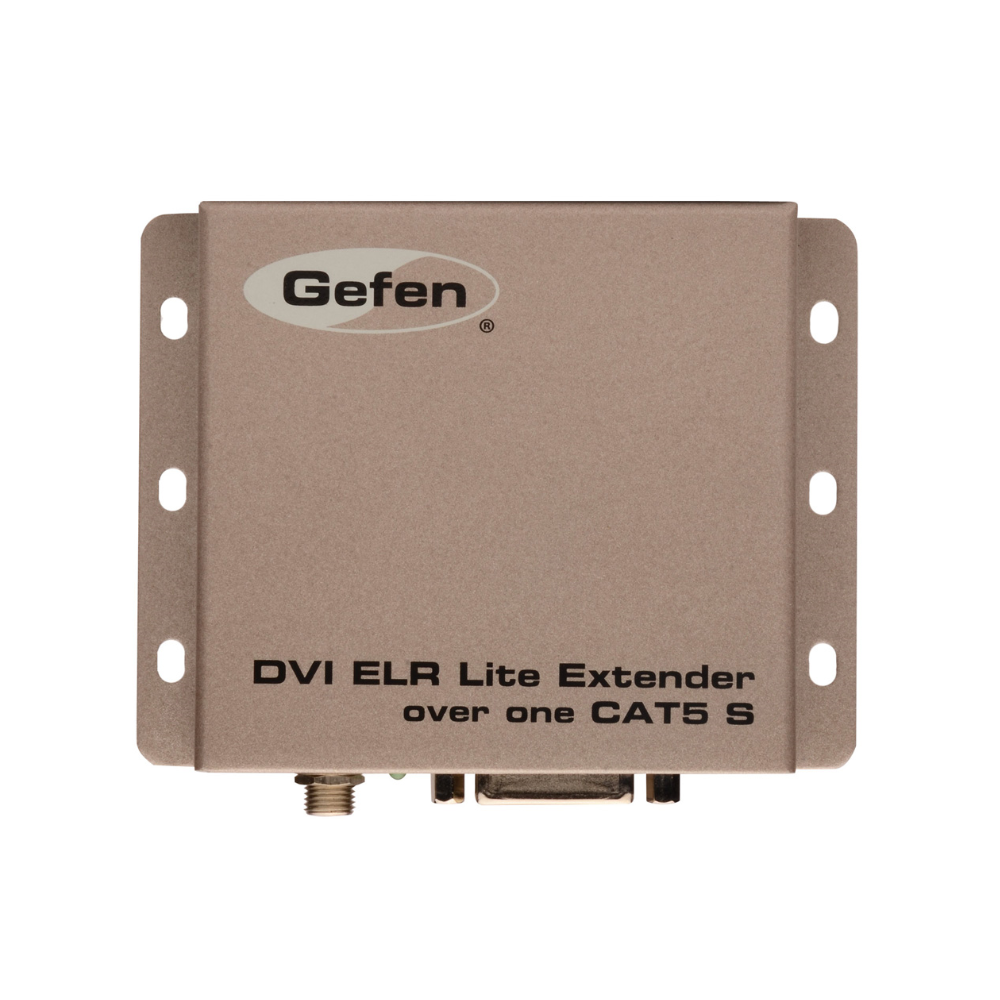

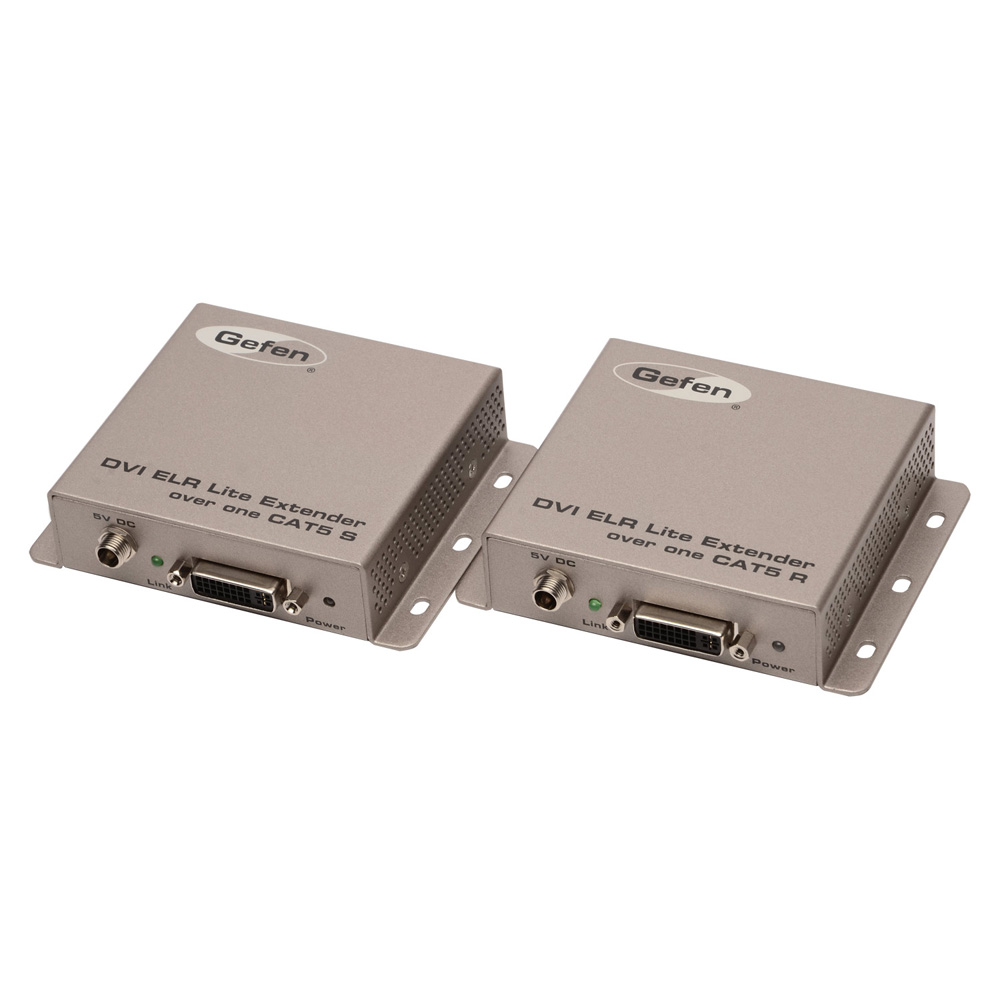

  • DVI ELR Lite Extender over one CAT5 – Sender Unit (EXT-DVI-1CAT5-SRS)(1)
  • DVI ELR Lite Extender over one CAT5 – Receiver Unit (EXT-DVI-1CAT5-SRR)(1)
  • 6 ft. Dual Link DVI Copper Cable (CAB-DVIC-DLN-06MM)(1)
  • 5V DC Locking Power Supplies (EXT-PS526AIP-LP)(2)
  • Quick-Start Guide (QSG-DVI-1CAT5-SR)(1)
