EXT-DP-CP-FM10
DisplayPort Extender over one SC Fiber-Optic Cables

Extends DP 1.1 with HDCP up to 2560×1600 over one SC-terminated Fiber Optic cables

The Gefen EXT-DP-CP-FM10 DisplayPort fiber optic pigtail module extender with DPCP support extends a DisplayPort up to 3300 feet (1000 meters) using a single-strand 50/125 um multimode (OM2/OM3) SC-terminated fiber optic cable. Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules.

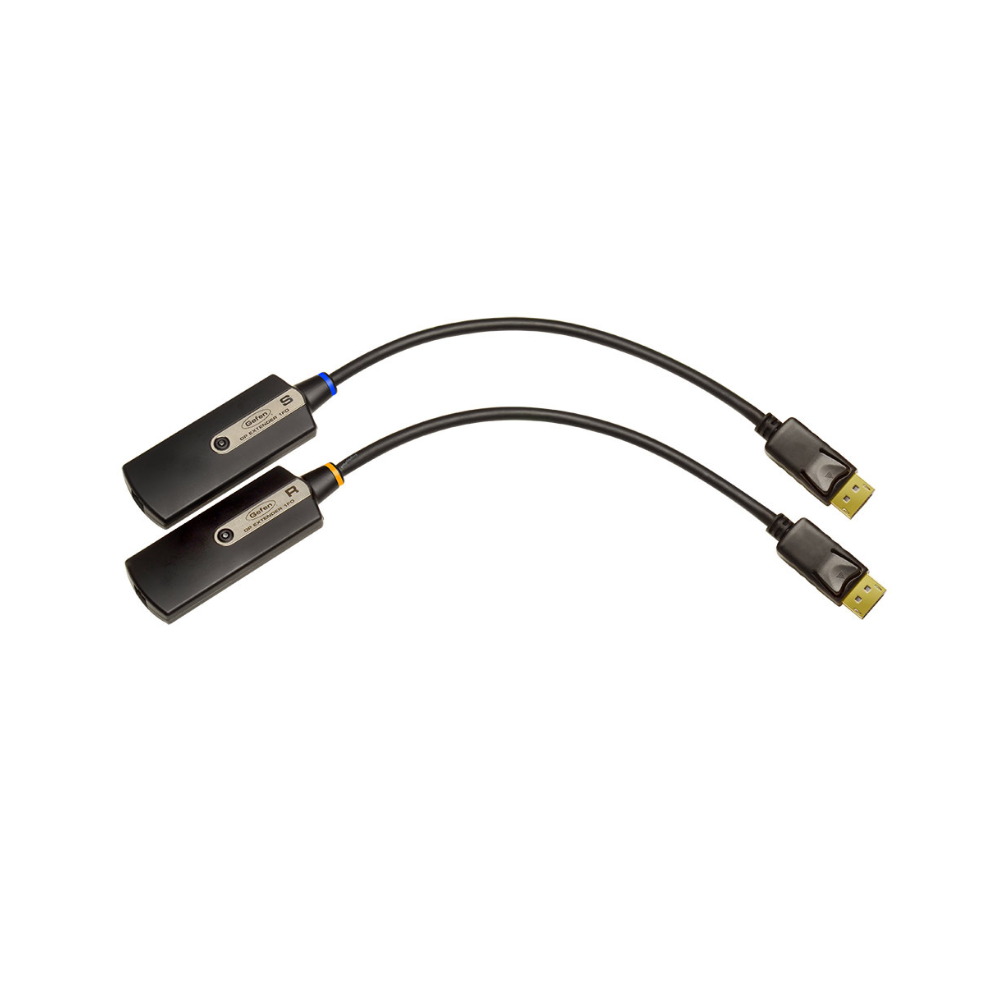

The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.

Video Support

Resolutions up to 2560 x 1600 (WQXGA) are supported.

FEATURES

  • Extends DisplayPort up to 3300 feet (1000 meters) over a single-strand of 50/125um multimode (OM2/OM3) SC-terminated fiber optic cable
  • Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
  • Compliant with DisplayPort 1.1 standard
  • Fiber optic transmission eliminates electromagnetic interference (EMI)
  • Pigtail design relieves stress and clutter on the source and display connector panels
  • HDCP and DPCP compliant
  • DDC bi-directional support
  • Compact Sender and Receiver modules provide a clean, easy installation
  • FCC and CE compliant for EMI/RFI emission

SPECIFICATIONS

  • Video bandwidth: 3.5Gbps/Channel

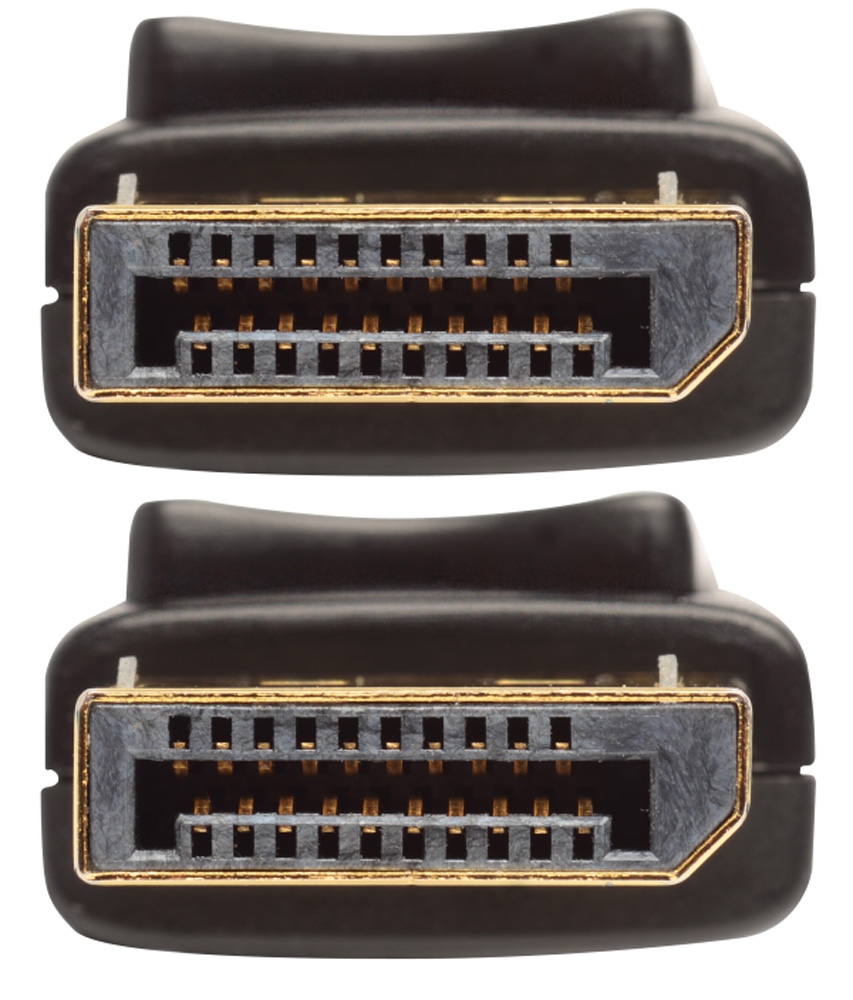

  • Video Input Connector (Sender): (1) DP-20-pin, male
  • Video Output Connector (Receiver): (1) DP-20-pin, male

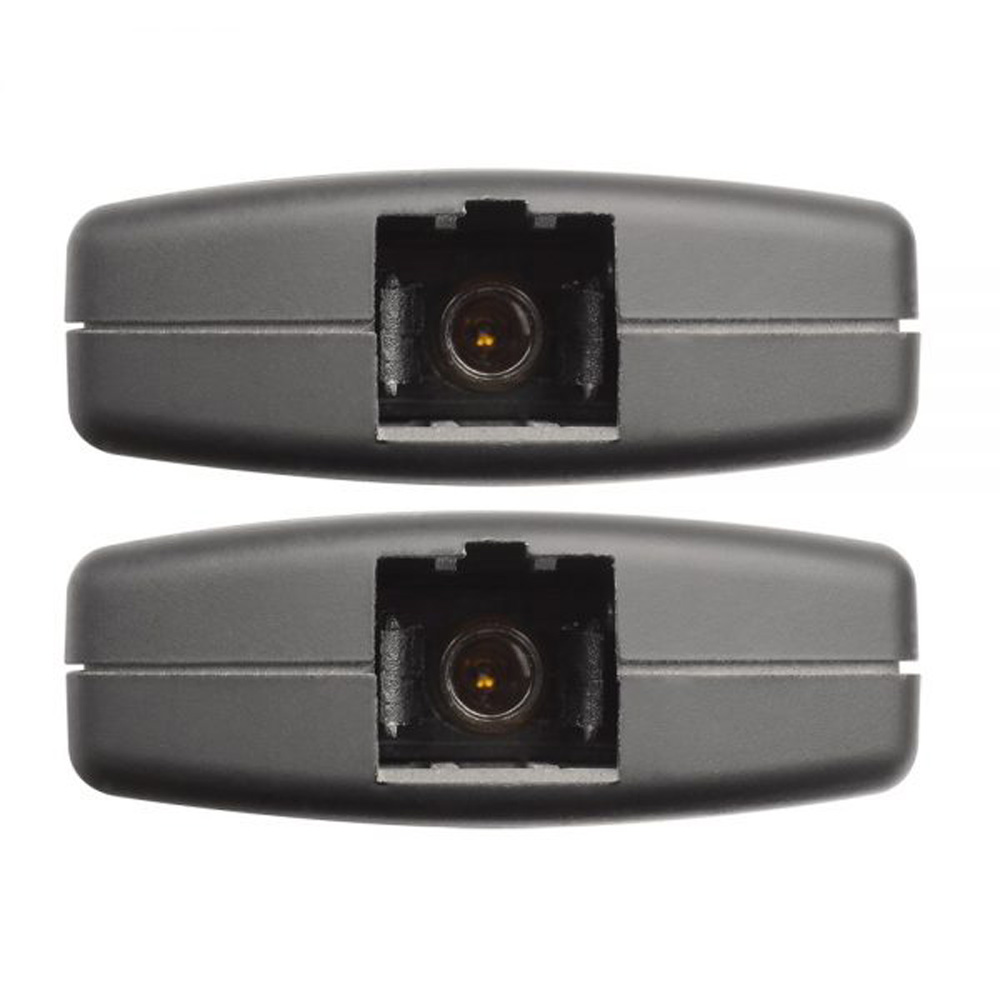

  • Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125?m )
  • Power Supply (Receiver): 5V DC
  • Power Supply (Sender): 5V DC (not needed for most applications)
  • Power Consumption (Receiver): 1.5W (max.)
  • Operating Temperature: 0 ° to + 50 ° C
  • Storage Temperature: -20 ° to + 70 ° C
  • Relative Humidity: 10 to + 80%
  • Dimensions (W x H x D): 1.50″ x 0.47″ x 3.51″ (38.10mm x 11.93mm x 89.15mm)
  • Shipping Weight: 1 lb. (0.45 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length13.65 (Inches)
  • Width7.25 (Inches)
  • Height1.75 (Inches)
  • Weight1.4 (Lbs)
  • UPC845344038391

Other Specifications

  • Video bandwidth: 3.5Gbps/Channel
  • Video Input Connector (Sender): (1) DP-20-pin, male
  • Video Output Connector (Receiver): (1) DP-20-pin, male
  • Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125°m )
  • Power Supply (Receiver): 5V DC
  • Power Supply (Sender): 5V DC (not needed for most applications)
  • Power Consumption (Receiver): 1.5W (max.)
  • Operating Temperature: 0Â ° to + 50Â ° C
  • Storage Temperature: -20Â ° to + 70Â ° C
  • Relative Humidity: 10 to + 80%
  • Dimensions (W x H x D): 1.50″ x 0.47″ x 3.51″ (38.10mm x 11.93mm x 89.15mm
  • Shipping Weight: 1 lb. (0.45 kg)

In The Box

  • DP Extender 1FO(Sender Pigtail) (EXT-DP-CP-FM10S)(1)
  • DP Extender 1FO(Receiver Pigtail) (EXT-DP-CP-FM10R)(1)
  • 5V DC Power Supplies (EXT-PS52AIP-1.3 or EXT-PS52AIP-1.3-6 or EXT-PS52AIP-1.3-6-AL)(2)
  • Quick-Start Guide (QSG-DP-CP-FM10)(1)
