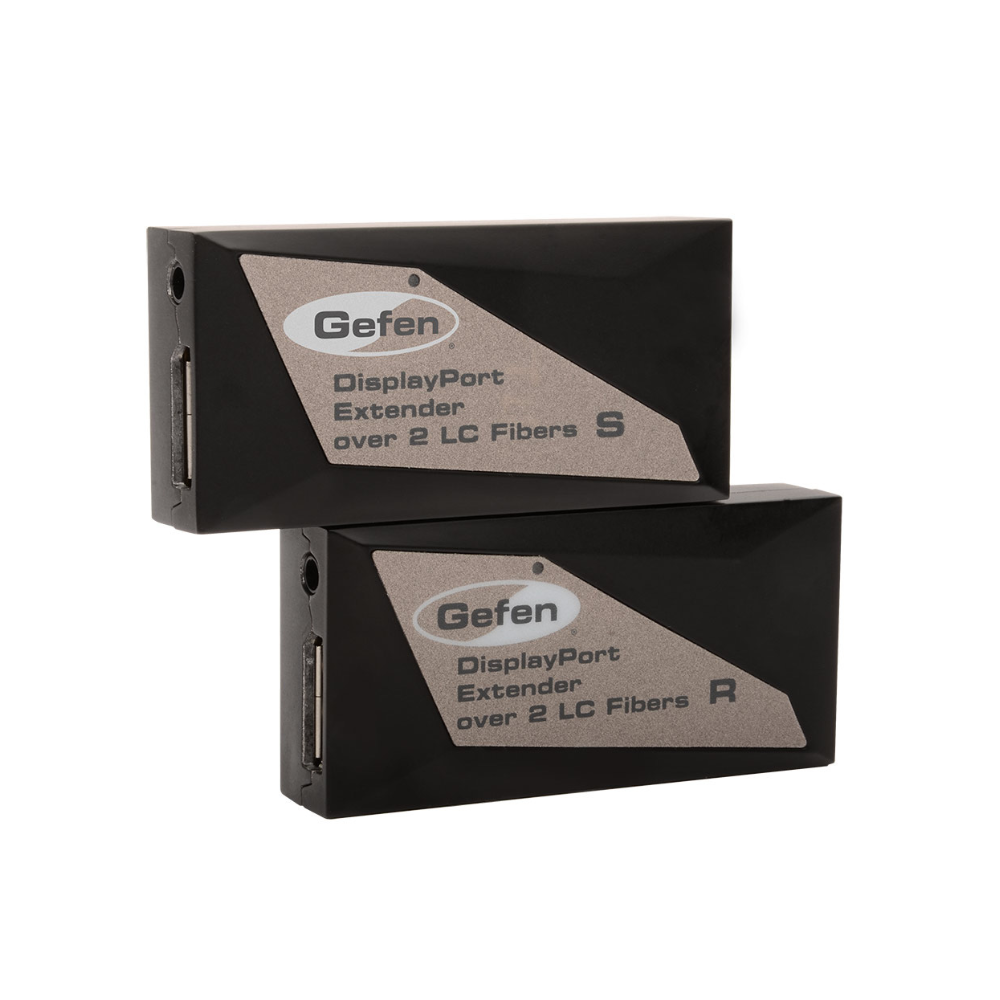

EXT-DP-CP-2FO
DisplayPort Extender over two LC Fiber-Optic Cables

Extends DP 1.1 with HDCP up to 2560×1600 over two LC-terminated Fiber Optic cables

The Gefen EXT-DP-CP-2FO DisplayPort fiber optic Extender transmitts signal up to 1000 feet (300 meters) using two strands of 50/125 um multi-mode (OM2/OM3) LC-terminated fiber optic cable. 62.5/125 um (OM1) fiber may also be used for a maximum range of up to 500 feet (150 meters).
Compared to similar copper-based solutions, optical signal transmission provides galvanic isolation and much better resistance to electromagnetic interference. Sender and Receiver modules feature cast Aluminum enclosures, providing further immunity to radiated noise.

Female connectors allow optimized lengths of DisplayPort cables to be used, preventing stress on source and display connectors. This, along with the compact size of the modules help create a clean and trouble-free installation by reducing clutter around the connector panels.

Video Support

Resolutions up to 2560 x 1600 (WQXGA) are supported.

FEATURES

  • Extends DisplayPort up to 1000 feet (300 meters) over 2 strands of 50/125um multi-mode (OM2/OM3) LC-terminated fiber optic cable
  • Extends DisplayPort up to 500 feet (150 meters) over 2 strands of 62.5/125um multi-mode (OM1) LC-terminated fiber optic cable
  • Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
  • Compliant with DisplayPort 1.1a standard
  • Supports Dual-Mode DP (DP++)
  • Supports auxiliary/l²C channel over fiber
  • Cast Aluminum enclosures and Fiber optic transmission eliminate susceptibility to electromagnetic interference (EMI)
  • HDCP and DPCP-compliant
  • Compact Sender and Receiver modules and female DisplayPort connectors provide clean and easy installation
  • FCC and CE compliant for RFI (radio frequency interference) and EMI (electromagnetic immunity)

SPECIFICATIONS

  • Video bandwidth: 10.8Gbps (2.7Gbps per lane, 4 lanes)

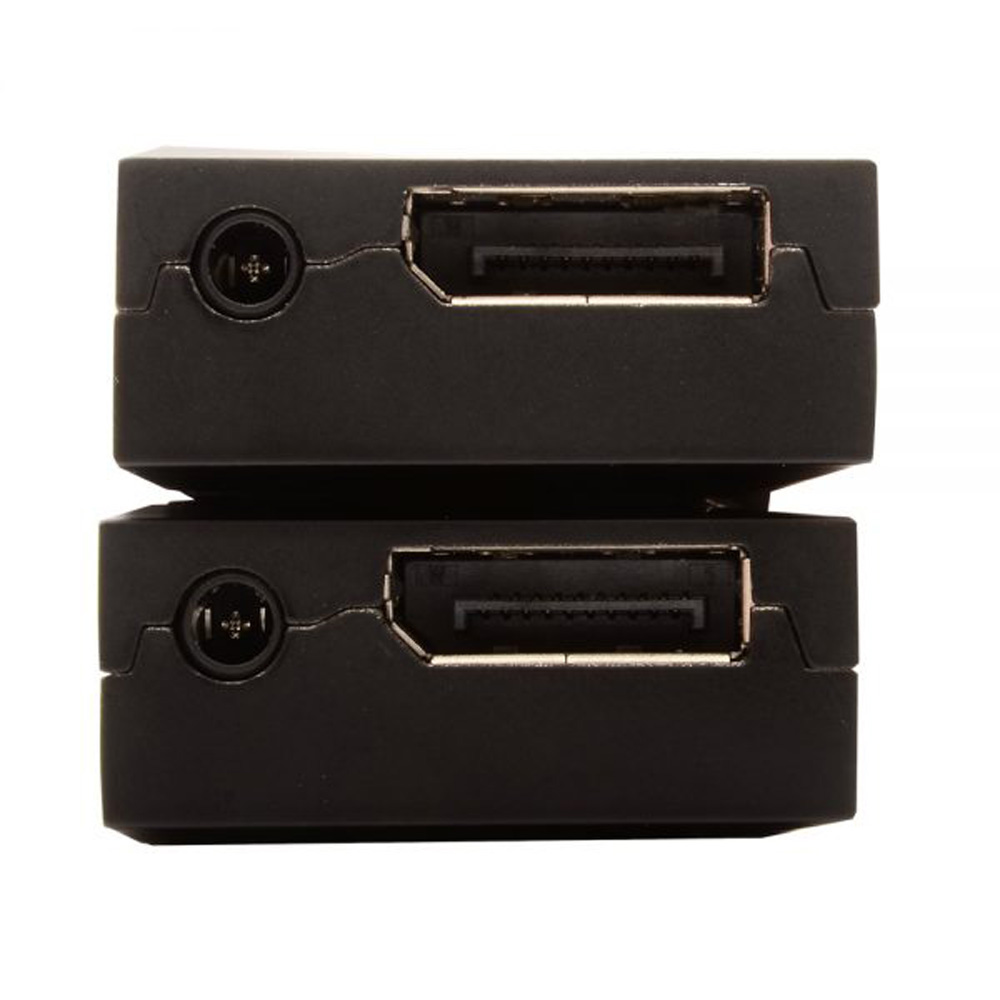

  • Video Input Connector (Sender): (1) DP-20-pin, female
  • Video Output Connector (Receiver): (1) DP-20-pin, female

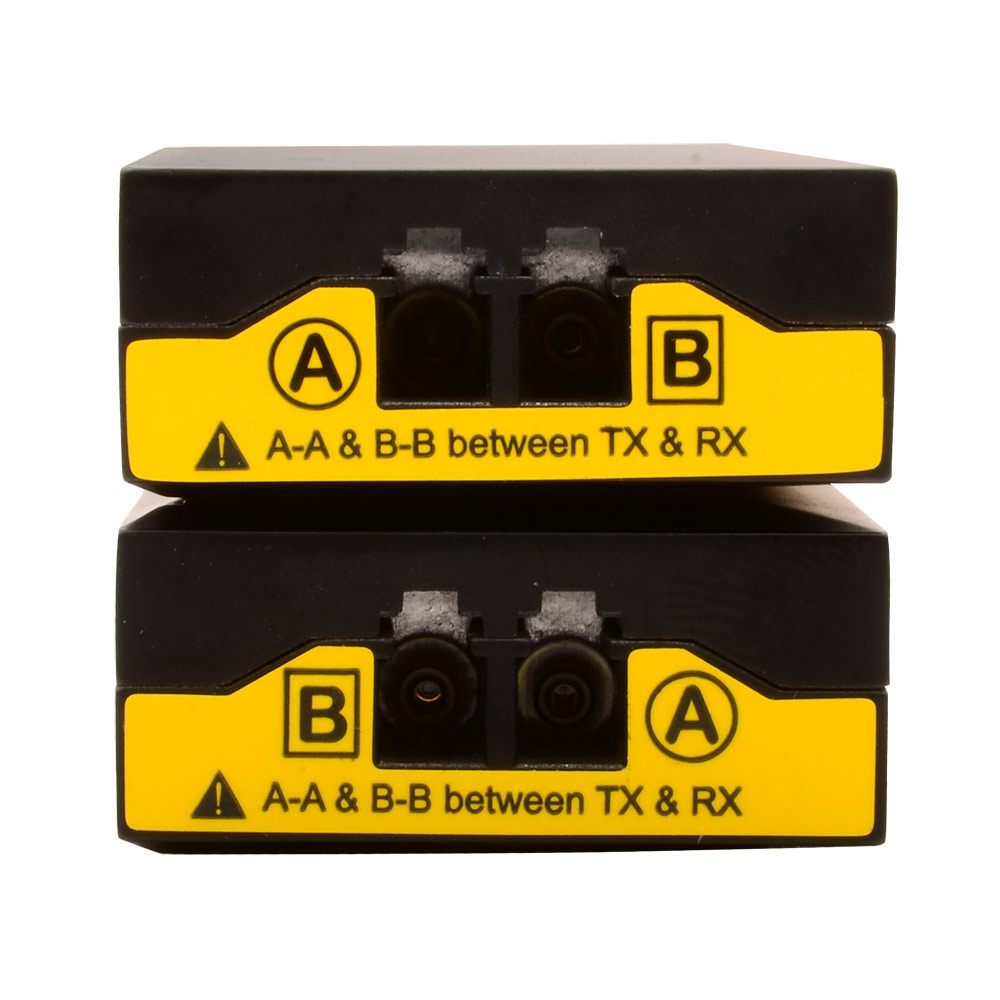

  • Link Connector (Sender/Receiver): (2) Type LC
  • Power Supply (Sender/Receiver): 5V DC
  • Power Consumption (Sender/Receiver): 2.1W max. (each)
  • Optical Power Budget: 9.4 dB
  • Operating Temperature: 0 ° to + 50 ° C
  • Storage Temperature: – 30 ° to + 70 ° C
  • Operating Humidity: 10 to 85% RH, non-condensing
  • Storage Humidity: 5 to 90% RH, non-condensing
  • Dimensions (W x H x D): 1.4″ x 0.6″ x 2.8″ (35mm x 16mm x 72mm)
  • Shipping Weight: 1.8 lbs (0.8 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length10.1 (Inches)
  • Width7.9 (Inches)
  • Height2.7 (Inches)
  • Weight1.55 (Lbs)
  • UPC845344058139

Other Specifications

  • Video bandwidth: 10.8Gbps (2.7Gbps per lane, 4 lanes)
  • Video Input Connector (Sender): (1) DP-20-pin, female
  • Video Output Connector (Receiver): (1) DP-20-pin, female
  • Link Connector (Sender/Receiver): (2) Type LC
  • Power Supply (Sender/Receiver): 5V DC
  • Power Consumption (Sender/Receiver): 2.1W max. (each)
  • Optical Power Budget: 9.4 dB
  • Operating Temperature: 0Â ° to + 50Â ° C
  • Storage Temperature: – 30Â ° to + 70Â ° C
  • Operating Humidity: 10 to 85% RH, non-condensing
  • Storage Humidity: 5 to 90% RH, non-condensing
  • Dimensions (W x H x D): 1.4″ x 0.6″ x 2.8″ (35mm x 16mm x 72mm)
  • Shipping Weight: 1.8 lbs (0.8 kg)

In The Box

  • DisplayPort Extender over 2 LC Fibers (Sender Module)(1)
  • DisplayPort Extender over 2 LC Fibers (Receiver Module)(1)
  • 2 ft. DisplayPort Cable (CAB-DP-02MM)(2)
  • USB Type A to DC Cable (CAB-USB2DC-3MM)(2)
  • 5V DC Power Supplies (EXT-PS51AIP-1.3)(2)
  • Quick-Start Guide (QSG-DP-CP-2FO)(1)
