DPFC-200D
DisplayPort 1.2 Detachable Cable

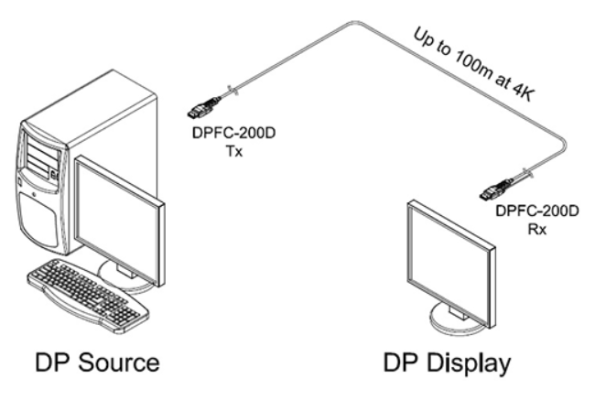

Detachable DisplayPort 1.2 active optical cable, DPFC-200D, enables to transmit 4K (4096×2160) at 60Hz signal up to 100m (384feet) over plenum graded & LSZH hybrid cable. It avoids any scaling or data compression for lessening a burden of data transmission.

DPFC-200D is designed compact enough to be fitted into various installation environments with cutting edge technology performance.

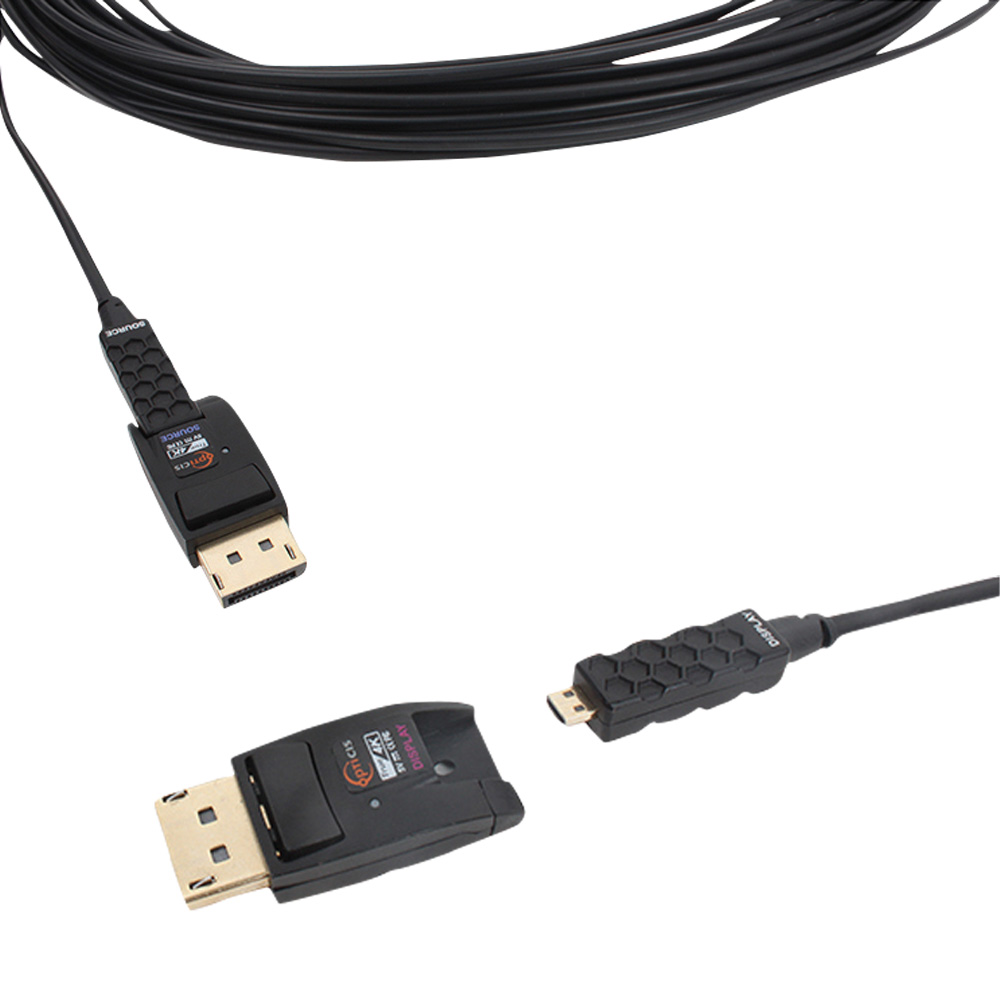

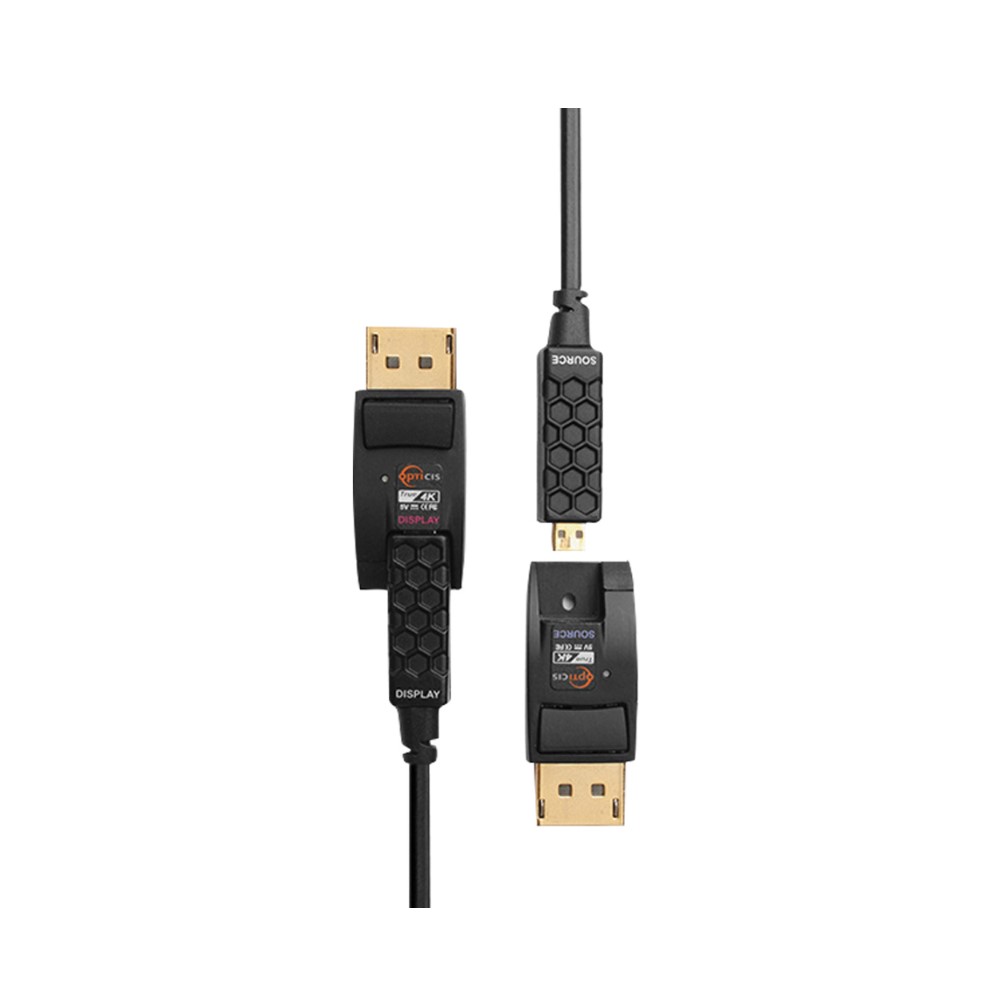

DPFC-200D offers perfect flexibility during installation by separating DisplayPort connector part and Active Optical Cable part. It gives slim, light, easy installation like a general copper DisplayPort cable.

Optional USB power cable on RX side can be provided upon request for non-standard display device which provides insufficient power to operate.

For other lengths over 100m, please contact our sales representatives, to info@egerate.com for more information.

PRODUCT SPECIFICATIONS

• Extends up to 4K (4096×2160) at 60Hz, (RGB & YCbCr : 4:4:4)
• Transmits DisplayPort 1.2 data up to 100m (328feet) over hybrid cable
• Adopts plenum graded or (LSZH – Low Smoke Zero Halogen) hybrid cable
• Offers perfect flexibility during installation by separating DisplayPort connector from cable
• Supports Multi-Stream Transport feature
• Supports 3D contents transmission
• Supports DisplayPort 1.2 standards feature
• Provides optional USB power on the display source (TX) and/or display (RX) side
