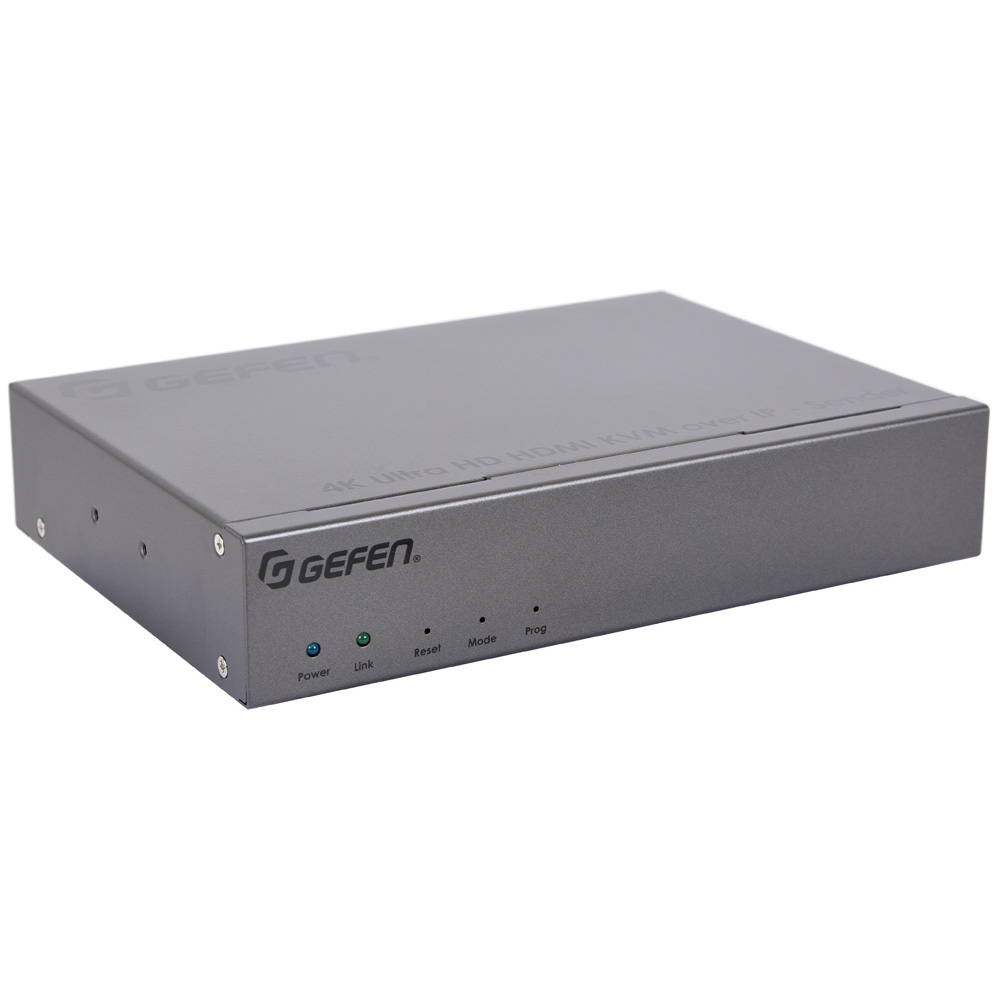

EXT-UHDKA-LANS-TX
4K Ultra HD HDMI KVM over IP – Sender Package

Extend and Distribute 4K HDMI w/ HDR, USB, RS-232, IR, and 2-way audio over a Local Area Network

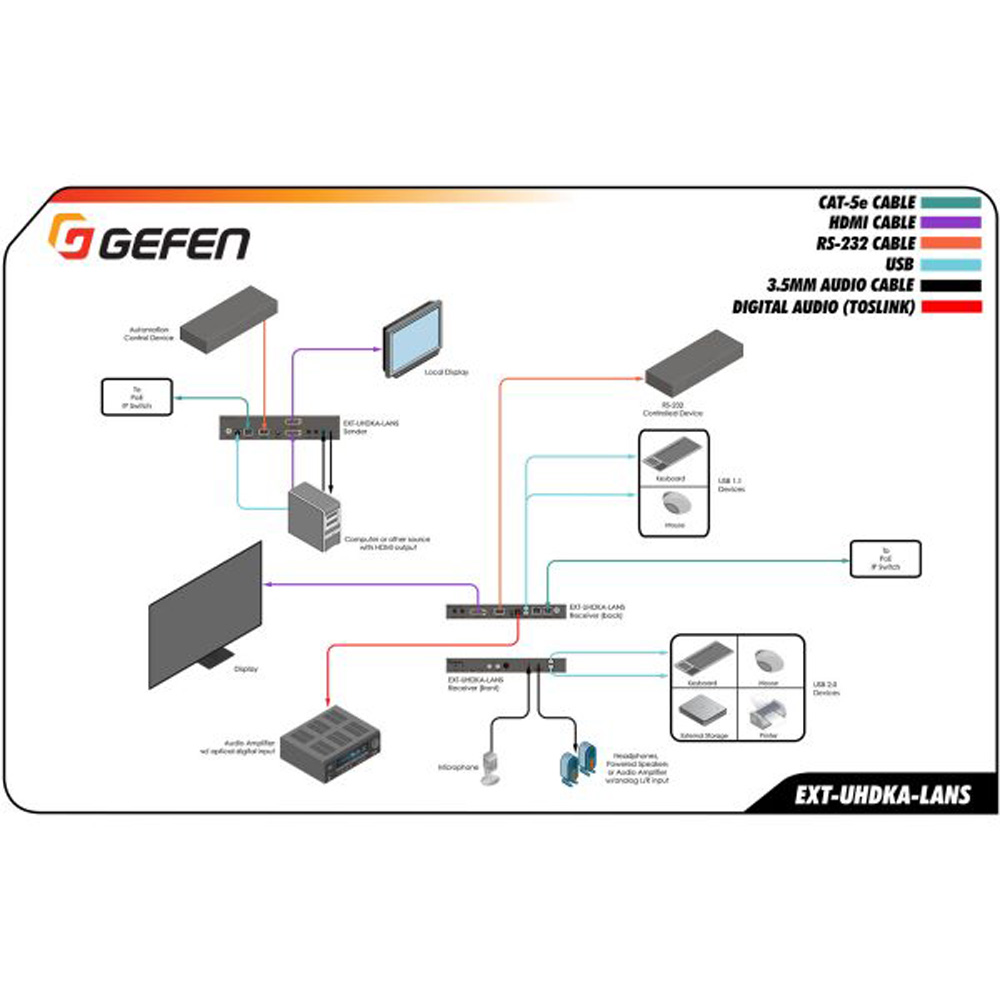

Gefen’s AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. Our Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first generation products. Each Sender and Receiver extends and routes video, USB, 2-way audio, RS-232, and IR.

The EXT-UHDKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.

The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the (more…)

FEATURES

  • Extends HDMI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
  • Independent video, USB, RS-232, IR, and audio routing**
  • Backward-compatible with first generation Gefen AV over IP products
  • Supports input resolutions up to 4K 60Hz 4:2:0
  • Supports output resolutions up to 4K 30Hz 4:4:4
  • Supported HDMI Features:
  • HDR
  • HDCP 2.2 and 1.4
  • Deep Color
  • Lip-Sync
  • Uncompressed LPCM digital audio up to 7.1 channels
  • Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
  • When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA)
  • Video output on Sender unit for local monitoring of the source
  • KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
  • Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
  • Built-in video wall controller accommodates any number of rows and columns up to 16×16
  • Built-in Audio De-Embedder on Receive(more…)

SPECIFICATIONS

Maximum Pixel Clock: 165 MHz

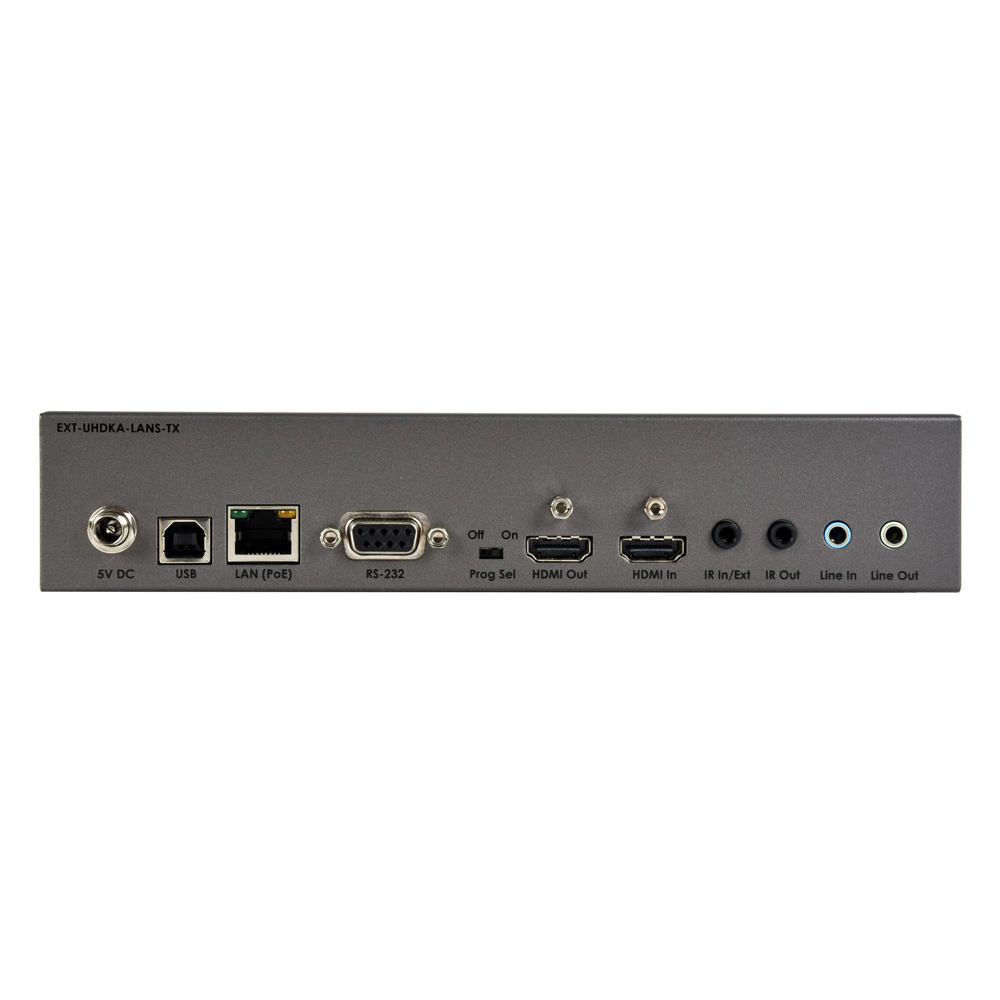

Video Input Connector (Sender): (1) DVI 29-pin, female

Video Output Connector (Receiver): (1) DVI 29-pin, female

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Line Output (Receiver): (1) 3.5mm mini-stereo jack

USB Host Interface (Sender): (1) USB Type B, female

USB Device Connectors (Receiver): (2) USB Type A, female

RS-232 Connector (Sender): (1) DB-9, female

RS-232 Connector (Receiver): (1) DB-9, male

IR Emitter (Sender): (1) 3.5mm mini-mono jack

IR Extender (Receiver): (1) 3.5mm mini-stereo jack

IR Extender Type: EXT-RMT-EXTIRN

Ethernet connector (Sender): (1) RJ-45, shielded

Ethernet connectors (Receiver): (3) RJ-45, shielded

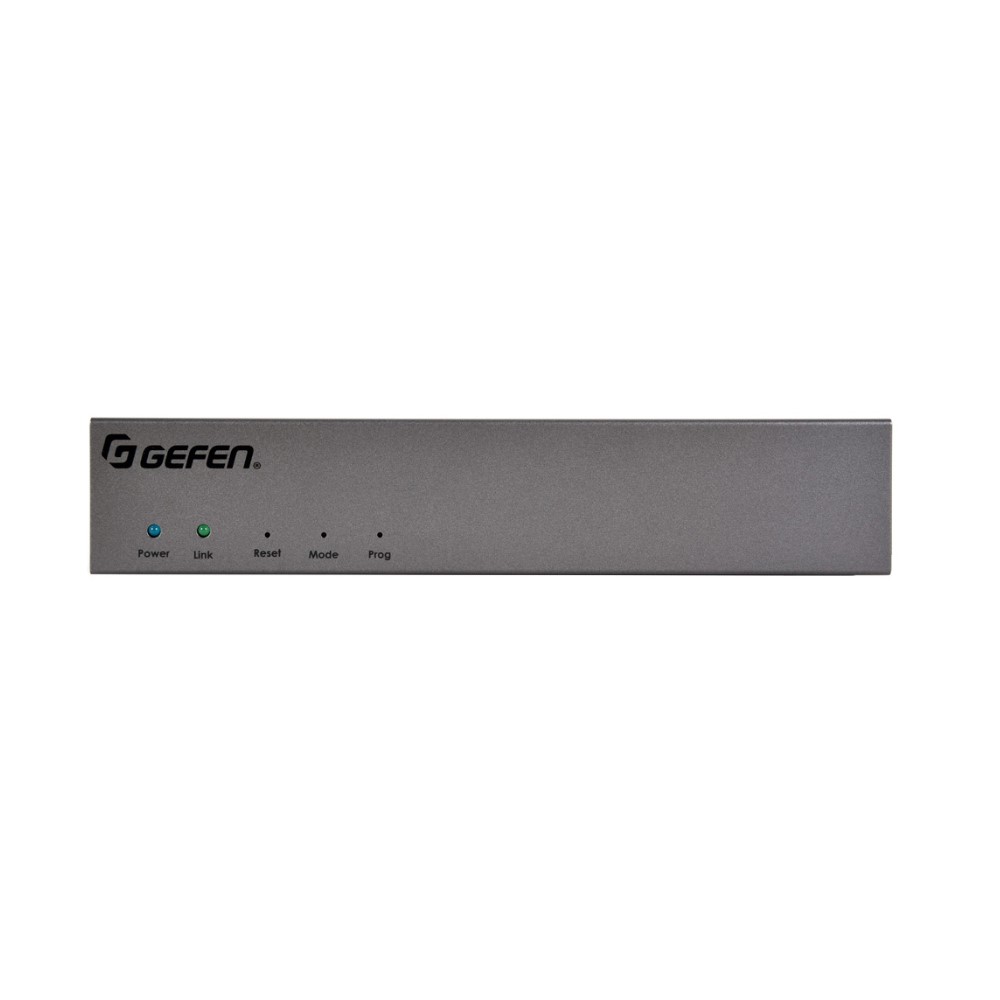

Mode button (Sender): (1) tact-type

Switch button (Receiver): (1) tact-type

Reset button (Receiver): (1) tact-type, recessed

Link Indicator (Sender/Receiver): (1) LED, green

Power Indicator (Sender/Receiver): (1) LED, blue

Power Consumption (Sender / Receiver): 10W (max.)

Dimensions (Sender / Receiver) (W x H x D): 8.4″ x 1.7″ x 4.5″ (213(more…)

OTHER SPECIFICATIONS

Shipping Info

  • Length13.2 (Inches)
  • Width8.1 (Inches)
  • Height3.6 (Inches)
  • Weight3.35 (Lbs)
  • Unit of MeasureEach
  • UPC888814999723

Other Specifications

  • Maximum Pixel Clock: 165 MHz
  • Video Input Connector (Sender): (1) DVI 29-pin, female
  • Video Output Connector (Receiver): (1) DVI 29-pin, female
  • Line Input (Sender): (1) 3.5mm mini-stereo jack
  • Line Output (Sender): (1) 3.5mm mini-stereo jack
  • Mic Input (Receiver): (1) 3.5mm mini-stereo jack
  • Line Output (Receiver): (1) 3.5mm mini-stereo jack
  • USB Host Interface (Sender): (1) USB Type B, female
  • USB Device Connectors (Receiver): (2) USB Type A, female
  • RS-232 Connector (Sender): (1) DB-9, female
  • RS-232 Connector (Receiver): (1) DB-9, male
  • IR Emitter (Sender): (1) 3.5mm mini-mono jack
  • IR Extender (Receiver): (1) 3.5mm mini-stereo jack
  • IR Extender Type: EXT-RMT-EXTIRN
  • Ethernet connector (Sender): (1) RJ-45, shielded
  • Ethernet connectors (Receiver): (3) RJ-45, shielded
  • Mode button (Sender): (1) tact-type
  • Switch button (Receiver): (1) tact-type
  • Reset button (Receiver): (1) tact-type, recessed
  • Link Indicator (Sender/Receiver): (1) LED, green
  • Power Indicator (Sender/Receiver): (1) LED, blue
  • Power Consumption (Sender / Receiver): 10W (max.)
  • Dimensions (Sender / Receiver) (W x H x D): 8.4″ x 1.7″ x 4.5″ (213mm x 43mm x 113mm)
  • Shipping Weight:
  • EXT-DVIKVM-LAN: 8.3 lbs. (3.8 kg)
  • EXT-DVIKVM-LANTX: 5.7 lbs. (3.0 kg)
  • EXT-DVIKVM-LANRX: 4.6 lbs. (2.0 kg)

In The Box

  • Sender unit (EXT-UHDKA-LANS-TX)1
  • 5V 2.6A Power Supply (EXT-PS526-AIP-LP-6)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2
  • Quick-Start Guide1
