EXT-UHDKA-LANS-RX-SW
4K Ultra HD HDMI KVM over IP – Receiver Package – with Power Cord for Swiss territories

Extend and Distribute 4K HDMI w/ HDR, USB, RS-232, IR, and 2-way audio over a Local Area Network

Gefen’s AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. Our Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first generation products. Each Sender and Receiver extends and routes video, USB, 2-way audio, RS-232, and IR.

The EXT-UHDKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.

The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products full(more…)

FEATURES

Extends HDMI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
Independent video, USB, RS-232, IR, and audio routing**
Backward-compatible with first generation Gefen AV over IP products
Supports input resolutions up to 4K 60Hz 4:2:0
Supports output resolutions up to 4K 30Hz 4:4:4
Supported HDMI Features:
HDR
HDCP 2.2 and 1.4
Deep Color
Lip-Sync
Uncompressed LPCM digital audio up to 7.1 channels
Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA)
Video output on Sender unit for local monitoring of the source
KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
Built-in video wall controller accommodates any number of rows and columns up to 16×16
Built-i(more…)

SPECIFICATIONS

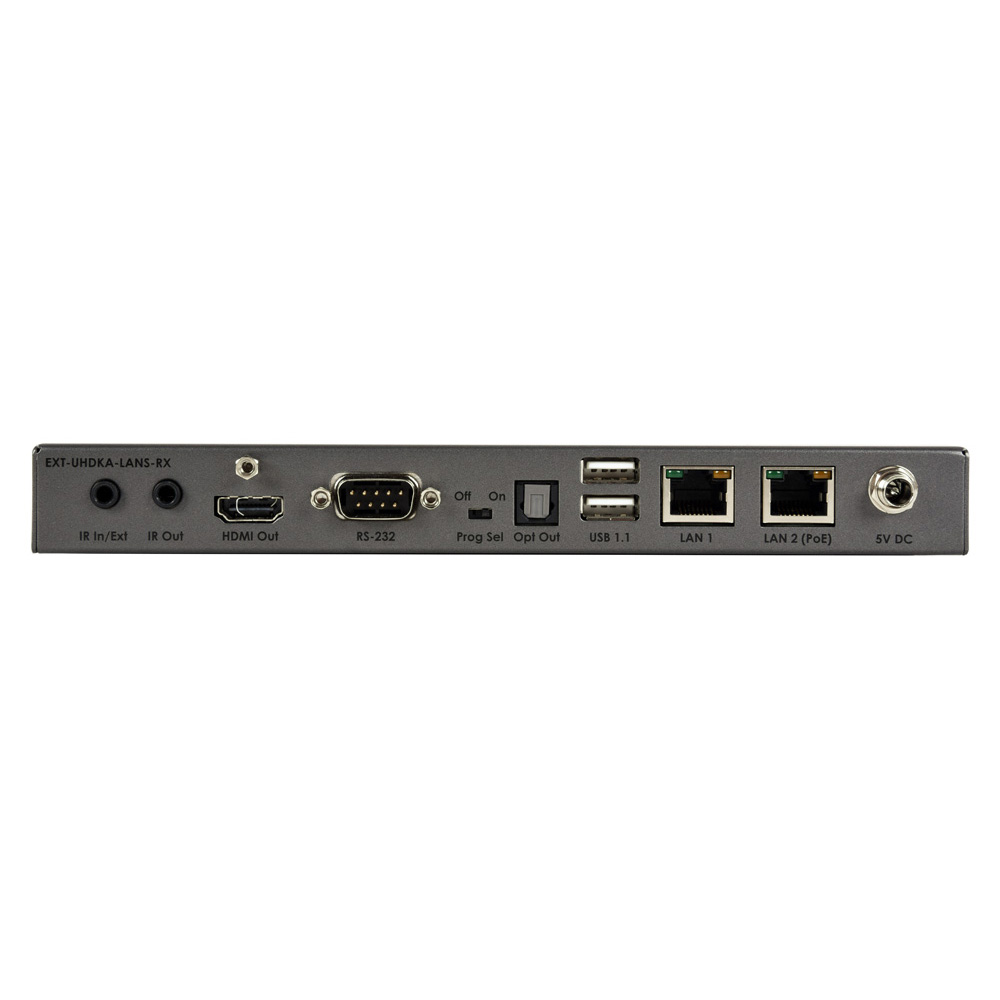

Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver): (1) TOSLINK ®

USB Host Interface port (Sender): (1) USB Type B, female

USB Device ports (Receiver): (2) USB 2.0 Type A, female

: (2) USB 1.1 Type A, female

RS-232 port (Sender): (1) DB-9, female

RS-232 port (Receiver): (1) DB-9, male

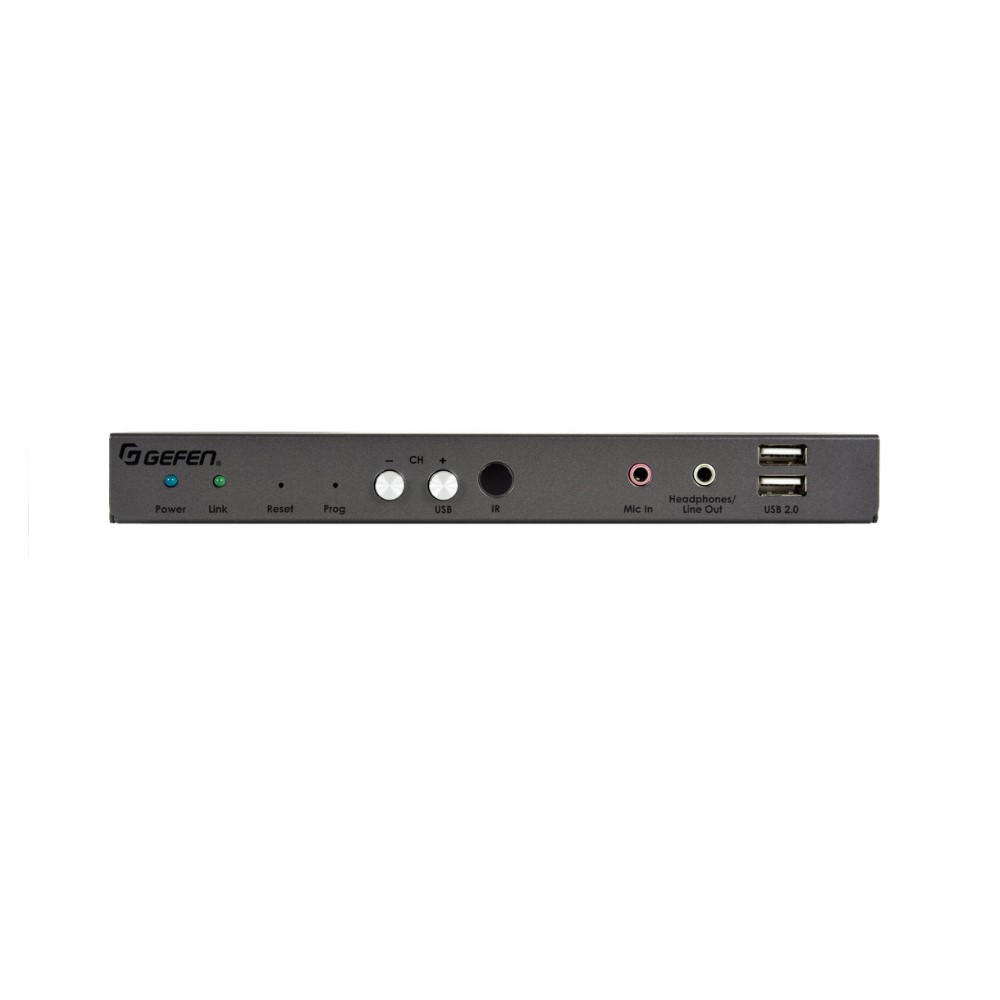

IR Sensor (Receiver): (1) Located on front panel

IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Ethernet port (Sender): (1) RJ-45, shielded, PoE

Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

Channel Up/USB-Request button (Receiver): (1) tact-type

Channel Down button (Receiver): (1) tact-type

Mode button (Sender): (1) tact-type, recessed (more…)

OTHER SPECIFICATIONS

Shipping Info

  • Length1 (Inches)
  • Width1 (Inches)
  • Height1 (Inches)
  • Weight1 (Lbs)
  • UPC888814999730

Other Specifications

  • Video Input connector (Sender) (1) HDMI Type A 19-pin, female, locking
  • Video Output connector (Sender) (1) HDMI Type A 19-pin, female, locking
  • Video Output connector (Receiver) (1) HDMI Type A 19-pin, female, locking
  • Line Input (Sender) (1) 3.5mm mini-stereo jack
  • Line Output (Sender) (1) 3.5mm mini-stereo jack
  • Mic Input (Receiver) (1) 3.5mm mini-stereo jack
  • Headphones/Line Output (Receiver) (1) 3.5mm mini-stereo jack
  • Optical Digital Audio Output (Receiver) (1) TOSLINKÂ ®
  • USB Host Interface port (Sender) (1) USB Type B, female
  • USB Device ports (Receiver) (2) USB 2.0 Type A, female
  • (2) USB 1.1 Type A, female
  • RS-232 port (Sender) (1) DB-9, female
  • RS-232 port (Receiver) (1) DB-9, male
  • IR Sensor (Receiver) (1) Located on front panel
  • IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
  • IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
  • IR Extender type EXT-RMT-EXTIRN
  • Ethernet port (Sender) (1) RJ-45, shielded, PoE
  • Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
  • Channel Up/USB-Request button (Receiver) (1) tact-type
  • Channel Down button (Receiver) (1) tact-type
  • Mode button (Sender) (1) tact-type, recessed
  • Reset button (Sender/Receiver) (1) tact-type, recessed
  • Program button (Sender/Receiver) (1) tact-type, recessed
  • Program Select switch (Sender/Receiver) (1) slide-type, recessed
  • Link Indicator (Sender/Receiver) (1) LED, green
  • Power Indicator (Sender/Receiver) (1) LED, blue
  • Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm barrel, locking
  • Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
  • Power Consumption Sender: TBD
  • Receiver: TBD
  • Operating Temperature (Sender/Receiver) +32 to +122Â °F (0 to +50Â °C)
  • Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
  • Storage Temperature (Sender/Receiver) -4 to +185Â °F (-20 to +85Â °C)
  • Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
  • MTBFSender: 50000 hours
  • Receiver: 50000 hours
  • Dimensions (W x H x D, without connectors or feet)Sender 8.4″ x 1.7″ x 5.9″ (214mm x 43mm x 150mm)
  • Receiver 8.4″ x 1.0″ x 5.9″ (214mm x 25mm x 150mm)
  • Unit Weight Sender: TBD
  • Receiver: TBD
  • Shipping Weight Sender: TBD
  • Receiver: TBD
  • * Features and specifications are subject to change without notice.
    ** Pending features to be activated via an upcoming firmware update

In The Box

  • Receiver unit (EXT-UHDKA-LANS-RX)1
  • 5V 4A Power Supply (EXT-PS54AULPN-6)1
  • AC Power Cord (CAB-POWERCORD-xx)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2
  • Quick-Start Guide1
