EXT-DVIKA-LANS-TX
DVI KVM over IP – Sender Package

Gefen’s AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first-generation products.

The EXT-DVIKA-LANS-TX & RX support VESA and CEA resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz).

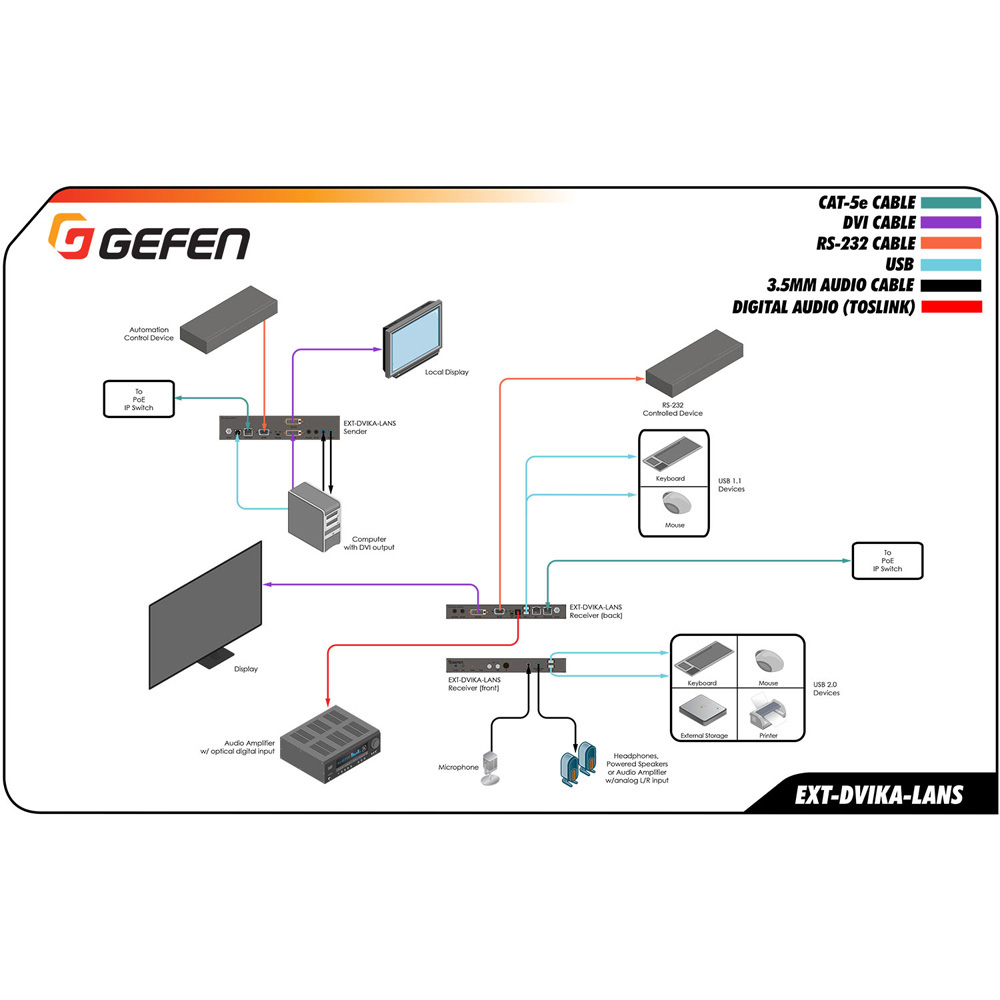

The Sender unit features a video output for local monitoring of the source. USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16×16 a(more…)

FEATURES

  • Extends DVI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
  • Independent video, USB, RS-232, IR, and audio routing**
    Backward-compatible with first generation Gefen AV over IP products
  • Supports VESA and CEA input and output resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz)
  • DVI output on Sender unit for local monitoring of the source
  • KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
  • Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
  • Built-in video wall controller accommodates any number of rows and columns up to 16×16
  • When used in HDMI mode, built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
  • MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
  • (more…)

SPECIFICATIONS

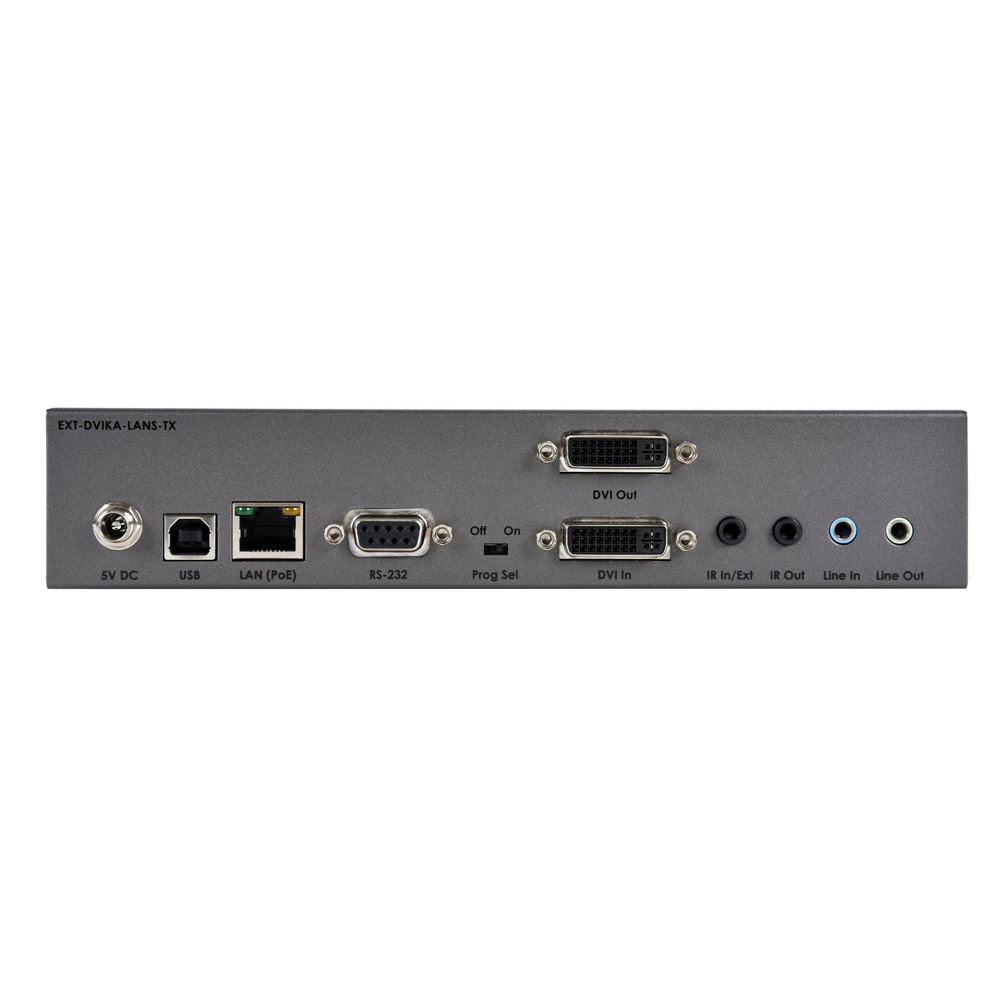

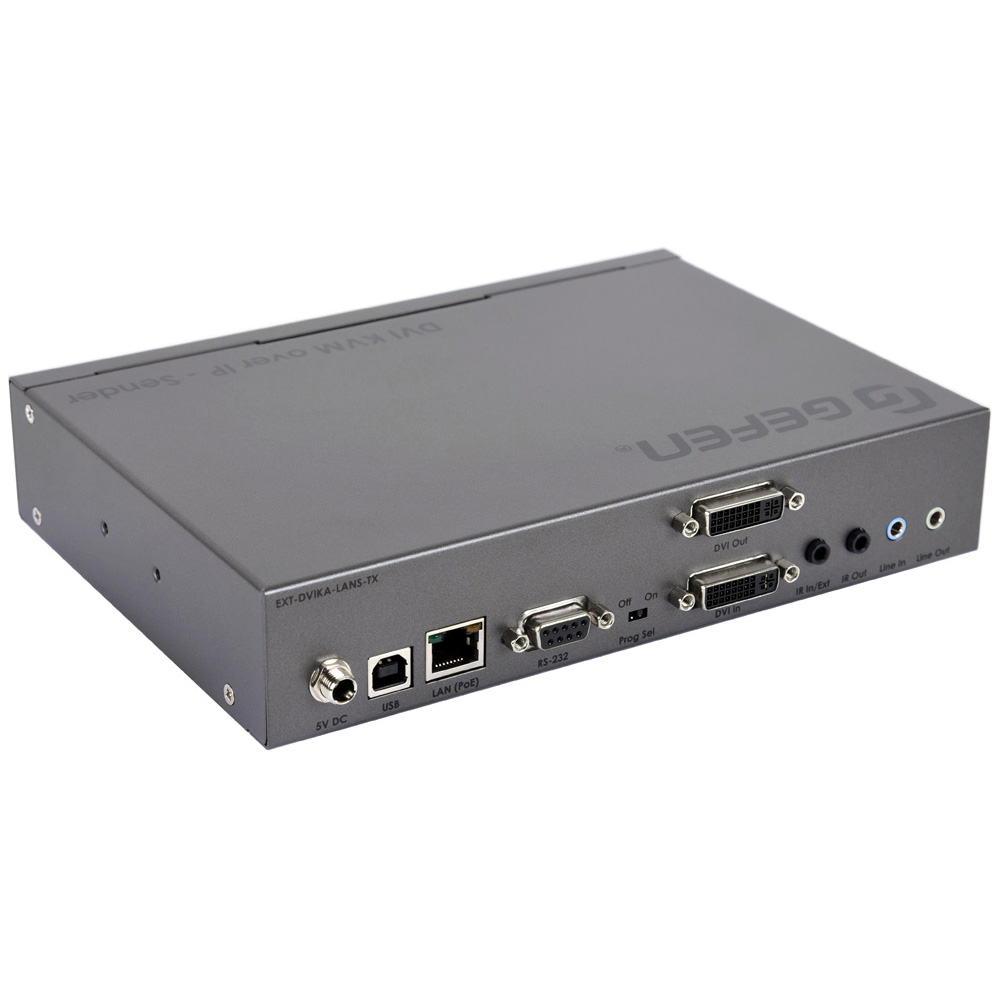

Video Input connector (Sender): (1) DVI 29-pin, female, digital only

Video Output connector (Sender): (1) DVI 29-pin, female, digital only

Video Output connector (Receiver): (1) DVI 29-pin, female, digital only

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver): (1) TOSLINK ®

USB Host Interface port (Sender): (1) USB Type B, female

USB Device ports (Receiver): (2) USB 2.0 Type A, female

: (2) USB 1.1 Type A, female

RS-232 port (Sender): (1) DB-9, female

RS-232 port (Receiver): (1) DB-9, male

IR Sensor (Receiver): (1) Located on front panel

IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Ethernet port (Sender): (1) RJ-45, shielded, PoE

Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

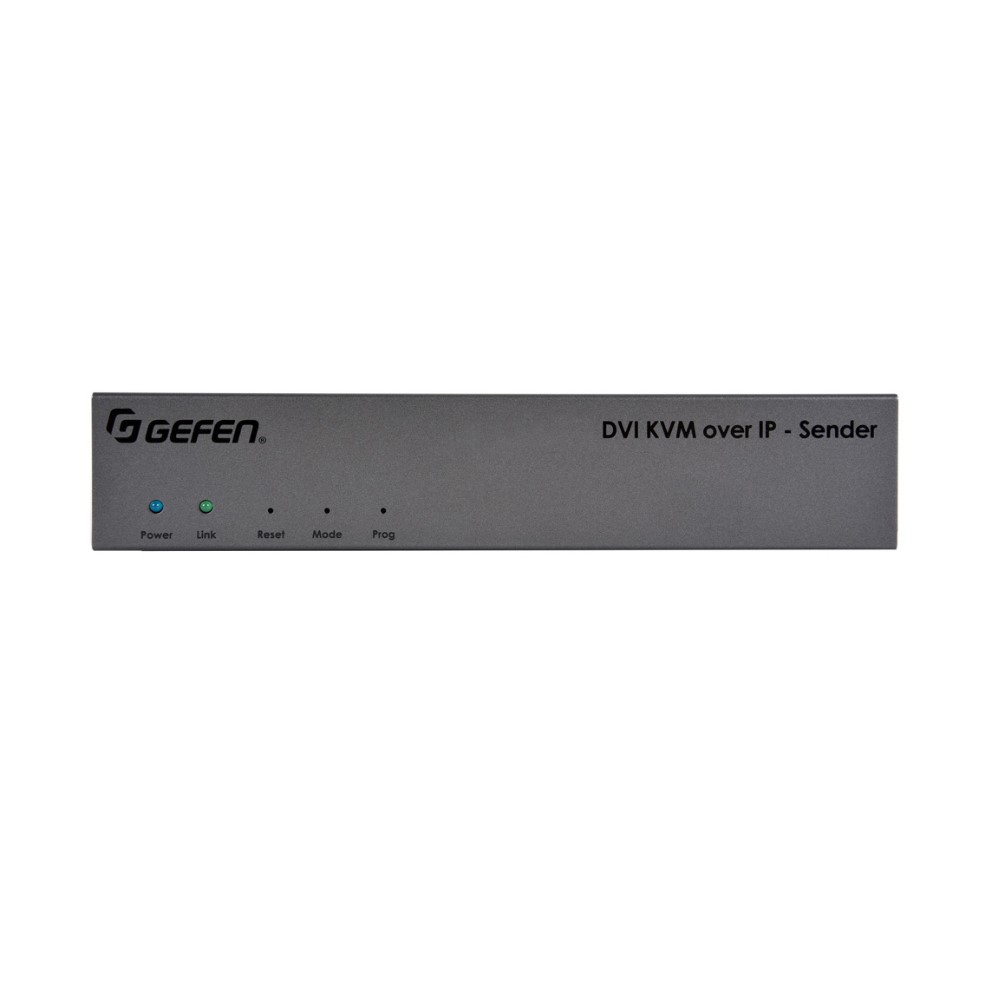

Channel Up/USB-Request button (Receiver): (1) tact-type

Channel Down button (Receiver): (1) tact-type

Mode button (Sender): (1) tact-type, recessed

Reset button (Sender/Rece(more…)

OTHER SPECIFICATIONS

Shipping Info

  • Length13.2 (Inches)
  • Width8.3 (Inches)
  • Height3.7 (Inches)
  • Weight3.4 (Lbs)
  • Unit of MeasureEach
  • UPC888814999747

Other Specification

  • Video Input connector (Sender) (1) DVI 29-pin, female, digital only
  • Video Output connector (Sender) (1) DVI 29-pin, female, digital only
  • Video Output connector (Receiver) (1) DVI 29-pin, female, digital only
  • Line Input (Sender) (1) 3.5mm mini-stereo jack
  • Line Output (Sender) (1) 3.5mm mini-stereo jack
  • Mic Input (Receiver) (1) 3.5mm mini-stereo jack
  • Headphones/Line Output (Receiver) (1) 3.5mm mini-stereo jack
  • Optical Digital Audio Output (Receiver) (1) TOSLINK ®
  • USB Host Interface port (Sender) (1) USB Type B, female
  • USB Device ports (Receiver) (2) USB 2.0 Type A, female
  • (2) USB 1.1 Type A, female
  • RS-232 port (Sender) (1) DB-9, female
  • RS-232 port (Receiver) (1) DB-9, male
  • IR Sensor (Receiver) (1) Located on front panel
  • IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
  • IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
  • IR Extender type EXT-RMT-EXTIRN
  • Ethernet port (Sender) (1) RJ-45, shielded, PoE
  • Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
  • Channel Up/USB-Request button (Receiver) (1) tact-type
  • Channel Down button (Receiver) (1) tact-type
  • Mode button (Sender) (1) tact-type, recessed
  • Reset button (Sender/Receiver) (1) tact-type, recessed
  • Program button (Sender/Receiver) (1) tact-type, recessed
  • Program Select switch (Sender/Receiver) (1) slide-type, recessed

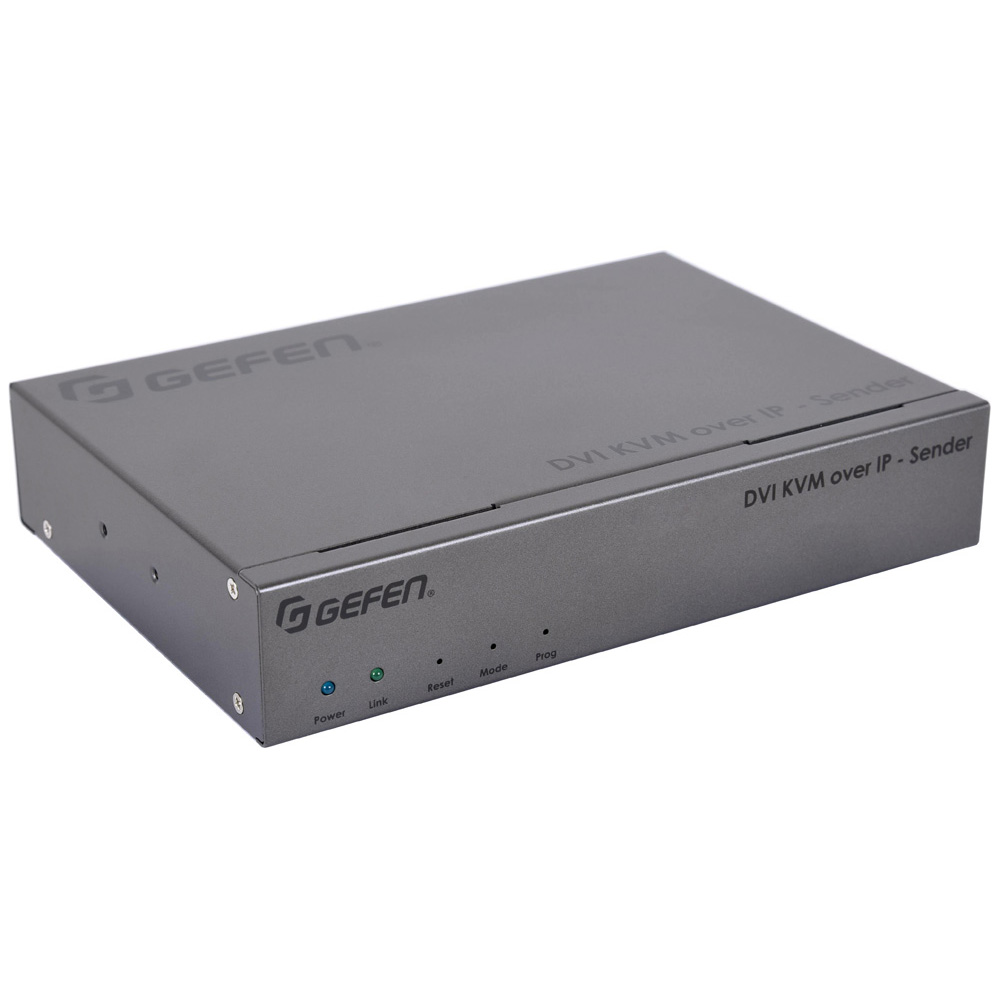

  • Link Indicator (Sender/Receiver) (1) LED, green
  • Power Indicator (Sender/Receiver) (1) LED, blue
  • Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm
  • barrel, locking
  • Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
  • Power Consumption Sender: TBD
  • Receiver: TBD
  • Operating Temperature (Sender/Receiver) +32 to +122 °F (0 to +50 °C)
  • Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
  • Storage Temperature (Sender/Receiver) -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
  • MTBF Sender: 50000 hours
  • Receiver:50000 hours
  • Dimensions (W x H x D, without connectors or feet)Sender: 8.4″ x 1.7″ x 5.9″ (214mm x 43mm x 150mm)
  • Receiver: 8.4″ x 1.0″ x 5.9″ (214mm x 25mm x 150mm)
  • Unit Weight Sender: TBD
  • Receiver TBD
  • Shipping Weight Sender: TBD
  • Receiver: TBD
  • * Features and specifications are subject to change without notice
  • ** Pending features to be activated via an upcoming firmware update

In The Box

  • Sender unit (EXT-DVIKA-LANS-TX)1
  • 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2
  • Quick-Start Guide1
