EXT-DPKA-LANS-TX
4K DisplayPort KVM over IP – Sender Package

Extend and Distribute DisplayPort, USB, RS-232, IR, and 2-way audio over a Local Area Network

Gefen’s AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent USB, RS-232, IR, and audio routing**, and backward-compatibility with our first-generation products.

The EXT-DPKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported.

USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.

The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16×16 and provides great flexibility in sizing and manip(more…)

Features

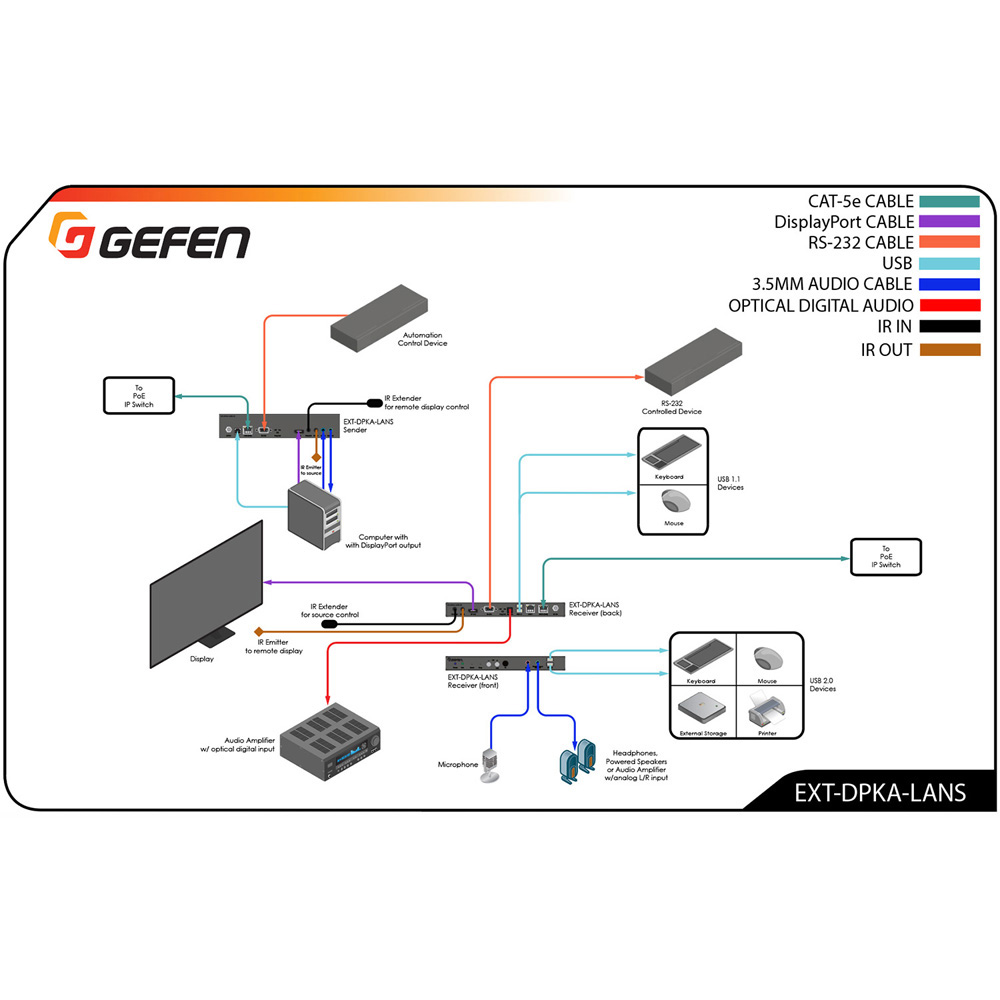

  • Extends DisplayPort, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
  • Independent video, USB, RS-232, IR, and audio routing (future firmware update)
  • Backward-compatible with first generation Gefen AV over IP products
  • Supports input resolutions up to 4K 60Hz 4:2:0
  • Supports output resolutions up to 4K 30Hz 4:4:4
  • Supports HDCP 2.2 and 1.4
  • KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
  • Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
  • Built-in video wall controller accommodates any number of rows and columns up to 16×16
  • Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
  • MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller,
  • Enhanced API for added functionality with thrd-(more…)

SPECIFICATIONS

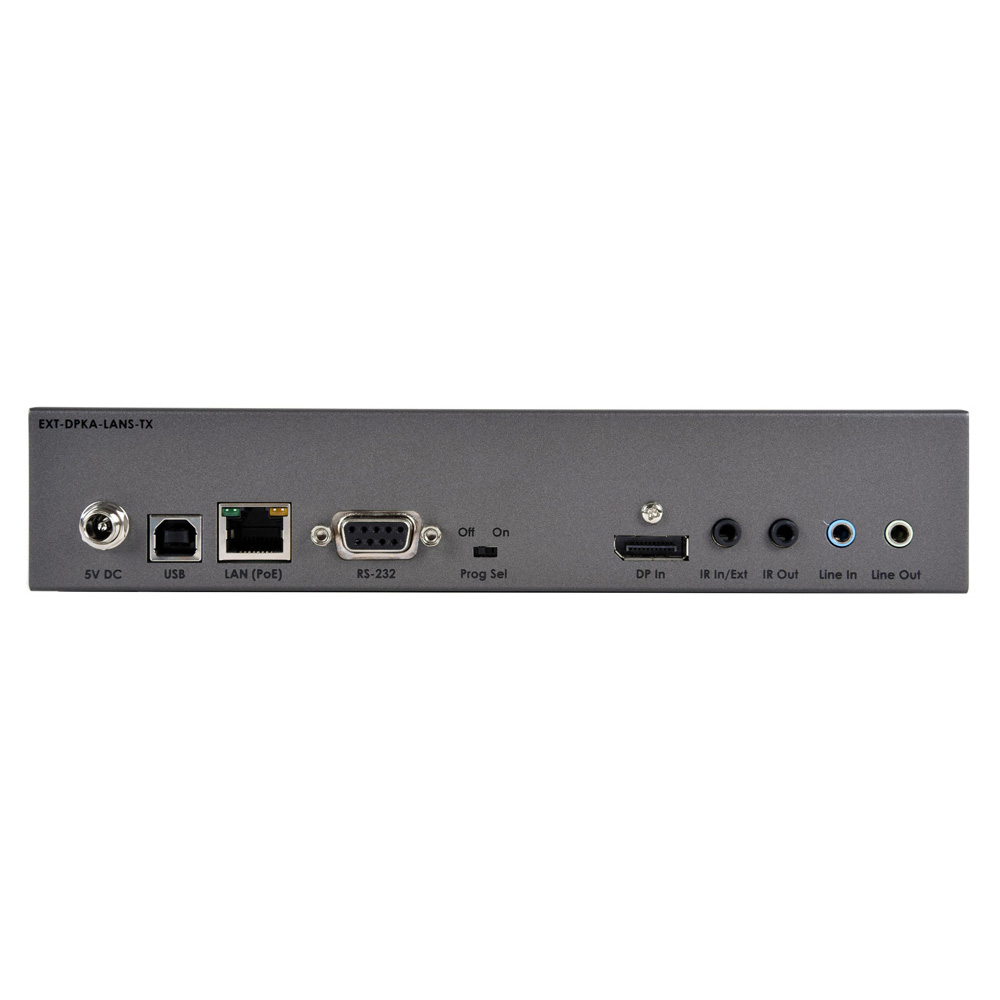

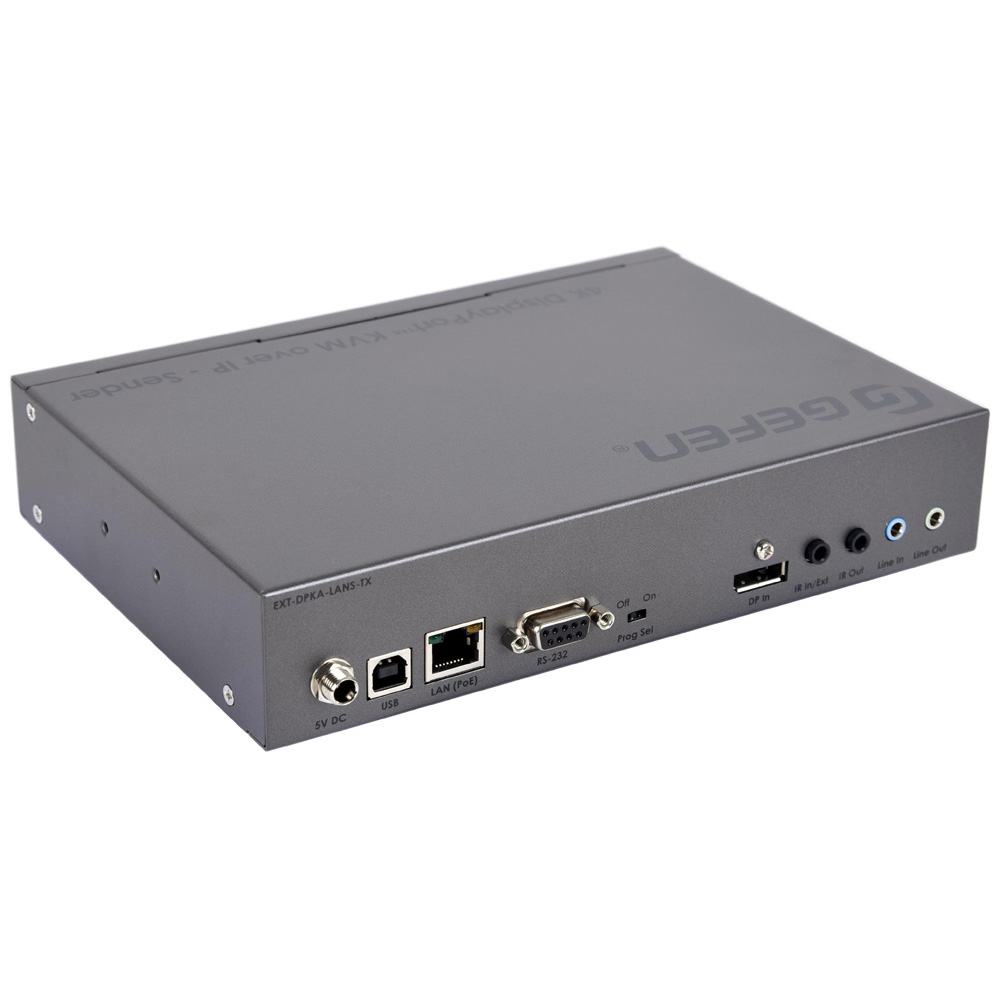

Video Input connector (Sender): (1) DP-20-pin, female

Video Output connector (Receiver): (1) DP-20-pin, female

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver): (1) TOSLINK ®

USB Host Interface port (Sender): (1) USB Type B, female

USB Device ports (Receiver): (2) USB 2.0 Type A, female

: (2) USB 1.1 Type A, female

RS-232 port (Sender): (1) DB-9, female

RS-232 port (Receiver): (1) DB-9, male

IR Sensor (Receiver): (1) Located on front panel

IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Ethernet port (Sender): (1) RJ-45, shielded, PoE

Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

Channel Up/USB-Request button (Receiver): (1) tact-type

Channel Down button (Receiver): (1) tact-type

Mode button (Sender): (1) tact-type, recessed

Reset button (Sender/Receiver): (1) tact-type, recessed

Program button (Sender/Receiver): (1) tact-type, recessed

Progr(more…)

OTHER SPECIFICATIONS

Shipping Info

  • Length13.2 (Inches)
  • Width8.1 (Inches)
  • Height3.6 (Inches)
  • Weight3.3 (Lbs)
  • Unit of MeasureEach
  • UPC888814999808

Other Specifications

  • Video Input connector (Sender) (1) DP-20-pin, female
  • Video Output connector (Receiver) (1) DP-20-pin, female
  • Line Input (Sender) (1) 3.5mm mini-stereo jack
  • Line Output (Sender) (1) 3.5mm mini-stereo jack
  • Mic Input (Receiver) (1) 3.5mm mini-stereo jack
  • Headphones/Line Output (Receiver) (1) 3.5mm mini-stereo jack
  • Optical Digital Audio Output (Receiver) (1) TOSLINK ®
  • USB Host Interface port (Sender) (1) USB Type B, female
  • USB Device ports (Receiver) (2) USB 2.0 Type A, female
  • (2) USB 1.1 Type A, female
  • RS-232 port (Sender) (1) DB-9, female
  • RS-232 port (Receiver) (1) DB-9, male
  • IR Sensor (Receiver) (1) Located on front panel
  • IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
  • IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
  • IR Extender type EXT-RMT-EXTIRN
  • Ethernet port (Sender) (1) RJ-45, shielded, PoE
  • Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
  • Channel Up/USB-Request button (Receiver) (1) tact-type
  • Channel Down button (Receiver) (1) tact-type
  • Mode button (Sender) (1) tact-type, recessed
  • Reset button (Sender/Receiver) (1) tact-type, recessed
  • Program button (Sender/Receiver) (1) tact-type, recessed
  • Program Select switch (Sender/Receiver) (1) slide-type, recessed

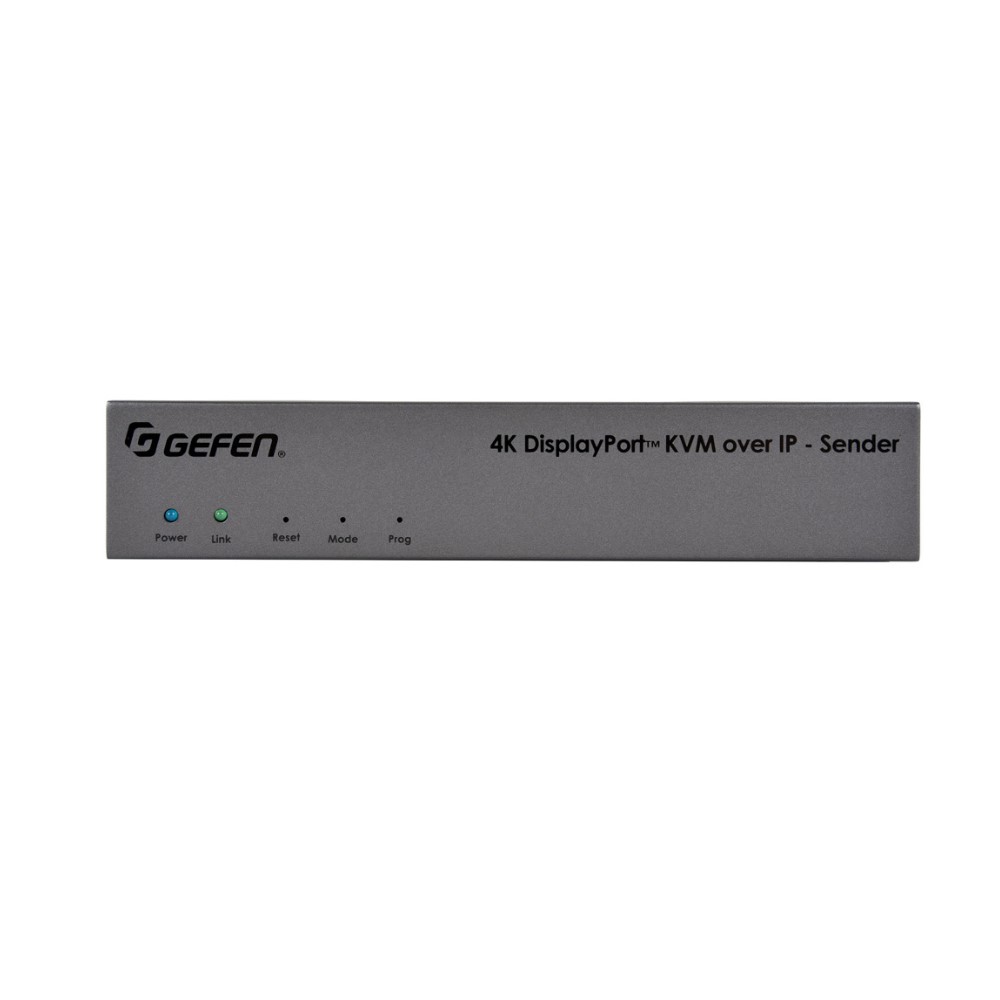

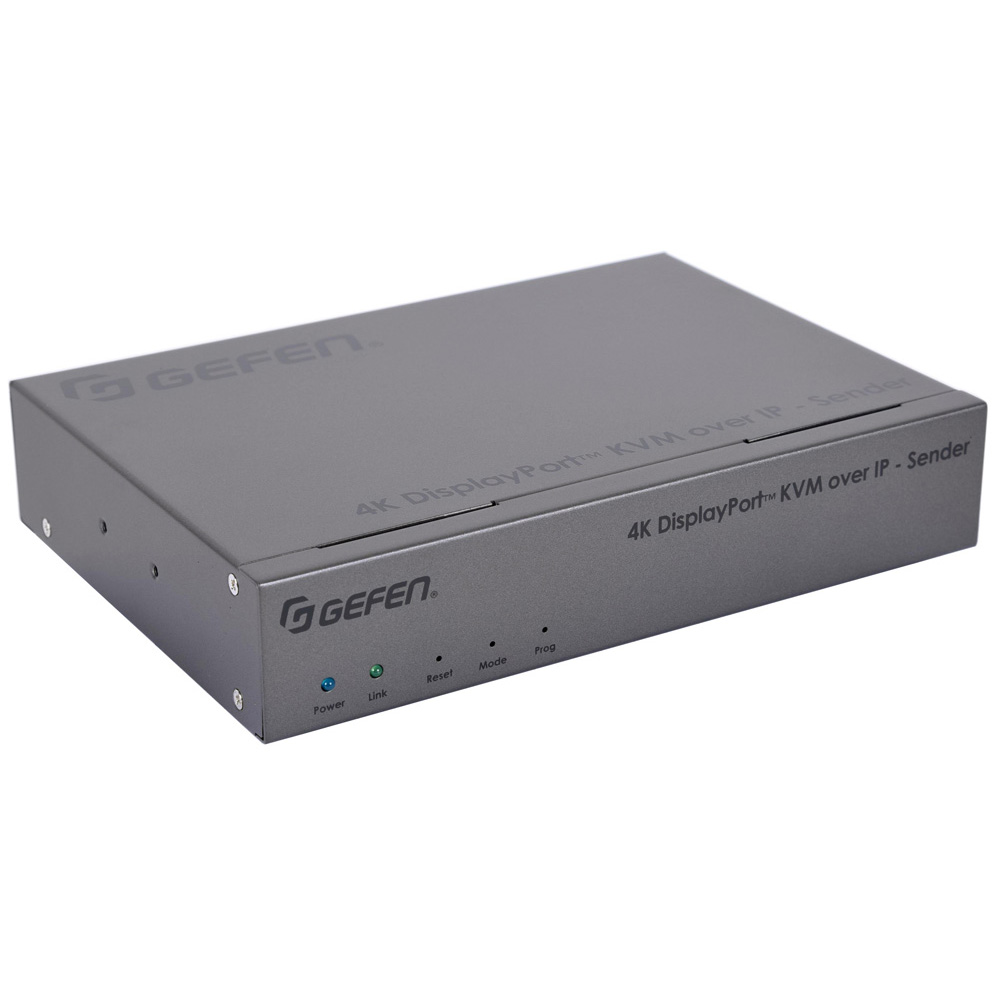

  • Link Indicator (Sender/Receiver) (1) LED, green
  • Power Indicator (Sender/Receiver) (1) LED, blue
  • Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm barrel, locking
  • Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
  • Power Consumption Sender: TBD
  • Receiver: TBD
  • Operating Temperature (Sender/Receiver) +32 to +122 °F (0 to +50 °C)
  • Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
  • Storage Temperature (Sender/Receiver) -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
  • MTBF Sender: 50000 hours
  • Receiver: 50000 hours
  • Dimensions (W x H x D, without connectors or feet)Sender: 8.4″ x 1.7″ x 5.9″ (214mm x 43mm x 150mm)
  • Receiver: 8.4″ x 1.0″ x 5.9″ (214mm x 25mm x 150mm)
  • Unit Weight Sender: TBD
  • Receiver: TBD
  • Shipping Weight Sender: TBD
  • Receiver: TBD
  • * Features and specifications are subject to change without notice.
  • ** Pending features to be activated via an upcoming firmware update

In The Box

  • Sender unit (EXT-DPKA-LANS-TX)1
  • 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2
  • Quick-Start Guide1
