EXT-DIGAUD-141
Digital Audio Extender over one CAT-5

Extends Coaxial S/PDIF and TOSLINK ® Optical Digital audio up

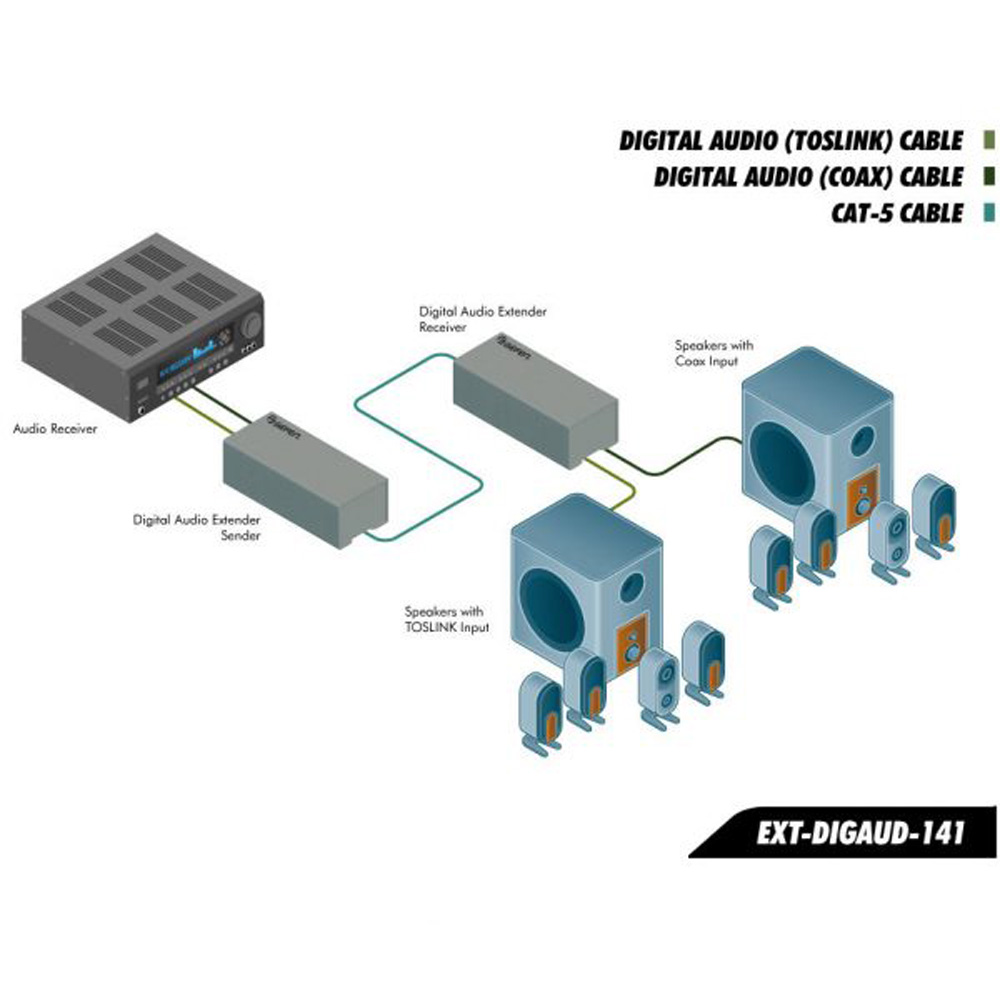

The Gefen EXT-DIGAUD-141 Digital Audio Extender over CAT-5 Extender allows you to place your digital audio components anywhere you want. It supports either S/PDIF or TOSLINK® digital audio signals, which are commonly used to transmit stereo and multichannel digital audio like Dolby Digital® 5.1, DTS, and Dolby® True HD. The Digital Audio Extender uses a Sender and Receiver system connected by a CAT-5e cable to extend the digital audio.

Audio Support

Supports multichannel digital audio like Dolby® Digital 5.1, DTS, and Dolby® TrueHD

FEATURES

  • Extends any S/PDIF and TOSLINK® digital audio device up to 330 feet (100 meters) from the source
  • Supports multichannel digital audio like Dolby® Digital 5.1, DTS, and Dolby® TrueHD
  • Supplies clear digital audio over long distances as if connected locally
  • Streamlines audio installations by allowing source devices to be located in off-site or unseen rack
  • One CAT-5e cable used for extension
  • Audio is transmitted digitally for zero signal loss

SPECIFICATIONS

  • Data Transmission Rate: 12.8 Mb/s
  • S/PDIF: 96 kHz performance
  • TOSLINK: 192 kHz performance

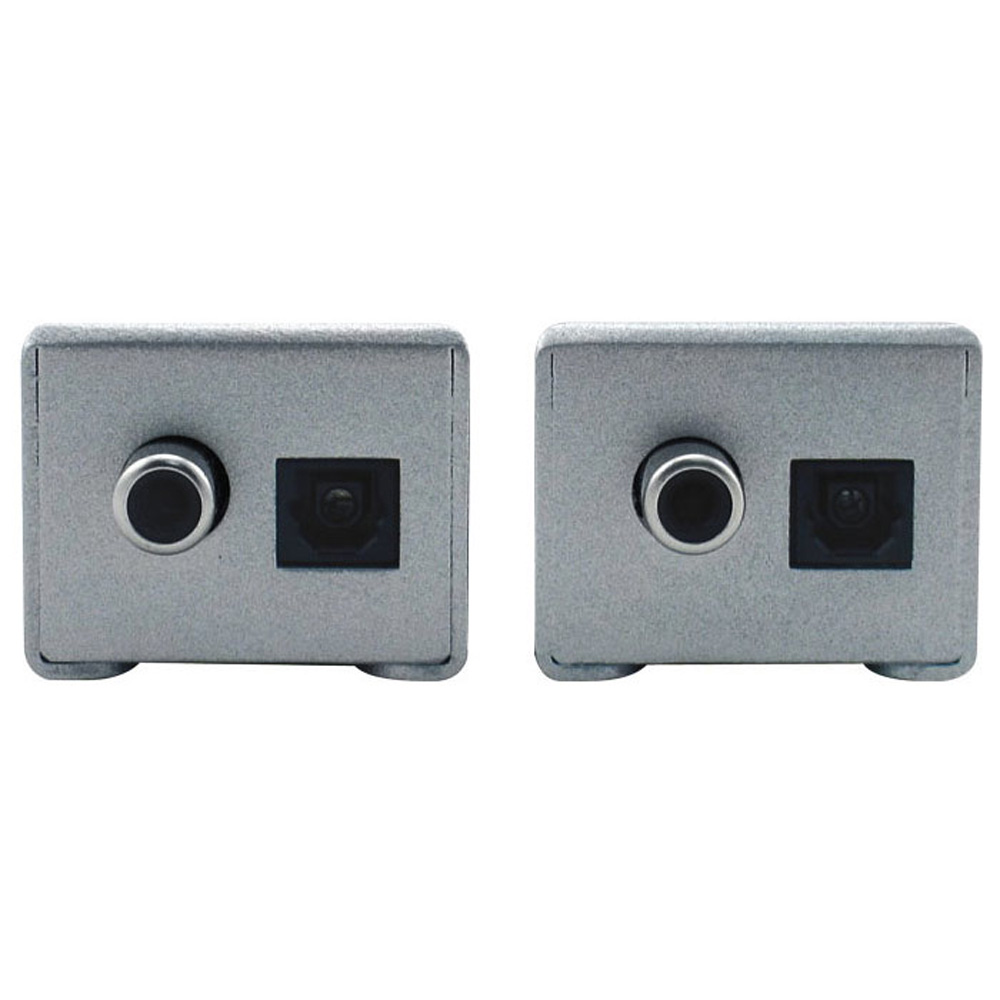

  • Input/Output: : S/PDIF, optical TOSLINK

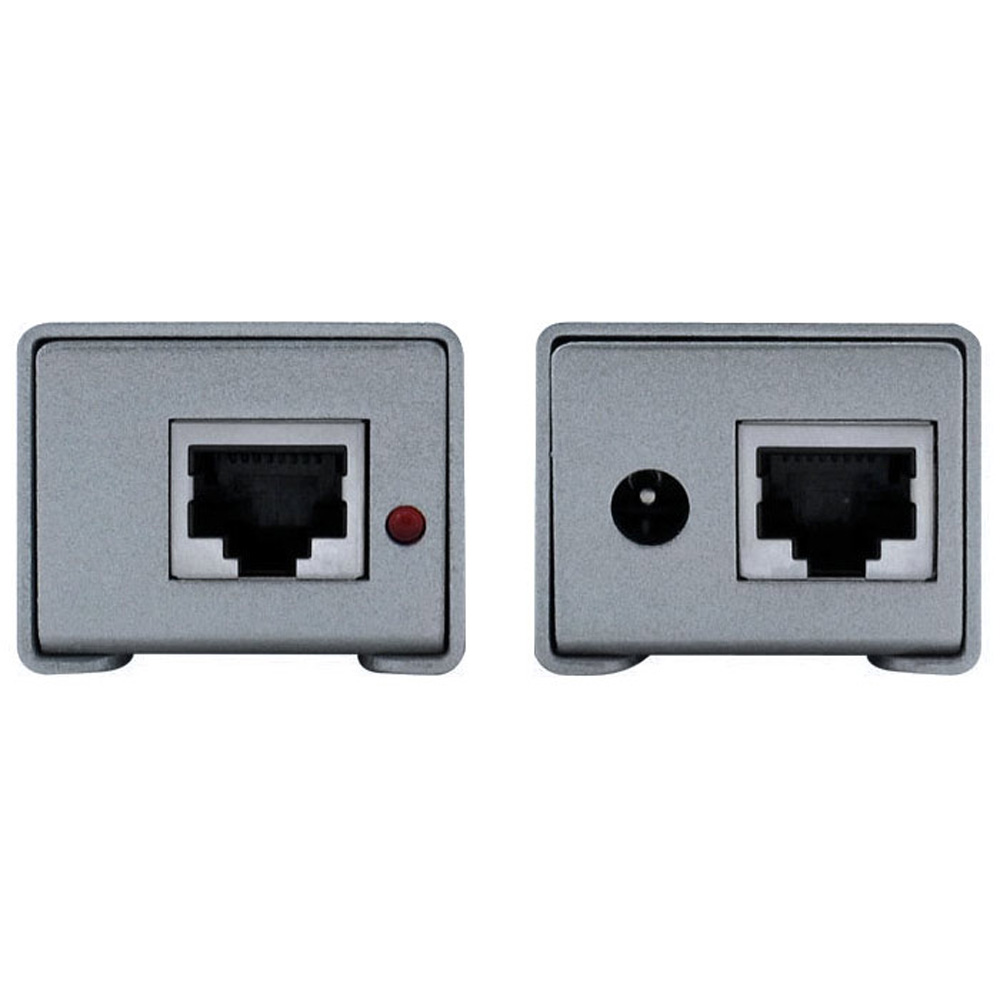

  • Link Connector: RJ-45 Shielded
  • Power Supply: 5V DC
  • Power Consumption: 5W (max) per power supply
  • Dimensions (W x H x D): 3.8″ x 1.2″ x 1.4″ (96mm x 30mm x 35mm)
  • Shipping Weight: 5 lbs. (2.3 kg)

OTHER SPECIFICATIONS

Shipping Info

  • Length9.31 (Inches)
  • Width6.13 (Inches)
  • Height3 (Inches)
  • Weight1.2 (Lbs)
  • UPC845344001210

Other Specifications

  • Data Transmission Rate: 12.8 Mb/s
  • Â Â Â S/PDIF: 96 kHz performance
  • Â Â Â TOSLINK: 192 kHz performance
  • Â Â Â Input/Output: S/PDIF, optical TOSLINK
  • Â Â Â Link Connector: RJ-45 Shielded
  • Â Â Â Power Supply: 5V DC
  • Â Â Â Power Consumption: 5W (max) per power supply
  • Â Â Â Dimensions (W x H x D): 3.8″ x 1.2″ x 1.4″ (96mm x 30mm x 35mm)
  • Â Â Â Â Shipping Weight: 5 lbs. (2.3 kg)

In The Box

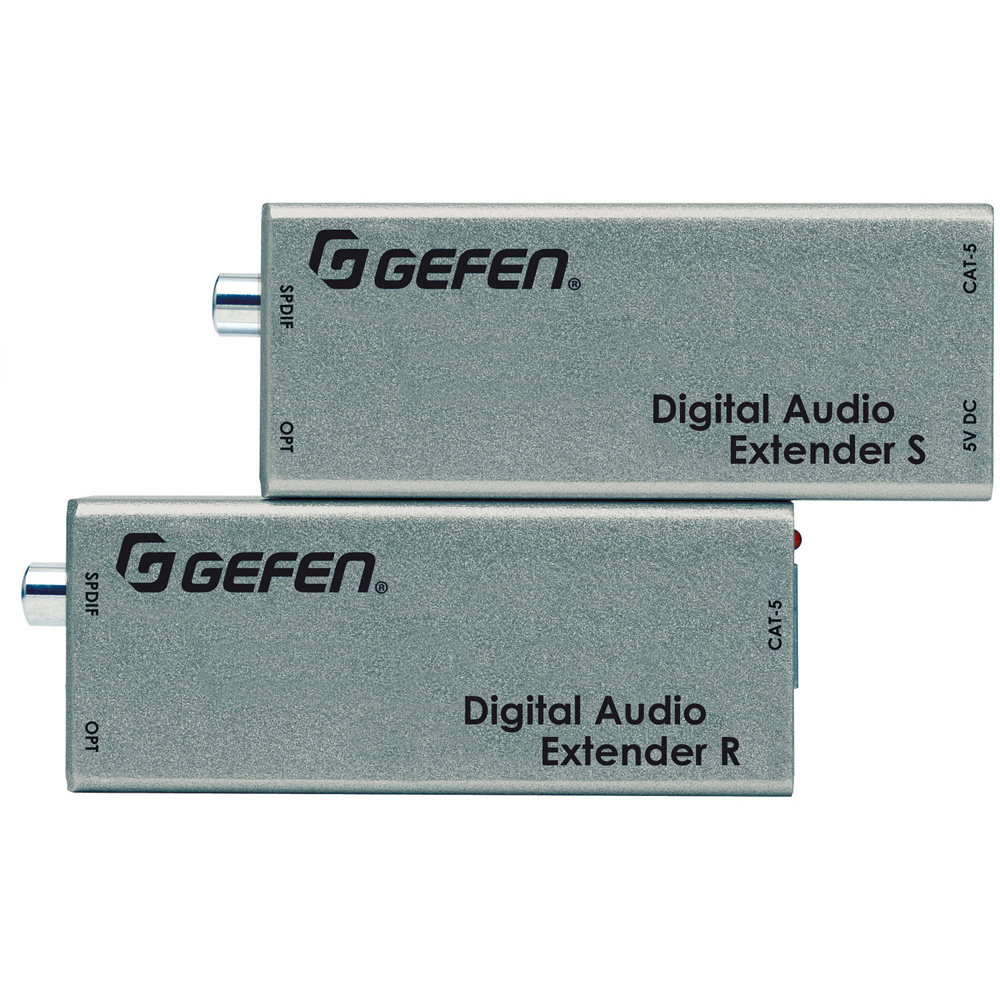

  • EXT-DIGAUD-141 Sender unit (1)
  • EXT-DIGAUD-141 Receiver unit (1)
  • CAB-TLINK-3MM-5ft TOSLINKÂ ® cable(1)
  • EXT-PS526AIPN or EXT-PS526AIPN-6 5V Power Supply(1)
  • QSG-DIGAUD-141 Quick Start Guide(1)
