EXT-ADA-LAN-RX
Digital and Analog Audio over IP – Receiver Package

Extend and Distribute Analog and Digital Audio, RS-232, and IR over a Local Area Network

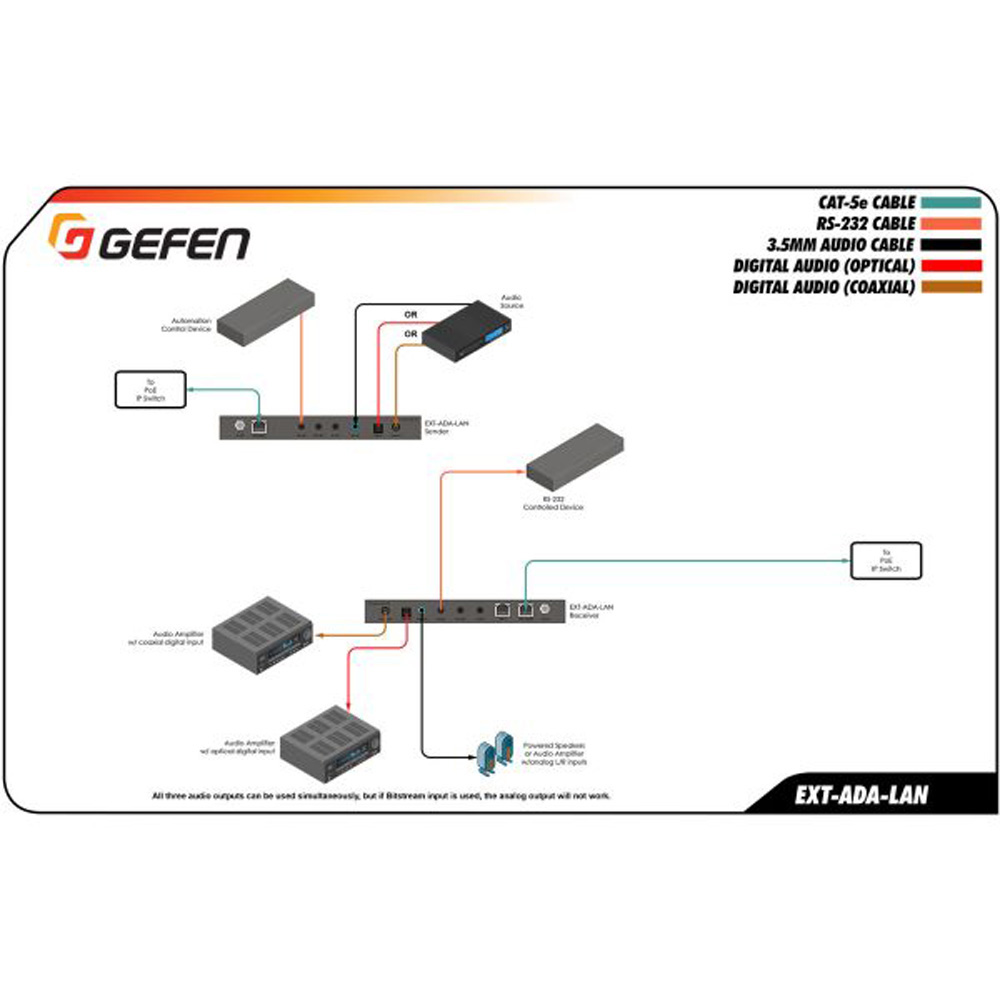

Gefen AV over IP solutions continue our tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX) and Receiver (EXT-ADA-LAN-RX) are new additions to Gefen’s family of AV over IP products, offering a much-needed audio-only option for background music, public announcements, and other applications where stand-alone audio needs to be distributed through the AV system. Audio input and output options include L/R Analog, Coaxial Digital, and Optical Digital. When using the digital inputs and outputs, 2-channel PCM and up to 5.1 channels of Bitstream can be distributed through the system. In addition to audio, RS-232 and 2-way IR can also be independently* routed and distributed for source and amplifier control. The entire Gen 2.0 product line, including the audio models, feature backward-compatibility with our first-generation products.

Power-over-Ethernet allows the Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies. When used in conjunction with the EXT-C(more…)

FEATURES

  • Extends digital and analog audio, RSZ-232, and IR, using a Gigabit Local Area Network
  • Independent audio, RS-232, and IR routing**
  • Backward-compatible with first generation Gefen AV over IP products
  • Analog L/R, Coaxial Digital, and Optical Digital Inputs and Outputs
  • MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
  • Enhanced API for added functionality with third-party control systems
  • Built-in web interface, Telnet, and UDP
  • Compatible with the Gefen Keyboard Switching Controller software, available for download at www.gefen.com
  • Supports 39,900 Senders and a combination of over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
  • 802.3af standard Power-over-Ethernet allows the new Sender and Receiver units to be powered through a standard PoE-enabled IP network switch, without the need for external power supplies
  • Two-port Gigabit Ethernet switch built into the Receiver unit
  • Field-updatable firmware via EXT-CU-LAN controller or the built-in web server interface
  • Locking power supply connectors

SPECIFICATIONS

Supported Audio Formats:
Analog: L/R Stereo
: Digital: 2-Channel PCM and up to 5.1 channels of Bitstream
Analog Line Input (Sender): (1) 3.5mm mini-stereo jack

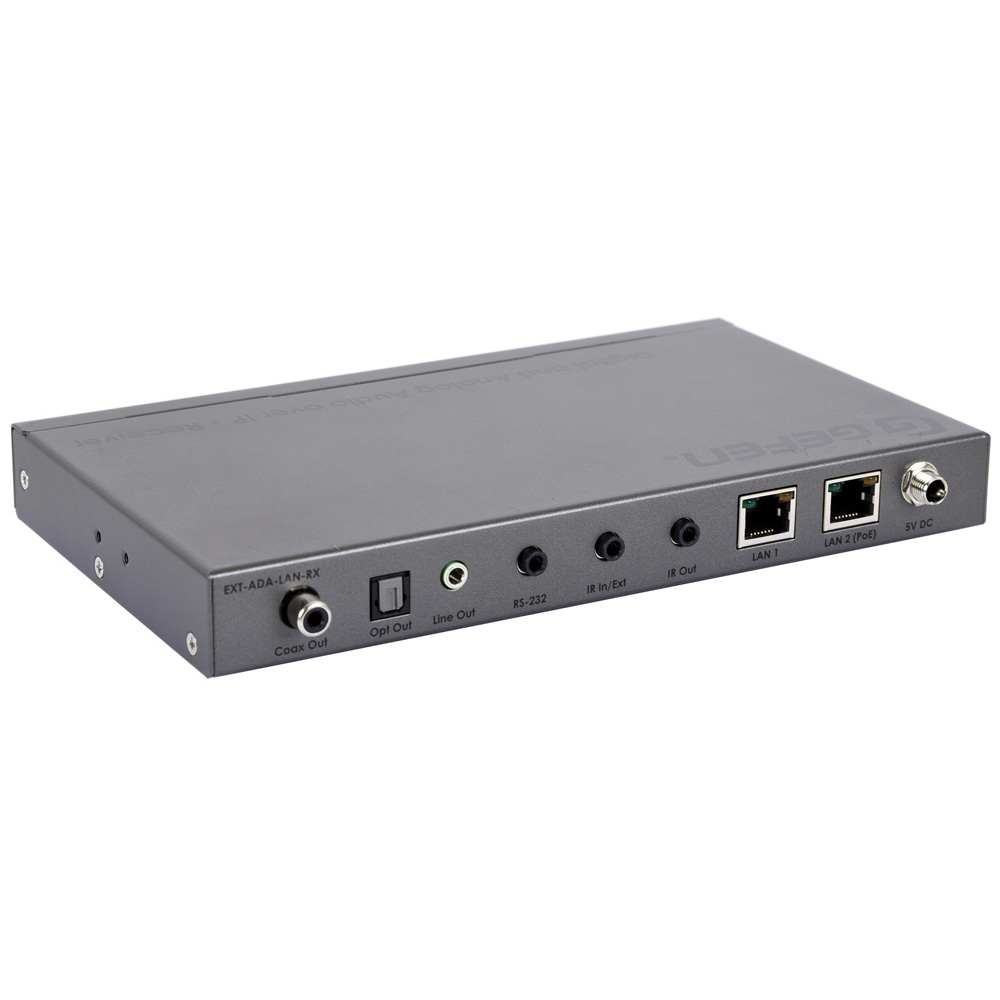

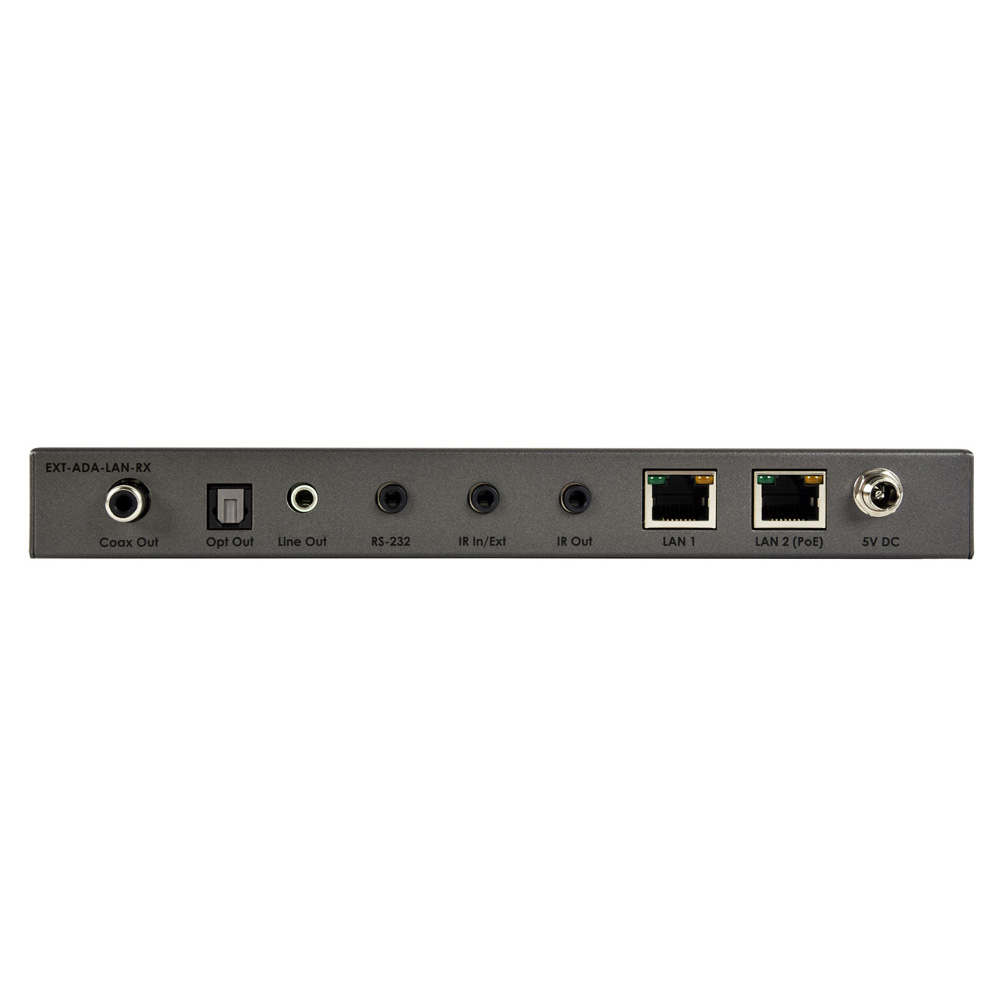

Analog Line Output (Receiver): (1) 3.5mm mini-stereo jack
Optical Digital Audio Input (Sender): (1) TOSLINK ®
Optical Digital Audio Output (Receiver): (1) TOSLINK ®
Coaxial Digital Audio Input (Sender): (1) RCA, female
Coaxial Digital Audio Output (Receiver): (1) RCA, female
RS-232 port (Sender/Receiver): (1) 3.5mm stereo jack, female, DB-9 adaptor included
IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
IR Extender type: EXT-RMT-EXTIRN
Ethernet port (Sender): (1) RJ-45, shielded, PoE
Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

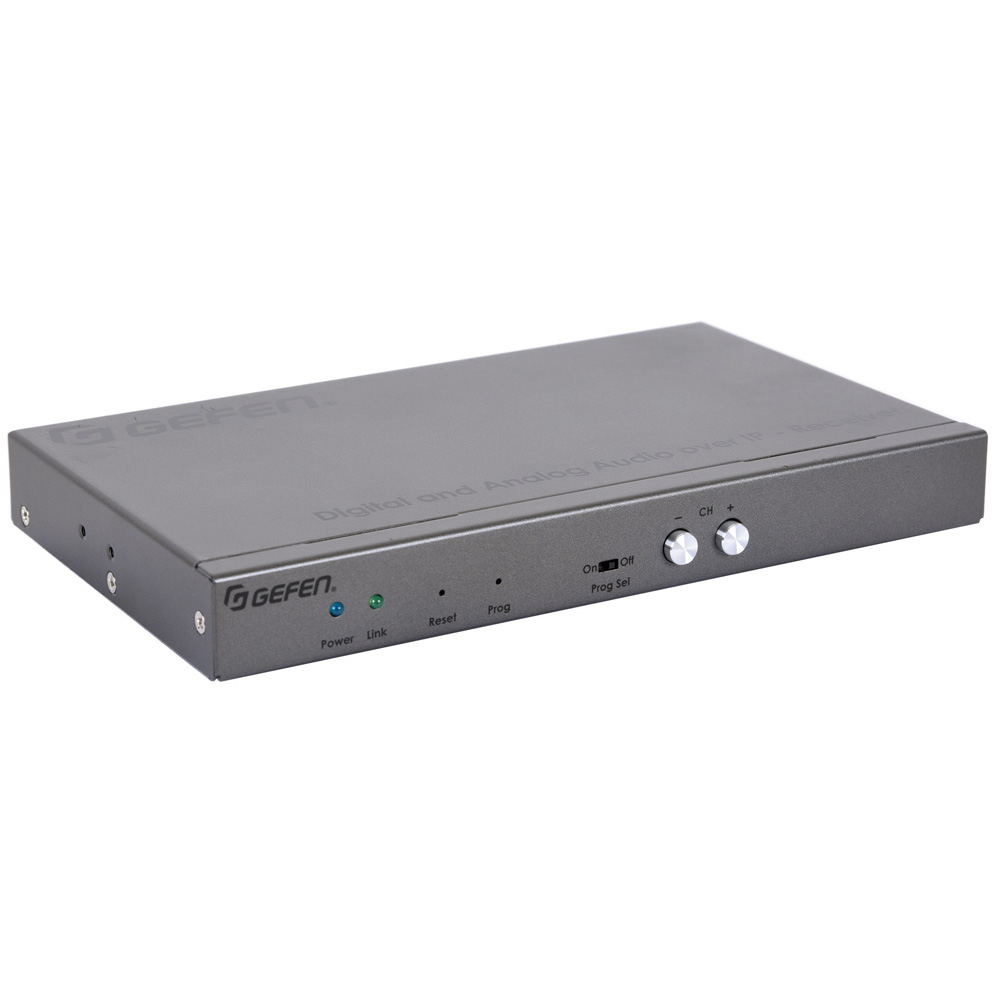

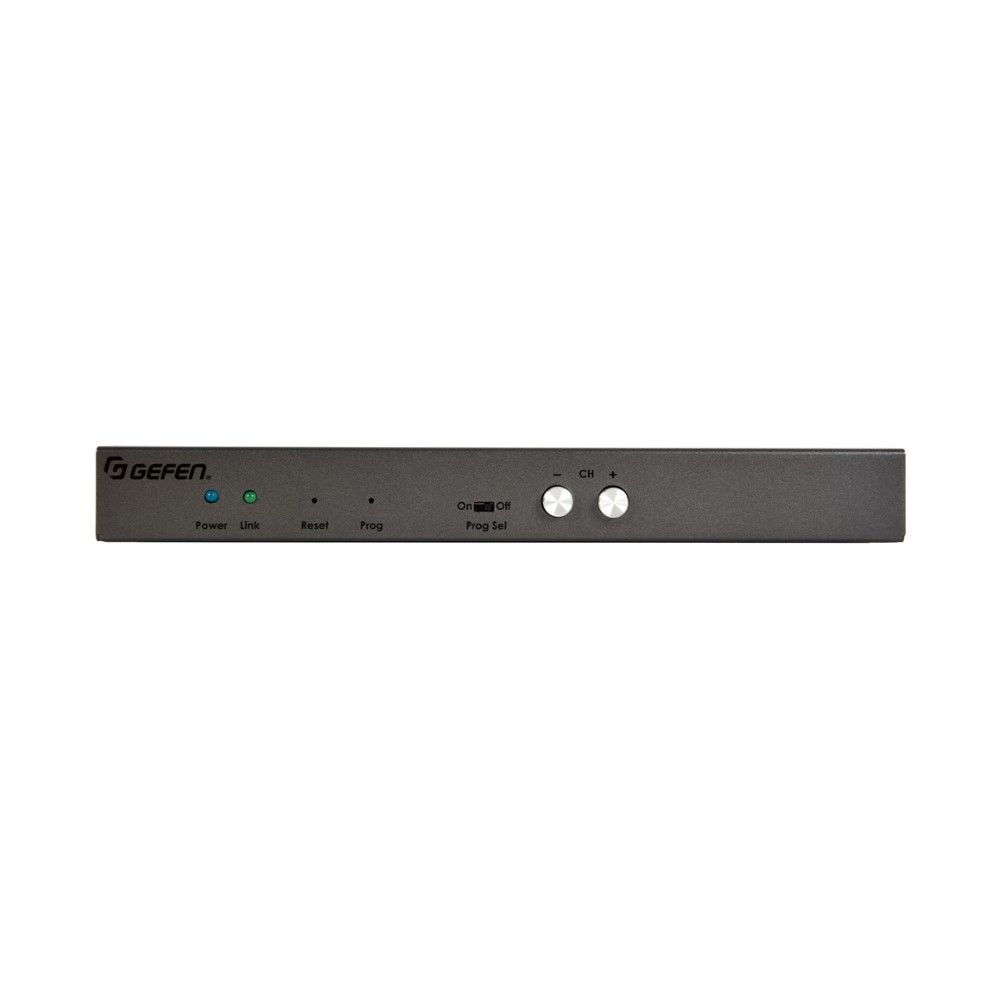

Channel Up button (Receiver): (1) tact-type
Channel Down button (Receiver): (1) tact-type
Reset button (Sender/Receiver): (1) tact-type, recessed
Program button (Sender/Receiver): (1) tact-type, recessed
Program Select switch (Sender/Receiver): (1) slide-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Supply jack (Sender/Receiver): 5(more…)

OTHER SPECIFICATIONS

Shipping Info

  • Length13.2 (Inches)
  • Width8.1 (Inches)
  • Height3.6 (Inches)
  • Weight2.9 (Lbs)
  • Unit of MeasureEach
  • UPC888814999778

Other Specifications

  • Supported Audio FormatsAnalog: L/R Stereo
  • Digital: 2-Channel PCM and up to 5.1 channels of Bitstream
  • Analog Line Input (Sender) (1) 3.5mm mini-stereo jack
  • Analog Line Output (Receiver) (1) 3.5mm mini-stereo jack
  • Optical Digital Audio Input (Sender) (1) TOSLINK ®
  • Optical Digital Audio Output (Receiver) (1) TOSLINK ®
  • Coaxial Digital Audio Input (Sender) (1) RCA, female
  • Coaxial Digital Audio Output (Receiver) (1) RCA, female
  • RS-232 port (Sender/Receiver) (1) 3.5mm stereo jack, female, DB-9 adaptor included
  • IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
  • IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
  • IR Extender type EXT-RMT-EXTIRN
  • Ethernet port (Sender) (1) RJ-45, shielded, PoE
  • Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
  • Channel Up button (Receiver) (1) tact-type
  • Channel Down button (Receiver) (1) tact-type
  • Reset button (Sender/Receiver) (1) tact-type, recessed
  • Program button (Sender/Receiver) (1) tact-type, recessed
  • Program Select switch (Sender/Receiver) (1) slide-type, recessed
  • Link Indicator (Sender/Receiver) (1) LED, green
  • Power Indicator (Sender/Receiver) (1) LED, blue
  • Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm barrel, locking
  • Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
  • Power Consumption Sender TBD
  • Receiver TBD
  • Operating Temperature (Sender/Receiver) +32 to +122 °F (0 to +50 °C)
  • Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
  • Storage Temperature (Sender/Receiver) -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
  • MTBFSender: 50000 hours
  • Receiver: 50000 hours
  • Dimensions (W x H x D, without connectors or feet)Sender: 8.4″ x 1.0″ x 4.9″ (214mm x 25mm x 123mm)
  • Receiver: 8.4″ x 1.0″ x 4.9″ (214mm x 25mm x 123mm)
  • Unit Weight Sender: TBD
  • Receiver TBD
  • Shipping Weight Sender: TBD
  • Receiver: TBD
  • * Features and specifications are subject to change without notice.** Pending features to be activated via an upcoming firmware update

In The Box

  • Receiver unit (EXT-ADA-LAN-RX)1
  • 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)1
  • 3.5mm-to-DB-9 Adaptor, M-M (ADA-MP-2-DB9-MM-AB)1
  • IR Extender (EXT-RMT-EXTIRN)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2
  • Quick-Start Guide1
