FEATURES
- Controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232
- Input resolutions up to 1080p Full HD (60 Hz), with HDCP 1.4
- Output resolutions up to 4K 60 Hz 4:4:4
- User-selectable playback of HDMI audio content from any of the four inputs
- Analog L/R Audio Breakout for use with outboard amplification systems
- Easy to use on-screen Graphical User Interface (GUI) and web server interface
- Handheld IR remote control and IR Extender input on back panel
- Seamless switching ensures no switching delay and no picture
loss during transitions - Field-upgradable firmware using the Gefen Syner-G software
- Default pre-configured Multiview window arrangements can be accessed via two front panel preset push-buttons
- Custom user-configurable Multiview window layouts can be accessed via two front panel preset push-buttons and via OSD
- Locking power supply connector
- 1U tall rack-mountable enclosure, rack ears included
- * Features and specifications are subject to change without notice.
SPECIFICATIONS

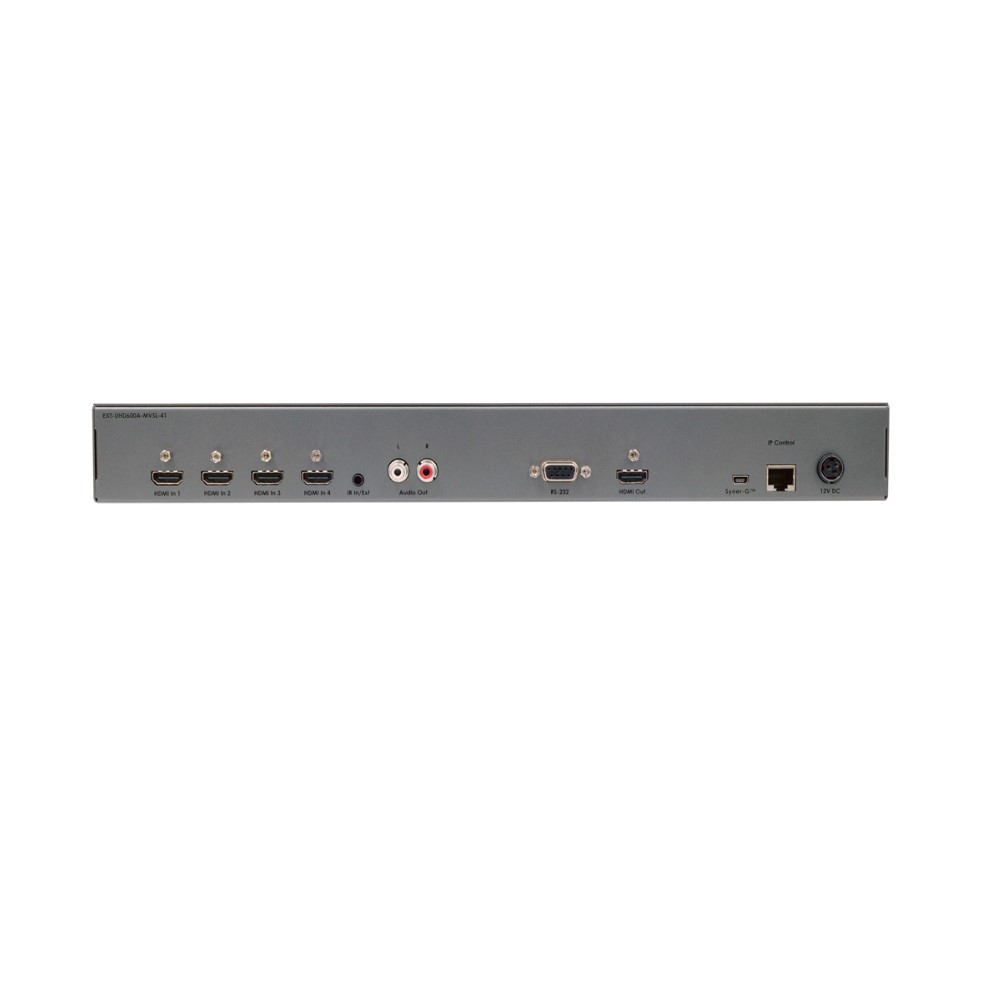

Video Input connectors: (4) HDMI Type A, 19-pin, female, locking
Video Output connector: (1) HDMI Type A, 19-pin, female, locking
Analog Audio Output connectors: (2) RCA jacks
RS-232 connector: (1) DB-9, female
IP Control connector: (1) RJ-45, shielded
USB Connector: (1) Mini-B
IR In/Ext Connector: (1) 3.5mm stereo mini-phone jack
IR Extender type: EXT-RMT-EXTIRN

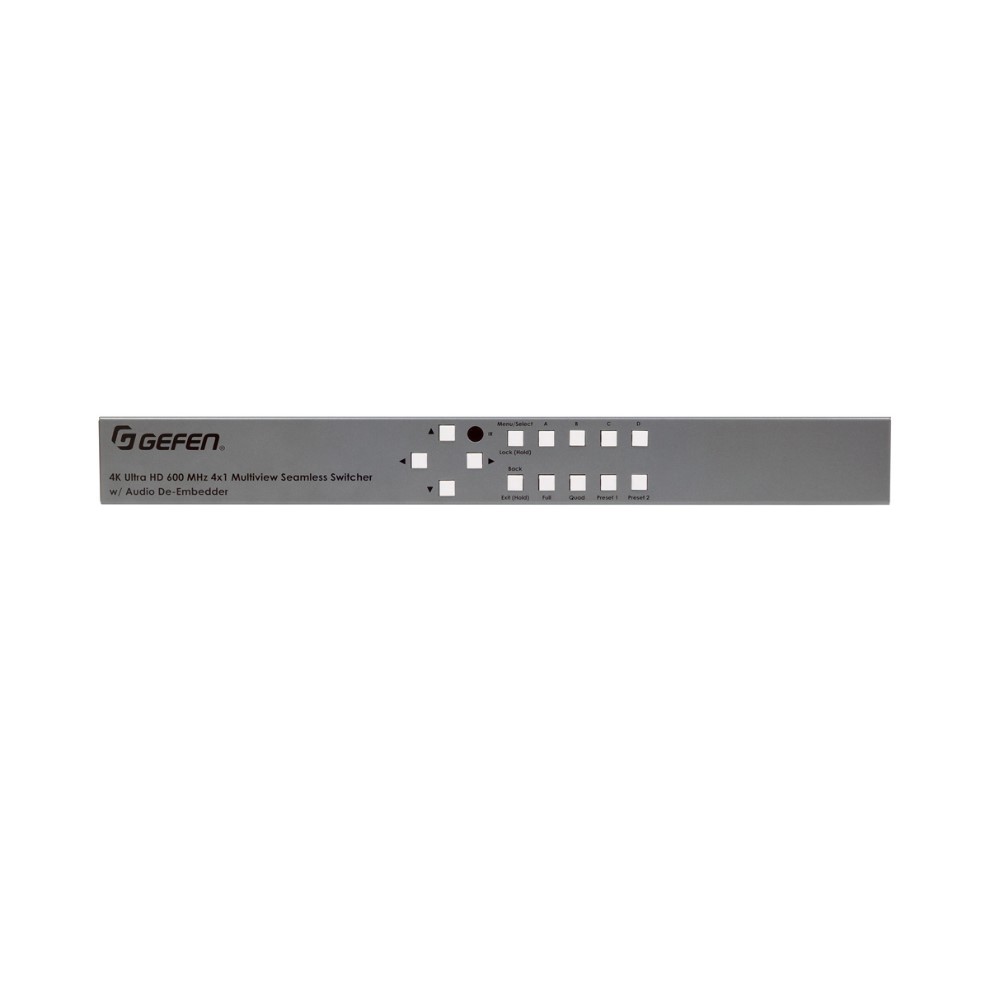

Factory Default Preset selector buttons: (2) tact-type
Custom User Preset selector buttons: (2) tact-type
Input/Window selector buttons: (4) tact-type
Menu Navigation buttons: (6) tact-type
Power Supply Connector: 3-pin locking plug
Power Supply: 12V DC
Power Consumption: 15W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (W x H x D, not including connectors):
Without Rack Ears: 15.3� x 1.7� x 8.9� (389mm x 43mm x 226mm)
: With Rack Ears: 18.9� x 1.7� x 8.9� (480mm x 43mm x 226mm)
Unit Weight: 5.4 lbs (2.5 kg)
Shipping Weight: 10 lbs (4.6 kg)
OTHER SPECIFICATIONS
Shipping Info
- Length21 (Inches)
- Width12.6 (Inches)
- Height6.3 (Inches)
- Weight9.95 (Lbs)
- Unit of MeasurePackage
- UPC888814999860
Other Specifications
- Video Input connectors (4) HDMI Type A, 19-pin, female, locking
- Video Output connector (1) HDMI Type A, 19-pin, female, locking
- Analog Audio Output connectors (2) RCA jacks
- RS-232 connector (1) DB-9, female
- IP Control connector (1) RJ-45, shielded
- USB Connector (1) Mini-B
- IR In/Ext Connector (1) 3.5mm stereo mini-phone jack
- IR Extender type EXT-RMT-EXTIRN
- Factory Default Preset selector buttons (2) tact-type
- Custom User Preset selector buttons (2) tact-type
- Input/Window selector buttons (4) tact-type
- Menu Navigation buttons (6) tact-type
- Power Supply Connector 3-pin locking plug
- Power Supply 12V DC
- Power Consumption 15W maximum
- Operating Temperature +32 to +122 °F (0 to +50 °C)
- Operating Humidity 5% to 90% RH, non-condensing
- Storage Temperature -4 to +185 °F (-20 to +85 °C)
- Storage Humidity 0% to 95% RH, non-condensing
- MTBF 50000 hours
- Dimensions (W x H x D, not including connectors) Without Rack
- Ears: 15.3″ x 1.7″ x 8.9″ (389mm x 43mm x 226mm)
- With Rack Ears: 18.9″ x 1.7″ x 8.9″ (480mm x 43mm x 226mm)
- Unit Weight 5.4 lbs (2.5 kg)
- Shipping Weight 10 lbs (4.6 kg)
- * Features and specifications are subject to change without notice.
In The Box
- 4K 600 MHz Multiview Seamless Switcher1
- 6 ft. Locking HDMI Cables4
- 6 ft. DB-9 Cable1
- EXT-RMT-EXTIRN IR Extender Module1
- Rack Ears2
- Rack Ear Screws4
- Handheld IR Remote1
- EXT-PS121.5AIP-3P-6 12V DC Locking Power Supply with
- US/EU/UK/AU plugs 1
- Quick-Start Guide1
