XT5
BrightSign

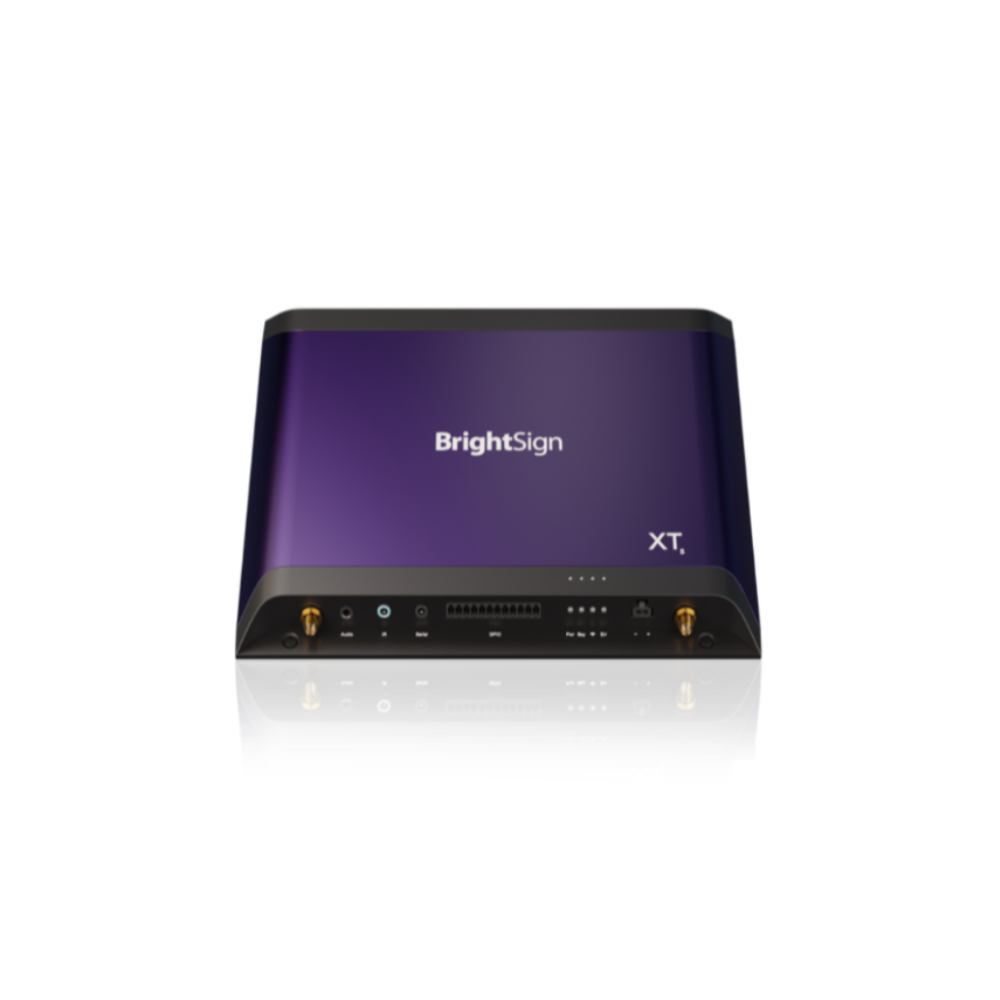

BrightSign XT5 future proofs deployments with confidence by delivering power, performance, and flexibility to create captivating experiences. This product line consists of three ultra-thin models, all capable of playing the highest quality video up to 8K resolution and running sophisticated HTML motion graphics with remarkable performance. XT5 offers the most extensive set of HDMI and connectivity ports. Its HDMI input option plays live TV or video from outside sources. Dual HDMI outputs can power two screens simultaneously for video walls or dual-screen signage applications. Streamline installations with Power over Ethernet (PoE+) and utilize a comprehensive set of I/Os for add-on devices and engagement. BrightSign XT5’s versatility and power guarantees exceptional signage experiences for years to come.

Future-Proof Performance

Power and versatility to create captivating experiences for years to come.

  • Plays brilliant 1080p to 8K video
  • Supports dual 4K video decoding to drive two screens at once
  • Runs highly responsive motion graphics at high frame rates
  • Streamlined deployments with PoE+ and comprehensive I/O capabilities
  • Efficient, ultra-thin design with anodized aluminum enclosure
  • Runs BrightSignOS

Next-Gen Motion Graphics

Cutting-edge graphics capabilities.

  • Powers sophisticated WebGL, HTML, CSS and JavaScript graphics
  • Runs highly responsive motion graphics at high frame rates
  • Supports responsive multi-touch, pinch, and zoom interactions
  • Optimized for ultra-smooth 3D motion graphics and data visualizations

High Quality Video

Drives stunning HD experiences from 1080p to 8K.

  • Runs brilliant full resolution graphics and video from 1080p to 8K video
  • Supports a broad range of unique and customizable resolutions at various frame rates
  • Delivers industry-best 60p, 10-bit decoding
  • Optimized storage with cutting-edge video codecs

Connect & Create

Creates immersive and powerful experiences at scale.

  • Offers BrightSign’s most expansive set of connectivity options yet
  • Engage your audience dual USB, serial, GPIO, IR, and digital/analog audio
  • Streamlined deployments with Gigabit speed PoE+
  • Control live TV with an HDMI In port

Dual Screen Deployments

Deploys brilliant Full HD and 4K dual-screen experiences.

  • Offers dual HDMI outputs to drive two screens at once
  • Supports dual 4K or dual Full HD video decoding
  • Streamline video wall and 2-screen deployments with a single players
  • Play a single video or HTML canvas of content across 2 displays for video wall applications
  • Assign independent content to play from each HDMI output for multi-screen applications
  • Use the HDMI Input to play live TV spread across two screens

DOWLOADS

SPECIFICATIONS

XT245 XT1145 XT2145
Input/Output Standard Expanded Multiplex
HTML5 Performance Level Executive: Powers challenging 3D WebGL motion graphics Executive: Powers challenging 3D WebGL motion graphics Executive: Powers challenging 3D WebGL motion graphics
Video Decoding Single 8K60p and 4K60p (10-bit), Dual 4K and Full HD Single 8K60p and 4K60p (10-bit), Dual 4K and Full HD Single 8K60p and 4K60p (10-bit), Dual 4K and Full HD
Video Codecs 8K: H.265 at 60p, 4K: H.265 & H.264 at 60p 8K: H.265 at 60p, 4K: H.265 & H.264 at 60p 8K: H.265 at 60p, 4K: H.265 & H.264 at 60p
HDMI 1 Output HDMI 2.1a HDMI 2.1a HDMI 2.1a
HDMI 2 Output HDMI 2.0a
Media Formats 8K & 4K VIDEO: .ts, .mov, .mp4, .mkv 8K & 4K VIDEO: .ts, .mov, .mp4, .mkv 8K & 4K VIDEO: .ts, .mov, .mp4, .mkv
Gigabit Power over Ethernet (PoE+) X X X
Audio 3.5mm Output (Analog or SPDIF) X X X
USB-A: provides 5V/1A power to peripheral devices X X
USB-C: supports high-speed host mode & provides 5V/1A power to peripheral devices X X
3.5mm RS-232 Serial Port X X
Dimensions (WxDxH) 238.62 x 185.9 x 19.19 mm 238.62 x 185.9 x 19.19 mm 238.62 x 185.9 x 19.19 mm
Warranty, parts and labor 1 year (2 year in EU/UK) 1 year (2 year in EU/UK) 1 year (2 year in EU/UK)
