SD-7075-A
HDMI Converter Box

SD-7075-A is an HDMI converter box to convert 4 channels of HDMI 2.0 to 1 channel of HDMI 2.1.
It is useful for connecting to an HDMI 2.1 TV from a set top box or graphic board that has 4 channels of HDMI 2.0 output.

Features

  • Converts HDMI 2.0 TMDS (4ch) to HDMI 2.1 FRL (1ch)
  • Supports DSC (Display Stream Compression) 1.2
  • Supports HDCP 1.4 and 2.3
  • EDID, SCDC and Link Training status are displayed on the front panel
  • LAN, RS-232C and GPIO (customized base) for external control

Note :

  1. Frame rate and bit depth of output video are same as input video.
    In case of 8K/50p, 59.94p and 60p output, it becomes YCBCR 4:2:0 automatically.
  2. FRL output rate is determined according to the EDID of the HDMI Sink.
    If there is no EDID in the HDMI Sink, maximum FRL rate will be output.
  3. All 4 input channels should be connected to the Source.

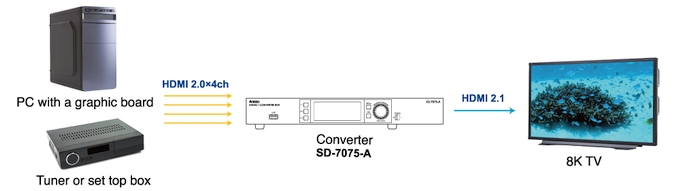

Application

SPECIFICATIONS

Input Format
Vıdeo

HDMI Ch Resolutıon Resolutıon/Ch Frame Rate Color Space bıt Transmıssıon Method
2.0 4 7680 x 4320 3840×2160 60p/59.94p/50p RGB/YCBCR 4:4:4 8 SQD
YCBCR 4:2:2 12
YCBCR 4:2:0 12
10
8
30p/29.97p/25p/24p/23.98p RGB/YCBCR 4:4:4 12
10
8
YCBCR 4:2:2 12
3840×2160 1920 x 1080 120p/119.88p/100p RGB/YCBCR 4:4:4 12
10
8
YCBCR 4:2:2 12
YCBCR 4:2:0 12
10
8



Audıo Format
L-PCM: 8ch(max)
32kHz / 44.1 kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz, 16bit / 20bit / 24bit
AAC LC: 6ch(max),
32kHz / 44.1 kHz / 48kHz / 96kHz, 576kbps(max)
DTS: 6ch(max),
44.1 kHz / 48kHz, 1536kbps(max)
AC-3: 6ch(max),
32kHz / 44.1 kHz / 48kHz, 640kbps(max)

Output Format

Video

DSC Resolutıon Frame Rate Colorımetry Bıt FRL Rate
12G/4L 10G/4L 8G/4L 6G/4L 6G/3L 3G/3L
OFF 7680 × 4320 60/59.94/50p YCBCR 4:2:0 12 ●
10 ● ●
8 ● ● ●
30/25p RGB/YCBCR 4:4:4 12 ●
30/25/24p RGB/YCBCR 4:4:4 10 ● ●
8 ● ● ●
YCBCR 4:2:2 12 ● ● ●
3840 × 2160 120/100p RGB/YCBCR 4:4:4 12 ●
10 ● ●
8 ● ● ●
YCBCR 4:2:2 12 ● ● ●
10 ● ● ●
8 ● ● ● ●
ON 7680 ×　4320 60/59.94/50p RGB/YCBCR 4:4:4 8 ● ● ● ●
YCBCR 4:2:2 12 ● ● ● ●
YCBCR 4:2:0 12 ● ● ●
10 ● ●
8 ●
30/25/24p RGB/YCBCR 4:4:4 12 ● ● ● ●
10 ● ● ●
8 ● ●
YCBCR 4:2:2 12 ● ● ●
3840 × 2160 120/100p RGB/YCBCR 4:4:4 12 ● ● ● ●
10 ● ● ●
8 ● ●

Audio follows Input format.



General Specifications

Items Descrıptıon
HDMI Dot Clock 25MHz to 2376MHz
Color Format RGB, YCBCR 4:4:4/4:2:2/4:2:0
Color Depth 8, 10, 12-bit
Audio Sampling Frequency 32kHz to 192kHz (L-PCM 2 to 8ch) IEC60958, 61937
HDCP Ver. 1.4/2.3
E-EDID Ver. 1.4 (DDC2B)
External Supplying Power 5V /Max. 50mA
Power Requirements AC 100 – 240V
Power Consumption 100W MAX
Dimensions 330(W)x44(H)x250(D)mm　(excluding protrusions)
Weight Approx. 2 kg
